Hi everyone,
As it sometimes happens in the smart home world, you come up with some rather unusual ideas.

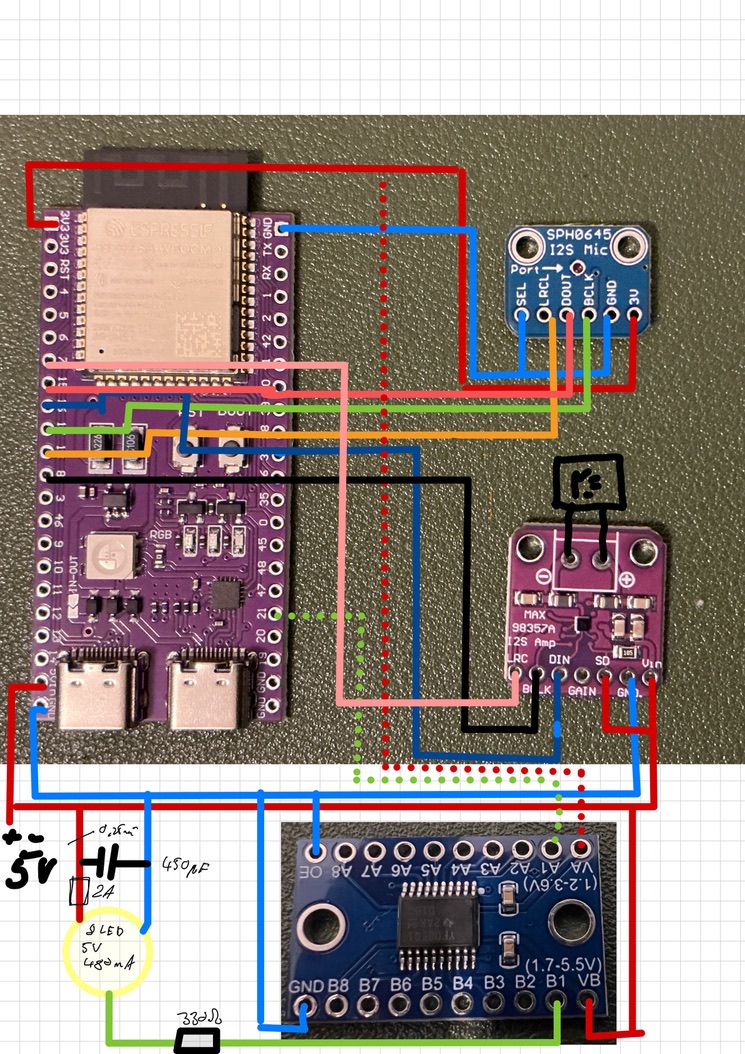

Since my doorbell broke, I decided to quickly build something of my own: a door chime that not only makes a sound but also talks to me via AI. For this, I’m using:
- an ESP32-S3-AI with microphone and speaker
- a small WS2812 LED ring
Unfortunately, I can’t get the whole thing working at the moment. For the voice assistant code, I followed the ready-made ESPHome project for the M5Stack.
I also integrated the LED ring control in combination with the AI. The ESP is correctly recognized by Home Assistant as a voice assistant. However, I’m running into the following issues:
- Audio output via the speaker only works as a media player
- No response from the microphone
- No LED indication on the WS2812 ring
So I suspect that either something fundamental is missing or there’s an error in the code. Could someone please take a look and point me in the right direction?
Thanks in advance!
captive_portal:
##########################################
# I²S Audio Bus 0 - Mikrofon (RX)
##########################################
i2s_audio:
- id: i2s_in
i2s_lrclk_pin: GPIO18
i2s_bclk_pin: GPIO17
##########################################
# I²S Audio Bus 1 - Lautsprecher (TX)
##########################################
- id: i2s_out
i2s_lrclk_pin: GPIO7
i2s_bclk_pin: GPIO8
##########################################
# Mikrofon SPH0645
##########################################
microphone:
- platform: i2s_audio
id: echo_microphone
adc_type: external
i2s_din_pin: GPIO16
i2s_audio_id: i2s_in
sample_rate: 16000
bits_per_sample: 32bit
pdm: false
##########################################
# Lautsprecher MAX98357A
##########################################
speaker:
- platform: i2s_audio
id: echo_speaker
i2s_dout_pin: GPIO15
i2s_audio_id: i2s_out
dac_type: external
bits_per_sample: 16bit
sample_rate: 16000
##########################################
# Media Player
##########################################
media_player:
- platform: speaker
name: TürgongAI Player
id: echo_media_player
announcement_pipeline:
speaker: echo_speaker
format: WAV
codec_support_enabled: false
buffer_size: 6000
volume_min: 0.4
##########################################
# WS2812B LED-Ring
##########################################
light:
- platform: esp32_rmt_led_strip
id: led
name: TürgongAI LED
pin: GPIO21
default_transition_length: 0s
chipset: WS2812
num_leds: 8
rgb_order: GRB
#rmt_channel: 1
effects:
- pulse:
name: "Slow Pulse"
transition_length: 250ms
update_interval: 250ms
min_brightness: 50%
max_brightness: 100%
- pulse:
name: "Fast Pulse"
transition_length: 100ms
update_interval: 100ms
min_brightness: 50%
max_brightness: 100%
##########################################
# Voice Assistant
##########################################
voice_assistant:
id: va
microphone: echo_microphone
speaker: echo_speaker
noise_suppression_level: 2
auto_gain: 31dBFS
volume_multiplier: 2.0
on_listening:
- light.turn_on:
id: led
blue: 100%
red: 0%
green: 0%
effect: "Slow Pulse"
on_stt_vad_end:
- light.turn_on:
id: led
blue: 100%
red: 0%
green: 0%
effect: "Fast Pulse"
on_tts_start:
- light.turn_on:
id: led
blue: 100%
red: 0%
green: 0%
brightness: 100%
effect: none
on_end:
- delay: 100ms
- wait_until:
not:
speaker.is_playing: echo_speaker
- script.execute: reset_led
on_error:
- light.turn_on:
id: led
red: 100%
green: 0%
blue: 0%
brightness: 100%
effect: none
- delay: 2s
- script.execute: reset_led
##########################################
# Micro Wake Word
##########################################
micro_wake_word:
on_wake_word_detected:
- voice_assistant.start:
wake_word: !lambda return wake_word;
vad:
models:
- model: okay_nabu
##########################################
# Scripts
##########################################
script:
- id: reset_led
then:
- light.turn_off: led
##########################################
# Test-Schalter
##########################################
switch:
- platform: template
name: "Test LED"
turn_on_action:
- light.turn_on:
id: led
red: 100%
green: 0%
blue: 0%
brightness: 100%
turn_off_action:
- light.turn_off: led
binary_sensor:
- platform: status
name: "TürgongAI Status"
