I have several UPS’, most are APC Backups but some Tripp Lite and perhaps some CyberPower. In other words most use USB connections. I do have on that is a smart UPS. I have always longed for one central “location” to monitor them. I discovered last night that HA has an APC integration, which sounds …

This might be what you’re looking for - HACS - NUT

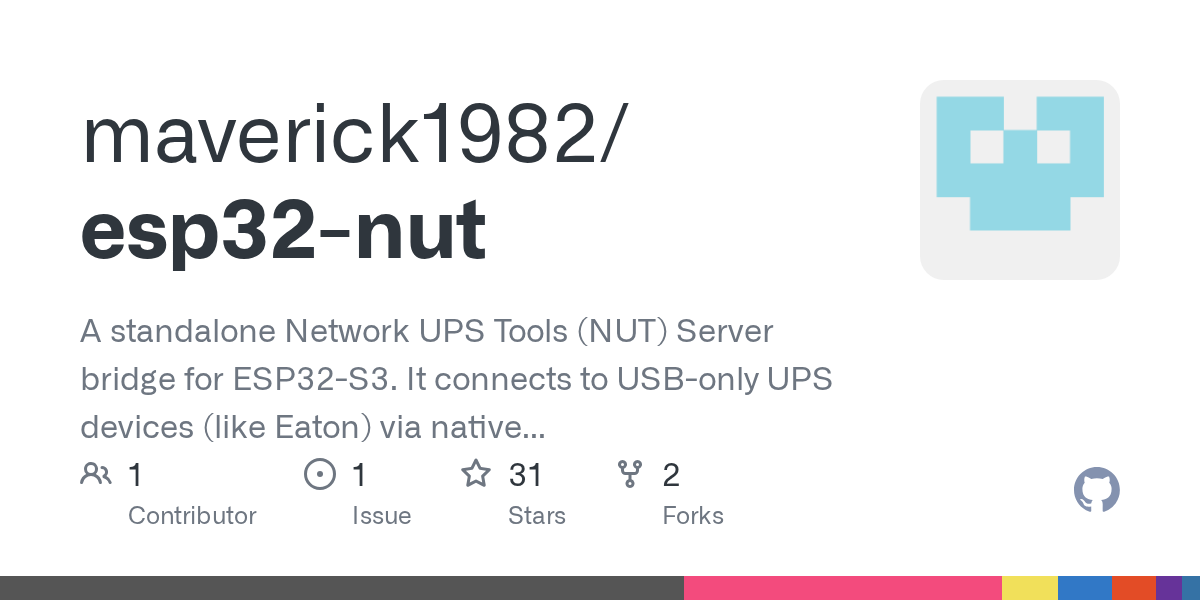

This might be useful. [image] GitHub - maverick1982/esp32-nut: A standalone Network UPS Tools (NUT) Server bridge... A standalone Network UPS Tools (NUT) Server bridge for ESP32-S3. It connects to USB-only UPS devices (like Eaton) via native USB Host and exposes their data over W…

I have my UPS plugged in via USB to my Synology NAS. That has an option to act as a NUT server, which I enabled. Then I use the built in NUT integration to get the UPS data into HA. If there is an option to enable NUT on the Powerchute software on your PVR, you might be able to do something simil…

Both NUT and apcupsd work well to integrate a APC UPS via serial or USB into HA. I’ve never used APC PowerChute as it seemed to be proprietary. I used a Raspberry Pi Pico W running APCUPSD to act as a serial server to link the UPS to WLAN, and to HA via APC UPS Daemon - Home Assistant . These days t…

Another possible solution would be to read the snmp information on the ip. Works fine (haven’t been using it for a while since the ups died) if you find the correct mips (mibs, don’t know the term anymore).

Yeah, I also stumbled on that esp32-s3 a solution too; I just ordered 2 and will start checking it out as soon as I’m back from holidays :hugs:

I installed and configured NUT on all the relevant systems with UPS’ attached to them. Then installed and configured Network UPS Tools (NUT) in Home Assistant for each system that I wanted to monitor. Each system had different configuration steps (OPNSense, OpenWRT, Ubuntu, Windows)

APC and other brand UPS Monitoring

Third party integrations

Spamfast August 11, 2026, 1:25pm 3

This might be useful.

I’ve installed on an S3 board but I’m currently waiting on Amazon for a suitable USB cable.
