Still not agreeing that HA is not compensating, with me all (!) is fine with your server and TZ. And btw…to offset a graph you can probably use offset instead of a lengthy data_generator
EDIT: correction on offset… this would mean ALWAYS offset and you only want a partial offset…anyhow,
Yes as I stated in the updated post all is fine with HA, the server and TZ.
It’s apexcharts that with those settings I posted ends up requiring the offset: if I plot the same data on a simple line graph like you tried, all is fine. With columns, if I want the ticks between columns instead of in the middle of the columns, I require an offset.
No question here – I’m just super excited to share something cool I built!
I combined a few amazing Home Assistant tools to get a full breakdown of my energy usage and costs – and I love how it turned out!
First, I used the fantastic PowerCalc integration to calculate Hourly, Daily, Monthly, and Yearly Energy Consumption for all my devices.
Then I hooked it up with the Dynamic Energy Cost Integration to multiply the usage with the actual energy prices. Real-time energy cost? Yes please!
To make things dynamic and clean, I added lovelace-auto-entities to automatically filter and sort everything…
…and finally visualized it all beautifully with the ApexCharts Card. The result? A slick, informative dashboard that updates itself and gives me full insight into where my energy goes.
Just had to share – Home Assistant + these integrations =
type: custom:auto-entities
filter:
include:
- entity_id: sensor.*daily_energy_cost
exclude:
- state 1: "< 0.25"
- entity_id: sensor.gasverbrauch*energy_cost
- entity_id: sensor.esp_lesekopf_stromzahler_aktuelle_wirkleistung_*_energy_cost
show_empty: false
unique: true
sort:
method: state
reverse: true
card:
type: custom:apexcharts-card
chart_type: donut
header:
title: Stromkosten pro Tag
show: true
show_states: false
colorize_states: true
apex_config:
legend:
show: false
dataLabels:
formatter: |
EVAL:function(value) {
return value.toFixed(0) + " %";
}
plotOptions:
pie:
donut:
labels:
show: true
total:
show: true
label: Total
formatter: |
EVAL:function(w) {
return w.globals.seriesTotals.reduce((a, b) => {return (a + b)} , 0).toFixed(2) + " €"
}
3 Likes
So I have built a graph for my PV system which shows electricity production and consumption:
I have also implemented a ‘timeline’ below the graph to help me identify which load corresponds to consumption (ev charger, well pump, water heater, etc) based by color. Here is an example for an ev charger for anyone interested:
- entity: sensor.wallbox_pulsar_plus_socket_status_description
transform: "return x === 'Charging' ? -750 : null;"
type: line
opacity: 0.8
color: rgb(80,110,172)
stroke_width: 5
curve: stepline
extend_to: false
group_by:
func: last
duration: 1m
The code takes a sensor value and replaces it with a negative y value based on some condition to plot below the axis as a thick line.
I like it as it is but wonder if something like this is possible:
I was thinking of displaying the current (last) reading of a sensor value and displaying it as the last datalabel or annotation. If someone has any idea how to do it I would be grateful.
1 Like
Hi, I have indeed asked for help from several AIs who have given me different codes, even with examples for the graphs of my heating but he has never managed to make it work.
Are you referring to AI as a ‘he’ now…?
In general HA view/terms (and also other IT areas)…if you donot properly know what you are doing then AI is more than often not a help. It can put you in the right direction but likely not provide solutions on complex stuff…or very bad solutions. This may improve over time but for HA, I am not at all impressed by any AI so far
hover
Hi all,

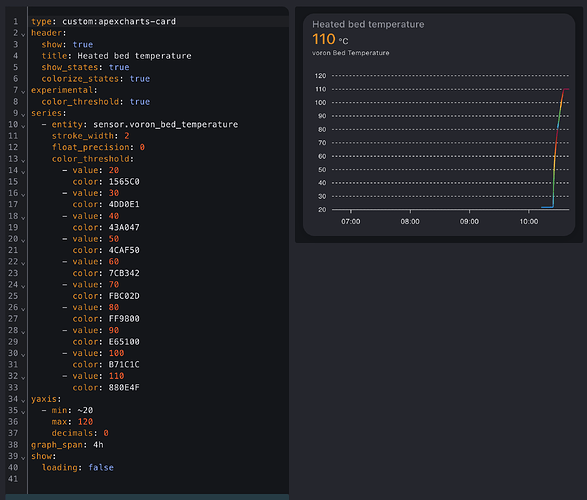

can someone point me why my graph is showing wrong colors in a color threshold mode?
It is going from blue to red up to 80C and then again back to blue, instead of blue at 20C and red at 110C.
Hi everyone. Can anyone give me a clue as to why the following card does not do what I would like!? The card is supposed to show the change between 2 values in the series, and then when it ticks over it adds 4096 to make the value positive. All is fine with positive diffs, however, it doesn’t seem to detect any negative value in the transform and always shows the x on the graph, even when it is (say?) -4000.
Many thanks! Dave
series:
- entity: sensor.archer_vr2100_data_received_mb
name: Received
type: line
stroke_width: 2
group_by:
func: diff
duration: 5min
transform: "return x >= 0 ? x : x + 4096;"
I am at a loss on how to display the correct units (ppm) in the legend instead of percentile.
I have tried adding unit: “ppm” on very possible line within the YAML file but nothing seems to work. Documentation does meantion but not for legend.
type: custom:apexcharts-card
chart_type: radialBar
experimental:
color_threshold: true
header:
show: true
floating: false
title: Pollen-Tree
show_states: true
colorize_states: true
apex_config:
stacked: true
legend:
show: true
position: left
plotOptions:
radialBar:
offsetY: -10
startAngle: 0
endAngle: 270
hollow:
margin: 5
size: 20%
background: transparent
image: false
dataLabels:
name:
show: false
value:
show: false
series:
- entity: sensor.pollen_bomen
type: column
name: Tree
show:
in_header: true
extremas: true
float_precision: 1
color_threshold:
- value: 0
color: green
opacity: 0.3
- value: 96
color: orange
- value: 208
color: red
- entity: sensor.pollen_berk
type: column
name: Berk
show:
in_header: true
extremas: true
float_precision: 1
color_threshold:
- value: 0
color: green
opacity: 0.3
- value: 96
color: orange
- value: 208
color: red
- entity: sensor.pollen_cipres
type: column
name: Cipres
show:
in_header: true
extremas: true
float_precision: 1
color_threshold:
- value: 0
color: green
opacity: 0.3
- value: 96
color: orange
- value: 208
color: red
- entity: sensor.pollen_eik
type: column
name: Eik
show:
in_header: true
extremas: true
float_precision: 1
color_threshold:
- value: 0
color: green
opacity: 0.3
- value: 96
color: orange
- value: 208
color: red
- entity: sensor.pollen_els
type: column
name: Els
show:
in_header: true
extremas: true
float_precision: 1
color_threshold:
- value: 0
color: green
opacity: 0.3
- value: 96
color: orange
- value: 208
color: red
- entity: sensor.pollen_hazelaar
type: column
name: Hazelaar
show:
in_header: true
extremas: true
float_precision: 1
color_threshold:
- value: 0
color: green
opacity: 0.3
- value: 96
color: orange
- value: 208
color: red
- entity: sensor.pollen_iep
type: column
name: Iep
show:
in_header: true
extremas: true
float_precision: 1
color_threshold:
- value: 0
color: green
opacity: 0.3
- value: 96
color: orange
- value: 208
color: red
- entity: sensor.pollen_pijnboom
type: column
name: Pijnboom
show:
in_header: true
extremas: true
float_precision: 1
color_threshold:
- value: 0
color: green
opacity: 0.3
- value: 96
color: orange
- value: 208
color: red
- entity: sensor.pollen_plataan
type: column
name: Plataan
show:
in_header: true
extremas: true
float_precision: 1
color_threshold:
- value: 0
color: green
opacity: 0.3
- value: 96
color: orange
- value: 208
color: red
- entity: sensor.pollen_populier
type: column
name: Populier
show:
in_header: true
extremas: true
float_precision: 1
color_threshold:
- value: 0
color: green
opacity: 0.3
- value: 96
color: orange
- value: 208
color: red
Can anyone tell my why my columns become so narrow when I add a line to my chart? This has been driving me crazy and I can’t seem to figure out what is causing it.
Here is the code with the line:
type: custom:apexcharts-card
experimental:
color_threshold: true
graph_span: 7d
apex_config:
chart:
height: 535px
show:
last_updated: true
header:
title: HVAC Usage Last 7 Days
show: true
show_states: true
colorize_states: true
yaxis:
- id: temps
decimals: 1
min: 0
- id: HVAC
decimals: 1
min: 0
max: 24
opposite: true
series:
- entity: sensor.hallway_temperature
yaxis_id: temps
color_threshold:
- value: 60
color: blue
- value: 65
color: cyan
- value: 68
color: green
- value: 75
color: orange
- value: 80
color: red
- entity: sensor.hvac_heat_mode
yaxis_id: HVAC
name: Heat Mode
type: column
color: goldenrod
stroke_width: 1
group_by:
func: last
duration: 1d
- entity: sensor.hvac_cool_mode
yaxis_id: HVAC
name: Cool Mode
type: column
color: dodgerblue
stroke_width: 1
group_by:
func: last
duration: 1d
- entity: sensor.hvac_off
yaxis_id: HVAC
name: HVAC Off
type: column
color: grey
stroke_width: 1
group_by:
func: last
duration: 1d
And when i remove the line series:
type: custom:apexcharts-card
experimental:
color_threshold: true
graph_span: 7d
apex_config:
chart:
height: 535px
show:
last_updated: true
header:
title: HVAC Usage Last 7 Days
show: true
show_states: true
colorize_states: true
yaxis:
- id: temps
decimals: 1
min: 0
- id: HVAC
decimals: 1
min: 0
max: 24
opposite: true
series:
- entity: sensor.hvac_heat_mode
yaxis_id: HVAC
name: Heat Mode
type: column
color: goldenrod
stroke_width: 1
group_by:
func: last
duration: 1d
- entity: sensor.hvac_cool_mode
yaxis_id: HVAC
name: Cool Mode
type: column
color: dodgerblue
stroke_width: 1
group_by:
func: last
duration: 1d
- entity: sensor.hvac_off
yaxis_id: HVAC
name: HVAC Off
type: column
color: grey
stroke_width: 1
group_by:
func: last
duration: 1d
Try to use formatter (see apexcharts.com), search for examples in this long thread
I did rtm and I saw this, but even with the experimental and color threshold lines removed it looks the same:
type: custom:apexcharts-card
graph_span: 7d
apex_config:
chart:
height: 535px
legend:
show: false
yaxis:
- id: temps
decimalsInFloat: 1
forceNiceScale: true
min: 0
title:
text: Temp (°F)
- id: HVAC
decimalsInFloat: 1
min: 0
max: 24
opposite: true
title:
text: Hours
show:
last_updated: true
header:
title: HVAC Usage Last 7 Days
show: true
show_states: true
colorize_states: true
series:
- entity: sensor.hallway_temperature
yaxis_id: temps
- entity: sensor.hvac_heat_mode
yaxis_id: HVAC
name: Heat Mode
type: column
color: goldenrod
stroke_width: 1
group_by:
func: last
duration: 1d
- entity: sensor.hvac_cool_mode
yaxis_id: HVAC
name: Cool Mode
type: column
color: dodgerblue
stroke_width: 1
group_by:
func: last
duration: 1d
- entity: sensor.hvac_off
yaxis_id: HVAC
name: HVAC Off
type: column
color: grey
stroke_width: 1
group_by:
func: last
duration: 1d
I cannot reproduce this, likely because of not the same dataset, try to use fill_raw in series and/or fill in group_by (see doc)
And in ALL cases, remove anything that is not needed to represent the crude graphs …only add things when the utmost basis is working…start with one graph then add 2nd
I’ll keep playing with the options, but fill_raw and fill don’t really get me what I’m looking for. I’m trying to track the number of hours that my HVAC is heating, cooling or off every day. 1 column per sensor every day though for testing I’ve included only heat since it has the most data. I just set up the sensors to track these yesterday, so there is not a lot of data for them yet. I’ve simplified the chart about as much as possible and still seeing the same thing.
type: custom:apexcharts-card
graph_span: 3d
span:
start: day
offset: -2d
header:
show: false
series:
- entity: sensor.hallway_temperature
- entity: sensor.hvac_heat_mode
type: column
group_by:
func: last
duration: 1d
And when I remove the line serie:
type: custom:apexcharts-card
graph_span: 3d
span:
start: day
offset: -2d
header:
show: false
series:
- entity: sensor.hvac_heat_mode
type: column
group_by:
func: last
duration: 1d
Add the same grouping to the first one, it may be that the ‘last’ of 1 and ‘last’ of the other are not aligned. I understand the target but without the exact same datasets, nothing I can do else is but suggest
Hmmm… Seems that is the case with the grouping. Unfortunately though with the grouping on the temperature line it’s only giving me one value (the last) for temperature for each day, no? Not really the best representation of it that way. I can try to play around with the grouping some more…
type: custom:apexcharts-card
graph_span: 3d
span:
start: day
offset: -2d
header:
show: false
series:
- entity: sensor.hallway_temperature
group_by:
func: last
duration: 1d
- entity: sensor.hvac_heat_mode
type: column
group_by:
func: last
duration: 1d
As I donot know what you want to compare to what, you could create a helper to create a single daily value for the HVAC and then you no longer need to group. EDIT: this helper would then not allow historical values before the moment of creation
Interesting thought. That’s essentially what I did but I guess it’s logging as the values are changing. So instead just log one value at say 11:59:59 every day… I’ll look into that.
extremas do not always show the extremes rendered in a series
Extremas are calculated using the datapoints inside the chart span (just as a statistic sensor would), but the line is drawn taking into account also the first value outside (or before) the chart span. That means that if that first outside value is an extrema the line will go beyond the calculated extremas. This also affects the color thresholds, which follow the drawn line and not the extremas.
My solution to finding the extrema of the actually drawn line is an SQL sensor:
SELECT MIN(state) AS state FROM (SELECT CAST(state AS DECIMAL(10,2)) AS state FROM “states” WHERE metadata_id = xxx AND STATE IS NOT ‘unavailable’ ORDER BY last_updated_ts DESC LIMIT (SELECT count(metadata_id) FROM “states” WHERE metadata_id = xxx AND last_updated_ts >= strftime(‘%s’, ‘now’, ‘-8 hours’) AND STATE IS NOT ‘unavailable’) + 1)
Change MIN to MAX as needed and replace xxx by the correct metadata_id for your entity.
