I think this is related to how apexcharts treats a datetime axis (ignoring tickamount etc) so not sure Romrider can do anything about that.
@lcsiew I think you were on the right track by switching to a category axis. You seem to be missing a block scalar after formatter: you need to add a > or a |
Also, have you tried the simpler
xaxis:
labels:
datetimeFormatter:
day: d MMM
Not entirely sure what you are looking for but I would search this thread for examples of axis annotations

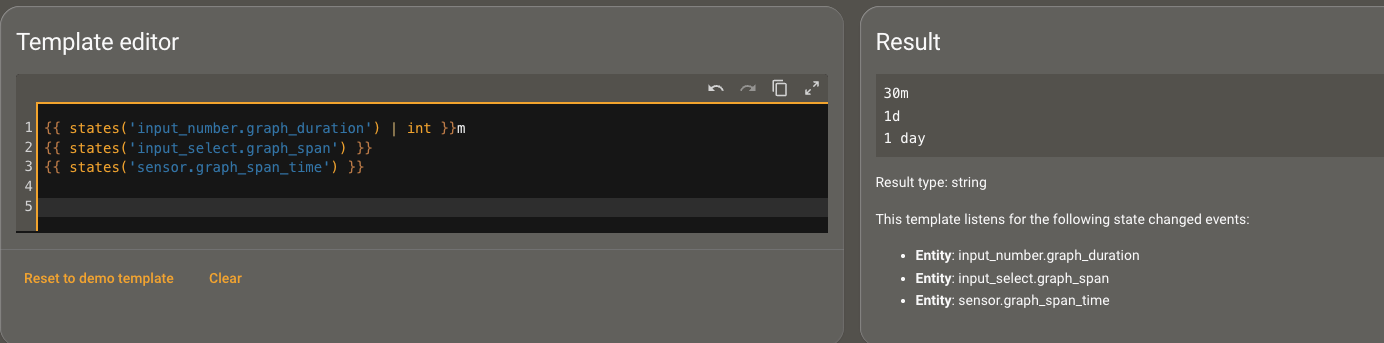

I am trying to modify graph_span and duration using helpers. I continue to get an error saying that its not a valid range of time. When I test the helpers in template the output is correct.
graph_span: “{{ states(‘input_select.graph_span’) }}”
stacked: true
series:
- entity: sensor.apollo_air_1_17ac3c_pm_0_3_to_1_mm
name: 0.3-1 µm
- entity: sensor.apollo_air_1_17ac3c_pm_1_to_2_5_mm
name: 1-2.5 µm
- entity: sensor.apollo_air_1_17ac3c_pm_2_5_to_4_mm
name: 2.5-4 µm
- entity: sensor.apollo_air_1_17ac3c_pm_4_to_10_mm
name: 4-10 µm
all_series_config:
stroke_width: 2
type: column
group_by:
func: avg
duration: “{{ states(‘input_number.graph_duration’) | int}}m”
It should be simple, but I can’t seem to get it to work.
You cannot use templates on these elements out of the box, you will need to wrap the apex card in something like config-template-card or use a conditional card as explained by @Mariusthvdb who included an example of what you are trying to achieve
can figure out how to change to 24h timezone amsterdam.
type: custom:apexcharts-card
graph_span: 1d
span:
start: day
header:
show: true
title: Stroomprijs verloop vandaag
show_states: true
colorize_states: true
apex_config:
yaxis:
forceNiceScale: true
dataLabels:
background:
borderWidth: 0
opacity: 0
foreColor: "#03A9F4"
plotOptions:
bar:
borderRadius: 0
dataLabels:
position: top
now:
show: true
label: Nu
color: "#0074D9"
series:
- entity: sensor.enever_stroomprijs_anwb
show:
datalabels: true
float_precision: 2
type: column
name: Stroomprijs Anwb
data_generator: |
return entity.attributes.data.map((entry) => {
return [new Date(entry.datum), entry.prijsBE];
});
yaxis:
- min: 0
max: 0.4
decimals: 2
apex_config:
tickAmount: 4
I got it fixed the issue was in virtualbox.
there was setting on to set the time in utc.
Hello,
Autoscale with 3 yaxis dosen’t work. Can anyone support? Or should I post the issue in here?
I posted it here:
Apexcart - yaxis autoscale not working as intended
Thanks everyone!!
Hi there,
I was hoping someone could help me on something Im trying to achieve:
I have multiple sensors, (all following the naming pattern sensor.*_xyz), which have a numeric state and an attribute named 'color', it being a color in the format #001122.
I am trying to create a pie chart with apexCharts and auto-entities (up to this I have managed), but I would like each element to take the color based on the attribute ‘color’.
So far, this is what I have put together, not managing to introduce the color part:
type: custom:auto-entities
card:
type: custom:apexcharts-card
chart_type: pie
stacked: false
apex_config:
dataLabels:
formatter: |
EVAL:function(value) {
return value.toFixed(1) + "%";
}
filter:
include:
- options: {}
domain: sensor
entity_id: "*_xyz"
- options:
color: "#656565"
entity_id: sensor.others_mqtt
exclude:
- options: {}
state: unknown
- options: {}
attributes:
important: false
sort:
method: state
numeric: true
reverse: true
is this that I’m attempting even doable?
Thank you!
Annotatins - Is there a way to link them to a specific yaxis to get the bouinderis right?
The documentation lists yAxisIndex as the property that deals with that but I did not manage to make that work (I wanted to do a point annotation on a series on a secondary y-axis). In another case I ended up calculating the value of the first axis that was needed to make it look good on the axis the annotation belonged to but that only works when you have full control over both axis.

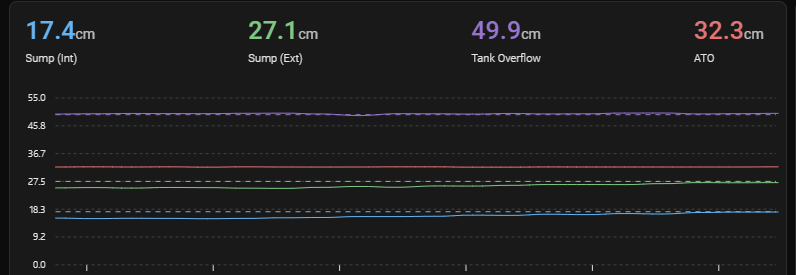

Is there a way to force a shaded area to represent a normal range for expected values?
I currently have a dashed line to represent the median…
type: custom:apexcharts-card
grid_options:
columns: 18
header:
title: ""
show: true
show_states: true
colorize_states: true
graph_span: 1h
apex_config:
annotations:
yaxis:
- "y": 17.5
borderColor: "#64B5F6"
borderWidth: 1
strokeDashArray: 5
label:
text: ""
style:
color: "#64B5F6"
background: rgba(0, 0, 0, 0.8)
fontSize: 10px
fontFamily: Segoe UI Light
position: left
- "y": 27.5
borderColor: "#81C784"
borderWidth: 1
strokeDashArray: 5
label:
text: ""
style:
color: "#81C784"
background: rgba(0, 0, 0, 0.8)
fontSize: 10px
fontFamily: Segoe UI Light
position: left
- "y": 49.5
borderColor: "#9575CD"
borderWidth: 1
strokeDashArray: 5
label:
text: ""
style:
color: "#E57373"
background: rgba(0, 0, 0, 0.8)
fontSize: 10px
fontFamily: Segoe UI Light
position: left
yaxis:
forceNiceScale: true
min: 0
max: 55
tickAmount: 6
labels:
style:
fontSize: 10px
fontFamily: Segoe UI Light
xaxis:
axisBorder:
show: false
labels:
style:
fontSize: 10px
fontFamily: Segoe UI Light
legend:
show: false
chart:
height: 225
grid:
show: true
borderColor: "#404040"
strokeDashArray: 3
position: back
dataLabels:
enabled: false
stroke:
width: 1
fill:
type: line
gradient:
type: vertical
shadeIntensity: 0.8
inverseColors: false
opacityFrom: 0.5
opacityTo: 0
stops:
- 0
series:
- entity: sensor.apex_sump_int_lls
name: Sump (Int)
type: line
curve: smooth
fill_raw: last
color: "#64B5F6"
float_precision: 1
unit: cm
group_by:
func: avg
duration: 3min
- entity: sensor.apex_sump_ext_lls
name: Sump (Ext)
type: line
curve: smooth
fill_raw: last
color: "#81C784"
float_precision: 1
unit: cm
group_by:
func: avg
duration: 3min
- entity: sensor.apex_overflow_lls
name: Tank Overflow
type: line
curve: smooth
fill_raw: last
color: "#9575CD"
unit: cm
float_precision: 1
group_by:
func: avg
duration: 3min
- entity: sensor.apex_ato_lls
name: ATO
type: line
curve: smooth
fill_raw: last
color: "#E57373"
unit: cm
float_precision: 1
group_by:
func: avg
duration: 3min
style: |
ha-card {
--ha-card-background: rgba(0, 0, 0, 0.3);
box-shadow: 0 4px 6px rgba(0, 0, 0, 0.3);
border: 1px solid rgba(255, 255, 255, 0.05);
border-radius: 12px;
margin: 8px 8px 28px 8px;
font-size: 15px;
text-align: center;
font-family: Segoe UI Light;
}
div#header__title {
font-size: 15px;
font-family: Segoe UI Light;
}
#state__value > #state {
font-weight: 100;
}
Nope. You can only fill down to 0. However…
The series are drawn in order they appear in the series config so you can overlay one fill on top of another.
By setting the fill of a lower series to the same colour as your background colour you can mask off a series above it. It’s not perfect. It will cover everything, including the graph axis lines.

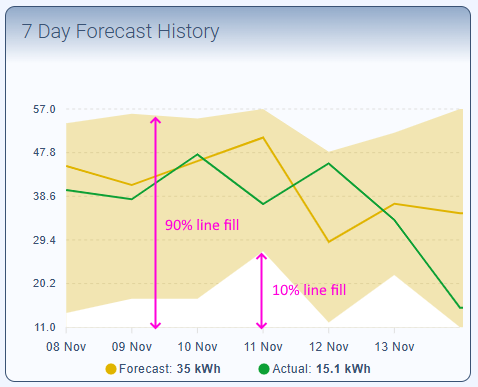

Series config for graph above. The 90% to 10% shading is produced by the 2nd and 3rd series.
series:
- entity: sensor.todays_solar_forecast
name: Forecast
color: "#e0b400"
type: line
stroke_width: 2
show:
datalabels: false
- entity: sensor.todays_solar_forecast_90
name: 90% Probability
color: "#e0b400"
opacity: 0.3
type: area
stroke_width: 0
show:
in_legend: false
- entity: sensor.todays_solar_forecast_10
name: 10% Probability
color: var(--card-background-color)
opacity: 1
type: area
stroke_width: 0
show:
in_legend: false
- entity: sensor.solar_production_energy
name: Actual
color: "#0da035"
type: line
stroke_width: 2
statistics:
type: state
period: day
align: middlethanks mate
without reading through the whole topic can someone point me in the direction of defining a time scale on x axis if its possible e.g for 24 hours theres a 2h spacing on x axis. thanks!
Not exactly, the following fills till whatever value is at the end of your chart
plotOptions:
area:
fillTo: end
You can bring those back with
Grid:
Position: Front
And for perfect blending into the background, the default shade of white in HA is #FAFAFA
You can do a lot of cool things with overlaying area series but looking at the code of OP - and if only a block range is needed - you can also add a second y-value to annotations and make it a range instead of a line
Not sure what that does. It always fills to the bottom of the graph. It can’t fill down to another series like Grafana can.
Thanks. This works for me:
apex_config:
grid:
position: front
color: var(--card-background-color) works for any background.
As you say, it fills to the bottom, ignoring the xaxis, the alternative is filling till the xaxis (from the top and the bottom). You can indeed not do a range area but the overlaying you described works well, I’ve also combined it with color thresholds to show fill colors changing when crossing the xaxis
Yes, I saw that in your code, that’s even better, but I was referring to the default background color in HA. I saw a different shade of white inside and outside the plotted area, sure that was intentional but some might wonder why and want it to be the same white to blend into the background, if so you can use
color: var(--primary-background-color)
if you believe, reality did show differnt, but I picked up the task again since I wanted to find out why the hell it failed in the past.
And it took me “more but a while” to get that solved.

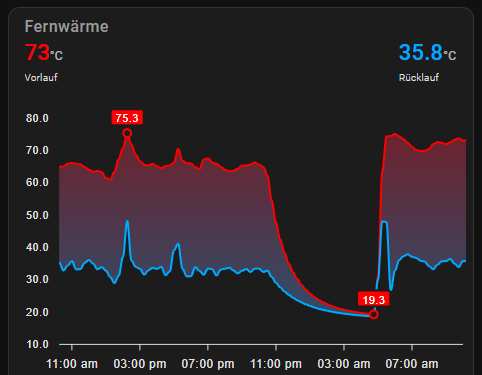

My primary attempt. an area with got a red line on top and a blue at it’s bottom.
With a card-background color below the lower blue line.
This one failed straight
type: custom:apexcharts-card
experimental:
color_threshold: true
brush:
selection_span: 28h
apex_config:
grid:
show: false
legend:
show: false
all_series_config:
group_by:
func: avg
duration: 15min
stroke_width: 2
type: area
header:
standard_format: false
show: true
show_states: true
colorize_states: true
title: Fernwärme
series:
- entity: sensor.esp32heizungsraum_dallas_fern_i
color: "#ff0000"
color_threshold:
- value: 100
color: "#ff0000"
- value: 0
color: "#00aaff"
opacity: 0.5
name: Vorlauf
show:
extremas: true
- entity: sensor.esp32heizungsraum_dallas_fern_o
color: "#00aaff"
name: Rücklauf
color_threshold:
- value: 100
color: var(--card-background-color)
- value: 0
color: var(--card-background-color)
card_mod:
style: |
ha-card {
font-size: 12px;
}
Then I split the second entity into 2, one for the colored line and a second time for the filled area, but that looked anything but the card background color.
Failed again.
- entity: sensor.esp32heizungsraum_dallas_fern_o
type: line
color: "#00aaff"
name: Rücklauf
- entity: sensor.esp32heizungsraum_dallas_fern_o
type: area
stroke_width: 0
color: var(--card-background-color)
show:
in_header: false
until I added
opacity: 1
next to the background-color. And I wonder why this made the differnce.
but not it works.
Means background-color seems to work as long as not using experimental features.
Hello, please can someone help me with writing a transform/generate (?) function to take a value that is sampled every 10 minutes and make a chart of hourly averages over the same day of week? Like average number of samples at 11:00am for Monday is … etc.
I guess I should use data_generator but I have no idea how to process the series of historical entries.
Thank you in advance.
Update:
One idea was to retrieve the statistics via recorder.get_statistics call, then it could be filtered and transformed via transform function. But ApexCharts card does not support calling actions hence this is apparently a no go.
I’m using the color_treshold option.
Is it possible to have one or more levels defined by a sensor state instead of a hardcoded number?
