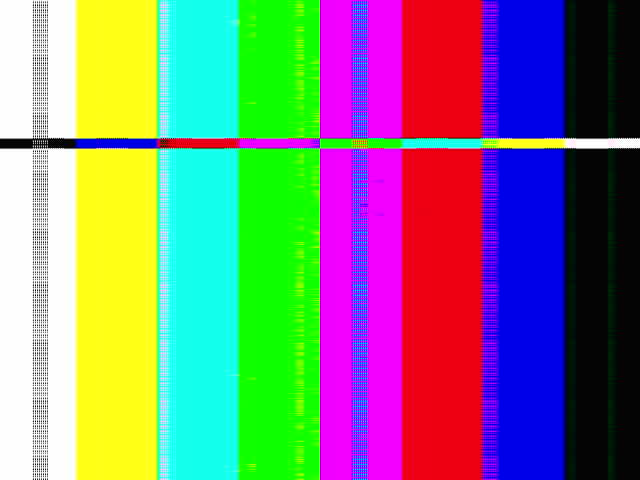

I’m trying to install esphome and I’m experiencing very poor camera image quality (the horizontal line is scanning from top to bottom and the vertical lines seems to be sync lines).

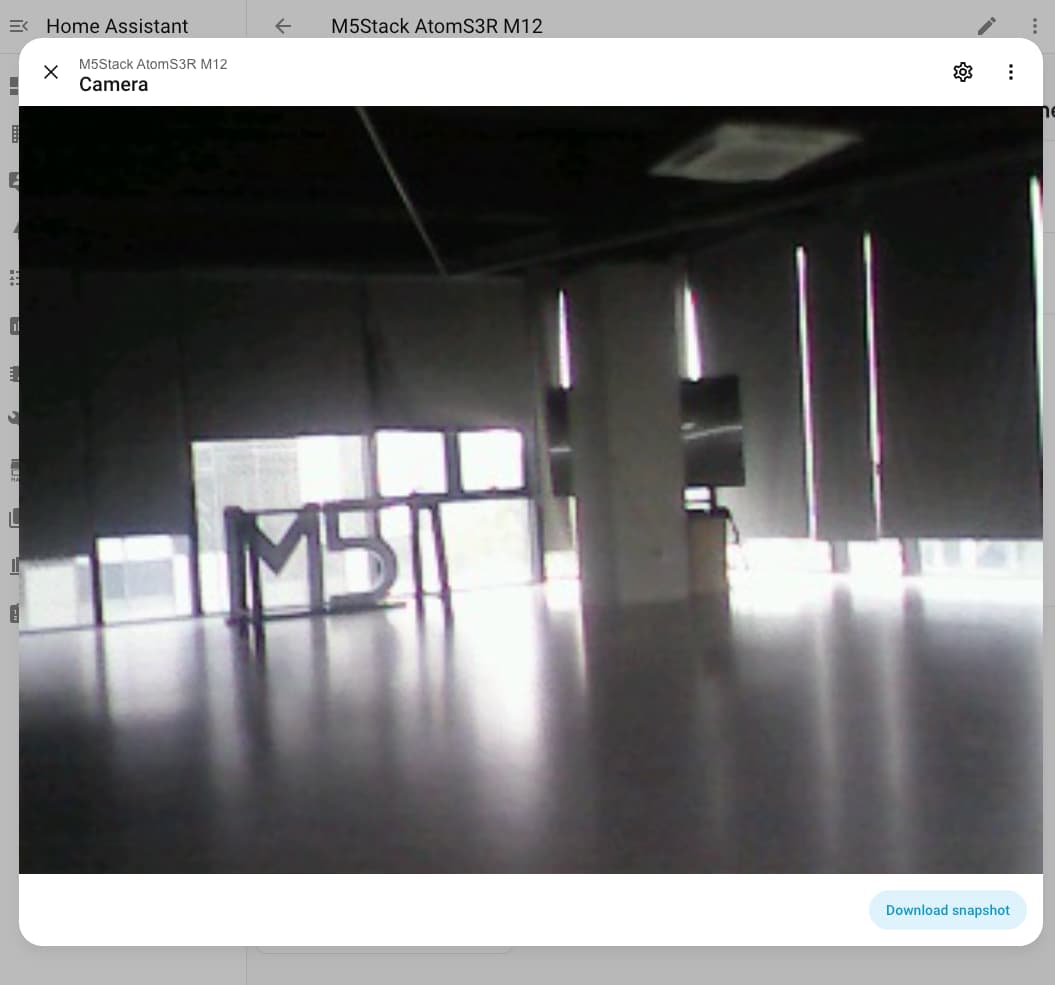

The demo application that came with the device had much better image quality, so I’m reasonably sure it’s not the hardware.
Here’s my yaml config, it’s based on the official example (m5-docs):
esphome:
name: atoms3r-m12
friendly_name: M5Stack AtomS3R M12
on_boot:
priority: 800
then:
- lambda: |-
gpio_set_direction(GPIO_NUM_18, GPIO_MODE_OUTPUT);
gpio_set_level(GPIO_NUM_18, 0);
vTaskDelay(pdMS_TO_TICKS(1500));
esp32:
variant: esp32s3
framework:
type: esp-idf
# Enable logging
logger:
level: DEBUG
# Enable Home Assistant API
api:
encryption:
key: "42....0="
ota:
- platform: esphome
password: "T.....t"
wifi:
ssid: secret_ssid
password: secret_password
# Enable fallback hotspot (captive portal) in case wifi connection fails
ap:
ssid: "Camera Fallback Hotspot"
password: "s....3"
external_components:
- source: github://DennisGaida/m5stack-atoms3r-components@main
components: [bmi270_bmm150]
captive_portal:
web_server:
port: 80
psram:
mode: octal
speed: 80MHz
i2c:
- id: BMi270
sda: GPIO45
scl: GPIO0
- id: camera_i2c
sda: GPIO12
scl: GPIO9
frequency: 100kHz
timeout: 10ms
scan: true
sensor:
- platform: bmi270_bmm150
i2c_id: BMi270
address: 0x68
update_interval: 5s
acceleration_x:
name: "BMI270 Accel X"
acceleration_y:
name: "BMI270 Accel Y"
acceleration_z:
name: "BMI270 Accel z"
gyroscope_x:
name: "BMI270 Gyro X"
gyroscope_y:
name: "BMI270 Gyro Y"
gyroscope_z:
name: "BMI270 Gyro z"
temperature:
name: "BMI270 Temperature"
- platform: wifi_signal
name: "WiFi Signal"
update_interval: 60s
unit_of_measurement: "dBm"
accuracy_decimals: 0
text_sensor:
- platform: wifi_info
ip_address:
name: "IP Address"
ssid:
name: "Connected SSID"
mac_address:
name: "MAC Address"
button:
- platform: restart
name: "Restart ESP"
esp32_camera:
name: "OV3660 Camera"
external_clock:
pin: GPIO21
frequency: 20MHz
i2c_id: camera_i2c
data_pins: [GPIO3, GPIO42, GPIO46, GPIO48, GPIO4, GPIO17, GPIO11, GPIO13]
vsync_pin: GPIO10
href_pin: GPIO14
pixel_clock_pin: GPIO40
resolution: 640x480
jpeg_quality: 15
test_pattern: True
esp32_camera_web_server:
- port: 8080
mode: stream
- port: 8081
mode: snapshot
Here’s an extract from the build log with issues:
Hard resetting via RTS pin...
INFO Successfully uploaded program.
INFO Starting log output from /dev/ttyACM0 with baud rate 115200
[13:37:49.066]e:123]: Unsuccessful boot attempts: 0
[13:37:49.066][D][esp32.preferences:153]: Writing 1 items: 0 cached, 1 written, 0 failed
[13:37:49.066][I][app:091]: Running through setup()
[13:37:49.066][I][i2c.idf:206]: Performing bus recovery
[13:37:49.074][I][i2c.idf:206]: Performing bus recovery
[13:37:49.075][E][i2c.idf:243]: Recovery failed: SCL is held LOW on the bus
[13:38:00.278][C][component:278]: Setup i2c took 11203ms
[13:38:01.778][C][component:278]: Setup esphome.coroutine took 1499ms
[13:38:01.780][C][bmi270_bmm150:483]: Setting up BMI270 ...
[13:38:01.782][D][bmi270_bmm150:491]: Soft reset...
[13:38:01.785][D][text_sensor:113]: 'MAC Address' >> 'B4:3A:45:BE:18:4C'
[13:38:02.167][C][component:278]: Setup esp32_camera took 380ms
[13:38:02.177][C][wifi:610]: Starting
[13:38:02.231][D][wifi:1263]: Starting scan
[13:38:02.233][C][component:278]: Setup wifi took 65ms
[13:38:02.240][W][component:422]: api set Warning flag: unspecified
[13:38:02.245][I][app:138]: setup() finished successfully!
[13:38:03.794][C][i2c.idf:093]: I2C Bus:
[13:38:03.794][C][i2c.idf:094]: SDA Pin: GPIO12
[13:38:03.794][C][i2c.idf:094]: SCL Pin: GPIO9
[13:38:03.794][C][i2c.idf:094]: Frequency: 100000 Hz
[13:38:03.794][C][i2c.idf:100]: Timeout: 10000us
[13:38:03.798][C][i2c.idf:107]: Recovery: failed, SCL is held low on the bus
[13:38:03.798][C][i2c.idf:114]: Results from bus scan:
[13:38:03.798][C][i2c.idf:116]: Found no devices
[13:38:03.813][C][psram:016]: PSRAM:
[13:38:03.814][C][psram:019]: Available: YES
[13:38:03.815][C][psram:021]: Size: 8192 KB
Things I already tried:
- Changing up and down clock frequencies
- activating/deactivating aec/agc, changing aec/agc settings
- changing brightness
- Messing around with the lambda (this got rid of the “Recovery: failed, SCL is held low” but the camera issue remains):
// 1. Enable I2C/Sensor Power (GPIO18 LOW)
gpio_set_direction(GPIO_NUM_18, GPIO_MODE_OUTPUT);
gpio_set_level(GPIO_NUM_18, 0);
// 2. Hardware Reset the Camera (GPIO38)
// The sensor needs a LOW pulse to reset properly.
gpio_set_direction(GPIO_NUM_38, GPIO_MODE_OUTPUT);
gpio_set_level(GPIO_NUM_38, 0); // Reset active
vTaskDelay(pdMS_TO_TICKS(100));
gpio_set_level(GPIO_NUM_38, 1); // Reset released
// 3. Give the hardware time to stabilize after power-up
vTaskDelay(pdMS_TO_TICKS(1000));
- Disabling sensors
- trying different usb-c wall chargers
Any help in fixing the issue would be appreciated.
