I built a custom Lovelace card for AC / climate entities and wanted to share it.

Climate Cluster Card is a wide-arc, automotive instrument-cluster style dial. You set the target temperature on the inner ring and the fan speed on the outer ring, with a mode pop-up and quick toggles.

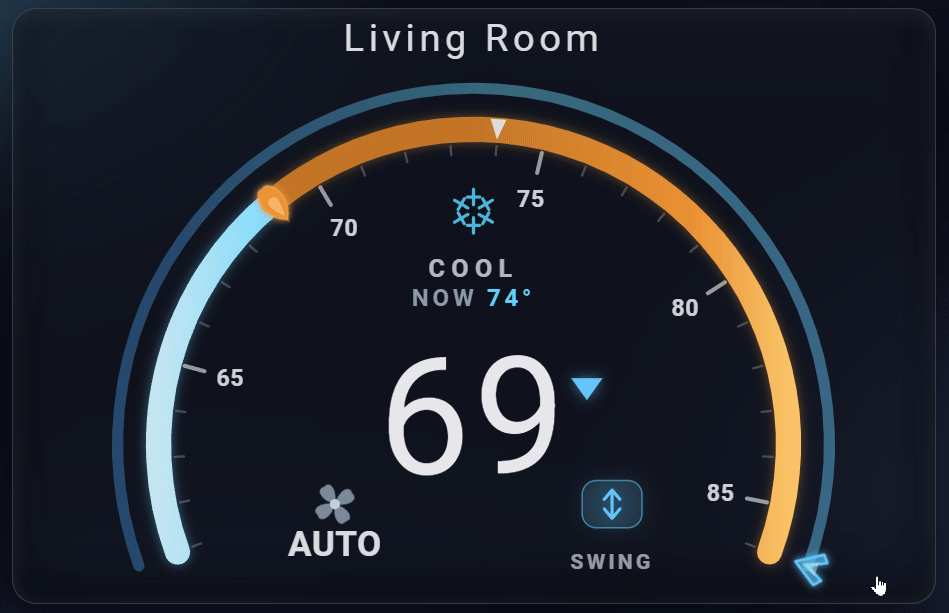

demo

Features

  • Two-ring control: inner ring for target temperature, outer ring for fan speed
  • Numbered reference scale with a glowing setpoint needle and a current-temp marker
  • Glass mode pop-up (cool / heat / dry / fan / auto / off) plus swing, LED, and sound toggles
  • Clover fan animation that can spin with the fan value, at a constant rate, or off
  • Fahrenheit and Celsius with automatic unit, range, and step detection
  • Full GUI editor, no YAML required
  • Works with any climate entity; sibling auto-discovery (fan / swing / LED / sound) is tuned for Midea (midea_ac_lan)

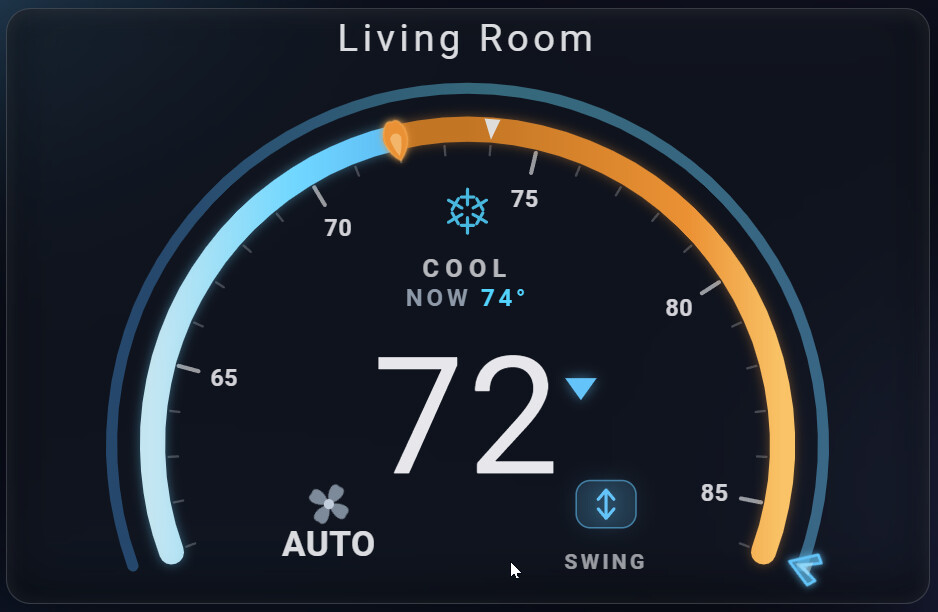

dial
dial938×612 74.9 KB

modes
modes936×615 48 KB

Install (HACS): add GitHub - rickyfont94/climate-cluster-card: Wide-arc instrument-cluster climate (HVAC) card for Home Assistant: a two-ring temp/fan dial with a mode pop-up, swing/LED/sound toggles, and a full GUI editor. · GitHub as a custom repository with category Dashboard, then download and hard-refresh. A PR to add it to the HACS default store is open, so direct search-install is coming.

Minimal config:

type: custom:climate-cluster-card
entity: climate.living_room

Repo: GitHub - rickyfont94/climate-cluster-card: Wide-arc instrument-cluster climate (HVAC) card for Home Assistant: a two-ring temp/fan dial with a mode pop-up, swing/LED/sound toggles, and a full GUI editor. · GitHub

Feedback and issues welcome.

5 Likes
2

Maybe I am blind, but is it not possible to make the background white or based on the HA settings?

4

Thanks for the nudge on this, TheSylus, you actually pushed me to build it. As of v1.1.0 the card wraps in an ha-card and follows your Home Assistant theme, so light and white themes work out of the box (there's still a configurable accent if you want one). If you already have it installed, just hit Update in HACS and you should be good to go.
