Clock Pro Card — Time & Weather Visualization Engine

Temporary Notice – Cards Unavailable (RESOLVED)

My GitHub account was unexpectedly suspended, which makes all my HACS cards — ClockPro Card, Floor3DPro Card, and OverlayPro Card — temporarily unavailable. Nothing has been deleted; access is simply blocked.

This may have been triggered by a sudden spike in users and download activity on my cards, which can sometimes activate GitHub’s automated security filters. I contacted GitHub Support, and after a manual review, all restrictions were fully lifted. No policy violations were found.

Everything is now accessible again.
Thank you for your understanding and support.

Your Precision Time & Weather Display for Home Assistant (Clock + Weather Card)

Clock Pro Card (source & documentation):

https://github.com/levonisyas/clockpro-card

https://community.home-assistant.io/t/clock-pro-card-time-weather-visualization-engine/

A professional weather + clock card for Home Assistant Lovelace.

Absolute positioning, customizable typography, SVG icon packs, and flexible layout — designed to be easy to use and powerful.

Works with any weather entity.
Optional SVG icon pack support.
Full YAML config — no dependencies.

Features

Big stylized clock with customizable spacing & colors
Date & day labels
Weather icon + condition + temperature
Location label
Fully positionable UI elements
Optional colorful SVG icon pack
Black & White Cloud SVG Pack (dual‑tone icons)
Smart defaults + full stub config for UI add
Configurable card height

Installation

ClockPro Card can be installed in two ways:

Method 1: HACS (Recommended)

Open HACS in Home Assistant.
Search for: Clock Pro Card.
Select the repository and click Download.
Restart Home Assistant.

After installation, HACS will automatically register the card as a Lovelace resource.

Method 2 — Manual Installation

Download clockpro-card.js
Place it into:

/config/www/community/clockpro-card/

(Optional) Add your icon-pack.js into the same folder
Add the resource manually:

url: /local/community/clockpro-card/clockpro-card.js
type: module

File paths:

/local/community/clockpro-card/clockpro-card.js
/local/community/clockpro-card/icon-pack.js

Notes

No custom repository setup is required, Clock Pro is in the official HACS Default Repository Store.
Manual installation is only recommended for advanced or offline setups.

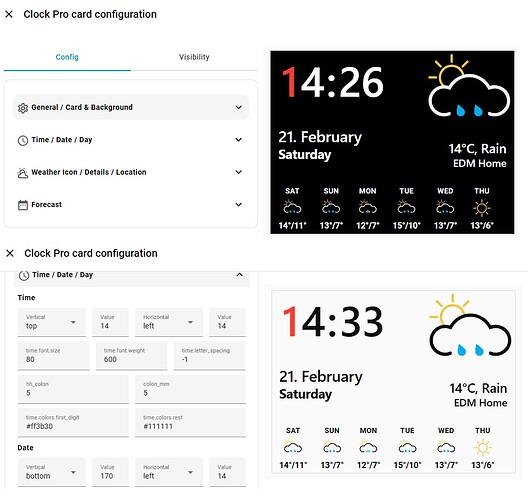

Visual Editor (YAML-Free)

Clock Pro Card includes a built-in Visual Editor for Home Assistant Lovelace.
The editor allows you to configure the card without writing any YAML, while still generating a configuration that is 100% equivalent to YAML.

Visual Editor is not a simplified mode.
It is a full visual representation of the YAML configuration.

Design Philosophy

The Visual Editor follows these core principles:

Full YAML-Free: every option can be configured visually
YAML-Equivalent: no UI-only or hidden settings
One-to-one mapping between editor controls and YAML keys
No disabled / magic defaults
Consistent positioning logic across all elements

If a setting exists in YAML, it exists in the Visual Editor — and vice versa.

Editor Structure

The editor is organized into four main sections:

General / Card & Background
Global card settings, entity selection, background and icon options
Time / Date / Day
Position, font and color settings for time, date and day labels
Weather Icon / Details / Location
Weather icon placement, weather text and location label configuration
Forecast
Optional multi-day weather forecast settings

Each section contains only related settings, keeping the editor predictable and easy to navigate.

Positioning System

All visual elements use the same positioning model:

Vertical: top / bottom
Horizontal: left / right
Value: number (px) or percentage

This ensures:

Consistent behavior across all elements
No special cases or exceptions
Identical results in Visual Editor and YAML

Grouped Settings

Related settings are grouped visually to reflect how they work together.

Examples:

Font settings: size + weight + letter_spacing
Transform settings: x + y + scale

These settings are displayed on a single row in the editor to improve clarity and reduce visual noise.

Entity Selection

The Visual Editor uses Home Assistant’s native entity selector for:

weather_entity
location_entity
sun_entity

Entities are selected directly from Home Assistant — no manual typing required.

YAML Compatibility

Configurations created with the Visual Editor:

Use the same keys and structure as YAML
Can be freely edited in YAML after creation
Can be switched between Visual Editor ⇄ YAML at any time

Using the Visual Editor does not lock you out of YAML — it simply makes configuration faster and safer.

When to Use the Visual Editor

The Visual Editor is ideal for:

Initial setup
Layout and positioning adjustments
Font, spacing and color tuning
Rapid visual experimentation

Advanced users can still rely entirely on YAML if preferred.

Usage — Full Example YAML

Copy & paste this full config, then edit values to taste:

type: custom:clockpro-card
weather_entity: weather.home
location_entity: zone.home
sun_entity: sun.sun

pro_icon: true
pro_icon_pack: /local/community/clockpro-card/icon-pack.js,
pro_icons_folder: your-folder-name,


card:
  height: 220

background:
  mode: transparent / color
  color: "rgba(0,0,0,0)"
  radius: 0
  padding: 0

elements:
  time:
    pos:
      left: 12
      top: 0
    font:
      size: 86
      weight: 650
    letter_spacing: -2
    gaps:
      hh_colon: 26
      colon_mm: 26
    colors:
      first_digit: "#ff3b30"
      rest: "#111111"

  date:
    pos:
      left: 14
      bottom: 72
    font:
      size: 26
      weight: 650
    letter_spacing: -0.5
    color: "#111111"

  day:
    pos:
      left: 14
      bottom: 20
    font:
      size: 40
      weight: 750
    letter_spacing: -0.5
    color: "#111111"

  icon:
    pos:
      right: 8
      top: 0
    icon:
      size: 170
      color: "#111111"
    transform:
      x: 0
      y: -12
      scale: 1.12
    source: weather
    default_icon: "mdi:weather-partly-cloudy"

  details:
    pos:
      right: 14
      bottom: 68
    font:
      size: 22
      weight: 650
    letter_spacing: -0.2
    color: "#111111"

  location:
    pos:
      right: 14
      bottom: 20
    font:
      size: 28
      weight: 800
    letter_spacing: -0.2
    color: "#111111"

  forecast:
    show: true        # true / false
    days: 5           # 1–7
    pos:
      left: 16
      bottom: 8
    gap: 18

    day:
      font:
        size: 14
        weight: 700
      letter_spacing: 0.4
      color: "#111111"
      uppercase: true

    icon:
      size: 34
      color: "#111111"

    temp:
      font:
        size: 16
        weight: 700
      letter_spacing: -0.2
      color: "#111111"
      format: maxmin   # maxmin | max

5-Day Weather Forecast (Optional)

ClockPro now supports an optional 5-day weather forecast strip, rendered as a native element using the same positioning engine as the rest of the card.

The forecast is designed to be:

Minimal
Readable at a glance
Fully configurable via YAML
Non-intrusive to the main clock layout

Forecast uses the same weather_entity — no extra sensors or helpers required.
Automatically falls back if forecast data is unavailable.

What it shows

Short weekday label (MON, TUE, etc.)
Weather icon (MDI or Pro SVG pack)
Daily temperature (max or max/min)

Forecast Configuration

The forecast is enabled via the elements.forecast block.

Notes

days can be set between 1 and 7
Forecast is rendered as a single horizontal row
Uses daily forecast data provided by the weather entity
Night/day icon variants are automatically handled when available
If forecast data is missing, the element is simply not rendered

Design Philosophy

The forecast follows ClockPro’s core idea:

Everything is an element.
Absolute positioning, predictable layout, no magic.

This means you can place the forecast anywhere — bottom strip, corner, or alongside other elements — without affecting the rest of the card.

Options

Weather

weather_entity — any HA weather entity (weather.home, weather.open_meteo, etc.)

Location

location_entity — any zone or sensor that provides a friendly name.

Note: weather entities don’t reliably provide city names — zone or config location is recommended.

Icon Pack (pro_icon / pro_icon_pack)

pro_icon: false (default) → standard MDI icons
pro_icon: true → load from pro_icon_pack

Example:

pro_icon: true
pro_icon_pack: icon-pack.js

Pack path can be relative — if it doesn’t start with /, ClockPro will resolve it to the card folder automatically.

A pack file should export an object of SVG strings by condition key:

export default {
  clear: "<svg>…</svg>",
  rainy: "<svg>…</svg>",
  partlycloudy: "<svg>…</svg>",
  // etc…
};

Stub Config (UI Add Card)

When users add the card from the Lovelace UI, the following default config is provided:

static getStubConfig() {
  return {
    weather_entity: "weather.home",
    location_entity: "zone.home",
    card: { height: 220 },
    pro_icon: true,
    pro_icon_pack: "icon-pack.js",
    background: { mode: "transparent", color: "rgba(0,0,0,0)", radius: 0, padding: 0 },
    elements: {
       // …full settings as above
    },
  };
}

Pro Icon Pack (SVG Files)

ClockPro supports a file-based Pro Icon Pack.

This means:

You do NOT edit card JS
You do NOT embed SVG strings inside YAML
You simply drop your own .svg files into a folder
ClockPro will load them automatically via icon-pack.js

You can download the official SVG pack from the repository:
https://github.com/levonisyas/clockpro-card/tree/main/dist/svg

1) Create the icons folder

Create this folder in Home Assistant:

/config/www/community/clockpro-card/your_pack/

This becomes accessible as:

/local/community/clockpro-card/your_pack/

FULL required SVG list (day + night)

Day

clear-day.svg
partlycloudy-day.svg
cloudy.svg
rain.svg
pouring.svg
lightning.svg
lightning-rainy.svg
fog.svg
hail.svg
snow.svg
snowy-rainy.svg
windy.svg
exceptional.svg
unknown.svg

Night

clear-night.svg
partlycloudy-night.svg
cloudy-night.svg
rainy-night.svg
pouring-night.svg
lightning-night.svg
lightning-rainy-night.svg
fog-night.svg
hail-night.svg
snowy-night.svg
snowy-rainy-night.svg
windy-night.svg
exceptional-night.svg
unknown-night.svg

If night icons are missing, ClockPro will fallback to the closest day icon.

3) Enable Pro Icons in YAML

type: custom:clockpro-card
weather_entity: weather.home
location_entity: zone.home
sun_entity: sun.sun

pro_icon: true
pro_icon_pack: icon-pack.js
pro_icons_folder: your_pack

Day / Night Support

ClockPro automatically detects night mode using:

sun_entity: sun.sun

When the sun is below the horizon:

clear → clear-night
partlycloudy → partlycloudy-night

Customization Guide

You can tune every element:

Element	Property	Meaning
time	pos	left/top
	font	size/weight
	colors	first_digit/rest
date/day	pos/color	positioning & color
icon	icon.size/color	MDI size/color
	transform	shift/scale for better visual
details	pos/font/color	bottom weather text
location	pos/font/color	bottom location text

Common Issues

Temperature shows `--`

The card looks for these attributes:

attributes.temperature
attributes.temp
attributes.current_temperature

If your weather provider doesn’t expose current temperature, ClockPro will fallback to --.

Troubleshooting

Make sure icon-pack.js is in the same folder as the card (or provide a full path).
If customizing icon pack, clear browser cache after editing.
For custom SVG sizes, use the transform block.

Enjoy Support

I build these projects for my own needs and share them so others can benefit.
I don’t use donation links — so please don’t buy me coffee

If you enjoy this project, simply star the repository.
Your feedback and contributions matter more than coffee.

Clock Pro Card — Time & Weather Visualization Engine

Clock Pro Card — Time & Weather Visualization Engine

Temporary Notice – Cards Unavailable (RESOLVED)

Your Precision Time & Weather Display for Home Assistant (Clock + Weather Card)

Clock Pro Card (source & documentation):

A professional weather + clock card for Home Assistant Lovelace.

Features

Installation

Method 1: HACS (Recommended)

Notes

Visual Editor (YAML-Free)

Design Philosophy

Editor Structure

Positioning System

Grouped Settings

Entity Selection

YAML Compatibility

When to Use the Visual Editor

Usage — Full Example YAML

5-Day Weather Forecast (Optional)

What it shows

Forecast Configuration

Notes

Design Philosophy

Options

Weather

Location

Icon Pack (pro_icon / pro_icon_pack)

Stub Config (UI Add Card)

Pro Icon Pack (SVG Files)

1) Create the icons folder

FULL required SVG list (day + night)

3) Enable Pro Icons in YAML

Day / Night Support

Customization Guide

Common Issues

Temperature shows --

Troubleshooting

Enjoy Support

Temperature shows `--`
