Connecting Growatt min 4200 tl xh2

[stefvangeyte]

Hi all,

I am already trying for weeks to connect my Growatt MIN 4200 TL XH2 to home assistant on a Raspberry Pi 5, but I can’t get it working.

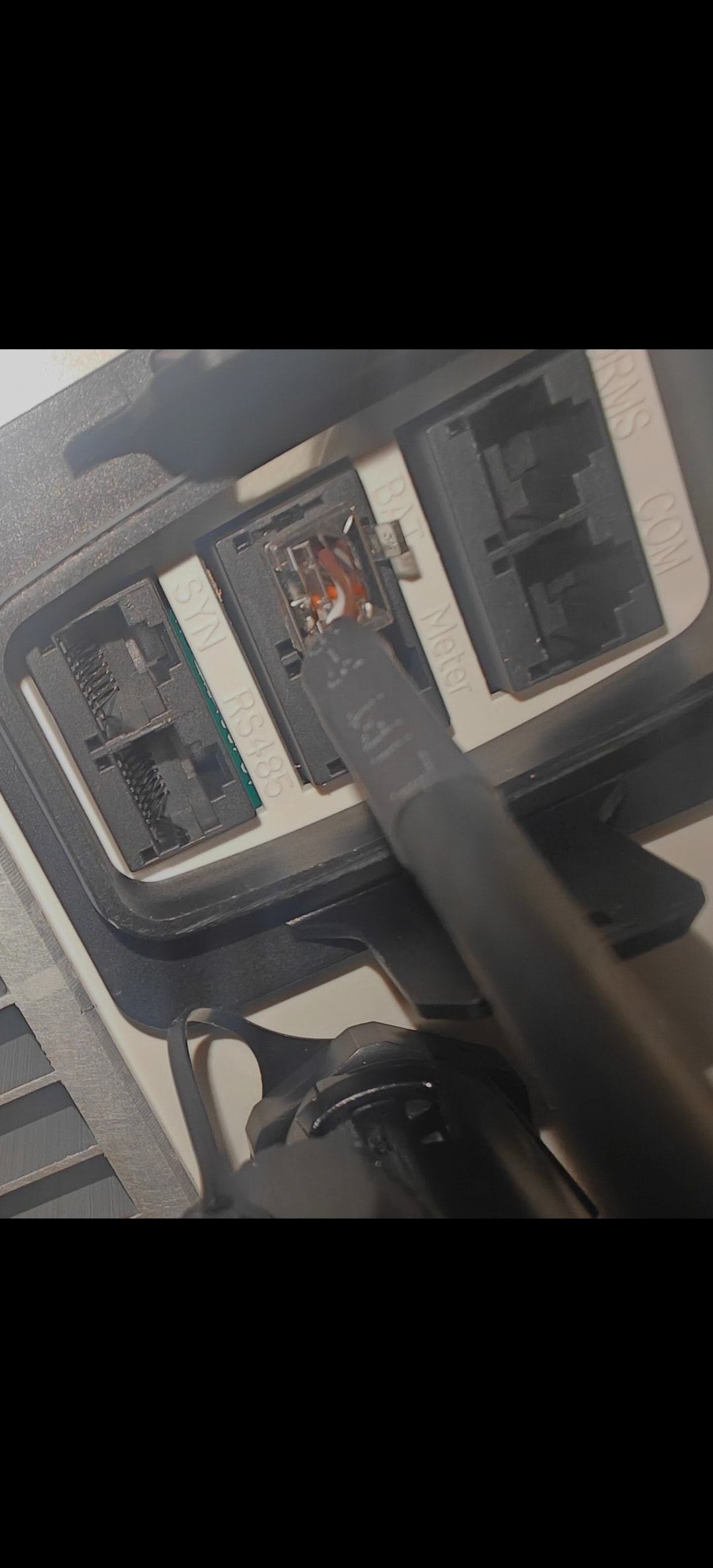

On this picture you see there are 6 RJ45 ports on my inverter.
I already cut a UTP cable, and connected pins 3 and 4 (and after as well 5 and 6) to A and B of an USR - DR164 serial rs485 to wifi converter and plugged the other side in the COM port and the RS485 port.
All combinations I tried didn’t gave any result.

The logs of home assistant say below error.

Logger: custom_components.growatt_modbus.growatt_modbus
Source: custom_components/growatt_modbus/growatt_modbus.py:489
Integration: Growatt Modbus (documentation, issues)
First occurred: 16:55:04 (436 occurrences)
Last logged: 19:39:25

[SharedConn 192.168.129.124:502] Resetting connection: transport error during block read
[SharedConn 192.168.129.124:502] Resetting connection: poll returned no data
[SharedConn 192.168.129.124:502] Resetting connection: retry poll returned no data

I have the feeling I already tried everything, with assistance of AI as well but can’t make any progress. So I hope someone of you has some suggestions that I can try to get it working.

Thanks a lot,
Kind regards

[aceindy]

erm…on the picture it is plugged in the ‘bat’ port, not RS485 ??

And for Growatt I can definitely advise Homeassistant SolaX modbus integration , it has way more features

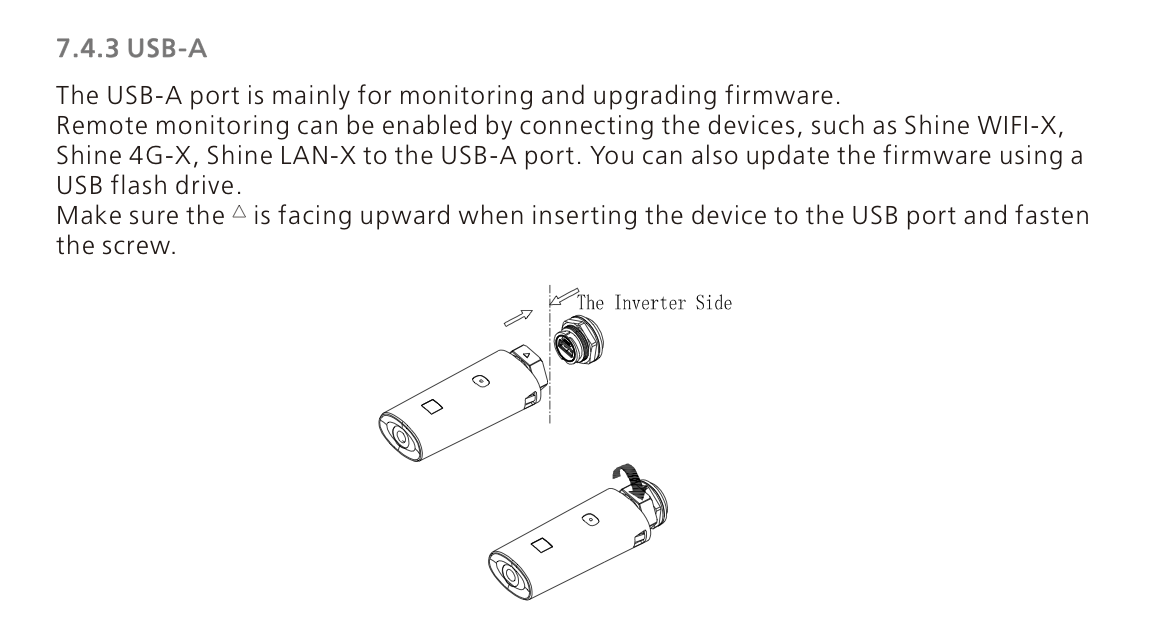

I also just learned your Growatt MIN 4200 TL XH2 can also be used with a ShineX USB2wifi dongle.

If you happen to have one, you can reflash it with esphome to support modbus over wifi (or buy one, they are around €20,-)

Growatt ShineWiFi-X with Solax-Modbus using esphome_modbus_bridge

Cooked this esphome yaml together to re-flash my Growatt ShineWiFi-X dongle. I’m using it with the Solax integration on a Growatt MOD 4000TL3-XH, but it should work on any model. I re-used the led’s to: Green → TX Red–> RX Blue–>Status ;If no clients, just a 1Hz heartbeat, otherwise a 100ms pulse for every client (with a 3s interval). [image] [image] For flashing the firmware it is required to jump GPIO0 with gnd during power up. You can either flash by USB of TTL [image] PS: I advi…

[stefvangeyte]

My cable isn’t in anymore, the cable in the Bat port was already in there.

[aceindy]

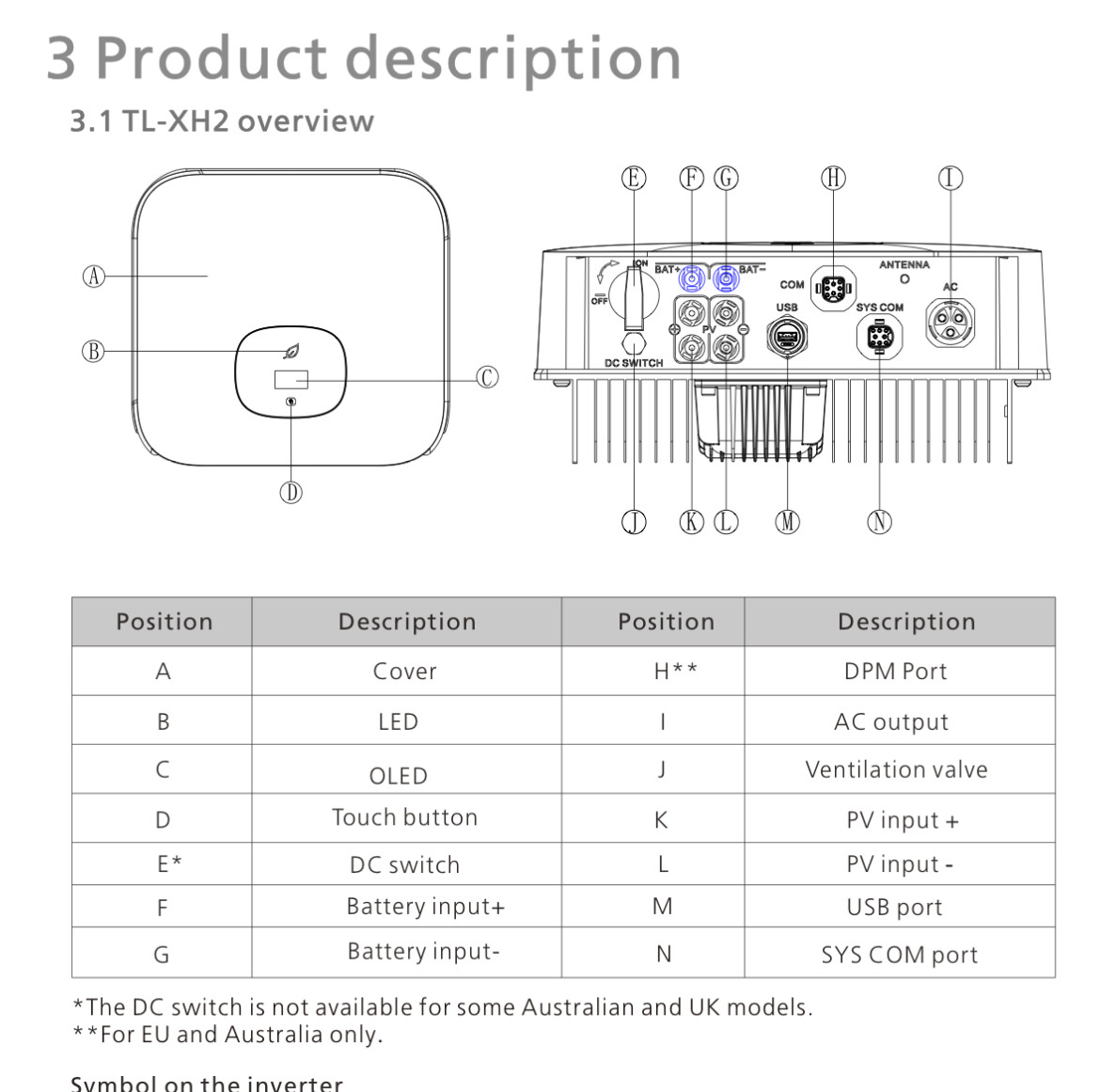

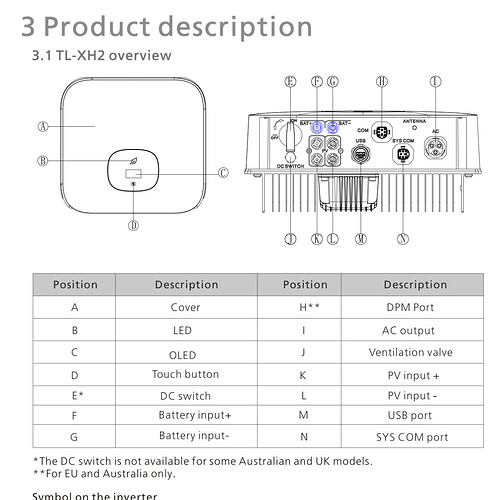

Hmm…it seems there are some differences between EU models and australian models (see chapter 6.9 ) regarding com ports ?

Pretty sure the usb-shineX option will work though; it works fabulous on mine (although it is a bit different model)

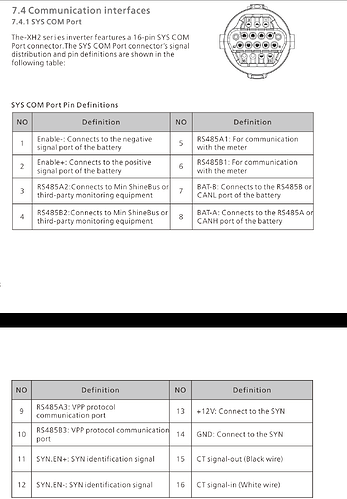

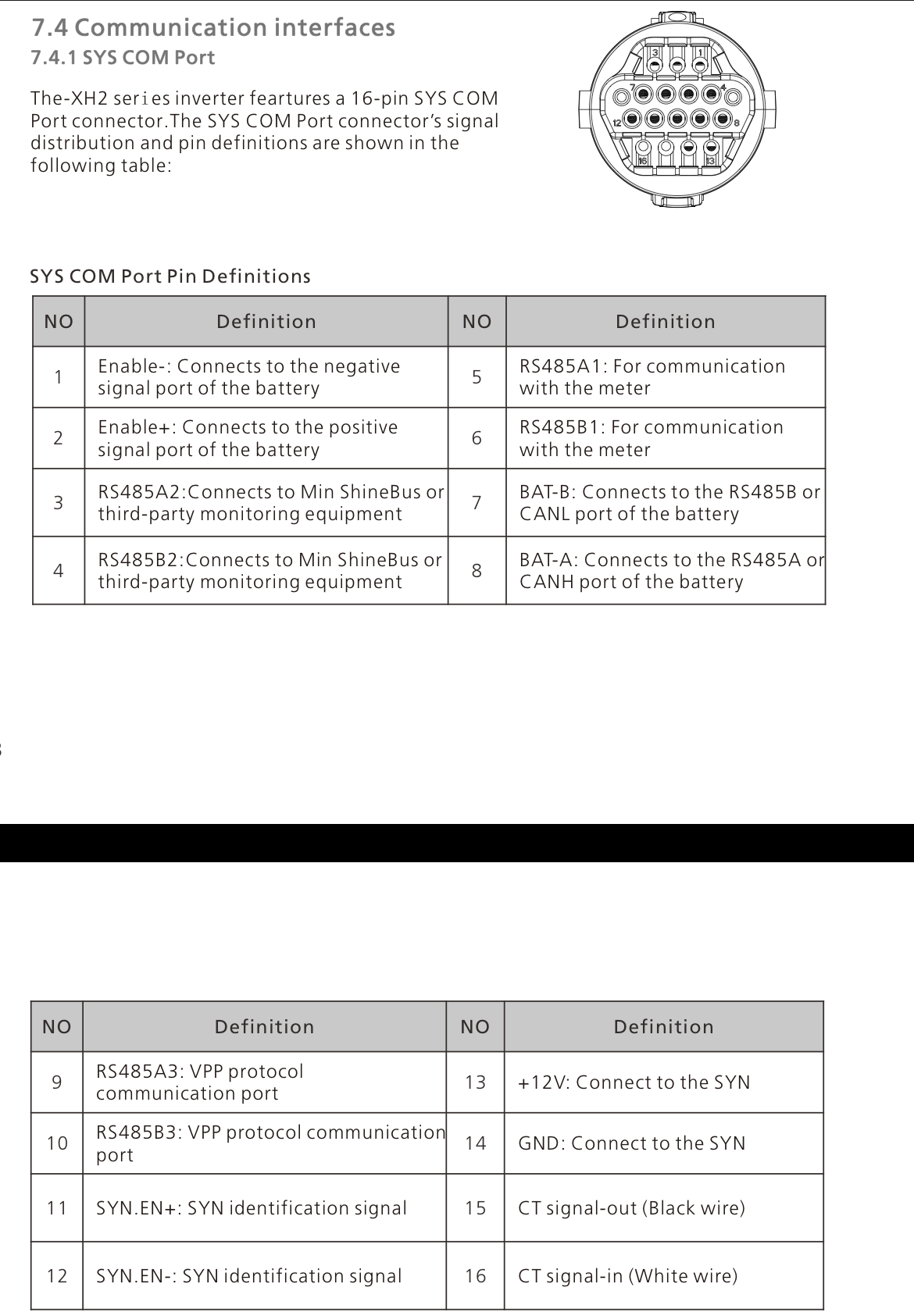

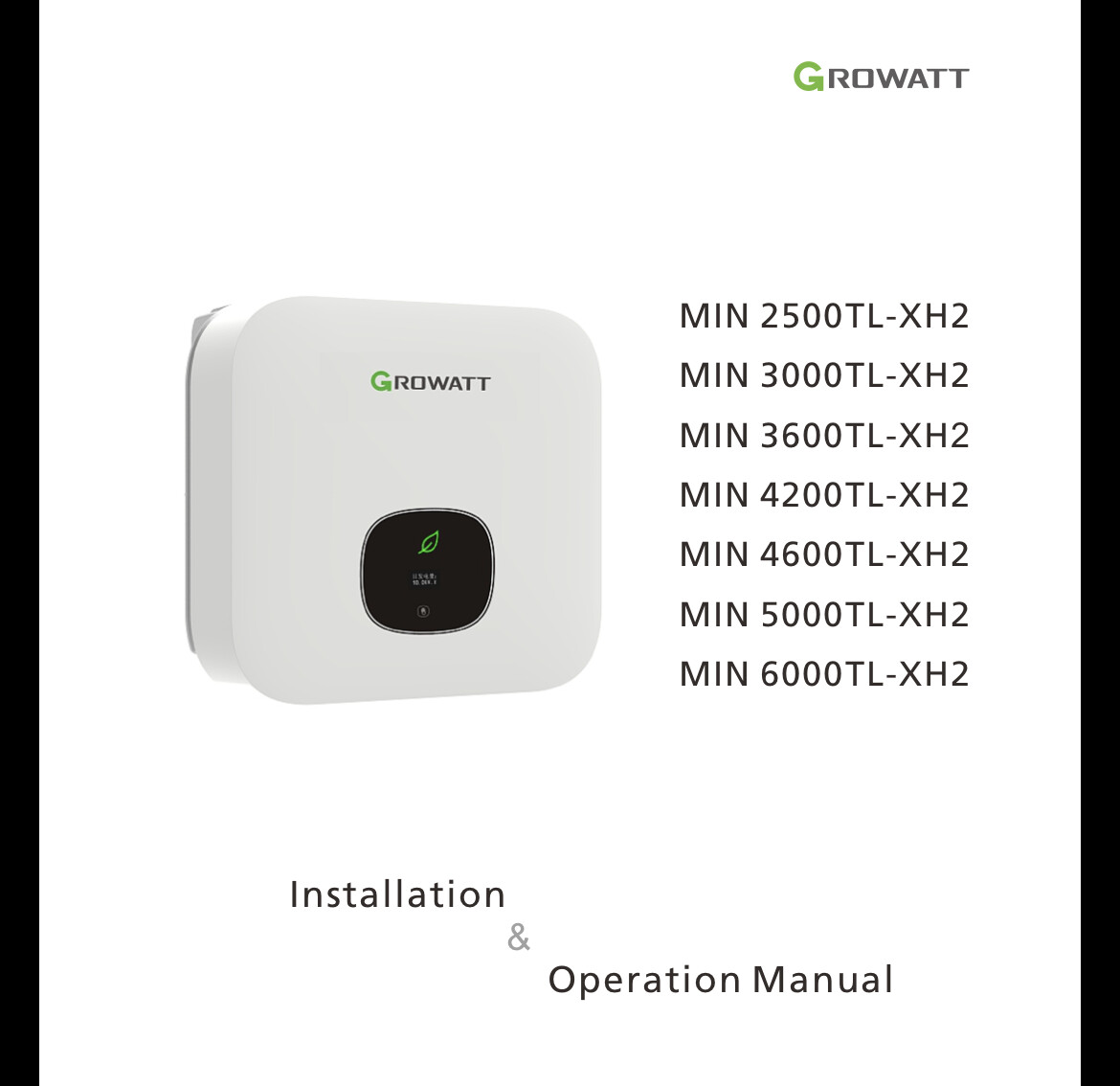

I also rechecked the (EU) manual:

it doesn’t have any reference to your RJ45 connectors on your picture ??

Where are they be located and documented??

[stefvangeyte]

They are at the bottom. Guess it is the latest version of the min 4200 tl xh2. I had before an older model that didn’t had the RJ45 ports either.

[aceindy]

Hmm, before i re-flashed the ShineX-usb module I briefly used the sys-com port; (if i remember correctly pins 3&4) with an elfi-ew11 modbus2tcp module, i used dupont cables to connect it (as the plug was too expensive with only using 2 wires )

[stefvangeyte]

In the meantime i asked Growatt for a manual for this specific version.

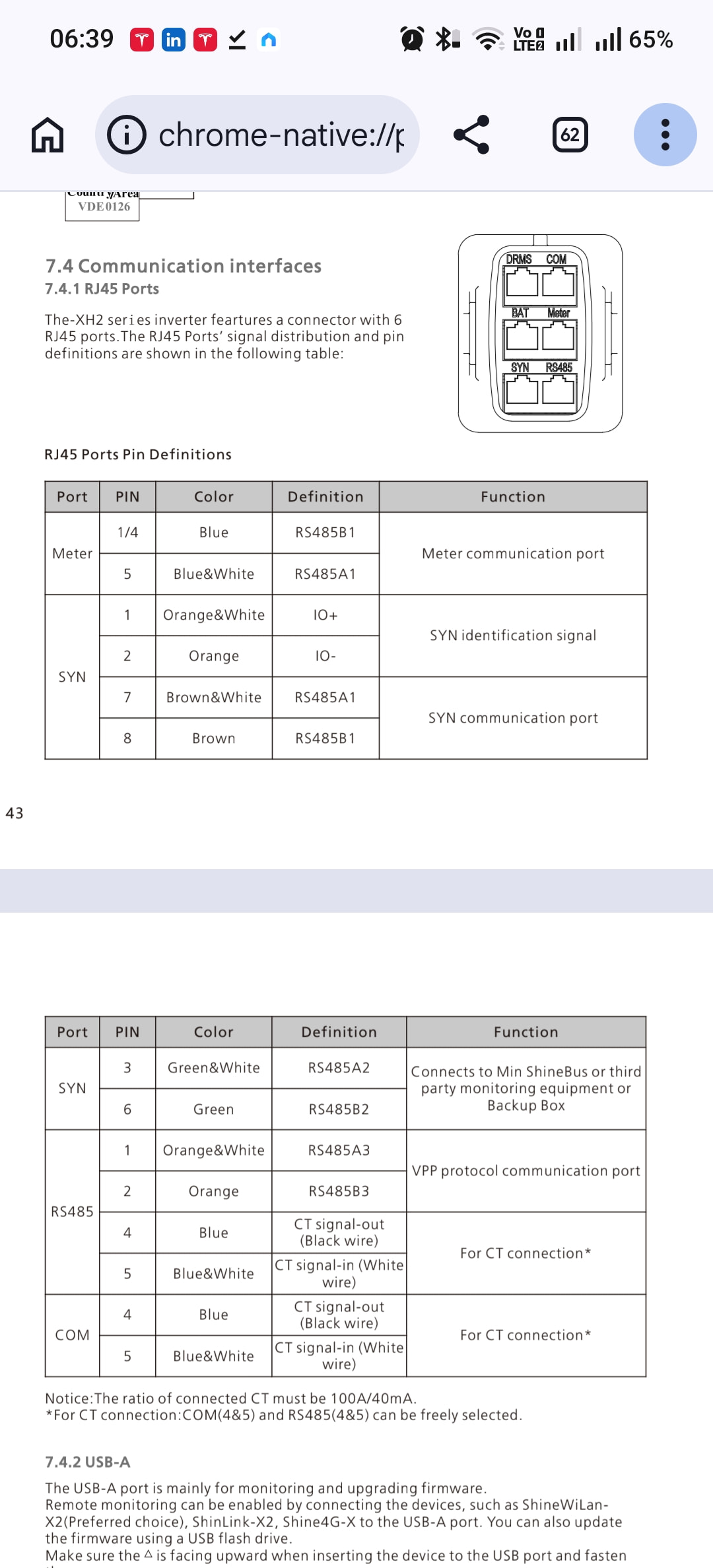

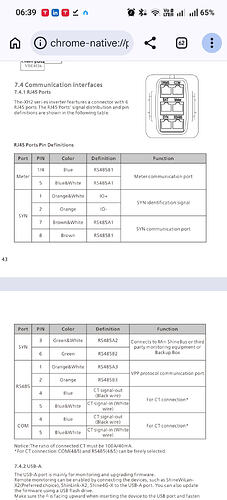

Based on below overview, which port and pins should be used?

I assume it is port SYN with Pins 3 and 6 as this is used for third party monitoring. I will try tonight and let the results know.

[Karosm]

@stefvangeyte

I assume it is port SYN

I assume it’s port RS485.

[aceindy]

My guess would be Syn (3-6) RS485A2 / RS485B2, the 3rd party shine bus…

But, you should try which port has the info/control you need…

[stefvangeyte]

Port SYN, pins 3 and 6 worked!

Thanks for the support

[aceindy]

Good to hear it works (in one go ) The only additional advise I can give you is to check put the solax intgration (especially when you want to control power (looking at your name you’re dutch ? ivm ‘salderen’ )

PS I don’t mind you marking the topic as solved (mark the proper reply as solution )
