Custom Component: Nikobus

Hi, yes i have one on paper. “Algemene Catalogus 2009 - 2010”.
I also have the same one (only the Nikobus chapter) from 2012-2013 in pdf and a very old pdf with components of the first version of Nikobus.
I will compare the one on paper with the PDF one and see if there are any differences.
i’ll send you a PM with the file(s).

1 Like

Nikobus 0.4.0 is out, 0.4 releases will not change anything else than adding discovery of the Nikobus installation. So if you are not interested; you are fine to skip the release and stay with 0.3.1 version.

If you do upgrade, may I ask you to revert with the below information:

1- go to you Nikobus physical installation and press one by one each “yellow” buttons from your modules until your hear a beep. Remember in which order you have pressed and the module type: dimmer; roller; etc…

2- go to HA / System / Log put a filter on “niko” and from the 3dots - “load full log”

3- copy/paste everything you got under " Discovered device…" highlighting missing or incorrect matches vs your install.

Do not worry about a module being reported mutiple times, that’s cosmetics, I’m working on the functionalities first:

Thank you !

2025-01-30 14:34:30.342 INFO (MainThread) [custom_components.nikobus.nkblistener] Discovered device : 09 {'Category': 'Module', 'Model': '05-002-02', 'Name': 'Compact Switch Module'} at 5B05 from message: b'\x18\x05[\x00\x90\t\x13\xff+\x81U'
2025-01-30 14:34:30.502 INFO (MainThread) [custom_components.nikobus.nkblistener] Discovered device : 09 {'Category': 'Module', 'Model': '05-002-02', 'Name': 'Compact Switch Module'} at 5B05 from message: b'\x18\x05[\x00\x90\t\x13\xff+\x81U'
2025-01-30 14:34:30.662 INFO (MainThread) [custom_components.nikobus.nkblistener] Discovered device : 09 {'Category': 'Module', 'Model': '05-002-02', 'Name': 'Compact Switch Module'} at 5B05 from message: b'\x18\x05[\x00\x90\t\x13\xff+\x81U'
2025-01-30 14:34:30.805 INFO (MainThread) [custom_components.nikobus.nkblistener] Discovered device : 09 {'Category': 'Module', 'Model': '05-002-02', 'Name': 'Compact Switch Module'} at 5B05 from message: b'\x18\x05[\x00\x90\t\x13\xff+\x81U'
2025-01-30 14:34:30.962 INFO (MainThread) [custom_components.nikobus.nkblistener] Discovered device : 09 {'Category': 'Module', 'Model': '05-002-02', 'Name': 'Compact Switch Module'} at 5B05 from message: b'\x18\x05[\x00\x90\t\x13\xff+\x81U'
2025-01-30 14:34:34.322 INFO (MainThread) [custom_components.nikobus.nkblistener] Discovered device : 03 {'Category': 'Module', 'Model': '05-007-02', 'Name': 'Dimmer Module'} at 0E6C from message: b'\x18l\x0e\x000\x03!\nq8\x97'
2025-01-30 14:34:34.472 INFO (MainThread) [custom_components.nikobus.nkblistener] Discovered device : 03 {'Category': 'Module', 'Model': '05-007-02', 'Name': 'Dimmer Module'} at 0E6C from message: b'\x18l\x0e\x000\x03!\nq8\x97'
2025-01-30 14:34:34.632 INFO (MainThread) [custom_components.nikobus.nkblistener] Discovered device : 03 {'Category': 'Module', 'Model': '05-007-02', 'Name': 'Dimmer Module'} at 0E6C from message: b'\x18l\x0e\x000\x03!\nq8\x97'
2025-01-30 14:34:34.784 INFO (MainThread) [custom_components.nikobus.nkblistener] Discovered device : 03 {'Category': 'Module', 'Model': '05-007-02', 'Name': 'Dimmer Module'} at 0E6C from message: b'\x18l\x0e\x000\x03!\nq8\x97'
2025-01-30 14:34:34.949 INFO (MainThread) [custom_components.nikobus.nkblistener] Discovered device : 03 {'Category': 'Module', 'Model': '05-007-02', 'Name': 'Dimmer Module'} at 0E6C from message: b'\x18l\x0e\x000\x03!\nq8\x97'
2025-01-30 14:34:37.862 INFO (MainThread) [custom_components.nikobus.nkblistener] Discovered device : 02 {'Category': 'Module', 'Model': '05-001-02', 'Name': 'Roller Shutter Module'} at 9105 from message: b'\x18\x05\x91\x00 \x02%\xff\xbd\xa0\x17'
2025-01-30 14:34:38.024 INFO (MainThread) [custom_components.nikobus.nkblistener] Discovered device : 02 {'Category': 'Module', 'Model': '05-001-02', 'Name': 'Roller Shutter Module'} at 9105 from message: b'\x18\x05\x91\x00 \x02%\xff\xbd\xa0\x17'
2025-01-30 14:34:38.172 INFO (MainThread) [custom_components.nikobus.nkblistener] Discovered device : 02 {'Category': 'Module', 'Model': '05-001-02', 'Name': 'Roller Shutter Module'} at 9105 from message: b'\x18\x05\x91\x00 \x02%\xff\xbd\xa0\x17'
2025-01-30 14:34:38.331 INFO (MainThread) [custom_components.nikobus.nkblistener] Discovered device : 02 {'Category': 'Module', 'Model': '05-001-02', 'Name': 'Roller Shutter Module'} at 9105 from message: b'\x18\x05\x91\x00 \x02%\xff\xbd\xa0\x17'
2025-01-30 14:34:38.473 INFO (MainThread) [custom_components.nikobus.nkblistener] Discovered device : 02 {'Category': 'Module', 'Model': '05-001-02', 'Name': 'Roller Shutter Module'} at 9105 from message: b'\x18\x05\x91\x00 \x02%\xff\xbd\xa0\x17'
2025-01-30 14:34:41.401 INFO (MainThread) [custom_components.nikobus.nkblistener] Discovered device : 02 {'Category': 'Module', 'Model': '05-001-02', 'Name': 'Roller Shutter Module'} at 8394 from message: b'\x18\x94\x83\x00 \x02\x11\xff\xc1\xd6+'
2025-01-30 14:34:41.542 INFO (MainThread) [custom_components.nikobus.nkblistener] Discovered device : 02 {'Category': 'Module', 'Model': '05-001-02', 'Name': 'Roller Shutter Module'} at 8394 from message: b'\x18\x94\x83\x00 \x02\x11\xff\xc1\xd6+'
2025-01-30 14:34:41.693 INFO (MainThread) [custom_components.nikobus.nkblistener] Discovered device : 02 {'Category': 'Module', 'Model': '05-001-02', 'Name': 'Roller Shutter Module'} at 8394 from message: b'\x18\x94\x83\x00 \x02\x11\xff\xc1\xd6+'
2025-01-30 14:34:41.863 INFO (MainThread) [custom_components.nikobus.nkblistener] Discovered device : 02 {'Category': 'Module', 'Model': '05-001-02', 'Name': 'Roller Shutter Module'} at 8394 from message: b'\x18\x94\x83\x00 \x02\x11\xff\xc1\xd6+'
2025-01-30 14:34:41.993 INFO (MainThread) [custom_components.nikobus.nkblistener] Discovered device : 02 {'Category': 'Module', 'Model': '05-001-02', 'Name': 'Roller Shutter Module'} at 8394 from message: b'\x18\x94\x83\x00 \x02\x11\xff\xc1\xd6+'
2025-01-30 14:34:45.443 INFO (MainThread) [custom_components.nikobus.nkblistener] Discovered device : 01 {'Category': 'Module', 'Model': '05-000-02', 'Name': 'Switch Module'} at 4707 from message: b'\x18\x07G\x00\x10\x01\x1e\xffX\xc0\x81'
2025-01-30 14:34:45.603 INFO (MainThread) [custom_components.nikobus.nkblistener] Discovered device : 01 {'Category': 'Module', 'Model': '05-000-02', 'Name': 'Switch Module'} at 4707 from message: b'\x18\x07G\x00\x10\x01\x1e\xffX\xc0\x81'
2025-01-30 14:34:45.763 INFO (MainThread) [custom_components.nikobus.nkblistener] Discovered device : 01 {'Category': 'Module', 'Model': '05-000-02', 'Name': 'Switch Module'} at 4707 from message: b'\x18\x07G\x00\x10\x01\x1e\xffX\xc0\x81'
2025-01-30 14:34:45.913 INFO (MainThread) [custom_components.nikobus.nkblistener] Discovered device : 01 {'Category': 'Module', 'Model': '05-000-02', 'Name': 'Switch Module'} at 4707 from message: b'\x18\x07G\x00\x10\x01\x1e\xffX\xc0\x81'
2025-01-30 14:34:46.075 INFO (MainThread) [custom_components.nikobus.nkblistener] Discovered device : 01 {'Category': 'Module', 'Model': '05-000-02', 'Name': 'Switch Module'} at 4707 from message: b'\x18\x07G\x00\x10\x01\x1e\xffX\xc0\x81'

New release 0.4.1 available! :tada: Discovering modules and buttons is now possible. Next up: establishing the relationship between module outputs and buttons… Work in progress! :construction:

Big Thanks to @promy for his guidance and contribution !

This release does not modify or add anything new. It simply logs the discovery output for troubleshooting purposes. You can safely install it.

You might get some warning, and that’s where you could help

Unknown device detected: Type 31 at Address 005B05. Please open an issue on https://github.com/fdebrus/Nikobus-HA/issues with this information.
Unknown device detected: Type FF at Address FFFFFF. Please open an issue on https://github.com/fdebrus/Nikobus-HA/issues with this information.
Unknown device detected: Type FB at Address FFFFFF. Please open an issue on https://github.com/fdebrus/Nikobus-HA/issues with this information.
Unknown device detected: Type FF at Address FEFFFF. Please open an issue on https://github.com/fdebrus/Nikobus-HA/issues with this information.
Unknown device detected: Type FE at Address FFFFFF. Please open an issue on https://github.com/fdebrus/Nikobus-HA/issues with this information.

You can ignore type FF FB FE etc… but do report

Type 31 at Address 005B05 and try to figure out what is having the address 5B05 or 055B in your install, so you can report a module I do not know about and I can be adding to the discovery process.

What you can test so far

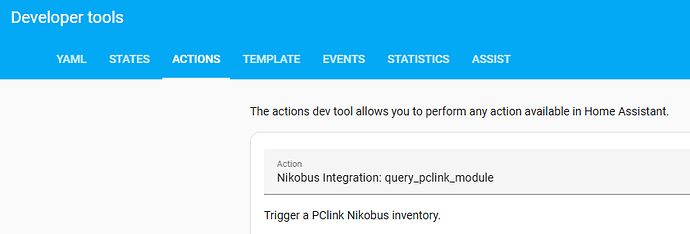

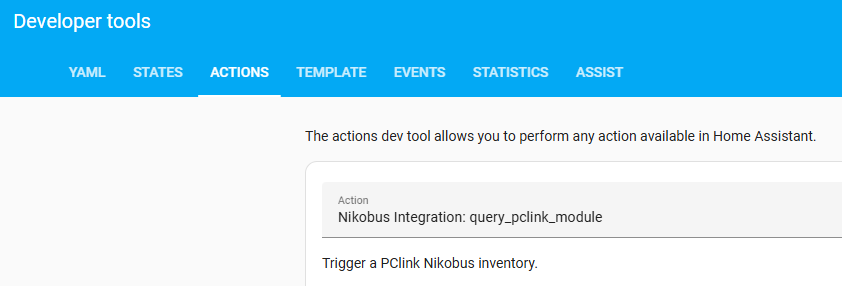

As you install the new release, you can now trigger a service “nikobus integration: scan for module”

Before to perform action, make sure you have debuglog enabled. you shall then see your installation specifics reported in the log as

Discovered Module - Dimmer Module, Model: 05-007-02, at Address: 000E6C
Discovered Module - Roller Shutter Module, Model: 05-001-02, at Address: 009105
Discovered Module - Roller Shutter Module, Model: 05-001-02, at Address: 008394
Discovered Module - Switch Module, Model: 05-000-02, at Address: 00C9A5
Discovered Module - PC Logic, Model: 05-201, at Address: 00940C
Discovered Module - Switch Module, Model: 05-000-02, at Address: 004707
Discovered Button - Feedback Button with 2 Operation Points, Model: 05-344, at Address: 0F654E
Discovered Module - Feedback Module, Model: 05-207, at Address: 00966C
Discovered Button - Button with 4 Operation Points, Model: 05-346, at Address: 1843B4
Discovered Button - IR Button with 4 Operation Points, Model: 05-348, at Address: 0D1C80
Discovered Button - RF Transmitter with 4 Operation Points, Model: 05-312, at Address: 201250
Discovered Button - RF Transmitter with 4 Operation Points, Model: 05-312, at Address: 204915
Discovered Button - Feedback Button with 4 Operation Points, Model: 05-347, at Address: 10152B
Discovered Button - Button with 4 Operation Points, Model: 05-346, at Address: 17C554
Discovered Button - Button with 4 Operation Points, Model: 05-346, at Address: 1D1F12
Discovered Button - Button with 4 Operation Points, Model: 05-346, at Address: 182F18
Discovered Button - Button with 4 Operation Points, Model: 05-346, at Address: 1C8D84
Discovered Button - Feedback Button with 4 Operation Points, Model: 05-347, at Address: 103669
Discovered Button - Button with 2 Operation Points, Model: 05-342, at Address: 17EF72
Discovered Button - IR Button with 4 Operation Points, Model: 05-348, at Address: 0FFEC0
Discovered Button - Button with 2 Operation Points, Model: 05-342, at Address: 1809FE
Discovered Button - Button with 4 Operation Points, Model: 05-346, at Address: 1D1EA6
Discovered Button - Button with 2 Operation Points, Model: 05-342, at Address: 180C56
Discovered Button - Button with 2 Operation Points, Model: 05-342, at Address: 17C1CC
Discovered Button - Button with 4 Operation Points, Model: 05-346, at Address: 1CFBA0
Discovered Button - Button with 4 Operation Points, Model: 05-346, at Address: 1E0D4A
Discovered Button - Button with 2 Operation Points, Model: 05-342, at Address: 1D0C02
Discovered Button - Button with 4 Operation Points, Model: 05-346, at Address: 1CFE4A
Discovered Button - Button with 2 Operation Points, Model: 05-342, at Address: 1D164C
Discovered Button - Button with 2 Operation Points, Model: 05-342, at Address: 1D127E
Discovered Button - Button with 2 Operation Points, Model: 05-342, at Address: 1E1ED4
Discovered Button - RF Transmitter with 4 Operation Points, Model: 05-312, at Address: 3FFFFF
Discovered Button - Button with 4 Operation Points, Model: 05-346, at Address: 1DF39E
Discovered Button - All-Function Interface, Model: 05-055, at Address: 0C2387
Discovered Button - All-Function Interface, Model: 05-055, at Address: 0C2166
Discovered Button - Button with 4 Operation Points, Model: 05-346, at Address: 1CA840
Discovered Button - Switch Interface, Model: 05-057, at Address: 1634DC
Discovered Button - Button with 2 Operation Points, Model: 05-342, at Address: 1D157C
Discovered Button - Button with 2 Operation Points, Model: 05-342, at Address: 1D1482
Discovered Button - Button with 2 Operation Points, Model: 05-342, at Address: 1E1ED8
Discovered Button - Button with 4 Operation Points, Model: 05-346, at Address: 1E0D48
Discovered Button - Button with 8 Operation Points, Model: 05-349, at Address: 1DF256
Discovered Button - Button with 8 Operation Points, Model: 05-349, at Address: 1DF1E0
Discovered Button - Button with 2 Operation Points, Model: 05-342, at Address: 1D054A
Discovered Button - Button with 2 Operation Points, Model: 05-342, at Address: 17F2F8
Discovered Button - Button with 2 Operation Points, Model: 05-342, at Address: 1E584C
Discovered Button - RF Transmitter with 2 Operation Points, Model: 05-311, at Address: 2E58F6

You can now also try with the “mode” yellow button on any module, it will report it in the log as well but this time only the concerned module is reported.

It will report the modules for which “mode” button has been pressed in a json format

{\n    \"switch_module\": [\n        {\n            \"description\": \"Compact Switch Module at 5B05\",\n            \"model\": \"05-002-02\",\n            \"address\": \"5B05\",\n            \"channels\": [\n                {\n                    \"description\": \"Compact Switch Module Output 1\",\n                    \"led_on\": \"\",\n                    \"led_off\": \"\"\n                },\n                {\n                    \"description\": \"Compact Switch Module Output 2\",\n                    \"led_on\": \"\",\n                    \"led_off\": \"\"\n                },\n                {\n                    \"description\": \"Compact Switch Module Output 3\",\n                    \"led_on\": \"\",\n                    \"led_off\": \"\"\n                },\n                {\n                    \"description\": \"Compact Switch Module Output 4\",\n                    \"led_on\": \"\",\n                    \"led_off\": \"\"\n                }\n            ]\n        },\n        {\n            \"description\": \"Switch Module at 4707\",\n            \"model\": \"05-000-02\",\n            \"address\": \"4707\",\n            \"channels\": [\n                {\n                    \"description\": \"Switch Module Output 1\",\n                    \"led_on\": \"\",\n                    \"led_off\": \"\"\n                },\n                {\n                    \"description\": \"Switch Module Output 2\",\n                    \"led_on\": \"\",\n                    \"led_off\": \"\"\n                },\n                {\n                    \"description\": \"Switch Module Output 3\",\n                    \"led_on\": \"\",\n                    \"led_off\": \"\"\n                },\n                {\n                    \"description\": \"Switch Module Output 4\",\n                    \"led_on\": \"\",\n                    \"led_off\": \"\"\n                },\n                {\n                    \"description\": \"Switch Module Output 5\",\n                    \"led_on\": \"\",\n                    \"led_off\": \"\"\n                },\n                {\n                    \"description\": \"Switch Module Output 6\",\n                    \"led_on\": \"\",\n                    \"led_off\": \"\"\n                },\n                {\n                    \"description\": \"Switch Module Output 7\",\n                    \"led_on\": \"\",\n                    \"led_off\": \"\"\n                },\n                {\n                    \"description\": \"Switch Module Output 8\",\n                    \"led_on\": \"\",\n                    \"led_off\": \"\"\n                },\n                {\n                    \"description\": \"Switch Module Output 9\",\n                    \"led_on\": \"\",\n                    \"led_off\": \"\"\n                },\n                {\n                    \"description\": \"Switch Module Output 10\",\n                    \"led_on\": \"\",\n                    \"led_off\": \"\"\n                },\n                {\n                    \"description\": \"Switch Module Output 11\",\n                    \"led_on\": \"\",\n                    \"led_off\": \"\"\n                },\n                {\n                    \"description\": \"Switch Module Output 12\",\n                    \"led_on\": \"\",\n                    \"led_off\": \"\"\n                }\n            ]\n        }\n    ],\n    \"dimmer_module\": [\n        {\n            \"description\": \"Dimmer Module at 0E6C\",\n            \"model\": \"05-007-02\",\n            \"address\": \"0E6C\",\n            \"channels\": [\n                {\n                    \"description\": \"Dimmer Module Output 1\",\n                    \"led_on\": \"\",\n                    \"led_off\": \"\"\n                },\n                {\n                    \"description\": \"Dimmer Module Output 2\",\n                    \"led_on\": \"\",\n                    \"led_off\": \"\"\n                },\n                {\n                    \"description\": \"Dimmer Module Output 3\",\n                    \"led_on\": \"\",\n                    \"led_off\": \"\"\n                },\n                {\n                    \"description\": \"Dimmer Module Output 4\",\n                    \"led_on\": \"\",\n                    \"led_off\": \"\"\n                },\n                {\n                    \"description\": \"Dimmer Module Output 5\",\n                    \"led_on\": \"\",\n                    \"led_off\": \"\"\n                },\n                {\n                    \"description\": \"Dimmer Module Output 6\",\n                    \"led_on\": \"\",\n                    \"led_off\": \"\"\n                },\n                {\n                    \"description\": \"Dimmer Module Output 7\",\n                    \"led_on\": \"\",\n                    \"led_off\": \"\"\n                },\n                {\n                    \"description\": \"Dimmer Module Output 8\",\n                    \"led_on\": \"\",\n                    \"led_off\": \"\"\n                },\n                {\n                    \"description\": \"Dimmer Module Output 9\",\n                    \"led_on\": \"\",\n                    \"led_off\": \"\"\n                },\n                {\n                    \"description\": \"Dimmer Module Output 10\",\n                    \"led_on\": \"\",\n                    \"led_off\": \"\"\n                },\n                {\n                    \"description\": \"Dimmer Module Output 11\",\n                    \"led_on\": \"\",\n                    \"led_off\": \"\"\n                },\n                {\n                    \"description\": \"Dimmer Module Output 12\",\n                    \"led_on\": \"\",\n                    \"led_off\": \"\"\n                }\n            ]\n        }\n    ],\n    \"roller_module\": [\n        {\n            \"description\": \"Roller Shutter Module at 9105\",\n            \"model\": \"05-001-02\",\n            \"address\": \"9105\",\n            \"channels\": [\n                {\n                    \"description\": \"Roller Shutter Module Output 1\",\n                    \"led_on\": \"\",\n                    \"led_off\": \"\",\n                    \"operation_time\": \"40\"\n                },\n                {\n                    \"description\": \"Roller Shutter Module Output 2\",\n                    \"led_on\": \"\",\n                    \"led_off\": \"\",\n                    \"operation_time\": \"40\"\n                },\n                {\n                    \"description\": \"Roller Shutter Module Output 3\",\n                    \"led_on\": \"\",\n                    \"led_off\": \"\",\n                    \"operation_time\": \"40\"\n                },\n                {\n                    \"description\": \"Roller Shutter Module Output 4\",\n                    \"led_on\": \"\",\n                    \"led_off\": \"\",\n                    \"operation_time\": \"40\"\n                },\n                {\n                    \"description\": \"Roller Shutter Module Output 5\",\n                    \"led_on\": \"\",\n                    \"led_off\": \"\",\n                    \"operation_time\": \"40\"\n                },\n                {\n                    \"description\": \"Roller Shutter Module Output 6\",\n                    \"led_on\": \"\",\n                    \"led_off\": \"\",\n                    \"operation_time\": \"40\"\n                }\n            ]\n        },\n        {\n            \"description\": \"Roller Shutter Module at 8394\",\n            \"model\": \"05-001-02\",\n            \"address\": \"8394\",\n            \"channels\": [\n                {\n                    \"description\": \"Roller Shutter Module Output 1\",\n                    \"led_on\": \"\",\n                    \"led_off\": \"\",\n                    \"operation_time\": \"40\"\n                },\n                {\n                    \"description\": \"Roller Shutter Module Output 2\",\n                    \"led_on\": \"\",\n                    \"led_off\": \"\",\n                    \"operation_time\": \"40\"\n                },\n                {\n                    \"description\": \"Roller Shutter Module Output 3\",\n                    \"led_on\": \"\",\n                    \"led_off\": \"\",\n                    \"operation_time\": \"40\"\n                },\n                {\n                    \"description\": \"Roller Shutter Module Output 4\",\n                    \"led_on\": \"\",\n                    \"led_off\": \"\",\n                    \"operation_time\": \"40\"\n                },\n                {\n                    \"description\": \"Roller Shutter Module Output 5\",\n                    \"led_on\": \"\",\n                    \"led_off\": \"\",\n                    \"operation_time\": \"40\"\n                },\n                {\n                    \"description\": \"Roller Shutter Module Output 6\",\n                    \"led_on\": \"\",\n                    \"led_off\": \"\",\n                    \"operation_time\": \"40\"\n                }\n            ]\n        }\n    ]\n}"

CHATGPT will parse it nicely for you for better readability :slight_smile:

relation between module outputs and button is still WIP, it will be something like

2025-02-04 20:42:13.981 INFO (MainThread) [custom_components.nikobus.nkbdiscovery] Decoded Button Commands:
2025-02-04 20:42:13.981 INFO (MainThread) [custom_components.nikobus.nkbdiscovery] Type Code: 2E, Header: 0747
2025-02-04 20:42:13.981 INFO (MainThread) [custom_components.nikobus.nkbdiscovery] Command 1: Button Address: 1A93EE, Key: 0, Channel: 4, Timer: 10, Mode: 6
2025-02-04 20:42:13.981 INFO (MainThread) [custom_components.nikobus.nkbdiscovery] Command 2: Button Address: 77CE48, Key: 1, Channel: 0, Timer: 0, Mode: 4
2025-02-04 20:42:13.981 INFO (MainThread) [custom_components.nikobus.nkbdiscovery] Command 3: Button Address: EEFFEC, Key: 3, Channel: 9, Timer: 10, Mode: 1
