Introduction
Hey everyone!
Sharing my setup for controlling Dooya roller blinds (RF433 MHz motors) from Home Assistant using an ESP32 and a CC1101 module running ESPHome.
Dooya blinds (and rebrands like Zemismart, AM43, etc.) use RF 433 MHz remotes with a proprietary protocol. The idea: replace all DC90 remotes with a single ESP32 that transmits the same RF codes.
Result: 8 blinds controlled from HA, no cloud, no proprietary hub, for ~$10 worth of hardware.
Update, October 2026: the original config below no longer compiles. It uses the external
radiolib_cc1101component, which pulls RadioLib without a pinned version, and RadioLib no longer builds against the ESP-IDF that current ESPHome ships:
fatal error: driver/ledc.h: No such file or directoryA node you already flashed keeps working; the error only appears the next time you compile it. For a new build, or before your next update, use the built-in
cc1101config in Updated wiring and config (2026) near the end. It needs no external component, and with TX and RX on separate pins a single YAML does both jobs.
- If you want a real cover entity with a position instead of three buttons, there is now an integration for that: see Going further at the end.
The original
radiolib_cc1101config is kept below for reference only.
Hardware
| Component | Approx. Price | Source |
|---|---|---|
| ESP32 DevKit V1 (or clone) | ~$4 | AliExpress |
| CC1101 433MHz module (green E07, 8 pins) | ~$3 | AliExpress |
| Dupont jumper wires (female-female) | ~$2 | AliExpress |
| Micro-USB cable + 5V charger | already have | - |
Total: ~$10
Optional for final installation
- Plastic enclosure (~83x58x33mm)
- PG7 cable gland (USB cable passthrough)
- 3M 9448A double-sided tape (mounting inside enclosure)
Wiring: ESP32 + CC1101
Identify your CC1101 module
The PCB colour is not a reliable indicator — some blue boards carry the green pinout and the other way round, depending on the manufacturer. The only dependable test is to look at pin 2 on your own module:
- Pin 2 = VCC → use Pinout A below
- Pin 2 = GND → use Pinout B below
Pinout A — pin 2 = VCC (often the green E07, but not always)
| CC1101 Pin | Name | ESP32 GPIO | Function |
|---|---|---|---|
| 1 | GND | GND | Ground |
| 2 | VCC | 3V3 | 3.3V Power |
| 3 | GDO0 | GPIO 4 | RF data — TX on the unified node, RX on the sniffer |
| 4 | CSN | GPIO 5 | SPI Chip Select |
| 5 | SCK | GPIO 18 | SPI Clock |
| 6 | MOSI | GPIO 23 | SPI MOSI |
| 7 | MISO | GPIO 19 | SPI MISO |
| 8 | GDO2 | GPIO 16 | RF data in — unified node only |
Pinout B — pin 2 = GND
| CC1101 Pin | Name | ESP32 GPIO | Function |
|---|---|---|---|
| 1 | VCC | 3V3 | 3.3V Power |
| 2 | GND | GND | Ground |
| 3 | MOSI | GPIO 23 | SPI MOSI |
| 4 | SCLK | GPIO 18 | SPI Clock |
| 5 | MISO | GPIO 19 | SPI MISO |
| 6 | GDO2 | GPIO 16 | RF data in — unified node only |
| 7 | GDO0 | GPIO 4 | RF data — TX on the unified node, RX on the sniffer |
| 8 | CSN | GPIO 5 | SPI Chip Select |
The GDO2 wire is only needed for the unified node (
esphome/dooya-node.yaml), which transmits on GDO0 and receives on GDO2. The original sniffer further down this post receives on GDO0/GPIO 4 and leaves GDO2 unconnected — if that is the one you flashed, skip that wire. Wiring the unified node from a table that says not used gives you a node that transmits perfectly and hears nothing.
Step 1: Sniff your remote codes
Before you can transmit, you need to capture the RF codes from each Dooya remote. Each remote has a unique ID (24-bit) that is paired to the blind motor.
ESPHome RX config (sniffer)
remote_receiveris used alone, withoutremote_transmitterin the same config. This is a limitation of sharing GPIO4 between RX and TX.
substitutions:
device_name: esp32-rf433-sniffer
friendly_name: "RF433 Sniffer"
esphome:
name: ${device_name}
friendly_name: ${friendly_name}
on_boot:
priority: -100
then:
- lambda: id(mycc1101).recv();
esp32:
board: esp32dev
framework:
type: esp-idf
external_components:
- source: github://juanboro/esphome-radiolib-cc1101@main
components: [ radiolib_cc1101 ]
wifi:
ssid: !secret wifi_ssid
password: !secret wifi_password
power_save_mode: none
fast_connect: true
ap:
ssid: "${device_name}-fallback"
password: "12345678"
captive_portal:
logger:
level: DEBUG
api:
ota:
- platform: esphome
password: "1234"
web_server:
port: 80
spi:
id: spi_bus
type: single
clk_pin: GPIO18
mosi_pin: GPIO23
miso_pin: GPIO19
radiolib_cc1101:
id: mycc1101
cs_pin: 5
rx_pin:
number: 4
allow_other_uses: true
frequency: 433.9205
filter: 468khz
bitrate: 5
# Receiver ONLY - NO remote_transmitter!
remote_receiver:
id: rf_receiver
pin:
number: 4
allow_other_uses: true
dump: all
How to sniff
- Flash this config to the ESP32
- Open the ESPHome logs (via dashboard or
esphome logs) - Press a button on your DC90 remote (Up, Stop, or Down)
- Look for a log line like:
Received Dooya: id=0x00D1C917, channel=5, button=1, check=1
- Write down
id,channel,button, andcheckfor each button - Repeat for each remote
Dooya protocol
- id: 24-bit, unique per remote (paired to the motor)
- channel: usually 5 for single-channel remotes
- button: 1 = Up, 3 = Down, 5 = Stop
- check: usually equals button value
Step 2: Configure TX (transmitter)
Once you’ve captured all codes, switch to the TX config. Remove remote_receiver and add remote_transmitter instead.
ESPHome TX config
substitutions:
device_name: esp32-blinds-rf433
friendly_name: "Dooya Blinds RF433"
esphome:
name: ${device_name}
friendly_name: ${friendly_name}
esp32:
board: esp32dev
framework:
type: esp-idf
external_components:
- source: github://juanboro/esphome-radiolib-cc1101@main
components: [ radiolib_cc1101 ]
wifi:
ssid: !secret wifi_ssid
password: !secret wifi_password
power_save_mode: none
fast_connect: true
ap:
ssid: "${device_name}-fallback"
password: "12345678"
captive_portal:
logger:
level: DEBUG
api:
ota:
- platform: esphome
password: "1234"
web_server:
port: 80
# SPI config for CC1101
spi:
id: spi_bus
type: single
clk_pin: GPIO18
mosi_pin: GPIO23
miso_pin: GPIO19
# RadioLib CC1101 - Dooya settings
radiolib_cc1101:
id: mycc1101
cs_pin: 5
rx_pin:
number: 4
allow_other_uses: true
frequency: 433.9205
filter: 468khz
bitrate: 5
# RF transmitter on GDO0 (GPIO4)
remote_transmitter:
- id: rf_transmitter
pin:
number: 4
allow_other_uses: true
carrier_duty_percent: 100%
non_blocking: false
on_transmit:
then:
- lambda: id(mycc1101).xmit();
on_complete:
then:
- lambda: id(mycc1101).recv();
# === Buttons per blind ===
# Duplicate this block for each blind, changing the name and ID
button:
# --- Living Room Blind ---
- platform: template
name: "Living Room Blind - Up"
id: blind_living_up
icon: "mdi:arrow-up-bold-box"
on_press:
- remote_transmitter.transmit_dooya:
transmitter_id: rf_transmitter
id: 0x00D1C917 # <-- Replace with YOUR remote's ID
channel: 5
button: 1
check: 1
repeat: { times: 5, wait_time: 1ms }
- platform: template
name: "Living Room Blind - Stop"
id: blind_living_stop
icon: "mdi:stop-circle"
on_press:
- remote_transmitter.transmit_dooya:
transmitter_id: rf_transmitter
id: 0x00D1C917
channel: 5
button: 5
check: 5
repeat: { times: 5, wait_time: 1ms }
- platform: template
name: "Living Room Blind - Down"
id: blind_living_down
icon: "mdi:arrow-down-bold-box"
on_press:
- remote_transmitter.transmit_dooya:
transmitter_id: rf_transmitter
id: 0x00D1C917
channel: 5
button: 3
check: 3
repeat: { times: 5, wait_time: 1ms }
Key points
repeat: { times: 5, wait_time: 1ms }sends the code 5 times for reliable motor reception- The
on_transmit/on_completelambdas switch the CC1101 between TX mode and idle — this is mandatory - ESP-IDF framework required with
radiolib_cc1101: the Arduino framework does not work correctly for TX in this setup (see the gotchas at the end for the nuance)
Step 3: Home Assistant integration
Buttons automatically appear in HA via the ESPHome integration. You’ll get 3 buttons per blind: Up, Stop, Down.
Create a Cover entity (optional)
For a proper blind entity in HA with up/down/stop controls, create a template cover in your configuration.yaml:
cover:
- platform: template
covers:
blind_living_room:
device_class: shutter
friendly_name: "Living Room Blind"
open_cover:
- action: button.press
target:
entity_id: button.living_room_blind_up
close_cover:
- action: button.press
target:
entity_id: button.living_room_blind_down
stop_cover:
- action: button.press
target:
entity_id: button.living_room_blind_stop
Note: Without RF state feedback, the blind position is unknown. The cover will always show “unknown” state but commands work fine.
This is still true of a bare ESPHome cover: the Dooya protocol used here is one-way, so the motor never tells you where it is. It can be worked around by timing the travel rather than measuring it — @Haningback tried ESPHome’s time_based cover in post #5 and concluded the guessed position was more annoying than three honest buttons, which matches my own experience. The integration linked in Going further takes the same idea further: it measures your real opening and closing times with a calibration assistant instead of having you guess them, and it resyncs when it hears the physical remote.
Enclosure (final installation)
Once everything works on the breadboard:
- Solder wires directly onto the ESP32 pins (component side)
- Cut the protruding pins on the back with flush cutters (or bend them flat if you want to keep the breadboard option)
- Mount the ESP32 and CC1101 inside the enclosure with 3M 9448A double-sided tape
- Drill a hole for the USB cable (PG7 cable gland = clean and solid)
- The CC1101 antenna can stay inside if the enclosure is plastic (RF signal passes through)
Placement
Place the enclosure centrally relative to your blinds for optimal range. The CC1101 has a range of ~30-50m indoors, more than enough for a house.
Gotchas & tips
RX + TX together — depends on your wiring
With the single-pin radiolib_cc1101 setup described above, remote_receiver and remote_transmitter share GPIO4, and reception stops working as soon as both are declared, even when not transmitting. Two separate YAML files — one for sniffing, one for transmitting — is the workaround for that setup.
This is not a hardware limitation. Wire GDO0 and GDO2 to two different GPIOs and TX and RX coexist in a single YAML, with no allow_other_uses gymnastics at all. @cpecorari reported this in post #7 with GPIO12/GPIO27, and it is what I run myself now (GPIO4 for TX, GPIO16 for RX) with the mainline cc1101 component.
Arduino framework = unstable TX (with radiolib_cc1101)
With radiolib_cc1101 on the Arduino framework, my TX froze after a few transmissions. Switching to ESP-IDF fixed it, and ESP-IDF is still what I recommend. @cpecorari (post #7) runs Arduino with the mainline cc1101 component and reports no freezes, so this looks specific to the external component rather than to Arduino itself.
Dooya frequency = 433.9205 MHz
This is NOT standard 433.92 MHz. The exact frequency is 433.9205 MHz. If your blinds don’t respond, check this setting.
Note: this offset was needed with radiolib_cc1101. With the mainline cc1101 component I set a plain 433.92MHz and everything responds. Either way, if your blinds don’t react this is still the first setting to nudge.
allow_other_uses: true is mandatory (single-pin setup)
GPIO4 is used by both radiolib_cc1101 (rx_pin) and remote_transmitter (pin). You must add allow_other_uses: true on both declarations, otherwise ESPHome refuses to compile. This disappears entirely if you put RX and TX on separate pins.
The repeat matters
Dooya motors need to receive the code multiple times to react. repeat: { times: 5 } is a good balance between reliability and speed.
A silent non-transmitting build (reported, not reproduced by me)
@cpecorari reports in post #7 that the ESPHome CLI on versions 2025.x and 2026.1.x – 2026.3.x compiles a binary that emits nothing at all: same YAML, same chip, no RF, no error in the logs. Building through the ESPHome dashboard add-on inside Home Assistant on ≥ 2026.4.5 works. The exact regression was never isolated. I have not hit this myself, but if you are convinced your config is right and nothing comes out of the antenna, try the dashboard before you re-solder anything.
Some remotes send two frames per button
Still from post #7: Naterial-branded remotes send two distinct RF frames for each direction button (header + command, most likely). A single binary_sensor matcher only catches one of the two, so you need two matchers per direction button — and only one for STOP.
External component used
- esphome-radiolib-cc1101 by juanboro
- Based on the RadioLib library, enables CC1101 usage in OOK direct mode with ESPHome
- The Dooya protocol is natively supported by ESPHome (
remote_transmitter.transmit_dooya)
Since ESPHome 2025.12 this external component is optional: a cc1101 component is now part of ESPHome core. See the updated config below.
Updated wiring and config (2026)
Since ESPHome 2025.12 there is a native cc1101 component in ESPHome core. It replaces the external radiolib_cc1101 component, and because you no longer share one GPIO between RX and TX, a single YAML does both jobs.
Wiring changes: keep SPI as described above (CS → GPIO5, SCK → GPIO18, MOSI → GPIO23, MISO → GPIO19), then wire GDO0 → GPIO4 for transmission and GDO2 → GPIO16 for reception. Pin 8 of the module is the one you now need — the wiring tables near the top give it as GDO2 → GPIO 16 for exactly this reason.
A complete, commented node config using this — TX + RX, permanent listening, one node per RF zone — is here:
RF range tip while you are at it: replace the module’s coil antenna with a straight 17.3 cm wire (a 433 MHz quarter wave), and keep the node high up and away from reinforced concrete. It costs nothing and it was the single biggest reliability improvement I made.
Going further
Two projects grew out of this thread, and which one you want depends on what you need.

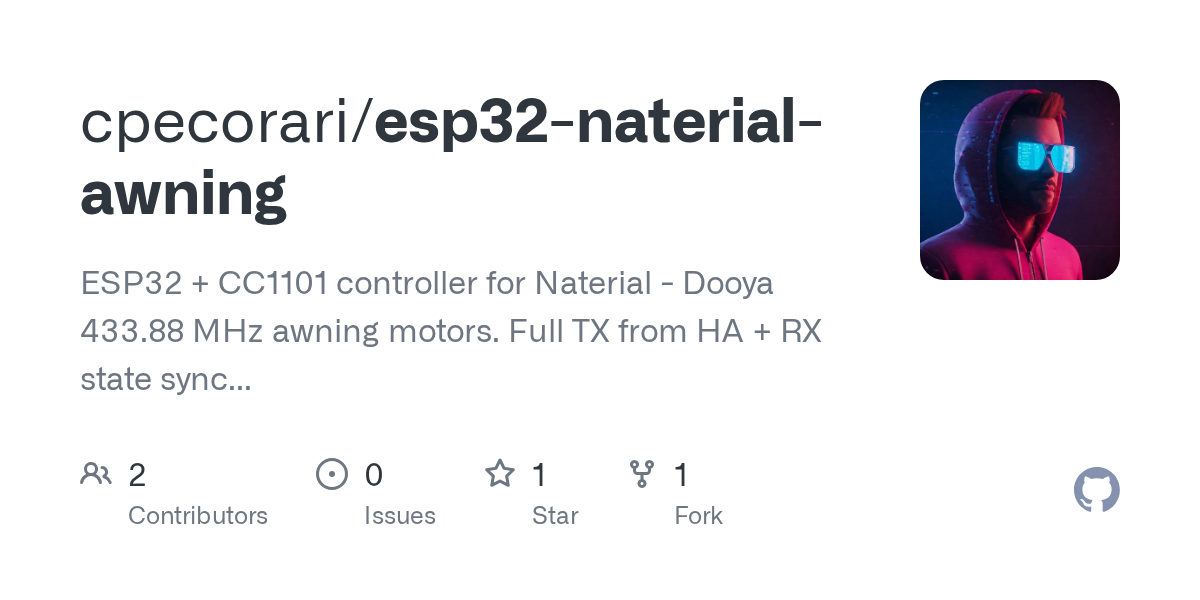

Raw capture and replay, with state sync from the physical remote — @cpecorari’s build for a Naterial-branded (Dooya 433.88 MHz) awning. It captures and replays raw frames instead of decoding the Dooya fields, and updates the cover state in Home Assistant when someone presses the physical remote. The REVERSE_ENGINEERING.md in the repo documents ten gotchas they hit, several of which apply well beyond Naterial:
A cover entity with a position, instead of three buttons — ha-dooya, a custom integration that turns the node above into one proper cover entity per blind, with a position estimated from your measured travel times.
Conclusion
This works flawlessly for my setup of 8 Dooya blinds. The CC1101 is far more reliable than a basic 433 MHz transmitter because it allows precise frequency tuning (433.9205 MHz vs generic 433.92).
Total cost is ridiculously low (~$10) compared to proprietary Zigbee/WiFi solutions, and everything stays 100% local via Home Assistant.
Feel free to ask if you have any questions!
Tested with: ESPHome 2025.x–2026.x / ESP-IDF 5.x / ESP32 DevKit v1 / CC1101 E07 green module / Home Assistant 2025.x+
Also reported working on ESP32-S3-WROOM1 N16R8 by @tzsolt (post #3).
