Dashboard picture-elements render properly in code view but not when viewed normally

Share your Projects! Dashboards & Frontend
1

I’m having this very strange problem with my dashboard element that renders properly when in code editor but not after I finish editing.

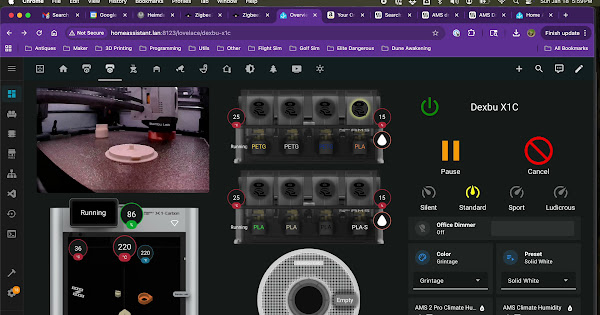

Here is a link to a screen capture of the behaviour I’m seeing

Here is the card in question. I’ve debugged this for ages but I’m out of things to try to help figure out why it won’t render.

Do u have any ideas?

Thanks,
Dek

Here is the card:

type: picture-elements
elements:
  - type: conditional
    conditions:
      - condition: state
        state_not: unavailable
        entity: binary_sensor.dexbu_x1c_online
      - condition: state
        state_not: unknown
        entity: binary_sensor.dexbu_x1c_online
    elements:
      - type: state-label
        entity: binary_sensor.dexbu_x1c_online
        tap_action:
          action: none
        style:
          top: 77%
          left: 9.6%
          text-align: center
          font-size: 0.8em
          background-color: rgba(0,0,0,0)
          box-shadow: 0 0 3px 3px rgba(0, 0, 0, 0)
          border-radius: 10px
          pointer-events: none
          color: "#FFFFFF"
  - type: custom:config-template-card
    entities:
      - sensor.dexbu_x1c_ams_2_pro_tray_1
    element:
      type: state-icon
      entity: sensor.dexbu_x1c_ams_2_pro_tray_1
      icon: >-
        ${states['sensor.dexbu_x1c_ams_2_pro_tray_1'].state.toLowerCase() !=
        'empty' ? 'fapro:filament-1' : 'mdi:tray' }
    style:
      top: 28%
      left: 21.4%
      "--state-icon-color": var(--tray_1_color)
      background-color: rgba(0,0,0,0.5)
      box-shadow: 0 0 5px 5px var(--tray_1_bg)
      border-radius: 50px
      "--mdc-icon-size": 2.4em
  - type: state-label
    entity: sensor.dexbu_x1c_ams_2_pro_tray_1
    attribute: type
    tap_action:
      action: none
    style:
      top: 77%
      left: 21%
      text-align: center
      font-size: 1em
      background-color: rgba(0,0,0,0.4)
      box-shadow: 0 0 5px 5px rgba(0, 0, 0, 0.4)
      border-radius: 50px
      pointer-events: none
      color: var(--tray_1_color)
  - type: custom:config-template-card
    entities:
      - sensor.dexbu_x1c_ams_2_pro_tray_2
    element:
      type: state-icon
      entity: sensor.dexbu_x1c_ams_2_pro_tray_2
      icon: >-
        ${states['sensor.dexbu_x1c_ams_2_pro_tray_2'].state.toLowerCase() !=
        'empty' ? 'fapro:filament-1' : 'mdi:tray' }
    style:
      top: 28%
      left: 39.7%
      "--state-icon-color": var(--tray_2_color)
      background-color: rgba(0,0,0,0.5)
      box-shadow: 0 0 5px 5px var(--tray_2_bg)
      border-radius: 50px
      "--mdc-icon-size": 2.4em
  - type: state-label
    entity: sensor.dexbu_x1c_ams_2_pro_tray_2
    attribute: type
    tap_action:
      action: none
    style:
      top: 77%
      left: 40%
      text-align: center
      font-size: 1em
      background-color: rgba(0,0,0,0.4)
      box-shadow: 0 0 5px 5px rgba(0, 0, 0, 0.4)
      border-radius: 50px
      pointer-events: none
      color: var(--tray_2_color)
  - type: custom:config-template-card
    entities:
      - sensor.dexbu_x1c_ams_2_pro_tray_3
    element:
      type: state-icon
      entity: sensor.dexbu_x1c_ams_2_pro_tray_3
      icon: >-
        ${states['sensor.dexbu_x1c_ams_2_pro_tray_3'].state.toLowerCase() !=
        'empty' ? 'fapro:filament-1' : 'mdi:tray' }
    style:
      top: 28%
      left: 59.7%
      "--state-icon-color": var(--tray_3_color)
      background-color: rgba(0,0,0,0.5)
      box-shadow: 0 0 5px 5px var(--tray_3_bg)
      border-radius: 50px
      "--mdc-icon-size": 2.4em
  - type: state-label
    entity: sensor.dexbu_x1c_ams_2_pro_tray_3
    attribute: type
    tap_action:
      action: none
    style:
      top: 77%
      left: 60%
      text-align: center
      font-size: 1em
      background-color: rgba(0,0,0,0.4)
      box-shadow: 0 0 5px 5px rgba(0, 0, 0, 0.4)
      border-radius: 50px
      pointer-events: none
      color: var(--tray_3_color)
  - type: custom:config-template-card
    entities:
      - sensor.dexbu_x1c_ams_2_pro_tray_4
    element:
      type: state-icon
      entity: sensor.dexbu_x1c_ams_2_pro_tray_4
      icon: >-
        ${states['sensor.dexbu_x1c_ams_2_pro_tray_4'].state.toLowerCase() !=
        'empty' ? 'fapro:filament-1' : 'mdi:tray' }
    style:
      top: 28%
      left: 79.6%
      "--state-icon-color": var(--tray_4_color)
      background-color: rgba(0,0,0,0.5)
      box-shadow: 0 0 5px 5px var(--tray_4_bg)
      border-radius: 50px
      "--mdc-icon-size": 2.4em
  - type: state-label
    entity: sensor.dexbu_x1c_ams_2_pro_tray_4
    attribute: type
    tap_action:
      action: none
    style:
      top: 77%
      left: 79.6%
      text-align: center
      font-size: 1em
      background-color: rgba(0,0,0,0.4)
      box-shadow: 0 0 5px 5px rgba(0, 0, 0, 0.4)
      border-radius: 50px
      pointer-events: none
      color: var(--tray_4_color)
  - type: conditional
    conditions:
      - entity: sensor.dexbu_x1c_print_status
        state_not: offline
    elements:
      - type: conditional
        conditions:
          - entity: sensor.ams_2_pro_climate_temperature
            state_not:
              - unavailable
              - unknown
        elements:
          - entity: sensor.ams_2_pro_climate_temperature
            type: state-badge
            style:
              top: 50.75%
              left: 8%
              font-size: 0.75em
              color: rgba(0,0,0,0)
          - entity: sensor.ams_2_pro_climate_humidity
            type: state-badge
            style:
              top: 50.75%
              left: 92.5%
              font-size: 0.75em
              color: rgba(0,0,0,0)
      - type: custom:config-template-card
        entities:
          - sensor.dexbu_x1c_ams_2_pro_humidity_index
        element:
          type: state-icon
          entity: sensor.dexbu_x1c_ams_2_pro_humidity_index
          icon: >-
            ${'fapro:humidity-level-dark-' +
            states['sensor.dexbu_x1c_ams_2_pro_humidity_index'].state +
            '#fullcolor'}
        style:
          top: 68.5%
          left: 92.5%
          background-color: "#1c1c1c"
          border-radius: 50px
          border: 0.12em solid var(--humidity-border-color)
          "--mdc-icon-size": 2.05em
image: /local/media/bambuprinter/AMS_2.png
card_mod:
  style: |
    ha-card {
      --silly_color: {{state_attr('sensor.dexbu_x1c_ams_2_pro_tray_3', 'color') }};
      background: none !important;
      border: none !important;
      box-shadow: none !important;
      --humidity-border-color: {% if states('sensor.dexbu_x1c_ams_2_pro_humidity_index')  != 'unavailable' and states('sensor.dexbu_x1c_ams_2_pro_humidity_index') | int > 3 %} rgba(255, 255, 126, 0.5); {% elif states('sensor.dexbu_x1c_ams_2_pro_humidity_index')  != 'unavailable' and states('sensor.dexbu_x1c_ams_2_pro_humidity_index') | int > 1 %} rgba(228,127,97,1.0); {% else %} rgba(194,74,72,1.0); {% endif %}
      --tray_1_color: {% if is_state_attr('sensor.dexbu_x1c_ams_2_pro_tray_1', 'color', '#00000000') %} rgb(255, 255, 255); {% else %} {{state_attr('sensor.dexbu_x1c_ams_2_pro_tray_1', 'color') }}; {% endif %}
      --tray_2_color: {% if is_state_attr('sensor.dexbu_x1c_ams_2_pro_tray_2', 'color', '#00000000') %} rgb(255, 255, 255); {% else %} {{state_attr('sensor.dexbu_x1c_ams_2_pro_tray_2', 'color') }}; {% endif %}
      --tray_3_color: {% if is_state_attr('sensor.dexbu_x1c_ams_2_pro_tray_3', 'color', '#00000000') %} rgb(255, 255, 255); {% else %} {{state_attr('sensor.dexbu_x1c_ams_2_pro_tray_3', 'color') }}; {% endif %}
      --tray_4_color: {% if is_state_attr('sensor.dexbu_x1c_ams_2_pro_tray_4', 'color', '#00000000') %} rgb(255, 255, 255); {% else %} {{state_attr('sensor.dexbu_x1c_ams_2_pro_tray_4', 'color') }}; {% endif %}
      --tray_1_bg: {% if is_state_attr('sensor.dexbu_x1c_ams_2_pro_tray_1', 'active', true) %} rgba(255, 255, 126, 0.5); {% else %} rgba(0,0,0,0.5); {% endif %}
      --tray_2_bg: {% if is_state_attr('sensor.dexbu_x1c_ams_2_pro_tray_2', 'active', true) %} rgba(255, 255, 126, 0.5); {% else %} rgba(0,0,0,0.5); {% endif %}
      --tray_3_bg: {% if is_state_attr('sensor.dexbu_x1c_ams_2_pro_tray_3', 'active', true) %} rgba(255, 255, 126, 0.5); {% else %} rgba(0,0,0,0.5); {% endif %}
      --tray_4_bg: {% if is_state_attr('sensor.dexbu_x1c_ams_2_pro_tray_4', 'active', true) %} rgba(255, 255, 126, 0.5); {% else %} rgba(0,0,0,0.5); {% endif %}
    }
2

Nope, no idea, i’ve had problem with a “plain floreplan” no fancy stuff, just icons etc … and been sitting for weeks, to make it match :roll_eyes:
px by px , up N down left N right … going nuts

And this was about 2 years ago …

Either it’s not Bug-reported or they can’t fix this , as i see now :frowning:
Look at the bright side, you get a little better upon estimate your pixlars size in % on your screen :joy:

PS: Just remember which items you needed to changed(slightly) so you don’t touch these in the Editor next time, because they are “off-side” :laughing:
