Setup and configuration of my working DF Robot RS485 7-in-1 Weather Station Sensor SEN0657 and Waveshare RS485 to ETH integration (C) 30303
My first post, hoping to save others time and effort.
Both were supplied with 12v DC. The waveshare could not power the weather station from the output terminals on the RS485 connection side, I connected to the input instead. This may be something to watch out for on this device.

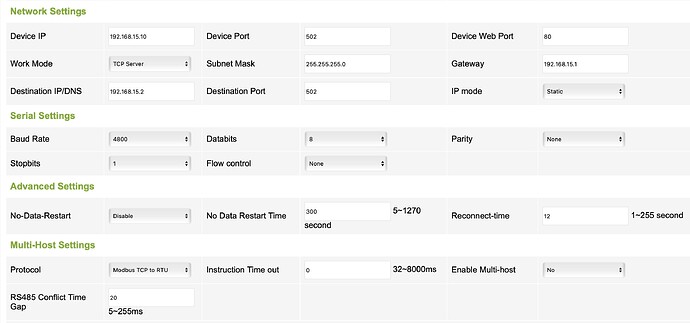

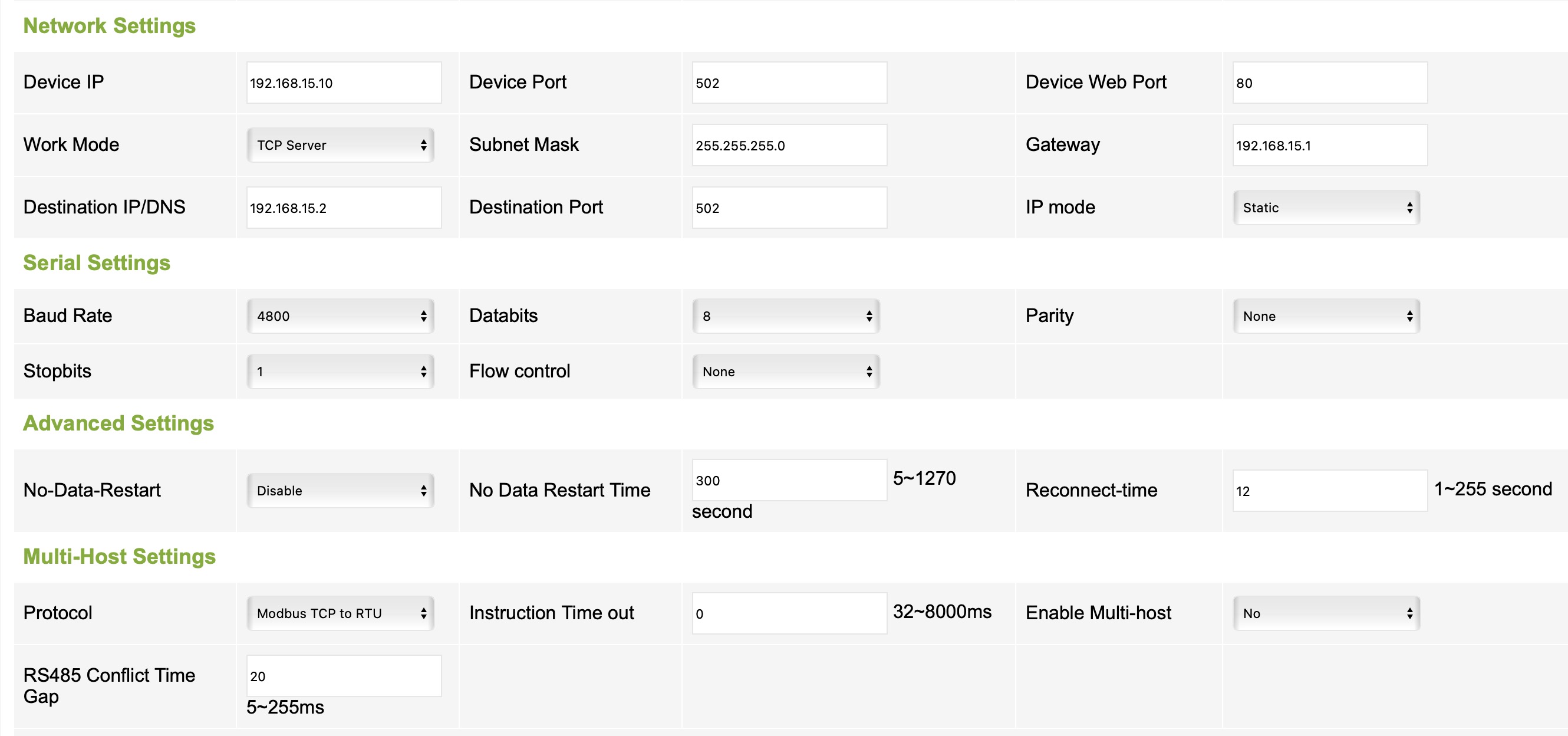

Waveshare Web Configuration. I had issues using DHCP and recommend static only
My configuration.yaml on a HA Green
modbus:
- name: weather
type: tcp
host: 192.168.15.10
port: 502
sensors:
- name: windspeed
unique_id: "windspeed"
slave: 0x01
address: 0x01F4
data_type: int16
unit_of_measurement: m/s
input_type: holding
scale: 0.01
precision: 1
scan_interval: 5
- name: winddirection
unique_id: "winddirection"
slave: 0x01
address: 0x01F7
data_type: int16
unit_of_measurement: deg
input_type: holding
scale: 1
precision: 1
scan_interval: 5
- name: humidity
unique_id: "humidity"
slave: 0x01
address: 0x01F8
data_type: int16
unit_of_measurement: RH
input_type: holding
scale: 0.1
precision: 1
scan_interval: 5
- name: temperature
unique_id: "temperature "
slave: 0x01
address: 0x01F9
data_type: int16
unit_of_measurement: c
input_type: holding
scale: 0.1
precision: 1
scan_interval: 5
- name: noise
unique_id: "noise"
slave: 0x01
address: 0x01FA
data_type: int16
unit_of_measurement: dB
input_type: holding
scale: 0.1
precision: 1
scan_interval: 5
- name: PM2.5
unique_id: "pm2_5"
slave: 0x01
address: 0x01FB
data_type: int16
unit_of_measurement: ppm
input_type: holding
scale: 1
precision: 1
scan_interval: 5
- name: PM10
unique_id: "pm10"
slave: 0x01
address: 0x01FC
data_type: int16
unit_of_measurement: ppm
input_type: holding
scale: 1
precision: 1
scan_interval: 5
- name: pressure
unique_id: "pressure"
slave: 0x01
address: 0x01FD
data_type: int16
unit_of_measurement: kPa
input_type: holding
scale: 1
precision: 1
scan_interval: 5
- name: illumination
unique_id: "illumination"
slave: 0x01
address: 0x0200
data_type: int16
unit_of_measurement: lux
input_type: holding
scale: 1
precision: 1
scan_interval: 5
- name: rainfall
unique_id: "rainfall"
slave: 0x01
address: 0x0201
data_type: int16
unit_of_measurement: mm/min
input_type: holding
scale: 0.1
precision: 1
scan_interval: 5
Some scales seem off and may not be right, windspeed seems low at scale of 1.
Some data is not available for the 7in1 and/or 9in1, you can delete as needed
As other posts have covered, if waveshare is TCP to RTU then home assistant yaml should be tcp only.
