I have panels+inverter on the balcony, and a separate system on the roof. The dashboard cards are using autoconfiguration, but

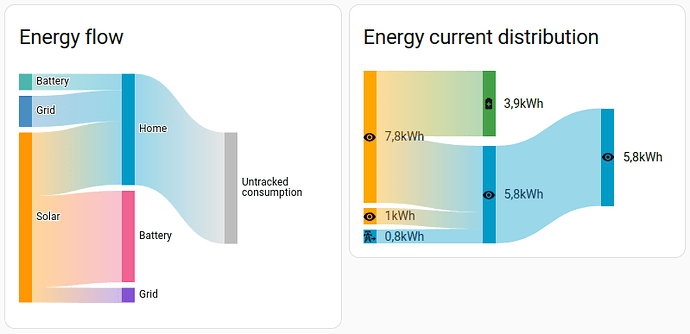

- The default Energy flow card (left) does not distinguish these Solar sources
- The sankey-chart (right) is doing this by default (but it has several other drawbacks: no from-battery, no to-grid
Is there an easy way to have this correctly in one card (without entire custom yaml etc, so either another card, or HAcore/sankey fix their defaults) ?
Also, similar to the previous thread Energy dashboard: mismatch in grid power import and grid power plot
I’m quite disappointed by the “wrong design” of the HAcore default " Power sources graph":
As soon as power is exported to the grid
-
the orange area is not my direct solar (/from-battery) consumption any more, but it also adds the “to grid” value. correct (expectation) would be that this area is blue (like a few minutes before when it was green for “charging-battery”).
-
the blue area (normally negative as from-grid consumption) suddenly is added ON TOP of the orange area - this wrongly suggest that my solar production is 2x bigger than in reality.
correct (expectation) would be that the “too big orange area” is a (positive) blue area. -
the black line at the overall top (orange+green / orange+blue), but for the latter case this is also wrong because it is not possible to “use”/“meter turning” with 17kW if all my Solar systems can only produce 9kW.
Maybe this is due to the sensors, but I guess most Solar systems have the same sensors (e.g.Meter imported, Meter exported), so this must be a well-known problem?
