Esp-tapo: ESPHome custom component to control Tapo devices locally, without Home Assistant

Share your Projects!
,
1

Hello everyone! First of all, I’m not sure whether other similar components already exist, but here is my own.

Previous context

While watching this video, I discovered a very interesting Matter feature called bindings: they basically allow smart home devices to communicate directly with each other without a central hub.

I found this pretty interesting, especially for presence-based automations that control critical lights as a fallback for Home Assistant.

My case

One of my critical lights is a Tapo bulb in the bathroom. The manual switch is quite far from the door and tedious to reach, so if Home Assistant fails, manual control isn’t very comfortable. I use an ESP32-C3 with an LD2410C to turn it on based on presence.

So I thought: why not create a custom component to turn the light on and off directly from the ESP32, as a fallback for Home Assistant? And here it is: esp-tapo.

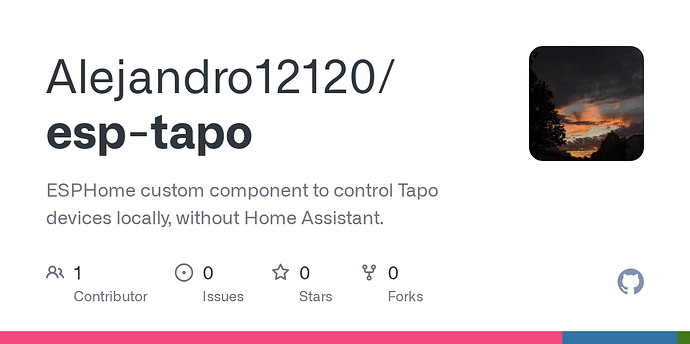

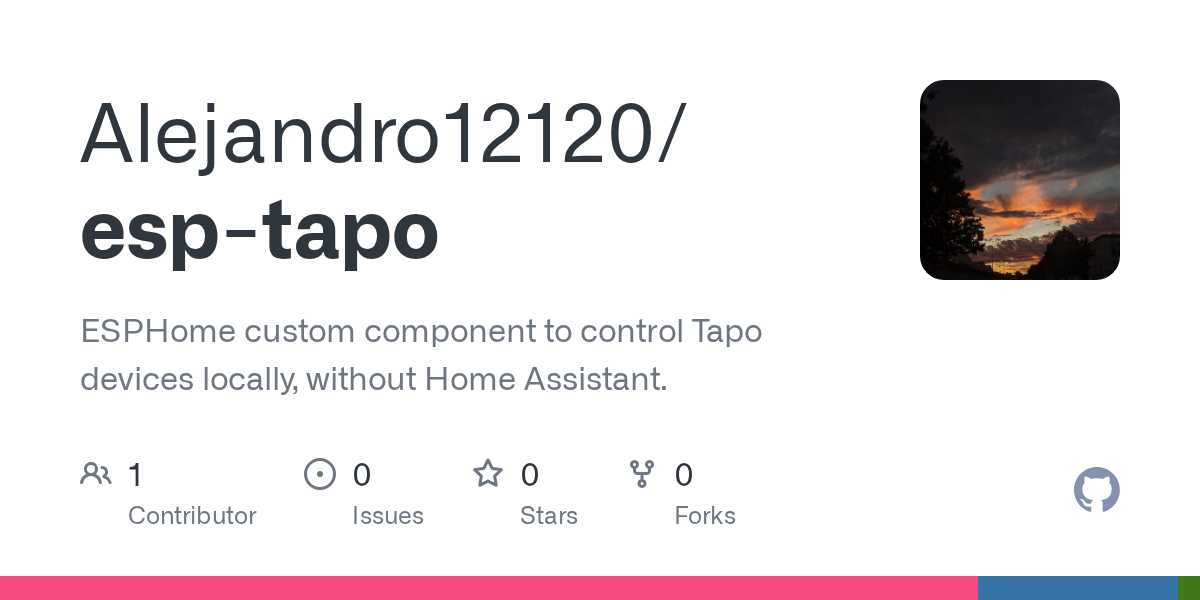

esp-tapo

It’s a custom component that lets the ESP control Tapo devices over their local API (KLAP v2). It currently supports:

  • Lights (RGB/CCT bulbs like the L530) as an ESPHome light platform: on/off, brightness, RGB color and color temperature (2500–6500 K).
  • Plugs/switches (P100/P110/P115…) as an ESPHome switch platform: on/off.

Example: turn on an L530 using an LD2410C if Home Assistant is down

substitutions:
  device_name: "l530-motion"
  friendly_name: "L530 Motion Sensor"

esphome:
  name: ${device_name}
  friendly_name: ${friendly_name}

esp32:
  board: esp32-c3-devkitm-1
  framework:
    type: esp-idf

logger:

api:
  encryption:
    key: !secret api_key

ota:
  - platform: esphome
    password: !secret ota_password

wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password
  ap:
    ssid: "${device_name} fallback"
    password: !secret ap_password

captive_portal:

# ---------------------------------------------------------------------
# External `tapo` component (this repository)
# ---------------------------------------------------------------------
external_components:
  - source: github://Alejandro12120/esp-tapo
    components: [tapo]

# Tapo hub: ONE hub = ONE device (IP + app credentials).
tapo:
  id: l530_hub
  host: !secret tapo_l530_host
  username: !secret tapo_username
  password: !secret tapo_password
  update_interval: 30s  # poll get_device_info to mirror the real device state

# ---------------------------------------------------------------------
# mmWave LD2410 radar (UART)
# ---------------------------------------------------------------------
uart:
  id: ld2410_uart
  tx_pin: GPIO5
  rx_pin: GPIO4
  baud_rate: 115200
  parity: NONE
  stop_bits: 1

ld2410:
  id: ld2410_radar
  uart_id: ld2410_uart

binary_sensor:
  - platform: ld2410
    ld2410_id: ld2410_radar
    has_target:
      name: "Presence"
      on_press:
        # Fallback: only turn the bulb on if NO API client is connected
        # (e.g. Home Assistant down or unreachable).
        - if:
            condition:
              lambda: 'return !api::global_api_server->is_connected();'
            then:
              - light.turn_on:
                  id: tapo_light
                  brightness: 100%
      on_release:
        # Symmetric off: only when there is no API client either.
        - if:
            condition:
              lambda: 'return !api::global_api_server->is_connected();'
            then:
              - delay: 30s
              - light.turn_off: tapo_light

# ---------------------------------------------------------------------
# Light: Tapo L530 bulb (on/off + brightness + RGB + color temperature)
# ---------------------------------------------------------------------
light:
  - platform: tapo
    id: tapo_light
    name: "L530 Bulb"
    tapo_id: l530_hub
    # Supported modes: RGB (hue/saturation) and COLOR_TEMPERATURE (2500-6500 K).
    # Brightness/color control from HA or automations is translated to
    # set_device_info automatically.
    # internal: true hides the entity from the API client (Home Assistant) but
    # it still works in ESPHome automations/lambdas. Remove this line to also
    # expose it to HA.
    internal: true
    # restore_mode controls the state written on ESP boot.
    # RESTORE_DEFAULT_OFF: turns the bulb off when the ESP powers on.
    # ALWAYS_ON / RESTORE_DEFAULT_ON: tries to keep the bulb on.
    restore_mode: RESTORE_DEFAULT_OFF

Thanks

  • python-kasa — reference implementation of the KLAP v2 protocol (handshake, encryption, session handling).
  • omegahiro/tapo-esp32 — ESP32 implementation (Arduino), tested against real devices, the basis for the crypto port.
  • mihai-dinculescu/tapo — Rust client that documents the KLAP request flow and device commands.
  • TP-Link community — reports on local API behavior across firmware versions and the “Third-Party Compatibility” requirement.
  • ESPHome — the platform this component is built on (docs, external component system, light/switch APIs).
