Hello
has anybody made this screen work using ESPHOME code?
can you please share your code? I’ve been trying for hours and coundt find the way to do it, I get always 100% lit scren
thanks!
2 Likes
At least post what you have done on yaml.
Does your I2C find the display address?
Sorry, you are completly right
My current code work, but just by trial and error about the offsets, rotation and possition:
# LCD bus I2C
i2c:
sda: GPIO5
scl: GPIO6
scan: true
id: bus_a
display:
- platform: ssd1306_i2c
model: "SH1107 128x128"
rotation: 180
update_interval: 60s
offset_y: 0
offset_x: 0
address: 0x3C
lambda: |-
it.print(25, 11, id(my_font), "ESP32-C3 OLED");
font:
- file: "fonts/roboto.ttf"
id: my_font
size: 12
that code works, shows and I can update the info in screen but if I use the more correct (according to the screen resolution) code:
display:
- platform: ssd1306_i2c
model: "SSD1306 72x40"
rotation: 0
update_interval: 1s # Se refresca cada 60 segundos (toma aprox. 1s)
offset_y: 0
offset_x: 0
address: 0x3C
lambda: |-
// Imprime "Hello World" en la posición (0,0)
it.print(0, 0, id(my_font), "ESP32_72x40");
no matter what I write on the message, the screen shows the info I uploaded with the previous code (keeps showing ESP32-C3 OLED)
Then your upload didn’t complete.
You probably got some errors when complied?
What about:
# Imprime "Hello World" en la posición (0,0)
Finally I found a solution that works for me,
in case it helps someone else:
# LCD bus I2C
i2c:
sda: GPIO5
scl: GPIO6
scan: true
id: bus_a
frequency: 800kHz
display:
- platform: ssd1306_i2c
model: "sh1106 128x64"
rotation: 0
update_interval: 60s
offset_y: 0
offset_x: 0
invert: True # Optional
address: 0x3C
lambda: |-
it.print(27, 9, id(my_font), "27x9");
font:
- file: "fonts/roboto.ttf" ## Choose your font from the esphome fonts folder
id: my_font
size: 12
6 Likes

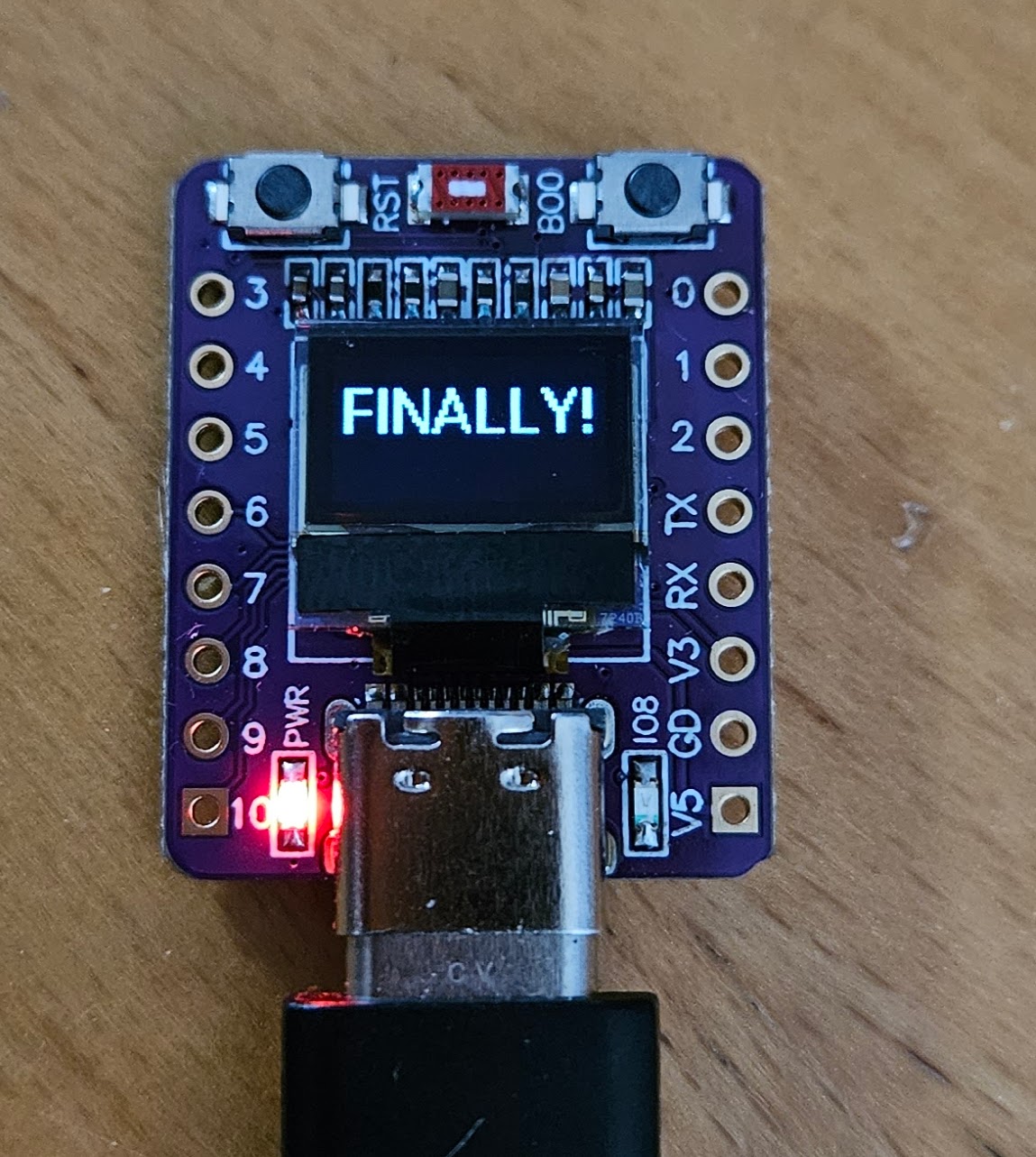

Thanks a lot @poseido. I finally got mine working, after finding your post.
If someone wishes to update the text from HA, here is how I do it. Just create an input_text helper named “OLED Display”.
# LCD bus I2C
i2c:
sda: GPIO5
scl: GPIO6
scan: true
id: bus_a
frequency: 800kHz
# Display settings
display:
- platform: ssd1306_i2c
model: "sh1106 128x64"
id: my_display
rotation: 0
update_interval: 60s
offset_y: 0
offset_x: 0
invert: false
address: 0x3C
lambda: |-
it.printf(30, 18, id(my_font), "%s", id(oledtext).state.c_str());
# Font
font:
- file: "gfonts://Roboto"
id: my_font
size: 16
text_sensor:
- platform: homeassistant
name: "oledtext"
entity_id: input_text.oled_display
id: oledtext
on_value:
then:
- component.update: my_display
5 Likes
Actually, the proper config should be like below. Just posting it in a case that someone else like me would stumble upon this post.
Don’t forget to set up your font.
# I2C minimum settings
i2c:
sda: GPIO5
scl: GPIO6
scan: true
id: bus_i2c
# OLED SSD1306 72x40 Display settings
display:
- platform: ssd1306_i2c
model: "SSD1306 72x40"
id: my_display
rotation: 0
update_interval: 1s
offset_y: 0
offset_x: 0
invert: true
address: 0x3C
lambda: |-
it.printf(0, 0, id(my_font_12), "TEXT", id(uptime_human).state.c_str());
This way you have no issues with offsets or x/y starting points.
5 Likes
@kamilzierke
Did you run this code on your device? For me this is not getting the correct offsets. When running the code from above, this looks much better.
I´m wondering if I got another hardware revision than you.
Using this wasn’t working for me either but there is an easy way to display text centered. This way you can use rotate with no fiddling. offset_x seem have to have no effect as where offset_y was working.
sensor:
- platform: homeassistant
id: outside_temp
entity_id: sensor.akkuweather_realfeel_temperature
i2c:
sda: GPIO5
scl: GPIO6
scan: true
id: bus_i2c
frequency: 800kHz
display:
- platform: ssd1306_i2c
#model: "SSD1306 72x40"
model: "SH1106_128x64"
rotation: 180
update_interval: 1s
lambda: |-
it.printf(it.get_width()/2, it.get_height()/2, id(my_font), TextAlign::CENTER, "%.0f°C", id(outside_temp).state);
font:
- file: 'gfonts://Inter'
id: my_font
size: 24
1 Like
This works for me
However not the first time I tried it.
Not sure exactly what changed, but I did unplug and re-plug power, so maybe that was required to initialise it properly after trying other configs that didn’t work.
How you are programming this ESP32 C3 72x40 OLED board , if i connect it with usb i can see only usb jtag flasing in serial ports and cant connect …
it has to be the push the button on connecting thig… some devices need one of the buttons to be pusshed so they enter on flashing mode
Mine keeps saying “Abrobot” on the display
I got it working and showing the time
i2c:
id: bus_i2c
sda: GPIO5
scl: GPIO6
scan: true
frequency: 800kHz
time:
- platform: homeassistant
id: home_time
display:
- platform: ssd1306_i2c
model: "SSD1306 72x40"
rotation: 0
update_interval: 60s
offset_y: 0
offset_x: 0
invert: false # Optional
address: 0x3C
lambda: |-
it.strftime(5, 9, id(my_font), "%H:%M", id(home_time).now());
font:
- id: my_font
file: "fonts/arial.ttf"
size: 25
1 Like
Will it work with this device and screen: https://aliexpress.com/item/1005005973391614.html (ESP32 C3 & LVGL 1.44" LCD ST7735) ?
Does anyone know?
Hi guys - I’ve got this working and taken it a whole lot further -code below. I have the display running showing the time and date - and at the bottom - a horizontal line. I also have BLE tracking running in the background… and both the blue led and display have on-off buttons in the web server…
All works prefectly - BUT the display and the LED default to OFF after power cycle… I want them to stay where they were before the cycle - gemini-cli and I have just spent 3 hours tackling this and eventually I told Gemini to give up as it was getting no-where.
If anyone knows the answer I’d really appreciate it.
Here’s the code - I’ve doctored my encryption key but the rest is a direct copy from the working unit.
Oh I used a font I had handy in the esphome folder…
esphome:
name: abrobot
friendly_name: abrobot
esp32:
board: esp32-c3-devkitm-1
framework:
type: esp-idf
# Enable logging
#logger:
# level: INFO
logger:
level: DEBUG
# Enable Home Assistant API
api:
encryption:
key: "hmm my key"
ota:
- platform: esphome
password: "8e8a00104edd428a298fdd1940bfebb4"
wifi:
ssid: !secret wifi_ssid
password: !secret wifi_password
# Enable fallback hotspot (captive portal) in case wifi connection fails
ap:
ssid: "Abrobot Fallback Hotspot"
password: "ih2TLODxSA25"
captive_portal:
web_server:
port: 80
i2c:
id: bus_i2c
sda: GPIO5
scl: GPIO6
scan: true
frequency: 800kHz
globals:
- id: display_on
type: bool
restore_value: yes
initial_value: 'true'
time:
- platform: sntp
id: current_time
display:
- platform: ssd1306_i2c
id: ssd1306_display
model: "SSD1306 72x40"
rotation: 0
update_interval: 1s
lambda: |-
if (id(display_on)) {
it.strftime(4, 1, id(font1), "%H:%M", id(current_time).now());
it.strftime(7, 23, id(font2), "%d/%m/%y",id(current_time).now());
if (id(current_time).now().second % 2 == 0) {
it.horizontal_line(0, 39, 72);
}
}
font:
- id: font1
file: "fonts/Roboto-Black.ttf"
size: 25
- id: font2
file: "fonts/Roboto-Black.ttf"
size: 13
output:
- platform: gpio
pin:
number: GPIO8
inverted: true
id: gpio_8
light:
- platform: binary
name: "Onboard LED"
output: gpio_8
restore_mode: ALWAYS_OFF
switch:
- platform: template
name: "Display Toggle"
id: display_toggle
lambda: |-
if (id(display_on)) {
return true;
} else {
return false;
}
turn_on_action:
- globals.set:
id: display_on
value: 'true'
turn_off_action:
- globals.set:
id: display_on
value: 'false'
esp32_ble_tracker:
scan_parameters:
interval: 1100ms
window: 1100ms
active: true
on_ble_advertise:
then:
- lambda: |-
static std::map<std::string, unsigned long> last_display_time;
unsigned long current_time = millis();
std::string mac = x.address_str();
if (last_display_time.find(mac) == last_display_time.end() || (current_time - last_display_time[mac] >= 20000))
{
ESP_LOGI("ble_adv", "Device: %s RSSI: %d", mac.c_str(), x.get_rssi());
last_display_time[mac] = current_time;
}
bluetooth_proxy:
active: true
connection_slots: 3
2 Likes
ChatGPT came up with the same non-working nonsense for power up defaults.
THANKYOU. Just purchased a handful of these to play with!
Thanking you for your code I reused, I am glad to help with some purely human contribution: use “restore_mode” to decide default behaviour after restart
The default should be ALWAYS_OFF, that would explain your switch’s behaviour. Switch Component - ESPHome - Smart Home Made Simple
BTW Not all components consider restore_mode . Check the documentation of the specific component to understand how this feature works for a particular component or device.
I used an Integer instead of boolean but the concept is yours. Cheers and sorry for my poorMAN english
These seem to vary a bit
Mine is as follows:
display:
- platform: ssd1306_i2c
# 72x40 - viewable window is 26,24 to 97,63
model: "SH1106_128x64"
rotation: 0
update_interval: 1s
offset_y: 0
offset_x: 0
invert: false
address: 0x3C
Trying to use SSD1306 72x40 doesn’t work. I tried the other chip model variants but none of them worked either
To confound matters further, it appears that the viewport position can be scrolled around the display
The stock firmware displays the following at startup
ESP32-C3
EGG
THE.EGG
Really what’s needed is the ability to override the X/Y resolution as well as setting origin point offset (this is done in various epaper drivers)
This is going to be “fun” to deal with
