Does anyone know a guide to install VOICE ASSISTANT on an ESP32 S3 updated? Most of the videos I’ve seen have old configurations and some of the configuration is deprecated. Are there any new updated guides?
Thanks
I was just playing with and working on it this past week. This works for me with an INMP441 and Max98357. I have some packages that I use to separate common configuration but they are not related to the VA stuff
substitutions:
#pins
i2s_out_lrclk_pin: GPIO6 # LRC on Max98357
i2s_out_bclk_pin: GPIO7 # BCLK on Max98357
i2s_in_lrclk_pin: GPIO2 # WS on INMP441
i2s_in_bclk_pin: GPIO1 # SLK on INMP441
light_pin: GPIO48 # on-board LED
speaker_pin: GPIO8 # DIN on Max98357
mic_pin: GPIO4 # SD on INMP441
ota_password: <redacted>
api_key: <redacted>
ip: <redacted>
dev_name: s3test
friendly: S3Test
# Phases of the Voice AssistantGPIO8
# IDLE: The voice assistant is ready to be triggered by a wake-word
voice_assist_idle_phase_id: '1'
# LISTENING: The voice assistant is ready to listen to a voice command (after being triggered by the wake word)
voice_assist_listening_phase_id: '2'
# THINKING: The voice assistant is currently processing the command
voice_assist_thinking_phase_id: '3'
# REPLYING: The voice assistant is replying to the command
voice_assist_replying_phase_id: '4'
# NOT_READY: The voice assistant is not ready
voice_assist_not_ready_phase_id: '10'
# ERROR: The voice assistant encountered an error
voice_assist_error_phase_id: '11'
# MUTED: The voice assistant is muted and will not reply to a wake-word
voice_assist_muted_phase_id: '12'
psram:
mode: octal
speed: 80MHz
esp32:
board: esp32-s3-devkitc-1
variant: ESP32S3
framework:
type: esp-idf
version: recommended
sdkconfig_options:
# ESP32-S3 N16R8
CONFIG_ESP32_S3_BOX_BOARD: "y"
CONFIG_ESP32S3_DEFAULT_CPU_FREQ_240: "y"
CONFIG_ESP32S3_DATA_CACHE_64KB: "y"
CONFIG_ESP32S3_DATA_CACHE_LINE_64B: "y"
CONFIG_BT_ALLOCATION_FROM_SPIRAM_FIRST: "y"
CONFIG_BT_BLE_DYNAMIC_ENV_MEMORY: "y"
CONFIG_MBEDTLS_EXTERNAL_MEM_ALLOC: "y"
CONFIG_MBEDTLS_SSL_PROTO_TLS1_3: "y"
# ESP32-S3-Zero
# CONFIG_ESP32_S3_BOX_BOARD: "y"
# CONFIG_ESP32_WIFI_STATIC_RX_BUFFER_NUM: "16"
# CONFIG_ESP32_WIFI_DYNAMIC_RX_BUFFER_NUM: "512"
# CONFIG_TCPIP_RECVMBOX_SIZE: "512"
# CONFIG_TCP_SND_BUF_DEFAULT: "65535"
# CONFIG_TCP_WND_DEFAULT: "512000"
# CONFIG_TCP_RECVMBOX_SIZE: "512"
# CONFIG_ESP32S3_DEFAULT_CPU_FREQ_240: "y"
# CONFIG_ESP32S3_DATA_CACHE_64KB: "y"
# CONFIG_ESP32S3_DATA_CACHE_LINE_64B: "y"
# CONFIG_BT_ALLOCATION_FROM_SPIRAM_FIRST: "y"
# CONFIG_BT_BLE_DYNAMIC_ENV_MEMORY: "y"
# CONFIG_MBEDTLS_EXTERNAL_MEM_ALLOC: "y"
# CONFIG_MBEDTLS_SSL_PROTO_TLS1_3: "y"
packages:
common: !include common/common.yaml
wifi: !include common/static_wifi.yaml
base: !include common/esp32dev-base.yaml
esphome:
on_boot:
priority: 600
then:
# Run the script to refresh the LED status
- script.execute: control_led
# - output.turn_off: set_low_speaker
# If after 30 seconds, the device is still initializing (It did not yet connect to Home Assistant), turn off the init_in_progress variable and run the script to refresh the LED status
- delay: 30s
- if:
condition:
lambda: return id(init_in_progress);
then:
- lambda: id(init_in_progress) = false;
- script.execute: control_led
microphone:
- platform: i2s_audio
i2s_din_pin: ${mic_pin}
adc_type: external
pdm: false
i2s_audio_id: i2s_in
id: comm_mic
channel: left
speaker:
- platform: i2s_audio
id: i2s_audio_speaker
dac_type: external
sample_rate: 48000
i2s_dout_pin:
number: ${speaker_pin}
bits_per_sample: 32bit
i2s_audio_id: i2s_output
timeout: never
buffer_duration: 100ms
channel: left
# sample_rate: 16000
# bits_per_sample: 32bit
# Virtual speakers to combine the announcement and media streams together into one output
- platform: mixer
id: mixing_speaker
output_speaker: i2s_audio_speaker
num_channels: 2
source_speakers:
- id: announcement_mixing_input
timeout: never
- id: media_mixing_input
timeout: never
# Vritual speakers to resample each pipelines' audio, if necessary, as the mixer speaker requires the same sample rate
- platform: resampler
id: announcement_resampling_speaker
output_speaker: announcement_mixing_input
sample_rate: 48000
bits_per_sample: 16
- platform: resampler
id: media_resampling_speaker
output_speaker: media_mixing_input
sample_rate: 48000
bits_per_sample: 16
media_player:
- platform: speaker
id: external_media_player
name: Media Player
internal: False
volume_increment: 0.05
volume_min: 0.4
volume_max: 0.85
announcement_pipeline:
speaker: announcement_resampling_speaker
format: FLAC # FLAC is the least processor intensive codec
num_channels: 1 # Stereo audio is unnecessary for announcements
sample_rate: 48000
media_pipeline:
speaker: media_resampling_speaker
format: FLAC # FLAC is the least processor intensive codec
num_channels: 2
sample_rate: 48000
on_announcement:
- mixer_speaker.apply_ducking:
id: media_mixing_input
decibel_reduction: 20
duration: 0.0s
on_state:
if:
condition:
and:
- not:
voice_assistant.is_running:
- not:
media_player.is_announcing:
then:
- mixer_speaker.apply_ducking:
id: media_mixing_input
decibel_reduction: 0
duration: 1.0s
files:
- id: timer_finished_sound
file: https://github.com/esphome/home-assistant-voice-pe/raw/dev/sounds/timer_finished.flac
- id: wake_word_triggered_sound
file: https://github.com/esphome/home-assistant-voice-pe/raw/dev/sounds/wake_word_triggered.flac
i2s_audio:
- id: i2s_output
i2s_lrclk_pin: ${i2s_out_lrclk_pin}
i2s_bclk_pin: ${i2s_out_bclk_pin}
- id: i2s_in
i2s_lrclk_pin: ${i2s_in_lrclk_pin}
i2s_bclk_pin: ${i2s_in_bclk_pin}
voice_assistant:
id: va
microphone: comm_mic
media_player: external_media_player
noise_suppression_level: 4
auto_gain: 31dBFS
volume_multiplier: 8
# When the voice assistant connects to HA:
# Set init_in_progress to false (Initialization is over).
# If the switch is on, start the voice assistant
# In any case: Set the correct phase and run the script to refresh the LED status
on_client_connected:
- lambda: id(init_in_progress) = false;
- if:
condition:
switch.is_on: voice_enabled
then:
- micro_wake_word.start
- lambda: id(voice_assistant_phase) = ${voice_assist_idle_phase_id};
else:
- lambda: id(voice_assistant_phase) = ${voice_assist_muted_phase_id};
- script.execute: control_led
# When the voice assistant disconnects to HA:
# Stop the voice assistant
# Set the correct phase and run the script to refresh the LED status
on_client_disconnected:
- lambda: id(voice_assistant_phase) = ${voice_assist_not_ready_phase_id};
- micro_wake_word.stop
- script.execute: control_led
# When the voice assistant starts to listen: Set the correct phase and run the script to refresh the LED status
on_listening:
- lambda: id(voice_assistant_phase) = ${voice_assist_listening_phase_id};
- script.execute: control_led
# When the voice assistant starts to think: Set the correct phase and run the script to refresh the LED status
on_stt_vad_end:
- lambda: id(voice_assistant_phase) = ${voice_assist_thinking_phase_id};
- script.execute: control_led
# When the voice assistant starts to reply: Set the correct phase and run the script to refresh the LED status
# on_tts_stream_start:
on_tts_start:
- lambda: id(voice_assistant_phase) = ${voice_assist_replying_phase_id};
- script.execute: control_led
on_end:
- if:
condition:
- switch.is_on: voice_enabled
then:
- wait_until:
not:
voice_assistant.is_running:
- micro_wake_word.start
# When the voice assistant finished to reply: Set the correct phase and run the script to refresh the LED status
# on_tts_stream_end:
# on_stt_end:
- lambda: id(voice_assistant_phase) = ${voice_assist_idle_phase_id};
- script.execute: control_led
# When the voice assistant encounters an error:
# Set the error phase and run the script to refresh the LED status
# Wait 1 second and set the correct phase (idle or muted depending on the state of the switch) and run the script to refresh the LED status
on_error:
- if:
condition:
lambda: return !id(init_in_progress);
then:
- lambda: id(voice_assistant_phase) = ${voice_assist_error_phase_id};
- script.execute: control_led
- delay: 1s
- if:
condition:
switch.is_on: voice_enabled
then:
- lambda: id(voice_assistant_phase) = ${voice_assist_idle_phase_id};
else:
- lambda: id(voice_assistant_phase) = ${voice_assist_muted_phase_id};
- script.execute: control_led
micro_wake_word:
models:
- okay_nabu
vad:
id: mww
on_wake_word_detected:
- if:
condition:
switch.is_on: voice_enabled
then:
- if:
condition:
voice_assistant.is_running:
then:
voice_assistant.stop:
# Stop any other media player announcement
else:
- if:
condition:
media_player.is_announcing:
then:
- media_player.stop:
announcement: true
# Start the voice assistant and play the wake sound, if enabled
else:
- script.execute:
id: play_sound
priority: true
sound_file: !lambda return id(wake_word_triggered_sound);
- delay: 300ms
- voice_assistant.start:
wake_word: !lambda return wake_word;
wifi:
# If the device connects, or disconnects, to the Wifi: Run the script to refresh the LED status
on_connect:
- script.execute: control_led
on_disconnect:
- script.execute: control_led
globals:
# Global initialisation variable. Initialized to true and set to false once everything is connected. Only used to have a smooth "plugging" experience
- id: init_in_progress
type: bool
restore_value: no
initial_value: 'true'
# Global variable tracking the phase of the voice assistant (defined above). Initialized to not_ready
- id: voice_assistant_phase
type: int
restore_value: no
initial_value: ${voice_assist_not_ready_phase_id}
light:
- platform: esp32_rmt_led_strip
id: led
pin: ${light_pin}
chipset: WS2812
max_refresh_rate: 15ms
num_leds: 1
rgb_order: GRB
rmt_symbols: 192
default_transition_length: 0ms
effects:
- pulse:
name: "Slow Pulse"
transition_length: 250ms
update_interval: 250ms
min_brightness: 50%
max_brightness: 100%
- pulse:
name: "Fast Pulse"
transition_length: 100ms
update_interval: 100ms
min_brightness: 50%
max_brightness: 100%
script:
# Master script controlling the LED, based on different conditions: initialization in progress, wifi and API connected, and the current voice assistant phase.
# For the sake of simplicity and re-usability, the script calls child scripts defined below.
# This script will be called every time one of these conditions is changing.
- id: control_led
then:
- if:
condition:
lambda: return !id(init_in_progress);
then:
- if:
condition:
wifi.connected:
then:
- if:
condition:
api.connected:
then:
- lambda: |
switch(id(voice_assistant_phase)) {
case ${voice_assist_listening_phase_id}:
id(control_led_voice_assist_listening_phase).execute();
break;
case ${voice_assist_thinking_phase_id}:
id(control_led_voice_assist_thinking_phase).execute();
break;
case ${voice_assist_replying_phase_id}:
id(control_led_voice_assist_replying_phase).execute();
break;
case ${voice_assist_error_phase_id}:
id(control_led_voice_assist_error_phase).execute();
break;
case ${voice_assist_muted_phase_id}:
id(control_led_voice_assist_muted_phase).execute();
break;
case ${voice_assist_not_ready_phase_id}:
id(control_led_voice_assist_not_ready_phase).execute();
break;
default:
id(control_led_voice_assist_idle_phase).execute();
break;
}
else:
- script.execute: control_led_no_ha_connection_state
else:
- script.execute: control_led_no_ha_connection_state
else:
- script.execute: control_led_init_state
# Script executed during initialisation: In this example: Turn the LED in green with a slow pulse 🟢
- id: control_led_init_state
then:
- light.turn_on:
id: led
blue: 0%
red: 0%
green: 100%
effect: "Fast Pulse"
# Script executed when the device has no connection to Home Assistant: In this example: Turn off the LED
- id: control_led_no_ha_connection_state
then:
- light.turn_off:
id: led
# Script executed when the voice assistant is idle (waiting for a wake word): In this example: Turn the LED in white with 20% of brightness ⚪
- id: control_led_voice_assist_idle_phase
then:
- light.turn_on:
id: led
blue: 100%
red: 100%
green: 100%
brightness: 20%
effect: "none"
# Script executed when the voice assistant is listening to a command: In this example: Turn the LED in blue with a slow pulse 🔵
- id: control_led_voice_assist_listening_phase
then:
- light.turn_on:
id: led
blue: 100%
red: 0%
green: 0%
effect: "Slow Pulse"
# Script executed when the voice assistant is processing the command: In this example: Turn the LED in blue with a fast pulse 🔵
- id: control_led_voice_assist_thinking_phase
then:
- light.turn_on:
id: led
blue: 100%
red: 0%
green: 0%
effect: "Fast Pulse"
# Script executed when the voice assistant is replying to a command: In this example: Turn the LED in blue, solid (no pulse) 🔵
- id: control_led_voice_assist_replying_phase
then:
- light.turn_on:
id: led
blue: 100%
red: 0%
green: 0%
brightness: 100%
effect: "none"
# Script executed when the voice assistant encounters an error: In this example: Turn the LED in red, solid (no pulse) 🔴
- id: control_led_voice_assist_error_phase
then:
- light.turn_on:
id: led
blue: 0%
red: 100%
green: 0%
brightness: 100%
effect: "none"
# Script executed when the voice assistant is muted: In this example: Turn off the LED
- id: control_led_voice_assist_muted_phase
then:
- light.turn_off:
id: led
# Script executed when the voice assistant is not ready: In this example: Turn off the LED
- id: control_led_voice_assist_not_ready_phase
then:
- light.turn_off:
id: led
# Script executed when we want to play sounds on the device.
- id: play_sound
parameters:
priority: bool
sound_file: "audio::AudioFile*"
then:
- lambda: |-
if (priority) {
id(external_media_player)
->make_call()
.set_command(media_player::MediaPlayerCommand::MEDIA_PLAYER_COMMAND_STOP)
.set_announcement(true)
.perform();
}
if ( (id(external_media_player).state != media_player::MediaPlayerState::MEDIA_PLAYER_STATE_ANNOUNCING ) || priority) {
id(external_media_player)
->play_file(sound_file, true, false);
}
switch:
- platform: template
name: Enable Voice Assistant
id: voice_enabled
optimistic: true
restore_mode: RESTORE_DEFAULT_ON
icon: mdi:assistant
# When the switch is turned on (on Home Assistant):
# Start the voice assistant component
# Set the correct phase and run the script to refresh the LED status
on_turn_on:
- if:
condition:
lambda: return !id(init_in_progress);
then:
- lambda: id(voice_assistant_phase) = ${voice_assist_idle_phase_id};
- if:
condition:
not:
- voice_assistant.is_running
then:
- micro_wake_word.start
- script.execute: control_led
# When the switch is turned off (on Home Assistant):
# Stop the voice assistant component
# Set the correct phase and run the script to refresh the LED status
on_turn_off:
- if:
condition:
lambda: return !id(init_in_progress);
then:
- voice_assistant.stop
- micro_wake_word.stop
- lambda: id(voice_assistant_phase) = ${voice_assist_muted_phase_id};
- script.execute: control_led
6 Likes
Thanks steriku.
That code is just what I needed to update my voice setups. That saved me a lot of work.
did you try it?
I haven’t yet and I think I’ll do it this week… in my previous configuration I had many deprecated configurations
Surely one of my issues that it will fix was with the LED (rtm_symbols should fix my first issue) but I don’t know if the rest is updated or deprecated
Yep I updated my voice stuff with the code from above. I did mess about with the light section as sometimes the LED didn’t work. Not sure if it was the code or not. But it is working with this for me right now.
light:
- platform: esp32_rmt_led_strip
id: led
name: ${node_name} LED
pin: GPIO14
rgb_order: RGB
num_leds: 1
chipset: ws2812
effects:
- pulse:
name: "Slow Pulse"
transition_length: 250ms
update_interval: 250ms
min_brightness: 50%
max_brightness: 100%
- pulse:
name: "Fast Pulse"
transition_length: 100ms
update_interval: 100ms
min_brightness: 50%
max_brightness: 100%
1 Like
I have just tried updating this code with esphome 2025.4.1 and it is now no longer compiling. I get this error.
Reading CMake configuration...
-- git rev-parse returned 'fatal: not a git repository (or any parent up to mount point /)
Stopping at filesystem boundary (GIT_DISCOVERY_ACROSS_FILESYSTEM not set).'
-- Building ESP-IDF components for target esp32s3
Processing 1 dependencies:
[1/1] idf (5.1.5)
-- Project sdkconfig file /config/.esphome/build/office-assist/sdkconfig.office-assist
-- Configuring incomplete, errors occurred!
See also "/config/.esphome/build/office-assist/.pioenvs/office-assist/CMakeFiles/CMakeOutput.log".
fatal: not a git repository (or any parent up to mount point /)
Stopping at filesystem boundary (GIT_DISCOVERY_ACROSS_FILESYSTEM not set).
/root/.platformio/penv/.espidf-5.1.5/bin/python: No module named kconfgen
CMake Error at /config/.esphome/platformio/packages/framework-espidf@src-6e6cd5244a43bdfe453daac50cfe73b6/tools/cmake/kconfig.cmake:176 (message):
Failed to run kconfgen
(/root/.platformio/penv/.espidf-5.1.5/bin/python;-m;kconfgen;--list-separator=semicolon;--kconfig;/config/.esphome/platformio/packages/framework-espidf@src-6e6cd5244a43bdfe453daac50cfe73b6/Kconfig;--sdkconfig-rename;/config/.esphome/platformio/packages/framework-espidf@src-6e6cd5244a43bdfe453daac50cfe73b6/sdkconfig.rename;--config;/config/.esphome/build/office-assist/sdkconfig.office-assist;--env-file;/config/.esphome/build/office-assist/.pioenvs/office-assist/config.env).
Error 1
Call Stack (most recent call first):
/config/.esphome/platformio/packages/framework-espidf@src-6e6cd5244a43bdfe453daac50cfe73b6/tools/cmake/build.cmake:619 (__kconfig_generate_config)
/config/.esphome/platformio/packages/framework-espidf@src-6e6cd5244a43bdfe453daac50cfe73b6/tools/cmake/project.cmake:604 (idf_build_process)
CMakeLists.txt:3 (project)
========================= [FAILED] Took 16.53 seconds =========================
Any body have any clues why this maybe happening, works fine with version 2025.3
thank you (I don’t even have a suit) for that config, made my media_player work without jitter and stuff
Can u helpme to compile my esp32-S3 as I have ESPHOME is reporting me some errors…
i just write a few codes for a esp32-s3
Perhaps it can help you to start, I’m testing a new code just now if this work I will upload it to GitHub as well
1 Like
mine works and works very well with great reception… but it lacks the latest features like continuous conversation, media player is missing, and some parts of the code are deprecated…
(I followed and am following the guide of “Smart Home Circle”)
so I’m looking for something better made and updated.
I’m also using a Respeaker Lite… but for me the result is not worth the price paid.
On the other hand, the Arom Echo M5 seems very good to me… with a new speaker it works very well but it also lacks the latest configurations and I’m trying to update it.
thank you I will take a look and I will try it… which version of ESPHOME are you using? Because it seems that with every update something might change in the compilation
just finish one using the last version 2025.5.0
it have mute
timer
continuous conversation
media player
volume control
1 Like
this is the latest for m5stack atom echo
substitutions:
name: m5stack-atom-echo
friendly_name: M5Stack Atom Echo
esphome:
name: ${name}
name_add_mac_suffix: true
friendly_name: ${friendly_name}
min_version: 2025.5.0
esp32:
board: m5stack-atom
cpu_frequency: 240MHz
framework:
type: esp-idf
logger:
api:
encryption:
key: N91its1/e6ELWr3rENYf9lCNlJvfQyuD65hQR+Fj4b0=
ota:
- platform: esphome
id: ota_esphome
wifi:
ssid: !secret wifi_ssid
password: !secret wifi_password
ap:
captive_portal:
button:
- platform: factory_reset
id: factory_reset_btn
name: Factory reset
i2s_audio:
- id: i2s_audio_bus
i2s_lrclk_pin: GPIO33
i2s_bclk_pin: GPIO19
microphone:
- platform: i2s_audio
id: echo_microphone
i2s_din_pin: GPIO23
adc_type: external
pdm: true
sample_rate: 16000
correct_dc_offset: true
speaker:
- platform: i2s_audio
id: echo_speaker
i2s_dout_pin: GPIO22
dac_type: external
bits_per_sample: 16bit
sample_rate: 16000
channel: stereo # The Echo has poor playback audio quality when using mon audio
buffer_duration: 60ms
media_player:
- platform: speaker
name: None
id: echo_media_player
announcement_pipeline:
speaker: echo_speaker
format: WAV
codec_support_enabled: false
buffer_size: 6000
volume_min: 0.4
files:
- id: timer_finished_wave_file
file: https://github.com/esphome/wake-word-voice-assistants/raw/main/sounds/timer_finished.wav
on_announcement:
- if:
condition:
- microphone.is_capturing:
then:
- script.execute: stop_wake_word
- light.turn_on:
id: led
blue: 100%
red: 0%
green: 0%
brightness: 100%
effect: none
on_idle:
- script.execute: start_wake_word
- script.execute: reset_led
voice_assistant:
id: va
micro_wake_word:
microphone:
microphone: echo_microphone
channels: 0
gain_factor: 4
media_player: echo_media_player
noise_suppression_level: 2
auto_gain: 31dBFS
on_listening:
- light.turn_on:
id: led
blue: 100%
red: 0%
green: 0%
effect: "Slow Pulse"
on_stt_vad_end:
- light.turn_on:
id: led
blue: 100%
red: 0%
green: 0%
effect: "Fast Pulse"
on_tts_start:
- light.turn_on:
id: led
blue: 100%
red: 0%
green: 0%
brightness: 100%
effect: none
on_end:
# Handle the "nevermind" case where there is no announcement
- wait_until:
condition:
- media_player.is_announcing:
timeout: 0.5s
# Restart only mWW if enabled; streaming wake words automatically restart
- if:
condition:
- lambda: return id(wake_word_engine_location).state == "On device";
then:
- wait_until:
- and:
- not:
voice_assistant.is_running:
- not:
speaker.is_playing:
- lambda: id(va).set_use_wake_word(false);
- micro_wake_word.start:
- script.execute: reset_led
on_error:
- light.turn_on:
id: led
red: 100%
green: 0%
blue: 0%
brightness: 100%
effect: none
- delay: 2s
- script.execute: reset_led
on_client_connected:
- delay: 2s # Give the api server time to settle
- script.execute: start_wake_word
on_client_disconnected:
- script.execute: stop_wake_word
on_timer_finished:
- script.execute: stop_wake_word
- wait_until:
not:
microphone.is_capturing:
- switch.turn_on: timer_ringing
- light.turn_on:
id: led
red: 0%
green: 100%
blue: 0%
brightness: 100%
effect: "Fast Pulse"
- wait_until:
- switch.is_off: timer_ringing
- light.turn_off: led
- switch.turn_off: timer_ringing
binary_sensor:
# button does the following:
# short click - stop a timer
# if no timer then restart either microwakeword or voice assistant continuous
- platform: gpio
pin:
number: GPIO39
inverted: true
name: Button
disabled_by_default: true
entity_category: diagnostic
id: echo_button
on_multi_click:
- timing:
- ON for at least 50ms
- OFF for at least 50ms
then:
- if:
condition:
switch.is_on: timer_ringing
then:
- switch.turn_off: timer_ringing
else:
- script.execute: start_wake_word
- timing:
- ON for at least 10s
then:
- button.press: factory_reset_btn
light:
- platform: esp32_rmt_led_strip
id: led
name: None
disabled_by_default: true
entity_category: config
pin: GPIO27
default_transition_length: 0s
chipset: SK6812
num_leds: 1
rgb_order: grb
effects:
- pulse:
name: "Slow Pulse"
transition_length: 250ms
update_interval: 250ms
min_brightness: 50%
max_brightness: 100%
- pulse:
name: "Fast Pulse"
transition_length: 100ms
update_interval: 100ms
min_brightness: 50%
max_brightness: 100%
script:
- id: reset_led
then:
- if:
condition:
- lambda: return id(wake_word_engine_location).state == "On device";
- switch.is_on: use_listen_light
then:
- light.turn_on:
id: led
red: 100%
green: 89%
blue: 71%
brightness: 60%
effect: none
else:
- if:
condition:
- lambda: return id(wake_word_engine_location).state != "On device";
- switch.is_on: use_listen_light
then:
- light.turn_on:
id: led
red: 0%
green: 100%
blue: 100%
brightness: 60%
effect: none
else:
- light.turn_off: led
- id: start_wake_word
then:
- if:
condition:
and:
- not:
- voice_assistant.is_running:
- lambda: return id(wake_word_engine_location).state == "On device";
then:
- lambda: id(va).set_use_wake_word(false);
- micro_wake_word.start:
- if:
condition:
and:
- not:
- voice_assistant.is_running:
- lambda: return id(wake_word_engine_location).state == "In Home Assistant";
then:
- lambda: id(va).set_use_wake_word(true);
- voice_assistant.start_continuous:
- id: stop_wake_word
then:
- if:
condition:
lambda: return id(wake_word_engine_location).state == "In Home Assistant";
then:
- lambda: id(va).set_use_wake_word(false);
- voice_assistant.stop:
- if:
condition:
lambda: return id(wake_word_engine_location).state == "On device";
then:
- micro_wake_word.stop:
switch:
- platform: template
name: Use listen light
id: use_listen_light
optimistic: true
restore_mode: RESTORE_DEFAULT_ON
entity_category: config
on_turn_on:
- script.execute: reset_led
on_turn_off:
- script.execute: reset_led
- platform: template
id: timer_ringing
optimistic: true
restore_mode: ALWAYS_OFF
on_turn_off:
# Turn off the repeat mode and disable the pause between playlist items
- lambda: |-
id(echo_media_player)
->make_call()
.set_command(media_player::MediaPlayerCommand::MEDIA_PLAYER_COMMAND_REPEAT_OFF)
.set_announcement(true)
.perform();
id(echo_media_player)->set_playlist_delay_ms(speaker::AudioPipelineType::ANNOUNCEMENT, 0);
# Stop playing the alarm
- media_player.stop:
announcement: true
on_turn_on:
# Turn on the repeat mode and pause for 1000 ms between playlist items/repeats
- lambda: |-
id(echo_media_player)
->make_call()
.set_command(media_player::MediaPlayerCommand::MEDIA_PLAYER_COMMAND_REPEAT_ONE)
.set_announcement(true)
.perform();
id(echo_media_player)->set_playlist_delay_ms(speaker::AudioPipelineType::ANNOUNCEMENT, 1000);
- media_player.speaker.play_on_device_media_file:
media_file: timer_finished_wave_file
announcement: true
- delay: 15min
- switch.turn_off: timer_ringing
select:
- platform: template
entity_category: config
name: Wake word engine location
id: wake_word_engine_location
optimistic: true
restore_value: true
options:
- In Home Assistant
- On device
initial_option: On device
on_value:
- if:
condition:
lambda: return x == "In Home Assistant";
then:
- micro_wake_word.stop:
- delay: 500ms
- lambda: id(va).set_use_wake_word(true);
- voice_assistant.start_continuous:
- if:
condition:
lambda: return x == "On device";
then:
- lambda: id(va).set_use_wake_word(false);
- voice_assistant.stop:
- delay: 500ms
- micro_wake_word.start:
micro_wake_word:
on_wake_word_detected:
- voice_assistant.start:
wake_word: !lambda return wake_word;
vad:
models:
- model: okay_nabu
- model: hey_mycroft
- model: hey_jarvis
thank… I am just compiling it now…
I’m taking a look at your setup before I start soldering the ESP32-s3 and also comparing it with my old setup.
this is your setup:
i2s_audio:
- id: i2s_audio_bus
i2s_lrclk_pin: ${i2s_lrclk_ws}
i2s_bclk_pin: ${i2s_bclk_sck}
in my old setup I had two i2S as follows:
- id: i2s_in # For microphone
i2s_lrclk_pin: GPIO3 #WS
i2s_bclk_pin: GPIO2 #SCK
- id: i2s_speaker #For Speaker
i2s_lrclk_pin: GPIO6 #LRC
i2s_bclk_pin: GPIO7 #BLCK
so on different and separate pins for and Mic
In your setup does this mean I have to solder the LRCLK of the amp with the WS of the MIC of the same pin of the ESP and BCLK(amp) with SCK(mic) together on the same pins of the ESP?
or did I miss something?
use your setup you can have it separated
you need to add in the mic and speaker
" i2s_audio_id: i2s_in " on the mic
" i2s_audio_id: i2s_speaker " on the speaker
ok… fixed… now all I have to do is flash and try between today and tomorrow. Thank you
there was an error that I couldn’t understand now everything adds up… maybe
Ok the configuration works very well! Thank You very much!!!
I’ve been trying it for a few hours and it seems really very complete and functional from all points of view!
Only problem: the timer.
Once the timer ends… there is no way to stop it except by pressing the physical button on the device.

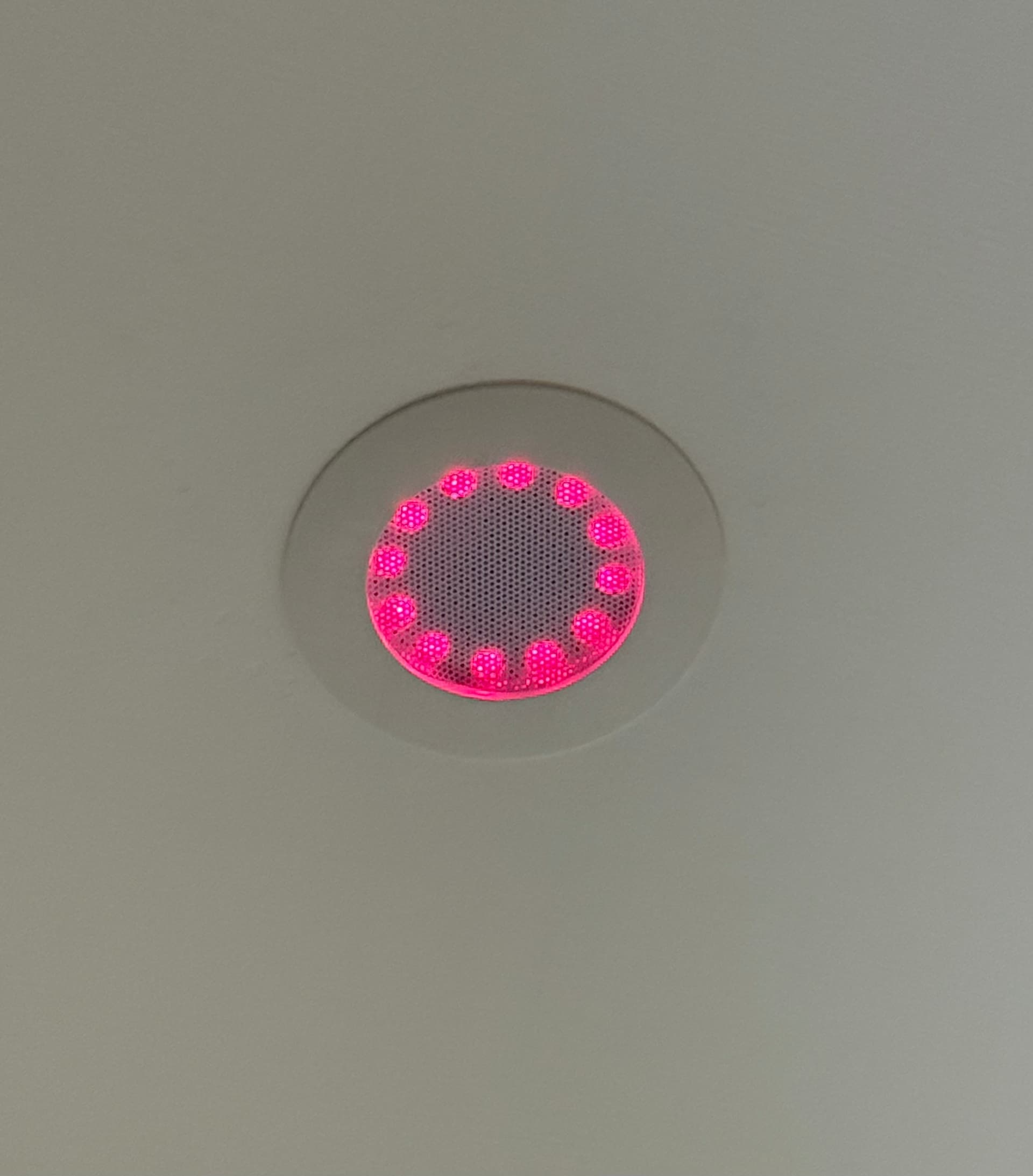

Having the device installed in the ceiling of course the only way to stop it is to restart the device from HA.
On Respeaker or PE just call wakeworld to stop it.
ok, let me change a few things
yours seems to work fine too… what’s the difference other than the led light?
I don’t use the media player to play music but only for announcements at the moment and I need the status light.
Or maybe I can merge the two code…
