When I connect to the web portal of the ESP module, I toggle the on/off button, and it works.
From the code you gave me, I have modified it fot the fan, but I do not have a GPIO platform set, which I don’t have for the fan, I only have the PWM component.
What about the speed control?
The speed control is fine too.
I’m little bit confused now. What is ok / not ok with stirrer (excluding automations)?
In the web portal of the ESP module, everything works properly (on/off and speed), like in HA.
That is why I do not understand why it doesn’t work with the automation.
I have modified the code you gave me to make it fit with the stirrer fan :
fan:
# Stirrer Fan
- platform: speed
output: khcontrollerfan_pwm
id: stirrer
name: "Stirrer"
on_turn_on:
then:
- output.turn_on: khcontrollerfan_pwm
on_turn_off:
then:
- output.turn_off: khcontrollerfan_pwm
output:
# KHcontroller Fan
- platform: ledc
pin: GPIO19
frequency: 25000Hz
id: khcontrollerfan_pwm
For the fan, I do not have a platform: gpio output component, so I think why it doesn’t start, that is why I thought I might need a module to turn it on.
You just need patience.
So you have basic working setup:
output:
- platform: gpio
pin: GPIO32
id: a_in1
- platform: gpio
pin: GPIO33
id: a_in2
- platform: ledc
pin: GPIO27
id: a_enable_pwm
frequency: 1000
- platform: ledc
pin: GPIO19
frequency: 25000Hz
id: khcontrollerfan_pwm
You can build your whole automation with these outputs without of with additional esphome components. If you like to have fan components you can use them, but they are not needed anyhow.
It’s late here, my automation is switching off. Think what you need to automate according to those output pins. On/off/direction/speed.
You shouldn’t need it.
Speed zero should turn it off. Control your wiring.
According to your previous post I thought it was working.
Combining lot of thigs together might look efficient way, but it’s not. If you don’t resolve the problems one by one, it’s becoming a lottery.
I have read again the topic to find my mistake but I really don’t know if the wiring is the problem because I think I did as you told me to do :
Maybe I forgot about something?
I will try to find something, thanks for your help!
I don’t understand what you mean exactly…
If you only have minimum setup, does it work or not? Can you regulate the speed? Down to zero?
fan:
# Stirrer Fan
- platform: speed
output: khcontrollerfan_pwm
id: stirrer
name: "Stirrer"
output:
# KHcontroller Fan
- platform: ledc
pin: GPIO19
frequency: 25000Hz
id: khcontrollerfan_pwm
Yes it works under the web portal and Home Assistant. I can turn it on and off, regulate speed up and down.
So your hardware is working and wired correctly.
Those are the only components that you need to control one pump and stirrer.
Gpio outputs control on/off/direction and ledc outputs control speed.
You don’t need fan components (if you don’t want) to make automations. On your script (or other automation):
- output.turn_on: khcontrollerfan_pwm
- output.set_level:
id: khcontrollerfan_pwm
level: 10%
will start the stirrer at 10% speed
and:
- output.turn_on: a_in1
- output.turn_off: a_in2
- output.set_level:
id: a_enable_pwm
level: 50%
will start the pump at 50% speed.
and:
- output.turn_off: a_in1
- delay: 1s
- output.turn_on: a_in2
would change the direction of pump.
The problem is that even if everything works when I use them in web portal or in HA, once I try to use them inside an automation, it always freezes the logs at the moment the script have to start the stirrer fan. And I don’t understand why it freezes the script because as you said, everything is wired correctly.
The thing is, I have GPIO outputs for the pumps, and control the direction with LEDC component. But for the fan, I only have LEDC component, no GPIO output so I wonder if it is not the reason why the fan doesn’t start during the automation in ESPhome.
- output.turn_on: khcontrollerfan_pwm
- output.set_level:
id: khcontrollerfan_pwm
level: 10%
I have already tested those lines in the script, an it doesn’t start the fan… I have commented every lines in the script except for the stirrer fan to check and it is working! I will try with the whole script now.
And while it might kind of work, that is wrong way for that driver. Direction should be controlled with gpio output component.
Because fan doesn’t have direction control.
I think I know why the fan doesn’t start, I have this line in the script as logger.log :
- logger.log: "Step 4: Starting Stirrer at '10%' speed"
This sentence why underlined by ESPHome because of the “%”, so I decided to add an apostrophe but I think it is no correct for the script.
Yep. You need to use %% in printf.
I changed the sign for plain text, it will be easier
I will try to complete the script, I saw that global variables give the possibility to “store” data inside the esp module. I think that’s what I need for the esp to be able to keep trace of how many mL the pump will be adding to the beaker.
Hi,
All little bit of news from the project.
I have stopped trying to make things work in ESPhome as I do not manage to get what I want, so I started coding in HA getting inspiration from other projects.
For now, I have managed to make everything work smooth, I have added a LM2596S module to power the ESP module in 3.3V to only have one power source.
The calibration part for the pump is over and working. I still need to calibrate the pH probe, but I will do it when the project will be almost finished, so the probe would remain in tank water sample.
The big part will be to automate the KH test. I have already started the basics, I still need to figure out how the data will be saved into HA for an automation to be able to run a calculation which will give me the KH value depending on the water sample and acid amount poured into the beaker. I will post an update of the project once it will be done.
Here is the yaml code (input_boolean, input_number, cards, …) :
#######################################################################################################
# cards #
#######################################################################################################
type: vertical-stack
cards:
- type: custom:vertical-stack-in-card
cards:
- type: custom:mushroom-chips-card
chips:
- type: back
- cards:
- card:
entities:
- entity: sensor.kh_controller_reef_ph_khcontroller
name: Valeur mV
- entity: sensor.reef_ph
- entity: input_boolean.kh_test
- entity: input_boolean.calib_ph
- entity: input_boolean.calib_watersamplepump
- entity: input_boolean.calib_acidpump
show_header_toggle: false
title: KH Controller
type: entities
conditions:
- entity: input_boolean.calib_ph
state: "off"
- entity: input_boolean.calib_acidpump
state: "off"
- entity: input_boolean.calib_watersamplepump
state: "off"
type: conditional
- card:
entities:
- entity: sensor.kh_controller_reef_ph_khcontroller
- entity: sensor.reef_ph
- entity: input_boolean.kh_test
- entity: input_boolean.calib_ph
- entity: input_select.c_calib_ph4
- entity: input_number.v_calib_mv4
- entity: input_select.c_calib_ph7
- entity: input_number.v_calib_mv7
- entity: input_select.c_calib_ph9_10
- entity: input_number.v_calib_mv9
show_header_toggle: false
title: Reef pH (KH Controller) Calib mode
type: entities
conditions:
- entity: input_boolean.calib_ph
state: "on"
type: conditional
- card:
entities:
- entity: sensor.kh_controller_reef_ph_khcontroller
name: Valeur mV
- entity: sensor.reef_ph
- entity: input_boolean.kh_test
- entity: input_boolean.calib_watersamplepump
- entity: input_number.khcontroller_watersamplepump_calibration_time
- entity: input_boolean.calib_watersamplepump_start
- entity: input_number.khcontroller_watersamplepump_calibration_dosage
show_header_toggle: false
title: Calibration Water sample pump
type: entities
conditions:
- entity: input_boolean.calib_watersamplepump
state: "on"
type: conditional
- card:
entities:
- entity: sensor.kh_controller_reef_ph_khcontroller
name: Valeur mV
- entity: sensor.reef_ph
- entity: input_boolean.kh_test
- entity: input_boolean.calib_acidpump
- entity: input_number.khcontroller_acidpump_calibration_time
- entity: input_boolean.calib_acidpump_start
- entity: input_number.khcontroller_acidpump_calibration_dosage
show_header_toggle: false
title: Calibration Acid pump
type: entities
conditions:
- entity: input_boolean.calib_acidpump
state: "on"
type: conditional
type: vertical-stack
- type: custom:vertical-stack-in-card
cards:
- type: custom:mushroom-chips-card
chips:
- type: template
- cards:
- card:
entities:
- entity: fan.reefdoser_kh
- entity: input_boolean.r1p1
- entity: input_boolean.calibr1p1on
show_header_toggle: false
title: KH - R1P1
type: entities
conditions:
- entity: input_boolean.r1p1
state: "off"
title: Réveil - Aube
type: conditional
- card:
entities:
- entity: fan.reefdoser_kh
- entity: input_boolean.r1p1
- entity: input_number.reefdoser1_pump1_daily_mins
- entity: input_select.reefdoser1_pump1_daily_freq
- entity: input_number.reefdoser1_pump1_daily_dosage
- entity: sensor.reefdoser1_pump1_dosage_split
- entity: sensor.reefdoser1_pump1_daily_runtime
- entity: sensor.reefdoser1_pump1_time_split
- entity: sensor.reefdoser1
- entity: input_boolean.calibr1p1on
show_header_toggle: false
title: Kh - R1P1
type: entities
conditions:
- entity: input_boolean.r1p1
state: "on"
type: conditional
- card:
entities:
- entity: input_number.reefdoser1_pump1_calibration_time
- entity: input_boolean.calibr1p1start
- entity: input_number.reefdoser1_pump1_calibration_dosage
show_header_toggle: false
title: Calibration Kh - R1P1
type: entities
conditions:
- entity: input_boolean.calibr1p1on
state: "on"
type: conditional
type: vertical-stack
- type: custom:vertical-stack-in-card
cards:
- type: custom:mushroom-chips-card
chips:
- type: template
- cards:
- card:
entities:
- entity: fan.reefdoser_ca
- entity: input_boolean.r1p2
- entity: input_boolean.calibr1p2on
show_header_toggle: false
title: CA - R1P2
type: entities
conditions:
- entity: input_boolean.r1p2
state: "off"
title: Réveil - Aube
type: conditional
- card:
entities:
- entity: fan.reefdoser_ca
- entity: input_boolean.r1p2
- entity: input_number.reefdoser1_pump2_daily_mins
- entity: input_select.reefdoser1_pump2_daily_freq
- entity: input_number.reefdoser1_pump2_daily_dosage
- entity: sensor.reefdoser1_pump2_dosage_split
- entity: sensor.reefdoser1_pump2_daily_runtime
- entity: sensor.reefdoser1_pump2_time_split
- entity: sensor.reefdoser2
- entity: input_boolean.calibr1p2on
show_header_toggle: false
title: CA - R1P2
type: entities
conditions:
- entity: input_boolean.r1p2
state: "on"
type: conditional
- card:
entities:
- entity: input_number.reefdoser1_pump2_calibration_time
- entity: input_boolean.calibr1p2start
- entity: input_number.reefdoser1_pump2_calibration_dosage
show_header_toggle: false
title: Calibration CA - R1P2
type: entities
conditions:
- entity: input_boolean.calibr1p2on
state: "on"
type: conditional
type: vertical-stack
- type: custom:vertical-stack-in-card
cards:
- type: custom:mushroom-chips-card
chips:
- type: template
- cards:
- card:
entities:
- entity: fan.reefdoser_mg
- entity: input_boolean.r1p3
- entity: input_boolean.calibr1p3on
show_header_toggle: false
title: MG - R1P3
type: entities
conditions:
- entity: input_boolean.r1p3
state: "off"
title: Réveil - Aube
type: conditional
- card:
entities:
- entity: fan.reefdoser_mg
- entity: input_boolean.r1p3
- entity: input_number.reefdoser1_pump3_daily_mins
- entity: input_select.reefdoser1_pump3_daily_freq
- entity: input_number.reefdoser1_pump3_daily_dosage
- entity: sensor.reefdoser1_pump3_dosage_split
- entity: sensor.reefdoser1_pump3_daily_runtime
- entity: sensor.reefdoser1_pump3_time_split
- entity: sensor.reefdoser3
- entity: input_boolean.calibr1p3on
show_header_toggle: false
title: MG - R1P3
type: entities
conditions:
- entity: input_boolean.r1p3
state: "on"
type: conditional
- card:
entities:
- entity: input_number.reefdoser1_pump3_calibration_time
- entity: input_boolean.calibr1p3start
- entity: input_number.reefdoser1_pump3_calibration_dosage
show_header_toggle: false
title: Calibration MG - R1P3
type: entities
conditions:
- entity: input_boolean.calibr1p3on
state: "on"
type: conditional
type: vertical-stack
- type: custom:vertical-stack-in-card
cards:
- type: custom:mushroom-chips-card
chips:
- type: template
- cards:
- card:
entities:
- entity: fan.reefdoser_oligos
- entity: input_boolean.r1p4
- entity: input_boolean.calibr1p4on
show_header_toggle: false
title: Oligos - R1P4
type: entities
conditions:
- entity: input_boolean.r1p4
state: "off"
title: Réveil - Aube
type: conditional
- card:
entities:
- entity: switch.reefdoser_oligos
- entity: input_boolean.r1p4
- entity: input_number.reefdoser1_pump4_daily_mins
- entity: input_select.reefdoser1_pump4_daily_freq
- entity: input_number.reefdoser1_pump4_daily_dosage
- entity: sensor.reefdoser1_pump4_dosage_split
- entity: sensor.reefdoser1_pump4_daily_runtime
- entity: sensor.reefdoser1_pump4_time_split
- entity: sensor.reefdoser4
- entity: input_boolean.calibr1p4on
show_header_toggle: false
title: Oligos - R1P4
type: entities
conditions:
- entity: input_boolean.r1p4
state: "on"
type: conditional
- card:
entities:
- entity: input_number.reefdoser1_pump4_calibration_time
- entity: input_boolean.calibr1p4start
- entity: input_number.reefdoser1_pump4_calibration_dosage
show_header_toggle: false
title: Calibration Oligos - R1P4
type: entities
conditions:
- entity: input_boolean.calibr1p4on
state: "on"
type: conditional
type: vertical-stack
###########################################################################################
# Input Boolean #
###########################################################################################
# KH tests auto
kh_test:
name: "KH test : Mode auto"
icon: mdi:arrow-decision-auto-outline
# Calib pH
calib_ph:
name: "Calibration sonde pH"
icon: mdi:tape-measure
# Water sample pump calibration
calib_watersamplepump:
name: "Calibration pompe échantillon"
icon: mdi:tape-measure
calib_watersamplepump_start:
name: "start calibration for 15 sec"
icon: mdi:clock-start
# Acid pump calibration
calib_acidpump:
name: "Calibration pompe acide"
icon: mdi:tape-measure
calib_acidpump_start:
name: "start calibration for 15 sec"
icon: mdi:clock-start
#############################################################################################
# Input number #
#############################################################################################
#Calibration sonde pH
v_calib_mv4:
name: Calibration mV à 4
icon: mdi:gauge
# initial: 4.504
min: 3.500
max: 5.000
step: 0.001
mode: box
v_calib_mv7:
name: Calibration mV à 7
icon: mdi:gauge
# initial: 4.013
min: 3.500
max: 5.000
step: 0.001
mode: box
v_calib_mv9:
name: Calibration mV à 9
icon: mdi:gauge
# initial: 3.703
min: 3.500
max: 5.000
step: 0.001
mode: box
#Calibration pompe doseuse 1
# initial: 00
khcontroller_watersamplepump_calibration_dosage:
name: Résultat calibration en ml
min: 1
max: 100
step: 0.5
unit_of_measurement: ml
mode: box
icon: mdi:flask-outline
# initial: 30
khcontroller_watersamplepump_calibration_time:
name: Durée calibration en sec
min: 1
max: 60
step: 1
unit_of_measurement: sec
icon: mdi:timer-sand
# initial: 30
# Quantité ajout échantillon eau de mer
khcontroller_watersamplepump_dosage:
name: Ajouts échantillon
min: 1
max: 500
step: 1
unit_of_measurement: ml
icon: mdi:beaker
#Calibration pompe doseuse 2
# initial: 00
khcontroller_acidpump_calibration_dosage:
name: Résultat calibration en ml
min: 1
max: 100
step: 0.5
unit_of_measurement: ml
mode: box
icon: mdi:flask-outline
# initial: 30
khcontroller_acidpump_calibration_time:
name: Durée calibration en sec
min: 1
max: 60
step: 1
unit_of_measurement: sec
icon: mdi:timer-sand
# initial: 30
# Quantité ajout acide chlorhydrique
khcontroller_acidepump_dosage:
name: Ajouts acide
min: 1
max: 500
step: 1
unit_of_measurement: ml
icon: mdi:beaker
######################################################################################
# Input select #
######################################################################################
#Calibration de la sonde pH
c_calib_ph4:
name: Calibration pH4
icon: mdi:adjust
options:
- "4.00"
- "4.01"
c_calib_ph7:
name: Calibration pH7
icon: mdi:adjust
options:
- "6.86 "
- "7.00"
- "7.01"
c_calib_ph9_10:
name: Calibration pH9-10
icon: mdi:adjust
options:
- "9.00"
- "9.18"
- "9.21"
- "10.00"
- "10.01"
#######################################################################################
# Sensors #
#######################################################################################
- platform: template
sensors:
# ph_meter ONLINE status sensors
kh_controller:
value_template: '{% if is_state("binary_sensor.192_168_1_100", "on") %}Online{% else %}offline{% endif %}'
friendly_name: 'État KH_controller'
icon_template: >-
{% if is_state('binary_sensor.192_168_1_100', 'on') %}
mdi:power-plug
{% else %}
mdi:power-plug-off
{% endif %}
#Conversion de valeur mV à pH
reef_ph:
friendly_name: "Valeur PH"
icon_template: mdi:ph
value_template: '{{ (states.input_select.c_calib_ph9_10.state | float) - ( (((states.input_number.v_calib_mv9.state | float)-(states.sensor.kh_controller_reef_ph_khcontroller.state | float))*((states.input_select.c_calib_ph7.state | float)-(states.input_select.c_calib_ph9_10.state | float))) / ((states.input_number.v_calib_mv7.state | float)-(states.input_number.v_calib_mv9.state | float)) ) | round(2) }}'
# xc (states.sensor.kh_controller_reef_ph_khcontroller.state | float)
# (states.input_select.c_calib_ph4.state | float)
# ya (states.input_select.c_calib_ph7.state | float)
# yb (states.input_select.c_calib_ph9_10.state | float)
# (states.input_number.v_calib_mv4.state | float)
# xa (states.input_number.v_calib_mv7.state | float)
# xb (states.input_number.v_calib_mv9.state | float)
#########################################################ph_meter
#############################################################################################
# groups #
#############################################################################################
khcontroller:
name: KH controller
entities:
- input_boolean.kh_test
- input_boolean.calib_ph
- input_number.v_calib_mv4
- input_number.v_calib_mv7
- input_number.v_calib_mv9
- input_select.c_calib_ph4
- input_select.c_calib_ph7
- input_select.c_calib_ph9_10
- sensor.kh_controller
- sensor.reef_ph
watersamplepump:
name: Water Sample pump
entities:
- input_boolean.calib_watersamplepump
- input_boolean.calib_watersamplepump_start
- input_number.khcontroller_watersample_pump_calibration_dosage
- input_number.khcontroller_watersamplepump_calibration_time
- input_number.khcontroller_watersamplepump_dosage
- sensor.khcontroller_watersamplepump_runtime
- sensor.khcontroller_watersamplepump_dosage
acidpump:
name: Acid pump
entities:
- input_boolean.calib_acidpump
- input_boolean.calib_acidpump_start
- input_number.khcontroller_acidpump_calibration_dosage
- input_number.khcontroller_acidpump_calibration_time
- input_number.khcontroller_acidpump_dosage
- sensor.khcontroller_acidpump_runtime
- sensor.khcontroller_acidpump_dosage
##################################################################################
# Automations #
##################################################################################
- id: '1741700276041'
alias: Calibration water sample pump
description: ''
triggers:
- trigger: state
entity_id: input_boolean.calib_watersamplepump_start
to: 'on'
conditions:
- condition: and
conditions:
- condition: state
entity_id: sensor.kh_controller
state: Online
- condition: state
entity_id: input_boolean.calib_watersamplepump
state: 'on'
actions:
- action: fan.turn_on
data:
percentage: 40
target:
entity_id: fan.kh_controller_dosing_pump1_forward
- delay: 00:00:{{ states.input_number.khcontroller_watersamplepump_calibration_time.state
| int }}
- action: fan.turn_off
entity_id: fan.kh_controller_dosing_pump1_forward
- action: input_boolean.turn_off
entity_id: input_boolean.calib_watersamplepump_start
- action: notify.mobile_app_sm_s901b_seifer
data:
title: Fin calibration pompe water sample
message: Reporter la qté delivrée par la pompe water sample
data:
push:
thread-id: activité_reef-group
mode: single
- id: '1741701819419'
alias: Calibration acid pump
description: ''
triggers:
- trigger: state
entity_id: input_boolean.calib_acidpump_start
to: 'on'
conditions:
- condition: and
conditions:
- condition: state
entity_id: sensor.kh_controller
state: Online
- condition: state
entity_id: input_boolean.calib_acidpump
state: 'on'
actions:
- action: fan.turn_on
data:
percentage: 40
target:
entity_id: fan.kh_controller_dosing_pump2_forward
- delay: 00:00:{{ states.input_number.khcontroller_acidpump_calibration_time.state
| int }}
- action: fan.turn_off
entity_id: fan.kh_controller_dosing_pump2_forward
- action: input_boolean.turn_off
entity_id: input_boolean.calib_acidpump_start
- action: notify.mobile_app_sm_s901b_seifer
data:
title: Fin calibration pompe acide
message: Reporter la qté delivrée par la pompe acide
data:
push:
thread-id: activité_reef-group
mode: single
- id: '1741703990586'
alias: Reset Acid pump Calibration view
description: ''
triggers:
- trigger: state
entity_id: input_boolean.kh_test
to: 'off'
conditions: []
actions:
- action: input_boolean.turn_off
entity_id: input_boolean.calib_acidpump
mode: single
- id: '1741704088194'
alias: Reset Water sample Calibration view
description: ''
triggers:
- trigger: state
entity_id: input_boolean.kh_test
to: 'off'
conditions: []
actions:
- action: input_boolean.turn_off
entity_id: input_boolean.calib_watersamplepump
mode: single
- id: bc2da7ca74cb4c39a14fc389b96ddae9
alias: Notify kh_controller offline
triggers:
- trigger: state
entity_id:
- binary_sensor.192_168_1_100
to: 'off'
actions:
- action: notify.mobile_app_sm_s901b_seifer
data:
title: kh_controller offline
message: Le KH Controller est hors ligne!
data:
push:
thread-id: activité_reef-group
The KH value automation I started :
- id: '1739742697731'
alias: Démarrer test KH
description: ''
triggers:
- hours: '12'
trigger: time_pattern
conditions:
- condition: and
conditions:
- condition: state
entity_id: sensor.kh_controller
state: Online
- condition: state
entity_id: input_boolean.kh_test
state: 'on'
actions:
- action: fan.turn_on
data:
percentage: 100
target:
entity_id: fan.kh_controller_dosing_pump1_reverse
- delay:
hours: 0
minutes: 0
seconds: 15
milliseconds: 0
- action: fan.turn_off
target:
entity_id: fan.kh_controller_dosing_pump1_reverse
data: {}
- delay:
hours: 0
minutes: 0
seconds: 5
milliseconds: 0
- action: fan.turn_on
target:
entity_id: fan.kh_controller_dosing_pump1_forward
data:
percentage: 40
- delay:
hours: 0
minutes: 0
seconds: 5
milliseconds: 0
- action: fan.turn_off
metadata: {}
data: {}
target:
entity_id: fan.kh_controller_dosing_pump1_forward
- delay:
hours: 0
minutes: 0
seconds: 10
milliseconds: 0
- action: homeassistant.update_entity
metadata: {}
data:
entity_id:
- sensor.reef_ph
- delay:
hours: 0
minutes: 1
seconds: 0
milliseconds: 0
- action: fan.turn_on
metadata: {}
data:
percentage: 10
target:
entity_id:
- fan.kh_controller_stirrer
- action: fan.turn_on
metadata: {}
data:
percentage: 40
target:
entity_id: fan.kh_controller_dosing_pump2_forward
- if:
- condition: numeric_state
entity_id: sensor.reef_ph
below: 4.51
then:
- action: fan.turn_off
target:
entity_id: fan.kh_controller_dosing_pump2_forward
data: {}
- delay:
hours: 0
minutes: 0
seconds: 10
milliseconds: 0
- action: fan.turn_off
target:
entity_id: fan.kh_controller_stirrer
data: {}
mode: single
And here are the print screens of the cards in lovelace :
The remaining things to do are :
I think I have finished the project. I just have to test it to see if it is acurate now.
The amount of water sample is determined with “input_number.khcontroller_watersamplepump_dosage”.
khcontroller_watersamplepump_dosage:
friendly_name: "KH Controller Volume échantillon ajouté"
unique_id: khcontroller_volume_watersample
value_template: "{{ states('input_number.khcontroller_watersamplepump_dosage') | float }}"
unit_of_measurement: "mL"
The amount of citric acid is calculated with the following template & sensor :
The template :
# Calcul du temps de fonctionnement de la pompe acide du KH controller
- unique_id: khcontroller_acidpump_runtime
device_class: duration
state: "{% set hours = states('sensor.khcontroller_acidpump_runtime') | float %}
{% set minutes = ((hours % 1) * 60) | int %}
{{ '%02ih %02im'%(hours // 1, minutes) }}"
name: Acid pump runtime
The sensor :
# Calcul de la durée de fonctionnement de la pompe acide
- platform: history_stats
name: khcontroller_acidpump_runtime
entity_id: fan.kh_controller_dosing_pump2_forward
state: "on"
type: time
start: "{{ now().replace(hour=0, minute=0, second=0) }}"
end: "{{ now() }}"
The name of the sensor has to be the same in the template for the sensor to work.
And the you are able to calculate the amount of poured acid :
khcontroller_acidpump_dosage:
value_template: >
{% set runtime = states('sensor.khcontroller_acidpump_runtime') | float(0) %}
{% set calibration_dosage = states('input_number.khcontroller_acidpump_calibration_dosage') | float(0) %}
{% set calibration_time = states('input_number.khcontroller_acidpump_calibration_time') | float(0) %}
{{ (runtime * (calibration_dosage / calibration_time))*100 | round(2) }}
unit_of_measurement: "mL"
friendly_name: 'KH controller Qté ajout acide'
The result has to be multiplied by 100 to get the right value.
And for the KH value calculation, here is the calculation with a sensor :
# Affichage de la valeur dKH
kh_controller_kh_value:
value_template: >
{% set water_dosage = states('sensor.khcontroller_watersamplepump_dosage') | float(0) %}
{% set acid_dosage = states('sensor.khcontroller_acidpump_dosage') | float(0) %}
{% if water_dosage > 0 %}
{{ (acid_dosage / water_dosage) * 280 | round(2) }}
{% else %}
0
{% endif %}
unit_of_measurement: "°KH"
friendly_name: 'Valeur KH'
Here is the final code for the lovelace card :
type: vertical-stack
cards:
- type: custom:vertical-stack-in-card
cards:
- type: custom:mushroom-chips-card
chips:
- type: back
- cards:
- card:
entities:
- entity: sensor.kh_controller_reef_ph_khcontroller
name: Valeur mV
- entity: sensor.reef_ph
- entity: sensor.kh_controller_kh_value
- entity: input_boolean.kh_test
- entity: input_boolean.calib_ph
- entity: input_boolean.calib_watersamplepump
- entity: input_boolean.calib_acidpump
show_header_toggle: false
title: KH Controller
type: entities
conditions:
- entity: input_boolean.calib_ph
state: "off"
- entity: input_boolean.calib_acidpump
state: "off"
- entity: input_boolean.calib_watersamplepump
state: "off"
- entity: input_boolean.kh_test
state: "off"
type: conditional
- card:
entities:
- entity: sensor.kh_controller_reef_ph_khcontroller
name: Valeur mV
- entity: sensor.reef_ph
- entity: sensor.kh_controller_kh_value
- entity: input_boolean.kh_test
- entity: input_number.khcontroller_watersamplepump_dosage
name: Dosage water sample
- entity: sensor.khcontroller_watersamplepump_runtime
name: Durée ajout water sample
- entity: sensor.khcontroller_watersamplepump_dosage
name: Quantité ajout water sample
- entity: sensor.khcontroller_acidpump_runtime
name: Durée ajout acide
- entity: sensor.khcontroller_acidpump_dosage
name: Quantité ajout acide
- entity: input_boolean.calib_ph
- entity: input_boolean.calib_watersamplepump
- entity: input_boolean.calib_acidpump
show_header_toggle: false
title: KH Controller
type: entities
conditions:
- entity: input_boolean.kh_test
state: "on"
type: conditional
- card:
entities:
- entity: sensor.kh_controller_reef_ph_khcontroller
- entity: sensor.reef_ph
- entity: sensor.kh_controller_kh_value
- entity: input_boolean.kh_test
- entity: input_boolean.calib_ph
- entity: input_select.c_calib_ph4
- entity: input_number.v_calib_mv4
- entity: input_select.c_calib_ph7
- entity: input_number.v_calib_mv7
- entity: input_select.c_calib_ph9_10
- entity: input_number.v_calib_mv9
show_header_toggle: false
title: Reef pH (KH Controller) Calib mode
type: entities
conditions:
- entity: input_boolean.calib_ph
state: "on"
type: conditional
- card:
entities:
- entity: sensor.kh_controller_reef_ph_khcontroller
name: Valeur mV
- entity: sensor.reef_ph
- entity: sensor.kh_controller_kh_value
- entity: input_boolean.kh_test
- entity: input_boolean.calib_watersamplepump
- entity: input_number.khcontroller_watersamplepump_calibration_time
- entity: input_boolean.calib_watersamplepump_start
- entity: input_number.khcontroller_watersamplepump_calibration_dosage
show_header_toggle: false
title: Calibration Water sample pump
type: entities
conditions:
- entity: input_boolean.calib_watersamplepump
state: "on"
type: conditional
- card:
entities:
- entity: sensor.kh_controller_reef_ph_khcontroller
name: Valeur mV
- entity: sensor.reef_ph
- entity: sensor.kh_controller_kh_value
- entity: input_boolean.kh_test
- entity: input_boolean.calib_acidpump
- entity: input_number.khcontroller_acidpump_calibration_time
- entity: input_boolean.calib_acidpump_start
- entity: input_number.khcontroller_acidpump_calibration_dosage
show_header_toggle: false
title: Calibration Acid pump
type: entities
conditions:
- entity: input_boolean.calib_acidpump
state: "on"
type: conditional
type: vertical-stack
Maybe there will need improvements, of some adjustements when testing for accuracy, is there something more accurate than history_stats to get the pump runtime?
A little update, I changed the template & sensor for the acid pump runtime, to get something more accurate for KH calculation because the runtime did not reset after each start of the acid pump which caused the KH value to be wrong.
########################################################################################
# Sensors #
########################################################################################
- platform: template
sensors:
# ph_meter ONLINE status sensors
kh_controller:
value_template: '{% if is_state("binary_sensor.192_168_1_100", "on") %}Online{% else %}offline{% endif %}'
friendly_name: 'État KH_controller'
icon_template: >-
{% if is_state('binary_sensor.192_168_1_100', 'on') %}
mdi:power-plug
{% else %}
mdi:power-plug-off
{% endif %}
#Conversion de valeur mV à pH
reef_ph:
friendly_name: "Valeur PH"
icon_template: mdi:ph
value_template: '{{ (states.input_select.c_calib_ph9_10.state | float) - ( (((states.input_number.v_calib_mv9.state | float)-(states.sensor.kh_controller_reef_ph_khcontroller.state | float))*((states.input_select.c_calib_ph7.state | float)-(states.input_select.c_calib_ph9_10.state | float))) / ((states.input_number.v_calib_mv7.state | float)-(states.input_number.v_calib_mv9.state | float)) ) | round(2) }}'
# xc (states.sensor.kh_controller_reef_ph_khcontroller.state | float)
# (states.input_select.c_calib_ph4.state | float)
# ya (states.input_select.c_calib_ph7.state | float)
# yb (states.input_select.c_calib_ph9_10.state | float)
# (states.input_number.v_calib_mv4.state | float)
# xa (states.input_number.v_calib_mv7.state | float)
# xb (states.input_number.v_calib_mv9.state | float)
#########################################################ph_meter
# KH controller Runtime sensors
khcontroller_watersamplepump_runtime:
value_template: "{{ (float(states('input_number.khcontroller_watersamplepump_dosage')) / ((float(states('input_number.khcontroller_watersamplepump_calibration_dosage')))/(float(states('input_number.khcontroller_watersamplepump_calibration_time'))))) | round(2) }}"
friendly_name: 'KH controller Durée ajout water sample'
unit_of_measurement: 'sec'
khcontroller_watersamplepump_dosage:
friendly_name: "KH Controller Volume échantillon ajouté"
unique_id: khcontroller_volume_watersample
value_template: "{{ states('input_number.khcontroller_watersamplepump_dosage') | float }}"
unit_of_measurement: "mL"
khcontroller_acidpump_dosage:
value_template: >
{% set runtime = states('sensor.khcontroller_acidpump_runtime_bis') | float(0) %}
{% set calibration_dosage = states('input_number.khcontroller_acidpump_calibration_dosage') | float(0) %}
{% set calibration_time = states('input_number.khcontroller_acidpump_calibration_time') | float(0) %}
{{ (runtime * (calibration_dosage / calibration_time)) | round(2) }}
unit_of_measurement: "mL"
friendly_name: 'KH controller Qté ajout acide'
khcontroller_acidpump_runtime:
value_template: "{{ states('input_number.khcontroller_acidpump_runtime') | float }}"
friendly_name: 'KH Controller Durée ajout acide'
unit_of_measurement: "s"
unique_id: khcontroller_acidpump_runtime
# Affichage de la valeur dKH
kh_controller_kh_value:
value_template: >
{% set water_dosage = states('sensor.khcontroller_watersamplepump_dosage') | float(0) %}
{% set acid_dosage = states('sensor.khcontroller_acidpump_dosage') | float(0) %}
{% if water_dosage > 0 %}
{{ (acid_dosage / water_dosage) * 280 | round(2) }}
{% else %}
0
{% endif %}
unit_of_measurement: "°KH"
friendly_name: 'Valeur KH'
########################################################################################
# Input Select #
########################################################################################
#Calibration de la sonde pH
c_calib_ph4:
name: Calibration pH4
icon: mdi:adjust
options:
- "4.00"
- "4.01"
c_calib_ph7:
name: Calibration pH7
icon: mdi:adjust
options:
- "6.86 "
- "7.00"
- "7.01"
c_calib_ph9_10:
name: Calibration pH9-10
icon: mdi:adjust
options:
- "9.00"
- "9.18"
- "9.21"
- "10.00"
- "10.01"
########################################################################################
# Input Number #
########################################################################################
#Calibration sonde pH
v_calib_mv4:
name: Calibration mV à 4
icon: mdi:gauge
# initial: 4.504
min: 3.500
max: 5.000
step: 0.001
mode: box
v_calib_mv7:
name: Calibration mV à 7
icon: mdi:gauge
# initial: 4.013
min: 3.500
max: 5.000
step: 0.001
mode: box
v_calib_mv9:
name: Calibration mV à 9
icon: mdi:gauge
# initial: 3.703
min: 3.500
max: 5.000
step: 0.001
mode: box
#Calibration pompe doseuse 1
# initial: 00
khcontroller_watersamplepump_calibration_dosage:
name: Résultat calibration en ml
min: 1
max: 100
step: 0.5
unit_of_measurement: ml
mode: box
icon: mdi:flask-outline
# initial: 30
khcontroller_watersamplepump_calibration_time:
name: Durée calibration en sec
min: 1
max: 60
step: 1
unit_of_measurement: sec
icon: mdi:timer-sand
# initial: 30
# Quantité ajout échantillon eau de mer
khcontroller_watersamplepump_dosage:
name: Ajouts échantillon
min: 1
max: 500
step: 1
unit_of_measurement: ml
icon: mdi:beaker
#Calibration pompe doseuse 2
# initial: 00
khcontroller_acidpump_calibration_dosage:
name: Résultat calibration en ml
min: 1
max: 100
step: 0.5
unit_of_measurement: ml
mode: box
icon: mdi:flask-outline
# initial: 30
khcontroller_acidpump_calibration_time:
name: Durée calibration en sec
min: 1
max: 60
step: 1
unit_of_measurement: sec
icon: mdi:timer-sand
# initial: 30
# Quantité ajout acide chlorhydrique
khcontroller_acidepump_dosage:
name: Ajouts acide
min: 1
max: 500
step: 1
unit_of_measurement: ml
icon: mdi:beaker
# Calcul du temps de fonctionnement de la pompe acide chlorhydrique
khcontroller_acidpump_runtime:
name: "Acid Pump Runtime"
min: 0
max: 86400 # 24h en secondes
step: 1
unit_of_measurement: "s"
########################################################################################
# Input Datetime #
########################################################################################
#Calculer la durée de fonctionnement de la pompe d'acide chlorhydrique
khcontroller_acidpump_start_time:
name: "Start Time"
has_time: true
has_date: true
khcontroller_acidpump_end_time:
name: "End Time"
has_time: true
has_date: true
########################################################################################
# Input Booleans #
########################################################################################
# KH tests auto
kh_test:
name: "KH test : Mode auto"
icon: mdi:arrow-decision-auto-outline
# Calib pH
calib_ph:
name: "Calibration sonde pH"
icon: mdi:tape-measure
# Water sample pump calibration
calib_watersamplepump:
name: "Calibration pompe échantillon"
icon: mdi:tape-measure
calib_watersamplepump_start:
name: "start calibration for 15 sec"
icon: mdi:clock-start
# Acid pump calibration
calib_acidpump:
name: "Calibration pompe acide"
icon: mdi:tape-measure
calib_acidpump_start:
name: "start calibration for 15 sec"
icon: mdi:clock-start
########################################################################################
# Groups #
########################################################################################
khcontroller:
name: KH controller
entities:
- input_boolean.kh_test
- input_boolean.calib_ph
- input_number.v_calib_mv4
- input_number.v_calib_mv7
- input_number.v_calib_mv9
- input_select.c_calib_ph4
- input_select.c_calib_ph7
- input_select.c_calib_ph9_10
- sensor.kh_controller
- sensor.reef_ph
- sensor.kh_controller_kh_value
watersamplepump:
name: Water Sample pump
entities:
- input_boolean.calib_watersamplepump
- input_boolean.calib_watersamplepump_start
- input_number.khcontroller_watersample_pump_calibration_dosage
- input_number.khcontroller_watersamplepump_calibration_time
- input_number.khcontroller_watersamplepump_dosage
- sensor.khcontroller_watersamplepump_runtime
- sensor.khcontroller_watersamplepump_dosage
acidpump:
name: Acid pump
entities:
- input_boolean.calib_acidpump
- input_boolean.calib_acidpump_start
- input_number.khcontroller_acidpump_calibration_dosage
- input_number.khcontroller_acidpump_calibration_time
- input_number.khcontroller_acidpump_dosage
- input_number.khcontroller_acidpump_runtime
- input_datetime.khcontroller_acidpump_start_time
- input_datetime.khcontroller_acidpump_end_time
- sensor.khcontroller_acidpump_runtime
- sensor.khcontroller_acidpump_dosage
So I did some changes too for the automations :
- id: '1741700276041'
alias: Calibration water sample pump
description: ''
triggers:
- trigger: state
entity_id: input_boolean.calib_watersamplepump_start
to: 'on'
conditions:
- condition: and
conditions:
- condition: state
entity_id: sensor.kh_controller
state: Online
- condition: state
entity_id: input_boolean.calib_watersamplepump
state: 'on'
actions:
- action: fan.turn_on
data:
percentage: 40
target:
entity_id: fan.kh_controller_dosing_pump1_forward
- delay: 00:00:{{ states.input_number.khcontroller_watersamplepump_calibration_time.state
| int }}
- action: fan.turn_off
entity_id: fan.kh_controller_dosing_pump1_forward
- action: input_boolean.turn_off
entity_id: input_boolean.calib_watersamplepump_start
- action: notify.mobile_app_sm_s901b_seifer
data:
title: Fin calibration pompe water sample
message: Reporter la qté delivrée par la pompe water sample
data:
push:
thread-id: activité_reef-group
mode: single
- id: '1741701819419'
alias: Calibration acid pump
description: ''
triggers:
- trigger: state
entity_id: input_boolean.calib_acidpump_start
to: 'on'
conditions:
- condition: and
conditions:
- condition: state
entity_id: sensor.kh_controller
state: Online
- condition: state
entity_id: input_boolean.calib_acidpump
state: 'on'
actions:
- action: fan.turn_on
data:
percentage: 40
target:
entity_id: fan.kh_controller_dosing_pump2_forward
- delay: 00:00:{{ states.input_number.khcontroller_acidpump_calibration_time.state
| int }}
- action: fan.turn_off
entity_id: fan.kh_controller_dosing_pump2_forward
- action: input_boolean.turn_off
entity_id: input_boolean.calib_acidpump_start
- action: notify.mobile_app_sm_s901b_seifer
data:
title: Fin calibration pompe acide
message: Reporter la qté delivrée par la pompe acide
data:
push:
thread-id: activité_reef-group
mode: single
- id: '1741703990586'
alias: Reset Acid pump Calibration view
description: ''
triggers:
- trigger: state
entity_id: input_boolean.calib_acidpump
to: 'off'
conditions: []
actions:
- action: input_boolean.turn_off
entity_id: input_boolean.calib_acidpump
mode: single
- id: '1741704088194'
alias: Reset Water sample Calibration view
description: ''
triggers:
- trigger: state
entity_id: input_boolean.calib_watersamplepump
to: 'off'
conditions: []
actions:
- action: input_boolean.turn_off
entity_id: input_boolean.calib_watersamplepump
mode: single
- id: '1741718444219'
alias: KH Controller 01 - Vidange du bécher
description: ''
triggers:
- hours: '12'
trigger: time_pattern
conditions:
- condition: and
conditions:
- condition: state
entity_id: sensor.kh_controller
state: Online
- condition: state
entity_id: input_boolean.kh_test
state: 'on'
actions:
- action: fan.turn_on
target:
entity_id: fan.kh_controller_dosing_pump1_reverse
data:
percentage: 100
- delay:
hours: 0
minutes: 0
seconds: 10
milliseconds: 0
- action: fan.turn_off
metadata: {}
data: {}
target:
entity_id: fan.kh_controller_dosing_pump1_reverse
- delay:
hours: 0
minutes: 0
seconds: 5
milliseconds: 0
- action: fan.turn_on
target:
entity_id: fan.kh_controller_dosing_pump1_forward
data:
percentage: 40
- delay:
hours: 0
minutes: 0
seconds: 5
milliseconds: 0
- action: fan.turn_off
target:
entity_id: fan.kh_controller_dosing_pump1_forward
data: {}
- if:
- condition: state
entity_id: fan.kh_controller_dosing_pump1_reverse
state: 'off'
for:
hours: 0
minutes: 0
seconds: 5
- condition: state
entity_id: fan.kh_controller_dosing_pump1_forward
state: 'off'
for:
hours: 0
minutes: 0
seconds: 5
then:
- action: input_boolean.turn_on
metadata: {}
data: {}
target:
entity_id: input_boolean.kh_test
mode: single
- id: '1741718826967'
alias: KH Controller 03 - Post test
description: ''
triggers:
- trigger: state
entity_id:
- input_boolean.kh_test
from: 'on'
to: 'off'
conditions:
- condition: and
conditions:
- condition: state
entity_id: sensor.kh_controller
state: Online
- condition: state
entity_id: input_boolean.kh_test
state: 'on'
actions:
- action: fan.turn_on
target:
entity_id: fan.kh_controller_dosing_pump1_reverse
data:
percentage: 100
- delay:
hours: 0
minutes: 0
seconds: 15
milliseconds: 0
- action: fan.turn_off
metadata: {}
data: {}
target:
entity_id: fan.kh_controller_dosing_pump1_reverse
- delay:
hours: 0
minutes: 0
seconds: 5
milliseconds: 0
- action: fan.turn_on
metadata: {}
data:
percentage: 100
target:
entity_id: fan.kh_controller_dosing_pump1_forward
- delay:
hours: 0
minutes: 0
seconds: 5
milliseconds: 0
- action: fan.turn_off
metadata: {}
data: {}
target:
entity_id: fan.kh_controller_dosing_pump1_forward
mode: single
- id: '1741787106802'
alias: KH Controller 04 - Durée pompe acide alimente input_datetime
description: ''
triggers:
- trigger: state
entity_id: fan.kh_controller_dosing_pump2_forward
from: 'off'
to: 'on'
- trigger: state
entity_id: fan.kh_controller_dosing_pump2_forward
from: 'on'
to: 'off'
actions:
- choose:
- conditions:
- condition: state
entity_id: fan.kh_controller_dosing_pump2_forward
state: 'on'
sequence:
- action: input_datetime.set_datetime
target:
entity_id: input_datetime.khcontroller_acidpump_start_time
data:
timestamp: '{{ now().timestamp() }}'
- conditions:
- condition: state
entity_id: fan.kh_controller_dosing_pump2_forward
state: 'off'
sequence:
- action: input_datetime.set_datetime
target:
entity_id: input_datetime.khcontroller_acidpump_end_time
data:
timestamp: '{{ now().timestamp() }}'
mode: single
- id: '1741794735158'
alias: KH Controller 05 - Temps de fonctionnement pompe acide
description: ''
triggers:
- trigger: state
entity_id:
- input_datetime.khcontroller_acidpump_start_time
- input_datetime.khcontroller_acidpump_end_time
actions:
- variables:
start_time: '{{ states(''input_datetime.khcontroller_acidpump_start_time'')
}}'
end_time: '{{ states(''input_datetime.khcontroller_acidpump_end_time'') }}'
- action: input_number.set_value
target:
entity_id: input_number.khcontroller_acidpump_runtime
data:
value: "{% set start = as_timestamp(start_time) %} {% set end = as_timestamp(end_time)
%} {% if start and end and end > start %}\n {{ end - start }}\n{% else %}\n
\ 0\n{% endif %}"
mode: single
- id: bc2da7ca74cb4c39a14fc389b96ddae9
alias: Notify kh_controller offline
triggers:
- trigger: state
entity_id:
- binary_sensor.192_168_1_100
to: 'off'
actions:
- action: notify.mobile_app_sm_s901b_seifer
data:
title: kh_controller offline
message: Le KH Controller est hors ligne!
data:
push:
thread-id: activité_reef-group
- id: '1739742697731'
alias: KH Controller 02 - Démarrer test KH
description: ''
triggers:
- trigger: state
entity_id:
- input_boolean.kh_test
from: 'off'
to: 'on'
for:
hours: 0
minutes: 0
seconds: 20
- value_template: '{{ 4.49 <= states(''sensor.reef_ph'') | float <= 4.51 }}'
trigger: template
conditions:
- condition: and
conditions:
- condition: state
entity_id: sensor.kh_controller
state: Online
- condition: state
entity_id: input_boolean.kh_test
state: 'on'
actions:
- action: input_number.set_value
target:
entity_id: input_number.khcontroller_acidpump_runtime
data:
value: 0
- action: fan.turn_on
target:
entity_id: fan.kh_controller_dosing_pump1_forward
data:
percentage: 40
- delay:
seconds: '{{ states(''sensor.khcontroller_watersamplepump_runtime'') | int }}'
- action: fan.turn_off
metadata: {}
data: {}
target:
entity_id: fan.kh_controller_dosing_pump1_forward
- delay:
hours: 0
minutes: 0
seconds: 10
milliseconds: 0
- action: homeassistant.update_entity
metadata: {}
data:
entity_id:
- sensor.reef_ph
- delay:
hours: 0
minutes: 1
seconds: 0
milliseconds: 0
- action: fan.turn_on
metadata: {}
data:
percentage: 10
target:
entity_id:
- fan.kh_controller_stirrer
- action: fan.turn_on
metadata: {}
data:
percentage: 33
target:
entity_id: fan.kh_controller_dosing_pump2_forward
- choose:
- conditions:
- condition: state
entity_id: input_boolean.kh_test
state: 'on'
sequence:
- target:
entity_id: fan.kh_controller_dosing_pump2_forward
action: fan.turn_on
data: {}
- conditions:
- condition: template
value_template: '{{ 4.49 <= states(''sensor.reef_ph'') | float <= 4.51 }}'
sequence:
- target:
entity_id: fan.kh_controller_dosing_pump2_forward
action: fan.turn_off
data: {}
mode: single

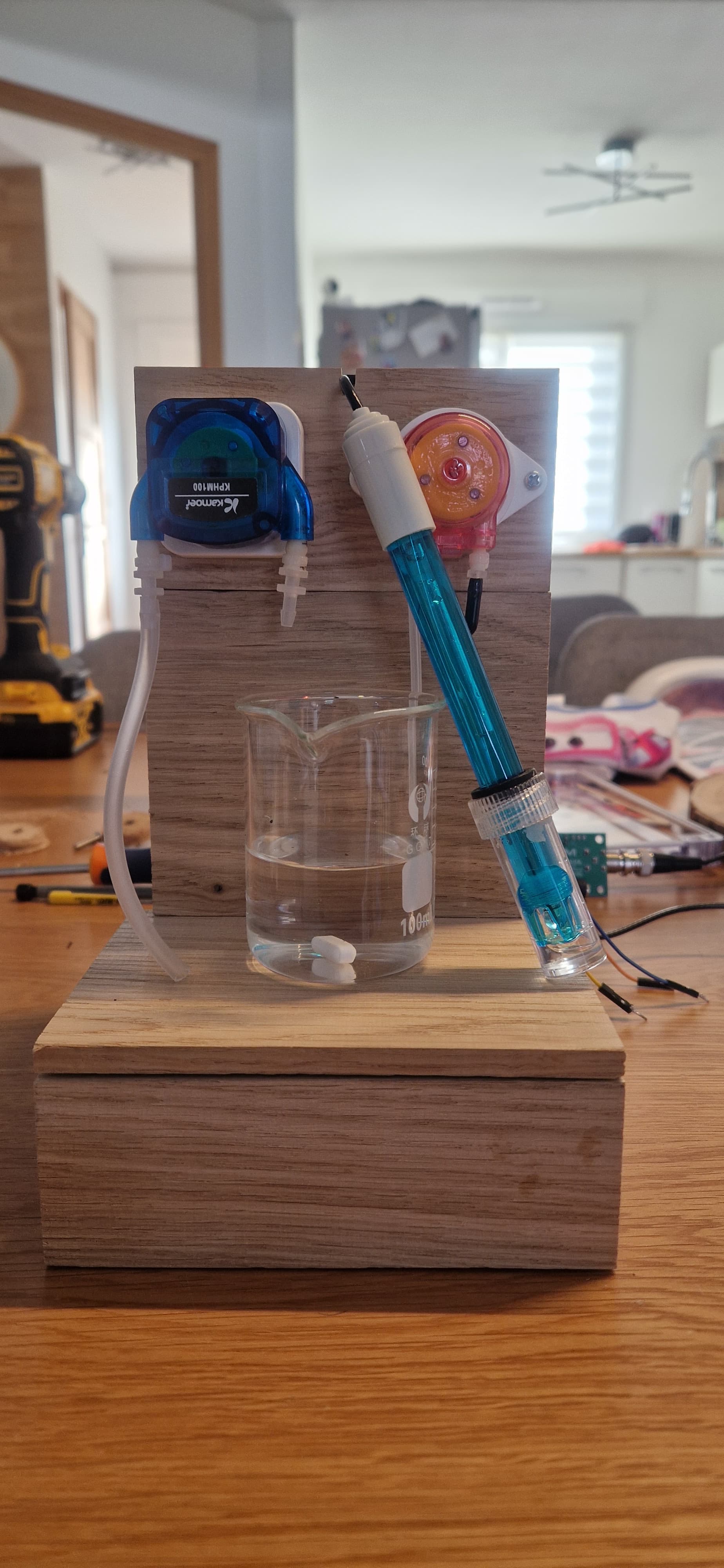

I created a pre scene where the beaker get empty and the tube filled up (still to adjust for real use), a scene where the test is running, and a post scene where the beaker is emptied and refilled again with water sample of the tank to let the pH probe remain in water.
And some other automations to reset the runtime of the acid pump, another one which save the start and end time into an input_datetime then in an input_number, so the runtime value can be used to determine the acid amound poured into the beaker, then the sensor show that runtime.
I also change the KH test automation to use the input_number of water sample value instead, so if the amount of water sample change in the lovelace card, the automation will adapt automatically.
