You are right! It is written in blue in the diagram. Sorry for not seeing it before. Thank you!
removing code_format worked for me.
template:
- alarm_control_panel:
- name: Alarm Panel
code_arm_required: false
arm_away:
- action: esphome.dscalarm_alarm_arm_away
arm_home:
- action: esphome.dscalarm_alarm_arm_home
disarm:
- data_template:
code: 'XXXX'
action: esphome.dscalarm_alarm_disarm
#code_format: TemplateCodeFormat.number
default_entity_id: alarm_control_panel.safe_alarm_panel
state: '{{states(''sensor.dsc_status_partition_1'')}}'
it took some time to me to realize I needed to enable āadvanced modeā to see this new cards
Hello Alain, a huge thanks for your hard work ! Iām trying to implement the resistor divider version to connect my esp32 to the alarm. I have an issue with the wire from r1 to the pin ā7ā on the esp32. Where should I declare it in dscAlarm.yaml ? the ESP 32 is powered by USB. another question is, are R3,R5,R1 all connected to the same āGroundā on my PCB board ? last question, the GND from the PCB board should be wired to AUX - pin in the alarm system ? Thanks a lot in advance !
The schematic has a discrepency with the connected pin and the example config in the text. My bad. You can connect the pins where you want as long as you setup the corresponding gpio number in the yaml. In this case pin 7 is gpio05 (dscwritepin: 5). As to the grounds. Only r3, r5, q1 emitter, esp gnd and panel black go to the ground connection. R1 is NOT grounded! Ground should go to the black wire on the panel. I suppose AUX - is the same but just adds confusion.

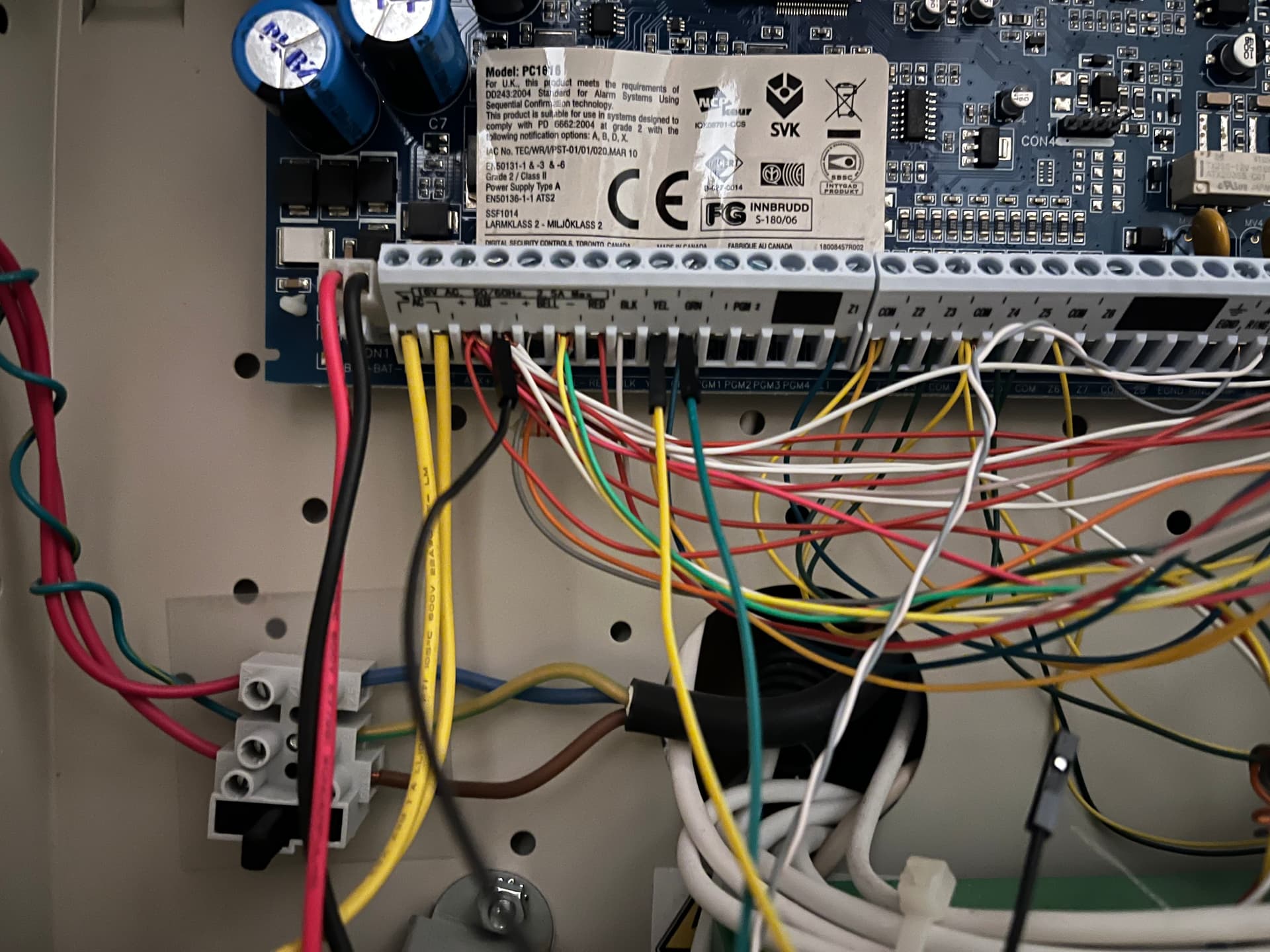

Thanks a lot for your prompt answer ! True, R1 is not groundedā¦ By the way, on my alarm panel, I have a āBLKā slot next to YLW and GRN. Should I use this BLK slot rather the āAUX -ā as the black wire on the schema to plug it on the ground of my PCB ? and of the course the PCB ground to esp ground pin .
You can use aux - as it seems that on your panel that that connection is used as the main gnd instead of the blk. Either should work fine.
