EspHome Cover Template for garage door >> multiple commands in actions

ESPHome
1

I’ve got a Wemos d1 Mini connected to my Hörmann Promatic 3 Garage door and am a bit stuck on implementing the cover within ESPHome…
The Garage Door has the typical “one-button-interface” for up-stop-down. I’m using 3 Relays as binory_sensor for detecting “Door fully closed”, “Door closing” and “Door opening”. I’d like to somehow chain some commands under open_action and close_action depending on the current state of the door (e.g.: door was closing, someone triggers open_action >>> button has to be pressed twice with a short delay inbetween)

This is the current code:

 globals:
  - id: last_direction
    type: int
    restore_value: false
    initial_value: '2'
    # 2= Neustart, 1=oeffnen, 0=schliessen

binary_sensor:
  - platform: gpio
    name: "garage_door_closed"
    id: garage_door_closed
    pin:
      number: GPIO12
      inverted: true
      mode:
        input: true
        pullup: true

  - platform: gpio
    name: "garage_door_opening"
    id: garage_door_opening
    pin:
      number: GPIO13
      inverted: true
      mode:
        input: true
        pullup: true

  - platform: gpio
    name: "garage_door_closing"
    id: garage_door_closing
    pin:
      number: GPIO14
      inverted: true
      mode:
        input: true
        pullup: true

switch:
  - platform: gpio
    name: "Blue_LED_State"
    pin:
      number: GPIO2
      inverted: true
      mode:
        output: true
        pullup: false

  - platform: gpio
    name: "Relais_Pushbutton"
    id: relais_pushbutton
    pin:
      number: GPIO5
      inverted: true
      mode:
        output: True
        open_drain: True
    on_turn_on:
      - delay: 300ms
      - switch.turn_off: relais_pushbutton
    restore_mode: ALWAYS_OFF

cover:
  - platform: template
    name: Garagentor
    id: garatentor
    lambda: >-
      if ( id(garage_door_closed) ) {
        return COVER_CLOSED;
      }  else if ( !id(garage_door_closed) && !id(garage_door_closing) && !id(garage_door_opening) ) {
        return COVER_OPEN;
      } else if ( id(garage_door_closing) ) {
        return COVER_OPERATION_CLOSING;
      } else if ( id(garage_door_opening) ) {
        return COVER_OPERATION_OPENING;
      } else {
        return COVER_OPERATION_IDLE;
      }
    open_action:
      - switch.turn_on: relais_pushbutton
    close_action:
      - switch.turn_on: relais_pushbutton
    stop_action:
      - switch.turn_on: relais_pushbutton
    optimistic: true
2

What kind of circuit is that?
Also, what circuit is that open drain relais_pushbutton?

Can we assume that if all binary sensors are off, your gate is in static open state?

3

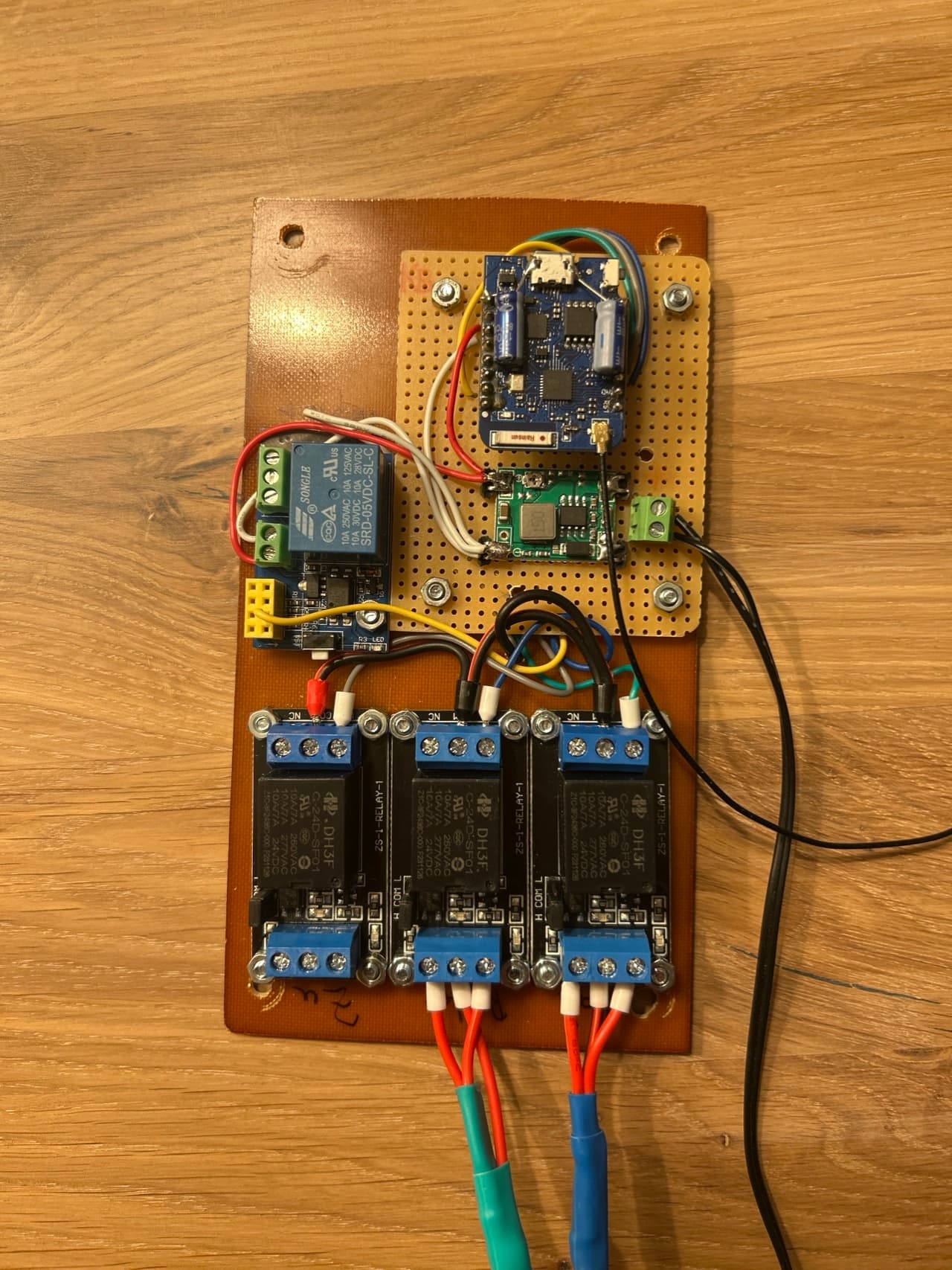

All inputs are made by a 24V DC-Relay module which pulls the input down. I’m detecting movement/direction by polarity of the motor with two relays (and diodes to prevent shortcuts). Door closed detection is realized by a 24V DC output on the drive which will then trigger one of my 24V Relays. The output is simply a ESP1-S Relay module(the only one which was laying around) without an ESP01, obviously.

IMG_20251121_201258.JPG_compressed
IMG_20251121_201258.JPG_compressed1280×1707 275 KB

4

So the open action could be:

    open_action:
      - if:
          condition:
            binary_sensor.is_on: garage_door_closing
          then:
            - switch.turn_on: relais_pushbutton
            - delay: 0.7s
            - switch.turn_on: relais_pushbutton
          else:
            - switch.turn_on: relais_pushbutton

Be aware that you have undefined state there if you operate the door also “manually”. You don’t actually know if door is open or stopped half-open.

Also, would be more reliable if you substitute all relays with optocouplers.

5

Agree to optocouplers being more reliable. I already tried to implement the time-base cover, but there’s no lambda in the template?
I’ll try your yaml for open_action. Will have to create a state-machine first.

Other question: Is it possible to define functions in ESPHome, which could be called instead of heaving redundant parts in the code?

6

I’m not sure what you mean here. Time based cover has the state calculated by duration parameter.

You can use script component.
https://esphome.io/components/script/

7

Hey!
my thoughts on this:
garage_door_closed >> Door fully closed
garage_door_closed && (garage_door_closing || garage_door_opening) >> should not happen
!garage_door_closed && garage_door_closing >> Door is closing
!garage_door_closed && garage_door_opening >> Door is opening
!garage_door_closed && !garage_door_closing && !garage_door_opening >> Not so simple. Door is somewhat open, but maybe not fully open. Need the delta time for garage_door_opening being active to determine the ~percentage

So I’d like to use the cover template and keep the duration of the last movement (and maybe the diffs). Therefore, multiple commands are needed in the actions but I failed simply on adding these…

This leads me to my main problem: I assume I know what I want to write… but yaml “bad indentation”-errors are driving me crazy.

8

Yeah, it’s PITA.
You could try some yaml editor with auto indentation.
