Zemismart ZMD-206 and ZMD-208 Screen Dimmer Switches now support Zigbee2MQTT through custom external converters. After adding the converter files, users can control the switches directly in Zigbee2MQTT and Home Assistant.
After adding the corresponding Zigbee2MQTT converter, users can access advanced controls including:
Multi-gang lighting control
Brightness adjustment
Countdown timer
Custom switch names
Screen settings
Child lock
Relay status

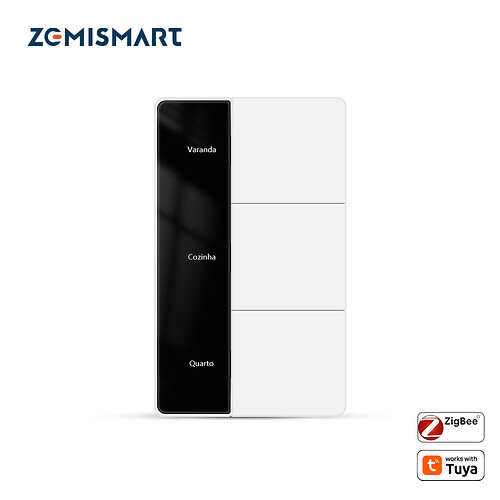

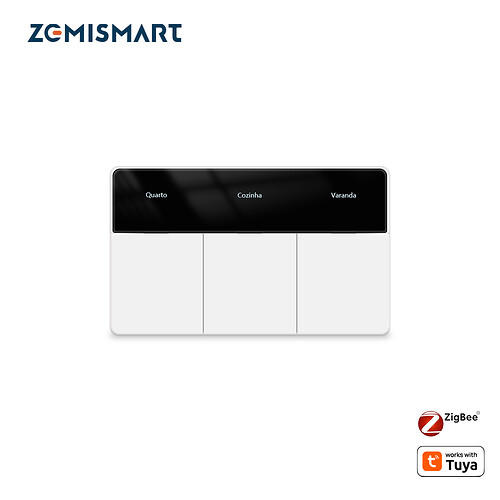

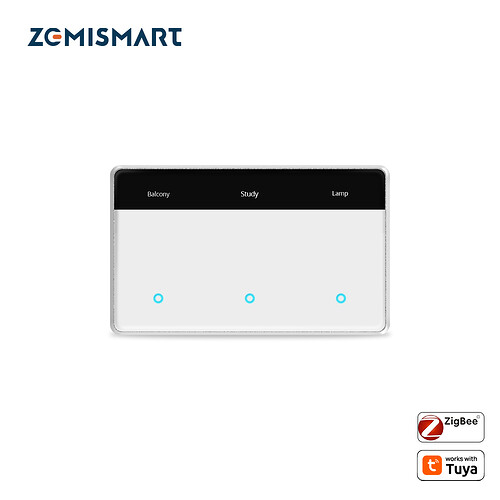

Supported models:
Zigbee smart screen dimmer switch with DIY name display, touch control, 1%-100% brightness adjustment, Tuya app control, voice control, timing, radar sensing screen wake-up, and smart scene automation. Tuya Zigbee hub is required.
Price: USD 30
It is a Tuya Zigbee smart screen dimmer switch with live wire + neutral wire wiring, touch dimming, custom display names, proximity sensing screen wake-up, and app-configurable indicator/backlight settings. It supports Tuya Zigbee hub connection and...
Price: USD 30
Zigbee smart screen dimmer switch with customizable name display, 1%-100% brightness adjustment, single-tap on/off, long-press dimming, Tuya app control, timing, voice control, radar sensing screen wake-up, and scene automation. Tuya Zigbee hub is...
Price: USD 30
Zigbee smart screen dimmer switch with live wire and neutral wire connection, designed for vertical installation. Supports 1%-100% brightness control, single-tap on/off, long-press dimming, DIY switch name display, motion-sensing screen wake, timing,...
Price: USD 30
To use these switches in Home Assistant, add the corresponding converter:
Converter:
/**
* Zemismart ZMD-206 screen dimmer family for Zigbee2MQTT.
*
* Evidence source: Homey live Tuya dataQuery / command-report round trips for
* TS0601 / _TZE28C1000000_k9e7ihec. The exact _TZE284_k9e7ihec three-gang
* fingerprint was observed in a Zigbee2MQTT interview and uses the same family
* mapping; its full functional surface is not yet physically verified.
*/
const zigbeeHerdsmanConverters = require("zigbee-herdsman-converters");
const exposes = zigbeeHerdsmanConverters.exposes || require("zigbee-herdsman-converters/lib/exposes");
const tuya = require("zigbee-herdsman-converters/lib/tuya");
const e = exposes.presets;
const ea = exposes.access;
const BRIGHTNESS_MIN = 10;
const BRIGHTNESS_MAX = 1000;
const CHANNEL_DP_BASES = [1, 7, 15];
show original
Converter:
const zigbeeHerdsmanConverters = require("zigbee-herdsman-converters");
const exposes = zigbeeHerdsmanConverters.exposes || require("zigbee-herdsman-converters/lib/exposes");
const modernExtend = require("zigbee-herdsman-converters/lib/modernExtend");
const tuya = require("zigbee-herdsman-converters/lib/tuya");
const e = exposes.presets;
const ea = exposes.access;
const clamp = (value, min, max) => Math.min(max, Math.max(min, value));
const brightness10To1000 = {
to: (value) => {
const brightness = clamp(Number(value), 1, 254);
return Math.round(10 + ((brightness - 1) * 990) / 253);
},
from: (value) => {
const level = clamp(Number(value), 10, 1000);
return Math.round(1 + ((level - 10) * 253) / 990);
},
};
show original
The converters enable communication between Zemismart switches, Zigbee2MQTT, and Home Assistant.

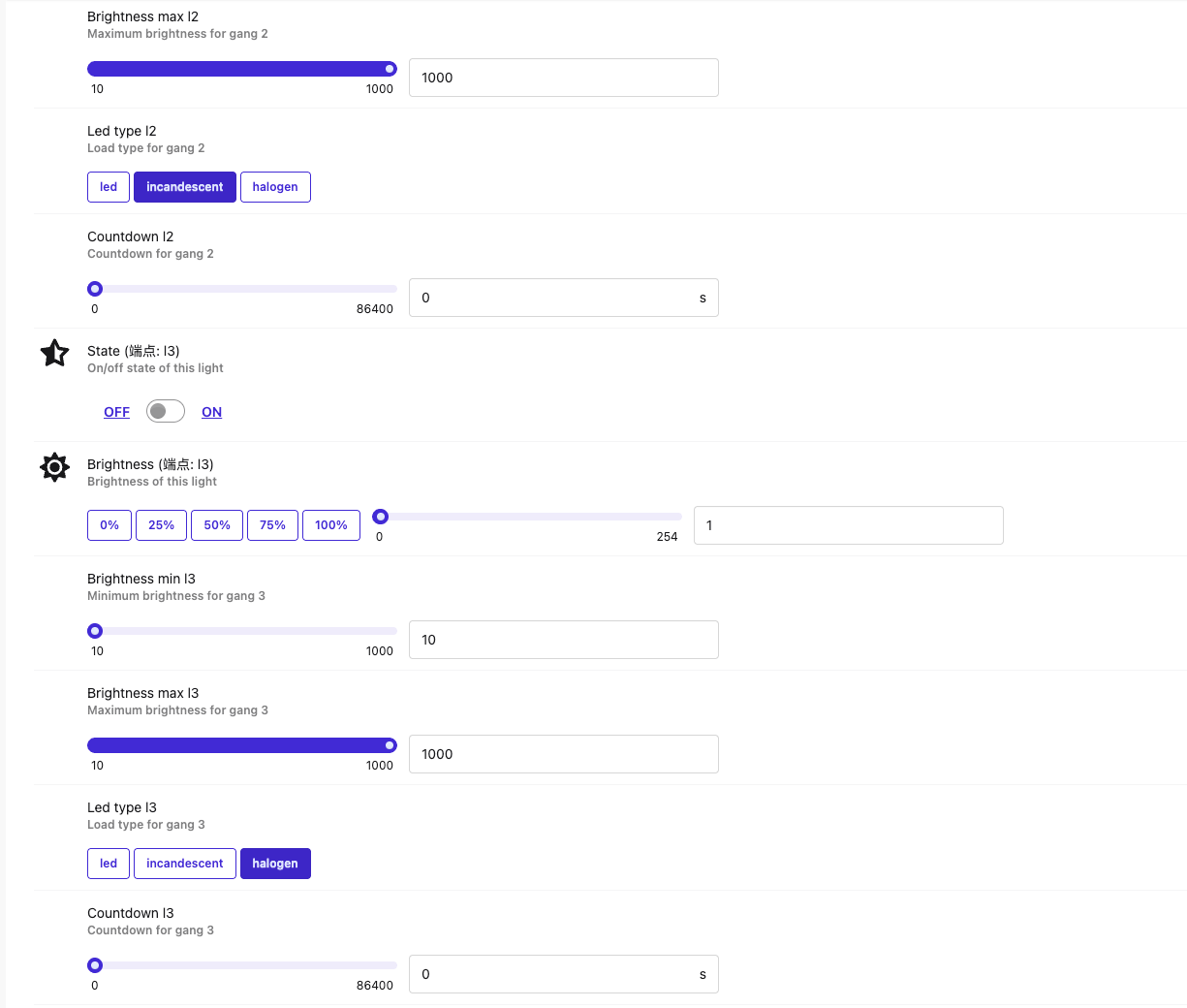

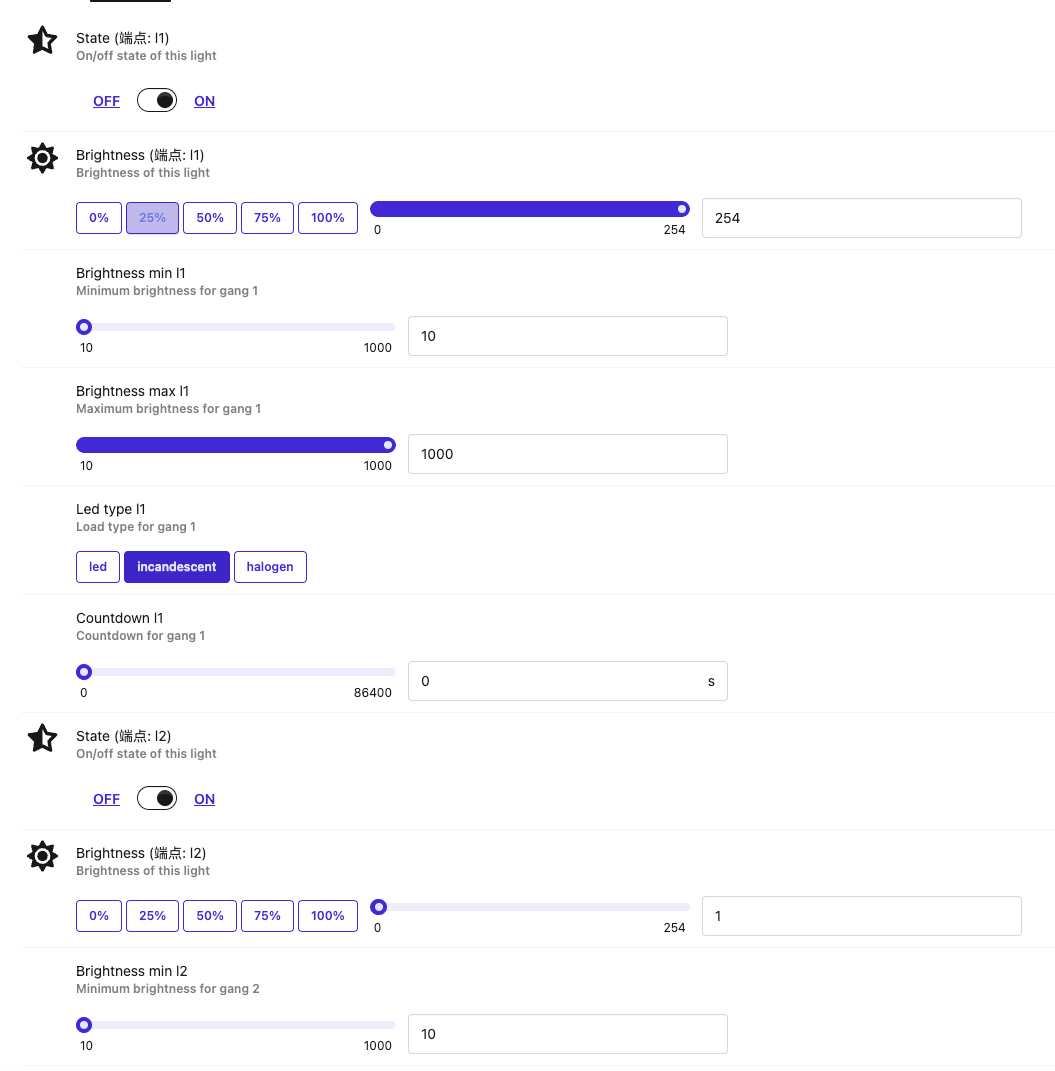

Each gang can be controlled independently.
Users can control:
ON/OFF
Brightness
Minimum brightness
Maximum brightness
The switch supports brightness calibration for different lamps.
Available settings:
Minimum brightness
Maximum brightness
Load type:
This helps achieve smoother dimming performance with different lighting types.
Each gang supports countdown control.
Example:
Set:
Countdown: 300 seconds
The light will automatically turn off after the selected time.

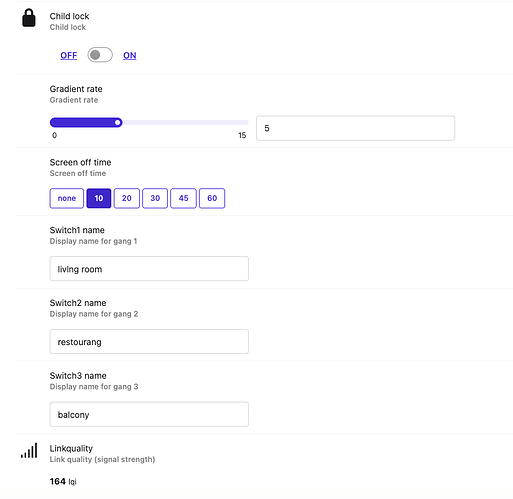

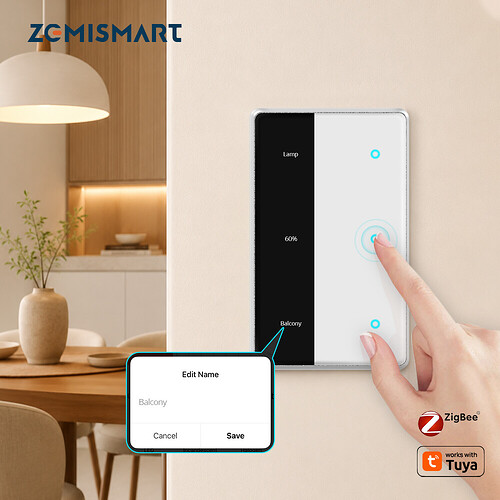

Users can customize the name displayed on each switch channel.
Example:
Before:
Switch 1
Switch 2
Switch 3
After:
Living Room
Kitchen
Balcony

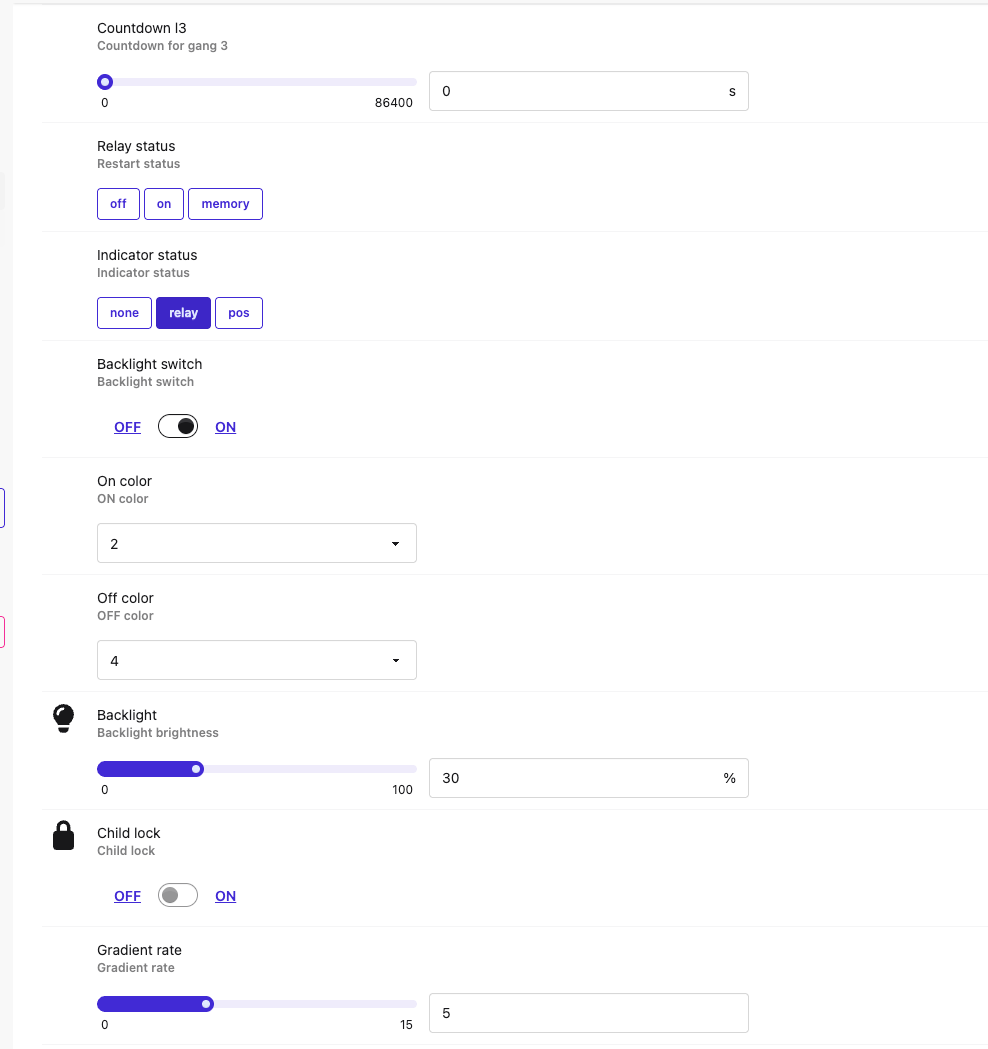

Home Assistant allows users to configure:
Screen off time
Backlight ON/OFF
Backlight brightness
Indicator color
For safety and better user experience:
Prevent accidental touch operation.
Adjust the dimming transition speed.
Function
Support
ON/OFF Control
✓
Multi-Gang Control
✓
Brightness Adjustment
✓
Brightness Limit
✓
Countdown Timer
✓
Custom Switch Name
✓
Screen Timeout
✓
Backlight Control
✓
Child Lock
✓
With Zemismart Zigbee2MQTT converters, ZMD-206 and ZMD-208 screen dimmer switches can be fully integrated into Home Assistant.
Users can enjoy local Zigbee control with advanced lighting management, screen customization, and smart automation.
