Like it says, you need to use esp-idf:
esp32:
board: esp32-s3-devkitc-1
framework:
type: esp-idf
Thank you for your quick response. However, exactly that code (that you shared) is a few lines above the error in the guition-esp32-s3-4848s040.yaml.
So that is also what is puzzling meā¦
I canāt think of a better way. That code is really cool! What type of doorbell cam is it?
Here are so quick debug steps to get your screen working
- load the latest ESPHome (you are using the beta)
pip3 install esphome==2025.4.0
- Download my latest git repot
- build the demo for your screen.
esphome run guition-esp32-s3-4848s040-display_modular.yaml
Itās a Reolink doorbell, but I donāt see why it wouldnāt work with other cameras as long as the online image format is supported.
Just fine, canvas.draw_polygon was added on 2025.04.0, thanks @clydebarrow

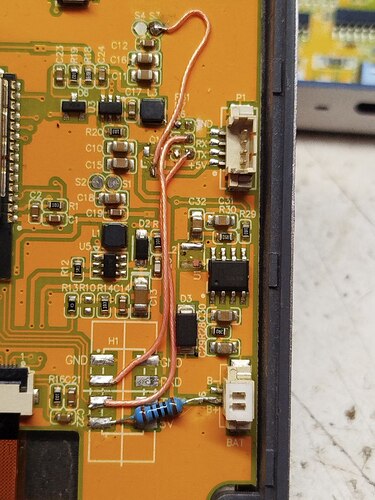

What are these hardware modifications for?
Connecting the power supply directly, an IR remote control with a remote LED, connecting an external sensor via a connector
Does anyone know what the P1 connector is ?
Is it a uart ?
Is it accessible with ephome ?
thanks !
P1 is a serial port connected to pins 43 (uart0 TX) and 44 (uart0 RX) according to the docs I have.
I ordered the device and received it without the grey āback packā which enables easier powering and relays. Does anybody know where you can order it?
I reached out to the seller but he doesnāt seem to understand me (or doesnāt want toā¦)
if I understood correctly https://aliexpress.ru/item/1005006335587633.html
You do need to be careful and make sure you read the listing fully. For example, this one:
https://www.aliexpress.com/item/1005008506761923.html - Looks OK aside from the lack of relays and mains powered PSU.
https://www.aliexpress.com/item/1005006302251538.html is a similar description and price, but has the option of one or three relays (and includes the PSU).
If your seller wonāt accept a return, Iād suggest using it as a test & development board and purchase another one (with relays). Always handy having a spare to check firmware & scripts on the bench.
I may have an extra (in the US) that I am not using. Have to look around. Let me know if helpful.
I have used Andrews code as a base the screen is working fine. I am trying to build a screen with 2 temp sliders and 3 buttons to toggle switches below that. so to start I have one slider configured and my background picture. The problem I seemed to be having was that when I compiled changes and uploaded using the usb cable nothing would change(that is a couple hours I will never get back). So I went back to a version that showed the slider and uploaded via WiFi this would reflect changes but I am back to my original problem my background image does not show up. I have had the image show up in a few of my many iterations so I know the reference is ok. If someone can spot the issue I would be grateful
lvgl:
theme: !include { file: modules/base/theme.yaml }
page_wrap: true # Keep this
# Boot screen
top_layer: !include
file: modules/screens/boot_screen.yaml
vars:
height: $screen_height
width: $screen_width
# Main Page
pages:
- id: main_page
widgets:
- image:
id: background_image
src: lake1
align: CENTER # Center the image within its bounds (the full screen)
scrollable: false # Image itself is not scrollable
- obj:
id: controls_container # New container to hold and layout controls
width: $screen_width # Make container same size as screen to overlay image
height: $screen_height # Make container same size as screen to overlay image
scrollable: false # This container is not scrollable (helps prevent scrolling)
layout:
type: flex
flex_flow: COLUMN # <-- Use COLUMN for vertical stacking of children
flex_align_main: START # Align items from the start (top) of the column
flex_align_cross: CENTER # Center items horizontally within the column
pad_all: 8 # Add padding to this container to push controls inwards from edges
widgets:
# Widgets inside this container will stack vertically
- label: # First item in the column (will be above the slider)
id: target_temp_label_bedroom
text: "Bedroom Target: -- Ā°C"
text_font: roboto36 # Use the desired font
text_color: black # Set text color
height: SIZE_CONTENT # Explicitly set height to content size
pad_bottom: 10 # Add padding below the label to push the slider down
- slider: # Second item in the column (will be below the label)
id: target_temp_slider_bedroom
width: 95% # Percentage width relative to controls_container width
height: 50 # Fixed height in pixels
min_value: 15
max_value: 25
value: !lambda |-
return id(thermostat_target_temp_bedroom).state; // Initial value from sensor
on_change:
- then:
- homeassistant.action:
action: climate.set_temperature
data:
entity_id: climate.bedroomtt
temperature: !lambda |-
return x; // Use the slider's new value (x)
# Event trigger attached to the page definition
# Keep 'on_load' since it compiled for you previously.
# Ensure correct indentation under - id: main_page
on_load:
then:
- delay: 2s # Keep or remove as needed
- lambda: |-
// Correct lambda syntax to set the slider's value programmatically
// Use the ID directly, not .obj
if (!isnan(id(thermostat_target_temp_bedroom).state)) {
lv_slider_set_value(id(target_temp_slider_bedroom), id(thermostat_target_temp_bedroom).state, LV_ANIM_OFF);
}
// Add logic for any other sliders here if you add them back
bg_opa: TRANSP was what I was missing. so that is solved, onward to adding other stuff
Next issue. I would like the buttons to be transparent or mostly transparent when they are off, I cannot get this to work using bg_opa or opa
pages:
- id: main_page
widgets:
# Layer 1: Background Image - MUST be first
- image:
id: background_image
src: lake1 # Use the ID directly, no quotes
width: $screen_width
height: $screen_height
align: CENTER
scrollable: false
# Removed opacity: true as it's not standard
# Layer 2: Controls Container that overlays the image - MUST be second
- obj:
id: controls_container
width: $screen_width
height: $screen_height
scrollable: false # Prevent this container from scrolling
# Make container background transparent so image shows through
bg_opa: TRANSP # TRANSP = 0% opacity
layout:
type: flex
flex_flow: COLUMN # Stack children vertically
flex_align_main: START # Align children to the START (top)
flex_align_cross: CENTER # Center children horizontally
pad_all: 15 # Padding inside the container
widgets:
# Widgets inside this container stack vertically from the top
- label:
id: target_temp_label_bedroom
text: "Bedroom Target: -- Ā°C"
text_font: roboto36
text_color: white # Changed to white for better visibility on image
height: SIZE_CONTENT
pad_bottom: 10 # Adjusted padding
align: CENTER
- slider:
id: target_temp_slider_bedroom
width: 85% # Relative to controls_container width
height: 50
min_value: 15
max_value: 25
value: !lambda |-
return id(thermostat_target_temp_bedroom).state;
on_change:
- then:
- homeassistant.action:
action: climate.set_temperature
data:
entity_id: climate.bedroomtt
temperature: !lambda |-
return x;
- label:
id: target_temp_label_living_room
text: "Living Room Target: -- Ā°C"
text_font: roboto36
text_color: white
- slider:
id: target_temp_slider_livingroom
width: 85% # Changed from lv_pct(95)
height: 50
min_value: 15
max_value: 25
value: !lambda |-
return id(thermostat_target_temp_livingroom).state;
on_change:
- then:
- homeassistant.action:
action: climate.set_temperature
data:
entity_id: climate.lr_talltimbers
temperature: !lambda |-
return x;
# Button 2 - Standard light button with state updates
- button: !include
file: modules/buttons/switch_button.yaml
vars:
uid: button_2
height: $button_height_double
text: Button 2
opa: TRANSP
icon: $lightbulb
entity_id: "switch.craig_s_bedroom_lamp"
For anyone trying to do this in the future you need to edit the modules/base/theme.yaml file
---
obj:
border_width: 0
pad_all: 0
scrollable: false
# outline_width: 1
# outline_color: red
label:
border_width: 0
scrollable: false
# outline_width: 1
# outline_color: red
image:
border_width: 0
scrollable: false
# outline_width: 1
# outline_color: red
button:
text_font: $text_font
checkable: false
scroll_on_focus: true
radius: 25px
width: $button_width
height: $button_height_single
pad_all: 10px
shadow_width: 0 # This is required even though the default is supposed to be 0
bg_color: $button_off_color
text_color: $label_off_color
bg_opa: 25% # to make buttons transparent
Hi all,
Im having issues appending the celsius sign to my text sensor for temperature. its not adding the celsius., just showing the text for the temperature and box - suggesting the icon cant be rendered? Any ideas where iām going wrong here?!
TEXT SENSOR
sensor:
- platform: homeassistant
entity_id: ${entity_id}
id: text_sensor_${uid}
on_value:
- lvgl.label.update:
id: text_lable_${uid}
text:
format: "%.1f \U000F050F"
args: [ 'x' ]
LABLE
widgets:
- label:
text_font: roboto24
text: "--.-Ā°C"
id: text_lable_${uid}
align: CENTER
#text_align: right
text_color: 0xFFFFFF
on_press:
then:
- lvgl.page.show: main_page
Many thanks!
ah it was a font issues - please ignore
tip is to make sure you have the same fonts assined in the sensor and label code.
