Crop Steering for Home Assistant

---

The short version

This turns Home Assistant into an autonomous crop-steering irrigation controller.
It runs the full daily P0 → P1 → P2 → P3 cycle — per zone, driven by live VWC/EC
sensor data — sequences your pump and valves safely, and steers each zone toward a
vegetative or generative growth response. It also auto-stacks substrate EC
to a per-stage target by closed-loop control of the P2 dryback — the generative salt
lever, run hands-off. Once it's mapped to your hardware and dialed in, it runs the room
on its own and you watch a dashboard.

It is irrigation only. It does not control climate.

---

Why crop steering (and why automate it)

Plants don't just need water — they read it. The moisture and EC curve of the
substrate over a day is a language the plant responds to:

• A big overnight dryback + higher feed EC + a controlled morning wait tells
  the plant "resources are scarce, finish up" → a generative response: tighter
  internodes, more flower, more resin, denser fruit.
• Consistent moisture + lower EC + frequent small shots tells it "conditions
  are easy, grow" → a vegetative response: leafy, stretchy, fast structural
  growth.

Crop steering is the practice of using irrigation itself to push the plant one way
or the other — by deciding, every day, how far the substrate dries back, how fast
you bring it back up, what EC you feed, and when you stop so it can dry overnight.

That sounds simple until you try to do it by hand:

• The right first shot of the day depends on how far the substrate actually dried
  back overnight — which you can only know from a sensor, in real time.
• Shots have to grow through the morning ramp, then become threshold top-ups,
  then stop at the right moment before lights-off — all timed to the substrate's
  behaviour, not the clock.
• It has to happen on every zone independently, every minute, all day,
  forever, and it must never flood a room or feed bad water.

A timer can't do this — it waters the same amount whether the slab is bone-dry or
saturated. A human can't babysit it 24/7. Commercial controllers (AROYA, TrolMaster
and friends) can — for thousands of dollars and a closed, subscription ecosystem.

This brings that decision engine to the hardware and the platform you already
own, fully self-hosted and fully under your control.

---

Features, and what they're actually for

Feature	Why it matters
Per-zone autonomy	Each zone (the .env auto-detects any number; tested to 24) runs its own phase machine, targets, and steering mode. Row 1 can be ramping in P1 while Row 3 dries back in P3.
Sensor fusion	Map as many VWC/EC probes per zone as you like; the integration fuses each zone to one value (average + outlier rejection — a downward guard for VWC) and publishes sensor.crop_steering_vwc_zone_N / ec_zone_N. The engine steers on that fused value, so one flaky probe can't fire — or block — a shot.
Dryback detection	Peak tracking + a dryback-rate slope on the VWC curve drives the P0 wait and the predictive P3 start — the engine acts on real substrate behaviour, not a guess.
EC steering	The current-EC ÷ target-EC ratio nudges the P2 threshold, so the system feeds and dries to hit your EC, not just your moisture.
Source-water gate	Irrigation is blocked while source pH/EC are out of range — it won't push bad water into your slabs. Fail-closed: a dead feed probe (past a grace window) holds rather than feeds blind.
Lights-on watering watchdog	A starvation backstop: if an enabled zone gets no water for watchdog_hours (default 3) during lights-on while VWC is below threshold, it forces a shot. Plus a cross-zone under-drink flag (a zone drinking < 40 % of the room median is surfaced) and a valve-stuck-open readback. (sensor.crop_steering_ai_heartbeat is a liveness ping, not a self-tuning brain.)
Fail-closed hardware	Every shot's valve close is read-back verified; a stuck-open valve cuts pump + mainline and alerts. A failed pump/mainline/valve call aborts the shot and is not counted.
Bounded by design	A per-zone daily volume cap stops runaway watering — but emergency rescue is exempt, so a genuinely dry plant is never denied water by a budget. A hard max shot-duration ceiling stops a config fat-finger flooding the room.
Activity feed	sensor.crop_steering_activity_log is a rolling, human-readable feed of every watered / blocked / phase event — the dashboard's black-box recorder.
No-YAML setup	A config-flow wizard (entity-picker dropdowns) or a single .env file maps your hardware and builds every entity — then Configure → Edit zones & hardware changes it later, no reinstall.
Any number of probes per zone	The UI wizard maps multiple VWC/EC sensors per zone; the integration fuses them (average + outlier reject) and the engine steers on the fused per-zone value.
Multiple rooms	Add the integration again per grow room — each is fully isolated and autonomously steered: its own zones, sensors, pump/mainline/valves, reservoir feed gate, photoperiod, setpoints and Repairs, namespaced crop_steering_<room>_*. The one add-on drives them all; a new room comes up behind its own fail-safe-OFF kill switch (switch.crop_steering_<room>_engine_enabled) until you arm it. View any room's dashboard with ?room=<slug> (e.g. f2.html?room=f1).
Dashboards in the sidebar	The add-on serves the operator console + mobile page over HA ingress as a sidebar panel — no manual file copy, authenticated, with a Live/Demo toggle.
Setup health checks	Misconfiguration — missing kill switch, engine offline, a zone with no sensor, a fused sensor unavailable — surfaces as fix-it cards in Settings → Repairs that clear themselves when resolved.
Configure once	The add-on reads lights hours + zone count from the integration, so you set them once in the UI; no drift between the two.
Named-stage recipes	Pick Veg / Transition / Bulk / Ripen from a dropdown and it writes that stage's setpoints (VWC targets, dryback, EC targets, EC ceiling, shot size) into your zones in one move. Stored per room; applies to the existing entities (engine unchanged), every value clamped — no per-stage entity sprawl.
Vmax advisory	The engine watches each zone's morning wet-up and publishes the field-capacity ceiling it actually reaches (sensor.crop_steering_zone_N_vmax_detected + a confidence) so you can steer off the substrate's real ceiling. Advisory — nothing auto-tunes from it.
Predictive overnight (P3)	The engine starts a zone's overnight dryback (P3) early when its current dryback rate means it will land on the target dryback by lights-off — so a zone isn't stranded mid-cycle and doesn't need overnight emergency shots to recover.
Feed-lockout diagnostic	When a low-VWC zone isn't being fed, the dashboard names the exact gate stopping it — dosing / fill / flush, source-water gate, EC ceiling, daily-volume cap, manual override, zone disabled, kill switch — and attaches it to the under-watered alert.
Manual pump modes	The nutrient_dosing_active / f2_fill_mode / f2_flush_mode booleans hand the pump to the operator (hose-flood or tank dosing); the engine pauses all its own shots while any of them is on.
Operator console	One dependency-free dashboard, www/f2.html — tabs Overview / Substrate / Zones / Steering / Analyze / Climate / Floorplan — with click-to-fix advisories (an issue links you straight to the control that resolves it). Try it live.
Mobile control surface	www/overview.html — a phone-first one-pager (Steer / Controls / Dosing): per-zone VWC + target / pore-EC + target / substrate temp, room climate (temp / VPD / CO₂ / PPFD / DLI), pump + light + zone controls, and the veg-room peristaltic dosing pumps feeding F2.
Live shot sizing	The f2-control add-on computes each shot's run-time from your real substrate volume + per-zone flow (plants × drippers × L/hr), so a %-of-substrate shot delivers exactly that — no hardcoded guess. Published as sensor.crop_steering_p1/p2/p3_shot_duration_seconds.
Anti-short-cycle	P2 EC-correction shots (flush/dilute/rescue) respect a minimum interval, so a no-runoff nibble can't stack EC and machine-gun the pump.
PID EC loop (optional)	A real Kp/Ki/Kd controller (integral anti-windup, clamped) on the pore-EC error as a drop-in upgrade to the stepped EC-steer. Off by default, behind one switch, gains tunable.
Minimum daily water floor (optional)	A guaranteed mL-per-plant-per-day baseline, front-loaded and sensor-independent — a lying or dead VWC probe can't quietly starve a plant. A hard anti-drown ceiling is the only thing that holds it; bad feed water still blocks it. Off until you set a number per zone.
Max shot-duration cap	A hard ceiling on any single shot's run-time (default 900 s) — a substrate/flow fat-finger can't turn one watering into a multi-hour flood.

---

Live demo (no install)

Try the full dashboard live — mock data, nothing to install:
F2 · Plant-State Intelligence

f2.html is the unified operator dashboard. Its demo mode runs on baked-in "perfect grow"
data — no Home Assistant, no token, no hardware, no network. Click through every tab: Overview
(advisories first + the full live-sensor snapshot + plant-state gauges + the facility-floor mini),
Substrate (the VWC/EC/dryback trend), Zones (per-zone cockpit — VWC/EC/dryback, water
delivered, co-located setpoints), Steering (the science-grounded visual setpoint editor + the
grow-week recipe/timeline as a subview), Analyze (limiting-factor + driver charts), Climate
(24 h history charts + every room control), and Floorplan. The live install adds the camera, the
full interactive 3D facility twin, and the Ask-AI co-pilot.

• Hosted: the link above (GitHub Pages — auto-enters demo mode).
• Locally: open www/f2.html?demo in any browser.

Drop ?demo and load it from your Home Assistant (/local/f2.html, long-lived token stored only
in your browser) to drive the real thing.

See how it all connects — interactive 3D system map:
Crop Steering — System Map — a standalone three.js
diagram of the two layers, the entity contract between them, the pump→mainline→valve hardware
sequence, and the sensor feedback loop. No install, no data.

All live pages

Everything in www/ is published to GitHub Pages — index of all pages:

Page	What it is
F2 dashboard (demo)	The unified operator dashboard — the flagship
Crop Steering console (demo)	The earlier control console
Setpoint Tune editor (demo)	Visual editor for the full setpoint table
Grow Setpoints Planner	Week-by-week grow-plan timeline
System Guide	The full written system guide
3D System Map	Interactive three.js architecture diagram
Irrigation Manual	Hardware-side manual — plumbing, valves, pumps

Screenshots (from the demo)

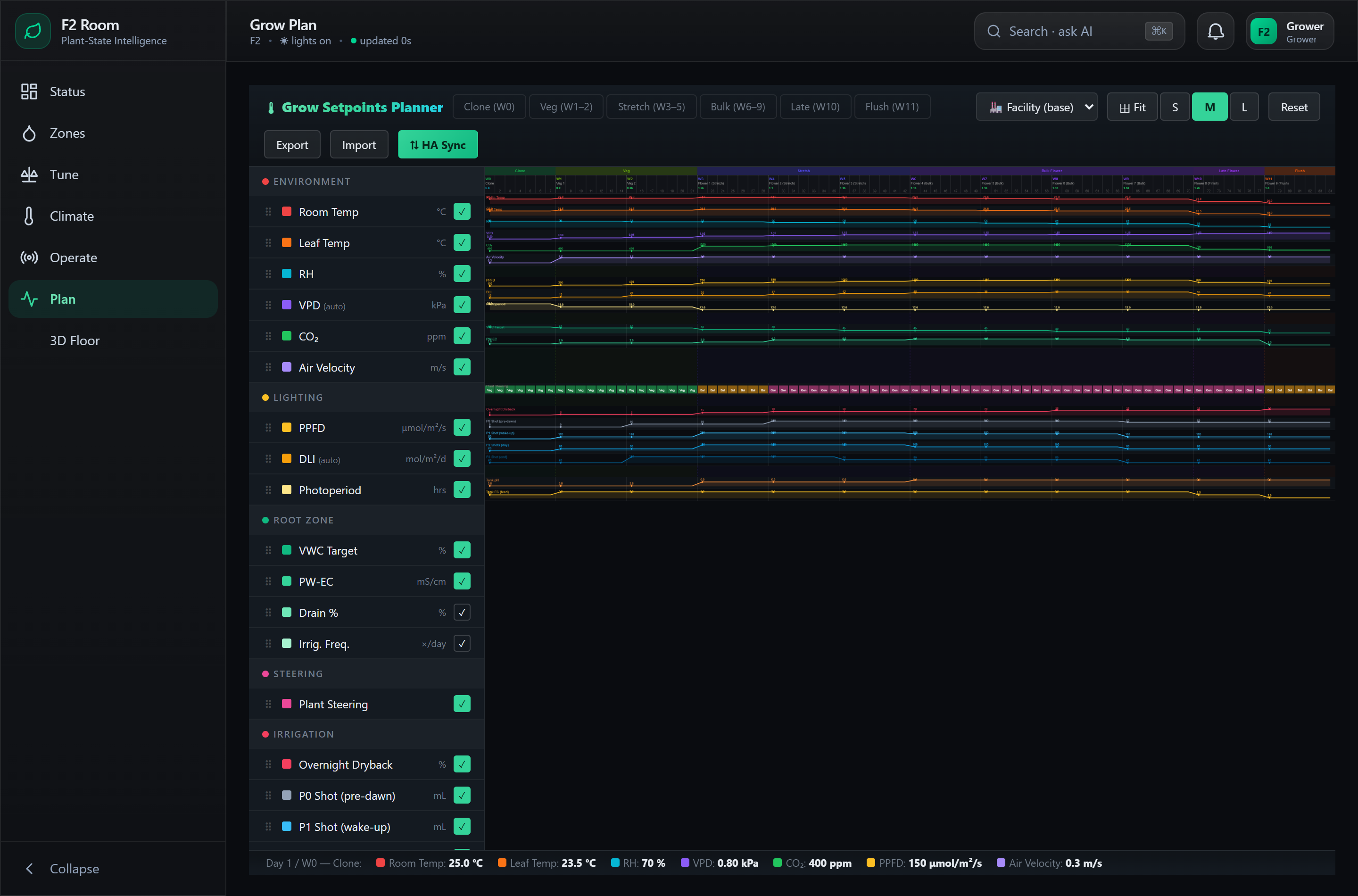

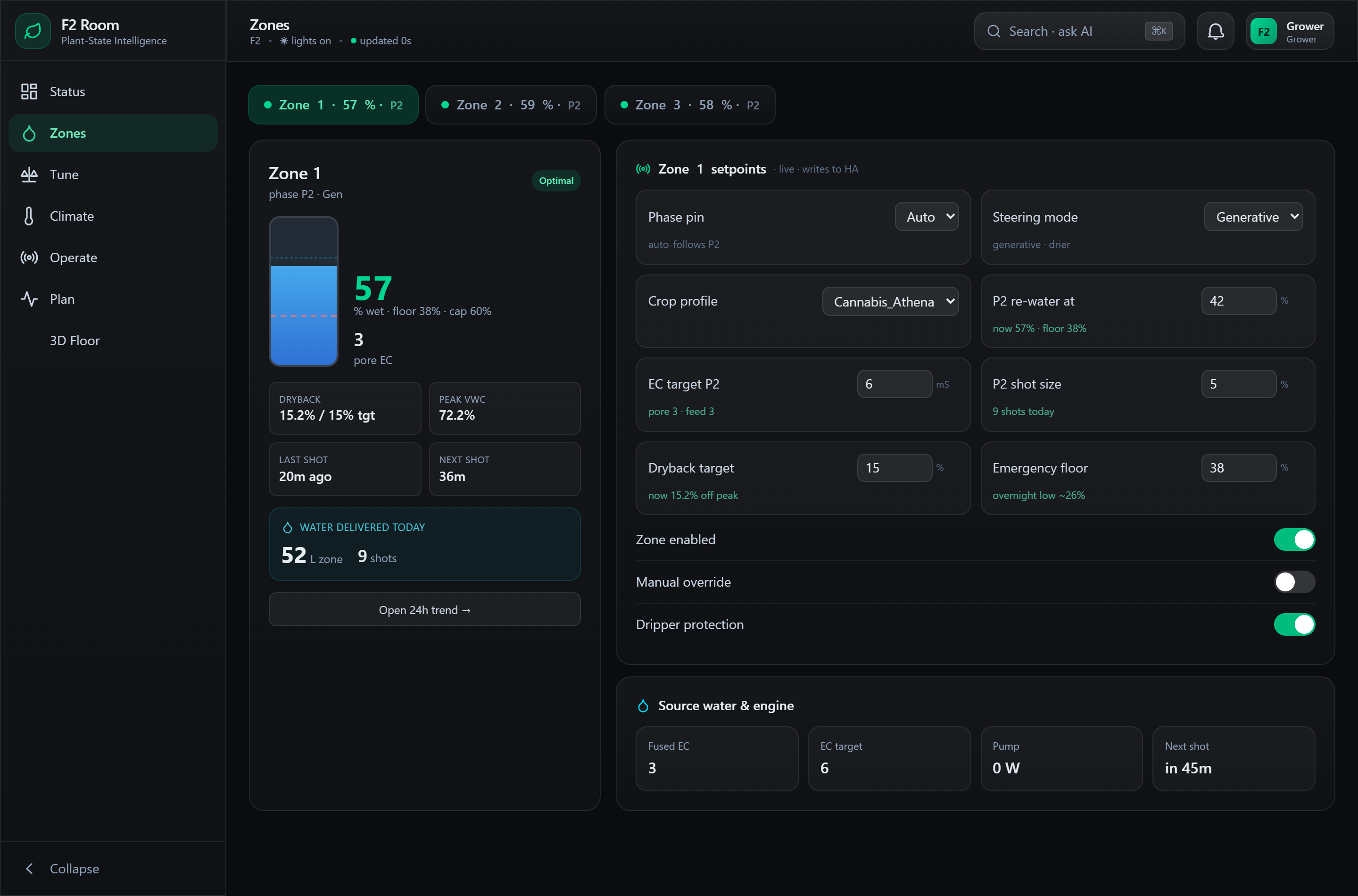

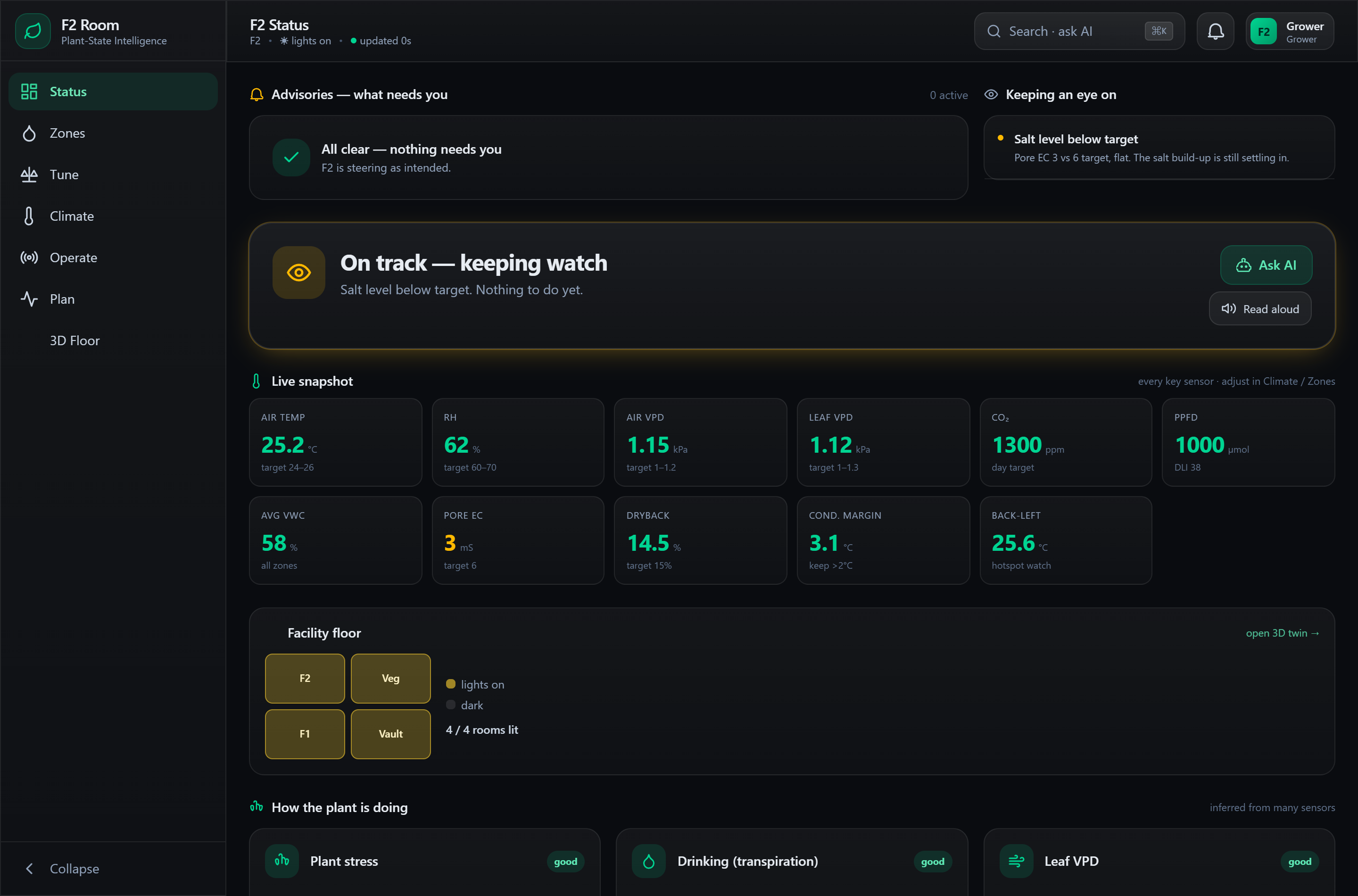

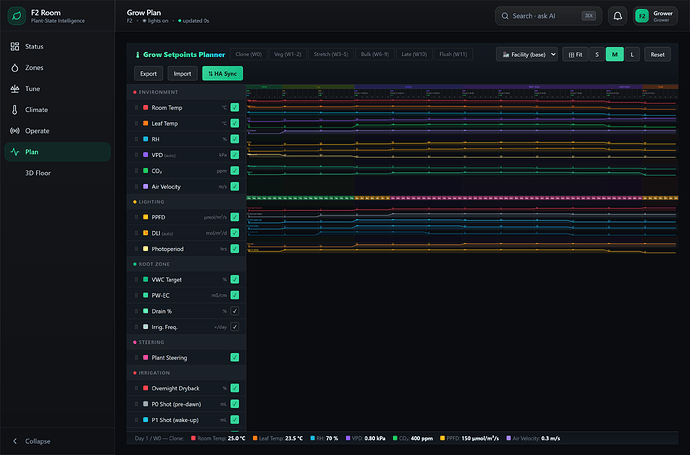

Status	Zones	Plan (timeline)

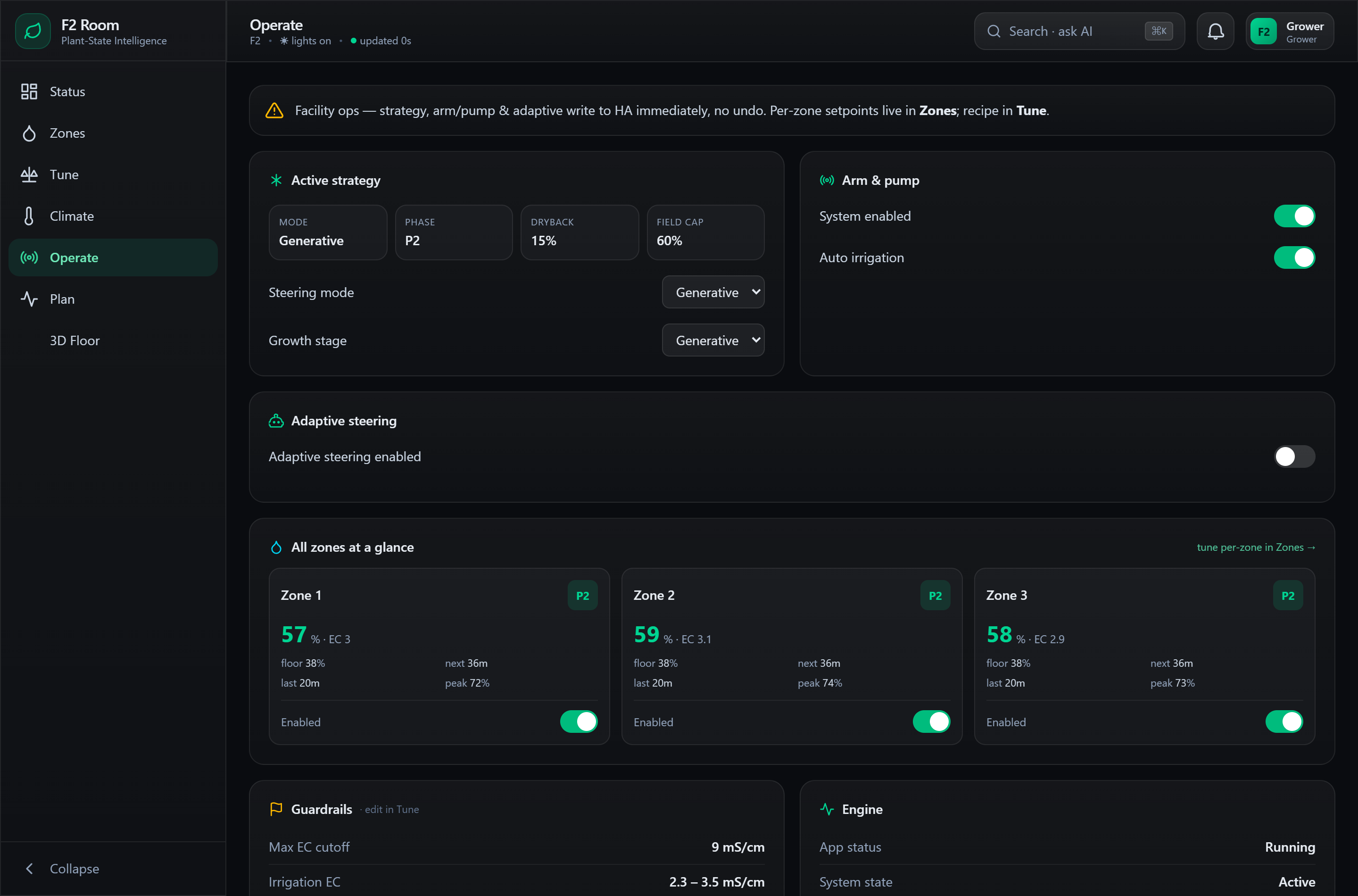

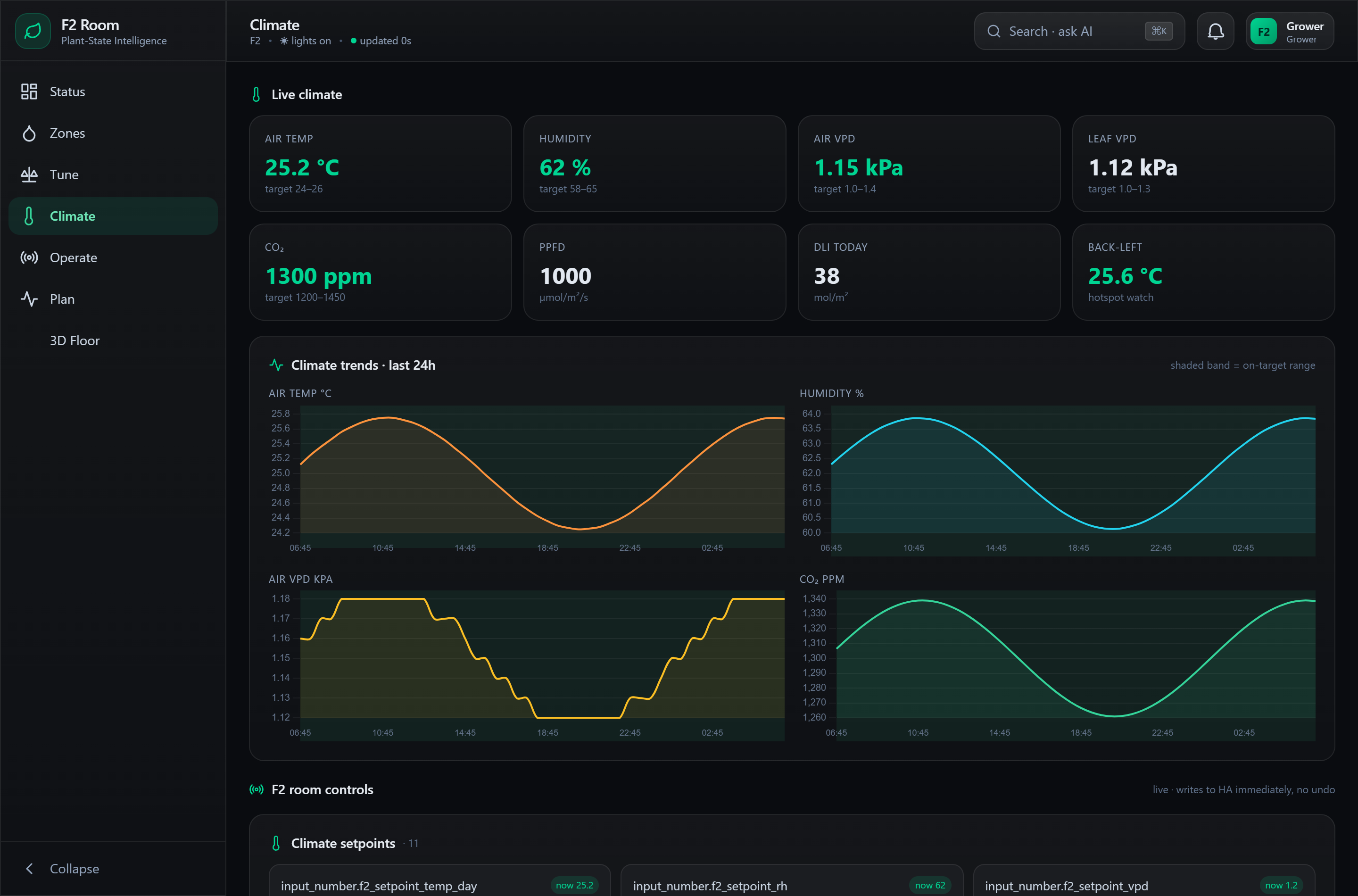

Tune editor	Climate	Operate

---

The whole engine is gated by a hard kill switch (input_boolean.f2_control_enabled,
OFF = never actuates). The source-water gate checks both pH and EC (with a last-known-good
grace window, fail-closed if a feed probe dies). High pore-EC doesn't lock a zone out — if the feed
is dilutive the engine flushes rather than blocks. Service-call writes are fail-closed — a
failed pump/mainline/valve command aborts the shot and isn't counted — and P2 EC-correction shots
respect a minimum interval so a no-runoff nibble can't machine-gun the pump.

Field capacity isn't a hard pre-shot gate — it's the ceiling the P1 ramp targets and a
precondition for EC flushes. A hard anti-drown ceiling (~90 % VWC) is what blocks a flood.

Plus hardware sequencing that prevents overlapping shots, per-zone manual overrides, and an instant
emergency stop (safe-off of pump + mainline + all valves on shutdown).

---

Prerequisites

Software

• Home Assistant 2024.3.0+ (HA OS / Supervised recommended — you need add-ons).
• The f2-control add-on (this repo's addons/f2_control/ — the live engine; you install it in
  step 4). It runs in its own container — no extra runtime to install.
• HACS (recommended, for one-click integration install).

Hardware — per zone

• Substrate VWC sensor(s) — moisture %. A front/back pair per zone is ideal; one
  works. (TEROS 12, Acclima, SDI-12 probes, etc.)
• Substrate EC sensor(s) — pore-water EC, mS/cm. Same front/back logic.
• A controllable valve — one HA switch. per zone (relay board, ESPHome,
  KC868, smart relay — anything HA can toggle).

Hardware — shared

• A pump and a mainline solenoid, each an HA switch..
• Drippers sized for your plant count (the engine converts shot size % → valve
  seconds using your dripper flow rate and substrate volume).

Optional but recommended

• Source-water pH + EC sensors (e.g. Atlas Scientific) to enable the
  irrigation-quality gate.

The substrate itself should be a steerable medium under dripper irrigation —
rockwool slabs/blocks or coco in pots. Crop steering is a substrate technique; it
doesn't apply to soil beds.

---

Installation

Crop Steering is two pieces, and you install both — in two different places.

	What it is	Installed via	Touches hardware?
1. The integration	The data + setup layer. A UI wizard creates ~100 crop_steering_* entities (every setpoint, sensor, switch) and lets you map your hardware with dropdowns.	HACS	No — ever
2. The Crop Steering add-on	The engine. Reads your sensors, decides shots, drives the pump/valves — and serves the dashboards as a sidebar panel. Gated by a hard kill switch.	Add-on Store	Yes — the only thing that opens a valve

The integration is the brain's notepad; the add-on is the brain. Install the integration first,
map your room, then the add-on. Nothing moves a drop of water until the add-on is installed and
its kill switch is flipped on — so you can build and explore the whole thing safely first.

Installing with an AI agent

This system has to be matched to your exact entity IDs and substrate, which is
exactly the kind of adapt-and-verify work an agent is good at. If you run
Claude Code (or similar) against your HA config — e.g. via
Studio Code Server — point it at
docs/AGENT_INSTALL.md: a precise, ordered runbook that
discovers your hardware entities, writes the .env, installs both layers, maps the
hardware, and verifies the engine is alive — with the actuation steps gated for your
explicit go. The steps below are the same path, done by hand.

1 · Install the integration

Via HACS → Integrations → Custom repositories → add this repo as an Integration
→ install "Crop Steering System" → restart HA.

Then Settings → Devices & Services → Add Integration → Crop Steering System.

2 · Tell it about your room (UI wizard or .env)

Two paths:

• UI wizard (no file needed). Choose Manual UI configuration; pick a zone count (1–24+), then
  for each zone pick its valve switch and moisture / EC sensors — as many probes per zone as
  you like; they're fused (averaged, outliers rejected) — from dropdowns, followed by your pump,
  mainline, lights and substrate facts. Every field has a tooltip.
• crop_steering.env file. Copy a templates/ starter (2 / 4 / 6-zone) to
  /config/crop_steering.env, fill in your entity mappings, then choose "Load from
  crop_steering.env" — zones auto-detected.

Either way the integration builds all ~100 crop_steering_* entities.

Forgot a sensor, or want to add/swap one later? Integration → Configure → Edit zones &
hardware — no reinstall. Running more than one grow room? Add the integration again and name
the room; each room is fully isolated (its own zones, sensors, pump and setpoints), and your
first room is unchanged. Setup problems show up as fix-it cards in Settings → Repairs.

3 · Add the HA package

Copy packages/irrigation/ into your HA packages/ directory and add to
configuration.yaml:

homeassistant:
  packages: !include_dir_named packages

4 · Install the engine (f2-control add-on)

Prefer pictures? A full click-by-click visual walkthrough (HA screenshots + numbered
callouts, zero→armed):
View the install guide
(rendered). Source / offline copy: docs/INSTALL_GUIDE.html — download
and open it in a browser (GitHub shows .html as source, not rendered).

Easiest — one-click by URL. In Home Assistant: Settings → Add-ons → Add-on Store → ⋮
(top-right) → Repositories → paste the dedicated add-on repo:

https://github.com/JakeTheRabbit/f2-control

→ Add, close the dialog, and Crop Steering appears in the store → open it → Install.

Paste that into the Add-on Store → Repositories dialog — it's the dedicated add-on repo
(repository.yaml + the add-on at its root, so HA can read it). Do not paste this
monorepo's URL or a .../addons/f2_control subfolder — HA can't read those (that's the
remote: Not Found error), which is exactly why the add-on repo above exists.

Or — local copy (dev / offline): copy addons/f2_control/ onto the host at
/addons/f2_control/, then Add-on Store → ⋮ → Reload → F2 Control shows under Local
add-ons → Install. (In the store it's named Crop Steering.) (This monorepo's addons/f2_control/ is the add-on's source; the
f2-control repo is the published copy.)

Either way, then:

1. In the add-on's Configuration set the lights hours, your notify service, and (if you use a
   source-water gate) the feed EC / pH sensor entity IDs. The pump / mainline / per-zone valve
   map and the per-zone substrate / plant / dripper / flow facts are set in the integration
   setup wizard (step 2) and read live from its number entities — so a shot's %-of-substrate
   run-time is always correct without re-entering hardware here.
2. Create the kill switch input_boolean.f2_control_enabled (a Helper, or deploy
   addons/f2_control/f2_control_package.yaml to /config/packages + reload). OFF = safe — the
   add-on reads, computes and notifies but never opens a valve.
3. Start it — the log shows starting | kill-switch … | token present: True. Flip the kill switch
   ON to go live.

It's a single synchronous Python process: polls HA over REST (no asyncio event loop), drives the
hardware with valve-close readback + fail-closed writes, republishes the sensor.crop_steering_*
surface, and pings your phone every 30 min.

Updating the engine later — Rebuild, don't Restart. The add-on bundles its Python into the
container image when it's built (Dockerfile COPY). After you change anything under
addons/f2_control/, use Add-ons → Crop Steering → ⋮ → Rebuild — a plain Restart keeps the old
code (it only re-reads the Configuration options, not the Python). Rebuild re-copies the code and
restarts. (Shot length lives in the Python, but is also driven by the substrate_l/flow_lps
Configuration options on the running build — handy if you ever need to correct sizing without a rebuild.)

5 · The dashboard

You don't have to copy anything — the add-on serves the dashboards for you. With the Crop
Steering add-on installed, a Crop Steering entry appears in your HA sidebar (it runs over HA
ingress — authenticated, never exposed to your LAN). If you don't see it, toggle Show in
sidebar on the add-on's Info tab. Open it and you get a Live / Demo chooser:

• Live reads your real sensors using your existing HA login — nothing to paste, no URL to edit
  (works in the mobile app).
• Demo is baked-in mock data, so you can click around with nothing connected.

It's one page with tabs along the top — click a tab to move between its parts:

• Overview — advisories first (tap an issue → land on the control that fixes it), the full live
  snapshot, plant-state gauges, the facility-floor mini. (The old "Operate" pump/engine controls live
  here, under Irrigation.)
• Substrate — the VWC / EC / dryback trend over time.
• Zones — the per-zone cockpit: VWC / EC / dryback, water delivered, co-located setpoints.
• Steering — the visual setpoint editor (yield/potency models, limiting-factor solver, driver
  charts); the grow-week recipe/timeline planner is a subview here.
• Analyze, Climate (24 h history + room controls), and Floorplan (the 3D facility twin).

It reads live state + 24 h history from the HA REST API and parses sensor.crop_steering_activity_log
for the per-shot feed.

Linking to a specific page. Each page is its own file, so you can deep-link straight to it:
…/overview.html (mobile one-pager), …/setpoints.html (recipe planner), …/system-map.html (3D
map). Adding ?demo to a dashboard page (f2.html, overview.html, crop_steering.html) runs it
standalone on mock data.

Multiple rooms — ?room=<slug>. To view (and drive) an additional room, append ?room= with its
slug — e.g. …/f2.html?room=f1 or …/overview.html?room=f1 reads that room's crop_steering_f1_*
entities and writes back to them (a green "Viewing room: F1" badge confirms it). The kill-switch button
in a room view controls that room's kill switch (switch.crop_steering_f1_engine_enabled), not the
default room's. Note: facility tiles that aren't crop_steering_-namespaced (camera, tank, climate
probes) stay on the default room — the crop-steering core (zones, phases, VWC/EC, setpoints, advisories)
is what scopes.

Embedding it as a card (inside an existing Lovelace dashboard): add a Webpage card (or an
iframe card in YAML) pointing at the dashboard URL and it shows as a card on any view:

type: iframe
url: /local/f2.html      # or the add-on's ingress URL
aspect_ratio: 75%

Prefer native HA cards? crop_steering_lovelace.yaml is a
pure-Lovelace alternative (markdown + Jinja compute the live verdict / exception list and cover every
crop_steering entity) — paste it into a new dashboard's raw-config editor (regenerate with
scripts/build_lovelace.py).

Manual / offline copy. You can still drop www/f2.html into /config/www/
and open /local/f2.html (phone one-pager: www/overview.html →
/local/overview.html) — both work standalone, dependency-free, with a long-lived token entered once.

---

Implementation — actually dialing it in

This is the part most guides skip. It will not be perfect the moment you turn it
on, and that's normal — crop steering is tuned to your substrate's real
behaviour. Plan for this:

1. Arm it cold, watching. Keep switch.crop_steering_system_enabled ON but treat
   the first day as observation. The activity feed + per-zone phase sensors tell you
   exactly what it's deciding and why.
2. Set the physical truths first. Substrate volume, dripper flow rate, drippers
   per plant, plant count — these convert "5% shot" into real seconds of valve time.
   Get these right before tuning anything else, or every shot will be the wrong size.
3. Tune targets to observed reality, not theory. Watch where each zone's VWC
   actually peaks and troughs over a day, then set P1 target / P2 threshold /
   emergency floor inside that real band. A target the substrate can't reach makes a
   zone chase its tail; a floor it never hits never protects it.
4. Steer in one variable at a time. Pick vegetative or generative per zone, adjust
   the overnight dryback and feed EC, and give it a few days to respond before
   changing more.
5. Trust the safety net, but check it. The daily caps, source-water gate, drain
   detection and watchdog are there so a mistake can't flood a room — but verify the
   first real cycles fire and stop where you expect.

A row that takes water without its VWC rising is telling you something physical
(channelling, a dry-pocketed sensor, a blocked dripper) — the engine will flag and
back off, but that's a go-look-at-the-row signal, not a setpoint to tune.

---

Daily operation

Once dialed in, the loop runs itself. Day to day you're watching, not driving:

• Phase per zone — are they marching P0→P1→P2→P3 on schedule?
• VWC/EC trend — peaks and drybacks where you steered them?
• Activity feed — shots landing, nothing stuck blocked.
• Water used vs cap — a zone pinned at its cap, or one watering far more than its
  neighbours, is the first sign of a physical problem.

Full routine: docs/operation_guide.md. Mental model: docs/SYSTEM_OVERVIEW.md.

---

Under the hood

The live engine is two parts: a thin IO shell (addons/f2_control/f2_control/controller.py —
read sensors → build a snapshot → decide() → drive valves → republish status) wrapped around a
pure decision core (crop-steering-engine/ — the phase logic + EC steering + safety, with no HA
and no I/O, unit-tested offline). The shell is the only part that touches Home Assistant or hardware.

Part	Job
addons/f2_control/f2_control/controller.py	The IO shell — REST poll, snapshot build, hardware sequencing + valve readback, EC-offset/PID accumulation, alerts/vitals, state persistence (/data/state.json)
crop-steering-engine/src/crop_steering_engine/core.py	The pure decide() core — P0→P1→P2→P3 transitions, per-phase irrigation rules, anti-lockout high-EC flush, watchdog, daily-cap budget, ec_adjust / ec_pid / validate_params / cross_zone_outliers
custom_components/crop_steering/	The HA integration — ~100 entities, config-flow wizard, per-zone sensor fusion, pure calculation helpers; never touches hardware

custom_components/crop_steering/   # HA integration — entities, config-flow wizard, sensor fusion, pure calculations
addons/f2_control/                 # the LIVE engine (the f2-control add-on) — deploy here, then Rebuild
crop-steering-engine/src/          # the pure decide() engine package the add-on imports (offline-tested)
packages/irrigation/               # HA package YAML (recorder, helpers)
www/                               # operator dashboards (f2.html, overview.html) + the 3D floorplan
docs/                              # SYSTEM_OVERVIEW + install / operation / troubleshooting
templates/                         # 2 / 4 / 6-zone .env starters
tests/ · crop-steering-engine/tests/   # unit tests (integration helpers + the pure engine)

---

Services

Service	Inputs	Does
crop_steering.transition_phase	target_phase (P0–P3)	Move a zone's phase
crop_steering.execute_irrigation_shot	zone, duration_seconds	Fire a shot through the safe hardware sequence
crop_steering.check_transition_conditions	—	Evaluate + log the current decision reasoning
crop_steering.set_manual_override	zone	Toggle per-zone manual control
crop_steering.custom_shot	target_zone, volume_ml, intent	Volumetric shot (rescue / EC-rebalance / test) with intent tagging

---

Docs

• docs/SYSTEM_OVERVIEW.md — the whole-stack mental model
• docs/AGENT_INSTALL.md — step-by-step runbook for an AI agent to install + set up
• docs/installation_guide.md — the long-form install walkthrough
• docs/operation_guide.md — daily operator routine
• docs/troubleshooting.md — when something's off
• ENTITIES.md — every entity, explained
• www/system-map.html — interactive 3D map of the architecture + data flow

---

License

MIT — use it, fork it, run your room with it.

Acknowledgments

Built on the shoulders of the Home Assistant community, and everyone pushing precision
irrigation out from behind closed, expensive controllers.

[Samsung123]

Massive update, actually works now.

Changelog

Crop Steering add-on 0.10.5

In plain English. Fixes a serious silent failure: on some installs the engine couldn't find the
zone moisture probes at all, so the zones froze in whatever phase they were in (they never even
went to overnight dryback at lights-off) and watering fell back to a dumb timer. This happened when a
box was first set up under an older version — Home Assistant keeps the original sensor names forever,
and the engine was only looking for the new ones. The engine now finds your probes under either
naming, and even if a probe truly dies, the daily light-cycle phases keep moving and you get a
repeating phone alert (instead of one easy-to-miss ping) telling you exactly which sensor it wants.

Technical notes.

• New Controller._fused_id(): resolves each zone's fused sensor by probing HA for the current id
  (sensor.crop_steering_<room>vwc_zone_N) then the registry-sticky legacy id (..._zone_N_vwc);
  caches the hit; re-resolves while neither exists yet (HA still booting); an explicit zones-option
  override wins. _detect_zones counts zones under either convention.
• New Controller._blind_time_transition(): a blind zone (no readable VWC) still honours the
  time-based phase forces — lights-off → P3, and P3 → P0 at the new photoperiod including the daily
  counter/EC-state reset — so a dead probe can never strand the daily cycle. VWC-driven transitions
  stay paused while blind.
• The blind alert re-fires on the _alert 30-min debounce (was once-per-blindness) and names the
  exact entity_id being looked for.
• Regression-locked by tests/test_blind_and_fused.py (11 cases: both naming conventions, override,
  cache/re-resolve semantics, blind P3/P0 forces + counter reset, mid-day hold).

Crop Steering add-on 0.10.4

In plain English. Dashboard fixes the operator asked for: the Engine Log panel now shows
the engine's live decision feed (it was always empty before), the "next" value on the irrigation-
frequency card is populated, and (with 0.10.2) the per-zone Volume fed + shots tiles work.
Plus a safety improvement: if a valve can't be confirmed closed (e.g. HA drops mid-shot) the engine now
raises a CRITICAL alert instead of silently assuming it closed.

Technical notes.

• Engine Log → reads sensor.crop_steering_activity_log (feed attr) instead of the unwritable
  /local/f2_engine.log; change-gated (also removes the 4s re-render churn — a lag suspect).
• New per-zone prediction_zone_N_next_irrigation_hours published from decide() inputs (P2 dry-to-
  threshold ÷ dryback rate).
• _execute_shot close sequence: check every turn_off + HA-aware read-back; alert on
  failed/unconfirmed close (don't let a dead-HA read mask a stuck-open valve). Shot still counted so
  the daily cap stays honest. Software can't close a valve when HA is down — hardware fail-safe is the
  guarantee (NC valves, pump default-off, independent watchdog).
• core.py: comment documenting that the MIN-DAILY floor and the daily-volume cap are mutually
  exclusive by construction (the audit-flagged "floor under-water" case is unreachable —
  min_daily_volume <= max_daily_volume clamp + the floor only fires below min). No behaviour change.

Crop Steering add-on 0.10.2

In plain English. Fixes the per-zone "Volume fed vs daily cap" and "Irrigation frequency"
tiles showing blank (—). The engine now publishes each zone's litres-fed-today + shots-today.

Technical notes. _publish_status now emits sensor.crop_steering_<room>_zone_N_daily_water_app
(L, from state.daily_vol) and ..._irrigation_count_app (from state.shots) per zone — the dashboard
already read them; they just weren't being republished. Reset at the P3→P0 lights-on rollover.

Crop Steering add-on 0.10.1

In plain English. Per-room dashboards. View (and drive) any additional room by adding
?room=<slug> to the dashboard URL — e.g. f2.html?room=f1 or overview.html?room=f1. A green badge
shows which room you're looking at, and the kill-switch button controls that room's kill switch.

Technical notes. Two chokepoints in www/f2.html + www/overview.html — fetchStates aliases
every crop_steering_<slug>_* entity onto the un-prefixed id the UI reads, and svc/callService
rewrites entity_id on writes — so all ~150 entity references scope to the room without per-id edits.
The kill switch is resolved per room explicitly (switch.crop_steering_<slug>_engine_enabled vs the
default input_boolean.f2_control_enabled). No ?room= ⇒ identity no-op (default room unchanged).
Facility tiles (camera/tank/climate, not crop_steering_-namespaced) stay on the default room.

[2.11.0] - 2026-06-29

In plain English. Multiple rooms are now autonomously steered. Until now you could
configure a second grow room (add the integration again), but the engine only ever watered the
first one. Now the one add-on drives every room — each with its own pump/mainline/valves,
reservoir pH/EC probes, photoperiod, kill switch and durable state, fully isolated. A new room comes
up fail-safe OFF (its own kill switch starts off) so nothing waters until you arm it. Your existing
room is completely unchanged.

Technical notes.

• Integration: each room now publishes a sensor.crop_steering_<prefix>engine_config whose
  attributes carry the room's hardware map (pump / mainline / per-zone valves), kill switch, feed
  probes and zone count — the add-on can't read the config entry directly, so this is how it discovers
  a room. Additional rooms also get a per-room kill switch switch.crop_steering_<slug>_engine_enabled
  (default OFF); the default room keeps input_boolean.f2_control_enabled unchanged. The setup
  wizard's hardware step now also collects optional per-room source-water EC/pH probes.
• Add-on (engine 0.10.0): refactored the controller around a Room abstraction; loop_once now
  iterates rooms (_loop_room). Every per-zone entity read/write is namespaced by the room prefix
  (sensors, numbers, selects, switches, the gates, the published status). Lights, feed gate, kill
  switch, Vmax tracking and blind-zone handling are all per-room. The default room is built from the
  add-on options exactly as before (prefix "" ⇒ byte-identical entity ids), and additional rooms are
  discovered from the published descriptors. Shots still serialise across rooms (one _busy lock).
• State: /data/state.json is now nested by room slug; an old flat single-room file loads
  transparently as the default room (and named rooms seed fresh) — proven by
  tests/test_state_migration.py. New build_engine_config (pure) + tests/test_room.py cases.
• manifest 2.10.0 → 2.11.0. (Per-room dashboard scoping — ?room= — is still the remaining
  roadmap item; the engine and entities are fully multi-room.)
