Hi all,
I’m trying to see if I can pick up the radio frequency of my gas meter, which is an Itron 500G ERT, and supposedly my utility (People’s Gas) transmit data wirelessly in the 900 MHz ISM band
I’m using the hardware:
-Nooelec SDR-RTL v5 dongle which is plugged into my NUC running HAOS
I’m using the add-ons:
-rtl_433 (next)
-rtl_433 MQTT Auto Discovery (next)
-Mosquitto broker
I have the MQTT integrated, but I’m only picking up 2 SimpliSafe devices:
And seeing similar in the MQTT Explorer:
I also have the RTL_433 folder with a RTL_433.conf.template file with the following:
# This is an empty template for configuring rtl_433. mqtt information will be
# automatically added. Create multiple files ending in '.conf.template' to
# manage multiple rtl_433 radios, being sure to set the 'device' setting. The
# device must be set before mqtt output lines.

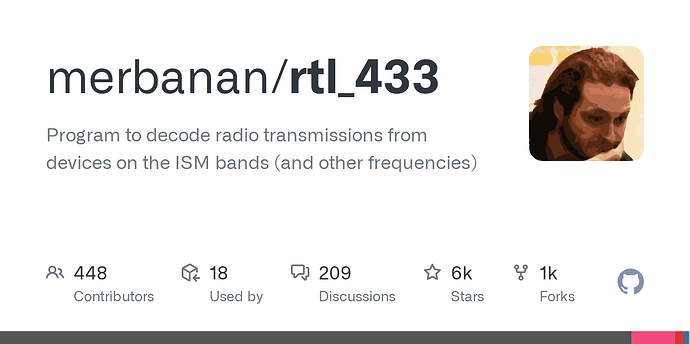

# https://github.com/merbanan/rtl_433/blob/da289d37eba7378726fcde502d38a466f9128b22/conf/rtl_433.example.conf
output mqtt://${host}:${port},user=${username},pass=${password},retain=${retain}
report_meta time:iso:usec:tz
# To keep the same topics when switching between the normal and edge versions,
# use this output line instead.
# output mqtt://${host}:${port},user=${username},pass=${password},retain=${retain},devices=rtl_433/9b13b3f4-rtl433/devices[/type][/model][/subtype][/channel][/id],events=rtl_433/9b13b3f4-rtl433/events,states=rtl_433/9b13b3f4-rtl433/states
# Uncomment the following line to also enable the default "table" output to the
# addon logs.
# output kv
# Disable TPMS sensors by default. These can cause an overwhelming number of
# devices and entities to show up in Home Assistant.
# This list is generated by running:
# rtl_433 -R help 2>&1 | grep -i tpms | sd '.*\[(\d+)\].*' 'protocol -/run.sh'
# [59] Steelmate TPMS
# [60] Schrader TPMS
# [82] Citroen TPMS
# [88] Toyota TPMS
# [89] Ford TPMS
# [90] Renault TPMS
# [95] Schrader TPMS EG53MA4, PA66GF35
# [110] PMV-107J (Toyota) TPMS
# [123]* Jansite TPMS Model TY02S
# [140] Elantra2012 TPMS
# [156] Abarth 124 Spider TPMS
# [168] Schrader TPMS SMD3MA4 (Subaru)
# [180] Jansite TPMS Model Solar
# [186] Hyundai TPMS (VDO)
# [201] Unbranded SolarTPMS for trucks
# [203] Porsche Boxster/Cayman TPMS
protocol -59
protocol -60
protocol -82
protocol -88
protocol -89
protocol -90
protocol -95
protocol -110
protocol -123
protocol -140
protocol -156
protocol -168
protocol -180
protocol -186
protocol -201
protocol -203
I’m not sure where to go from here to try and pick up more devices/frequencies, specifically my gas meter reporting at a 900 mhz frequency.
Any help would be greatly appreciated!
Thanks
Scott
