Thanks for the hint. I improved the description a little bit.

2 Likes
104

Concerning scrolling speed I found this comment by @mocelet interesting IKEA Bilresa Scrollwheel (Matter) – Ultimate Light Controller (Atomic Edition) - #13 by mocelet

3 Likes
105

I wanted to add a media player play/pause to the button.
Other remote integration add it like this:

  play:
    icon: mdi:play
    service: remote.send_command
    service_data:
      entity_id: remote.samsung_projector_lsp3_sp_lsp3blaxxh
      command: KEY_PLAY

Im currently trying to get this working like this:

  input:
    click_action_ch1:
      - device_id: d6ce0724f36ea8c41519b8ccee0bb816
        entity_id: remote.samsung_projector_lsp3_sp_lsp3blaxxh
        domain: remote.send_command
        command: KEY_PLAY

(Indentation was not supported here)
But I get “Response error: 500” trying to save.
Maybe if support could be added to the “for media player”?

106

You have to find out the correct action call, e. g. by using the developer tools “Actions”, something along

action: remote.send_command
target:
  entity_id: remote.your_remote
data:
  hold_secs: 0.3
  command: KEY_PLAY

But this has nothing to do with the blueprint, maybe you have better chance to get an answer if you post it as a new thread.

1 Like
107

You’re right, I got it working like this, thank you!

    click_action_ch1:
      - action: remote.send_command
        target:
          entity_id: remote.samsung_projector_lsp3_sp_lsp3blaxxh
        data:
          hold_secs: 0.1
          command: KEY_PAUSE
108

First of all thanks for the great work and sharing your blueprint. I want to use the scroll wheel to dim (up/down) three Zigbee lamps that have separate entities, but are also a light group helper. I have configured the single-click to switch the light group on, double-click to switch the light group off. This works perfectly fine.

The problems start with using the scroll wheel, in particular with lower and upper limits (I use it in “instant” mode). I know that the lamp shuts off when the percentage is 12% or lower, so I have set the lower scroll limit to 15%. Nevertheless, when I scroll quickly, it apparently “overshoots” into the region where the lamps shut down. A similar effect I see on the upper scroll level limit, that is 100% (not configurable) - when I scroll quickly, I get the lamps to full brightness, but dimming them down again with the opposite direction of the scroll wheel first does nothing for quite a while, then overshoots into the “down” region. It looks like also here the quick scrolling sets some internal level counter to far over 100%, and scrolling it back first does nothing until the 100% is reached from above, then quickly dims down.
Could you have a look into this behavior? I looks like the logic does not strictly enforce the lower and upper scroll limit when scrolling fast.

And one different feature that could help would be an option to add a little delay between firing the command to the lamps, when/if they are not so quick to respond. Something like 200 to 400ms between “scrolling clicks”. I have tried to achieve this with smaller change values per scroll click, but that doesn’t do the job.

109

I cannot reproduce your issue.

You can check in “Developer Tools / States” the brightness value (should be in range 0…255) in real-time while scrolling up/down:

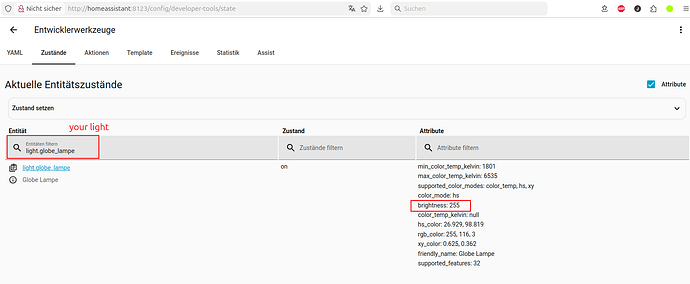

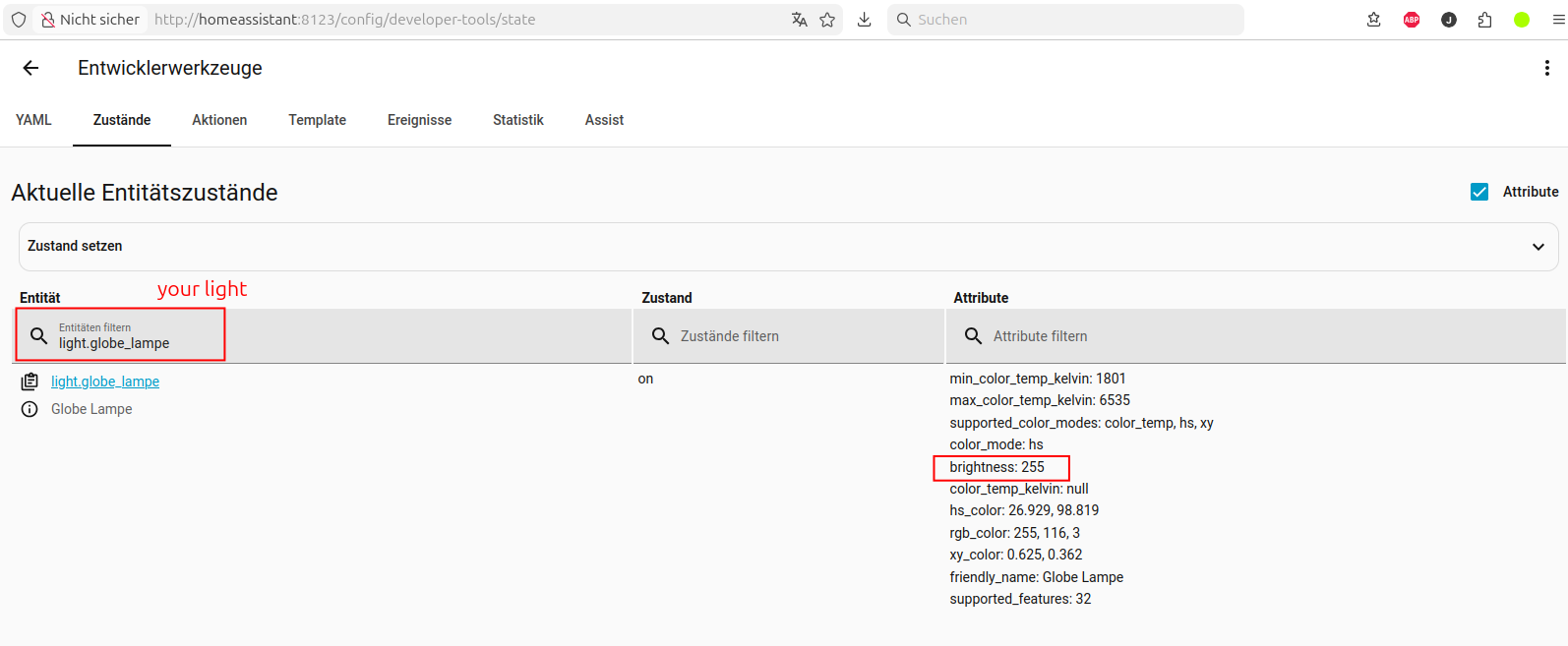

image1594×657 69 KB

or similar in “Developer Tools / Template”

{{ state_attr('light.globe_lampe', 'brightness'),
   state_attr('automation.scrolltaster_sz', 'last_triggered'),
   state_attr('automation.scrolltaster_sz', 'current')
}}

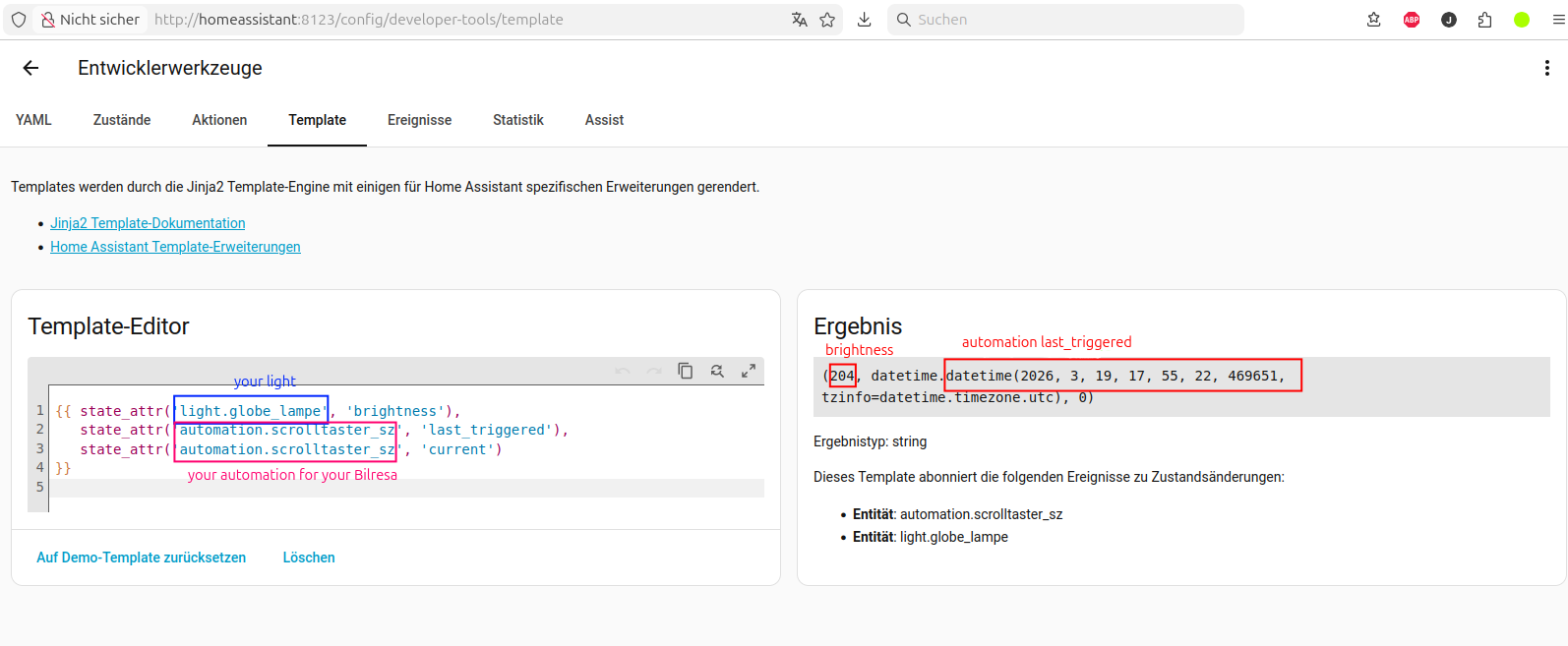

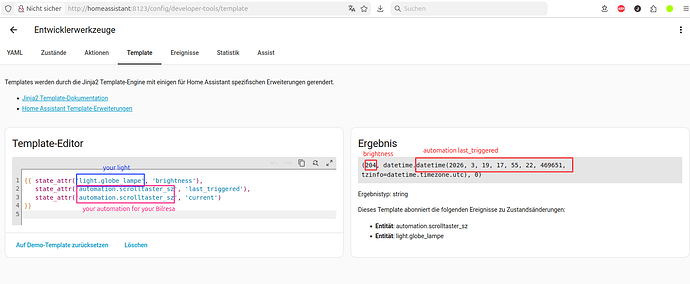

image1594×657 95.4 KB

Expected result: brightness stops at 2.55 * Minimum Brightness dimming down and 255 dimming up. If your results are different please provide some more details.

110

Spook is not happy with the 2 : * script.light_color_hs_helper

  • script.light_color_temp_helper

even though they are not being used in my set up :

alias: Living Room - Bilresa Scroll Wheel
description: ""
use_blueprint:
  path: jhol-byte/Ikea_bilresa_scroll_wheel.yaml
  input:
    remote: d27e96c83fc2342800d4254981742988
    click_action_ch1:
      - action: light.toggle
        metadata: {}
        target:
          entity_id:
            - light.living_room_lights
        data: {}
    scroll_wheel_target_ch1:
      - light.living_room_lights
    scroll_wheel_mode_ext_ch1: instant
    click_action_ch2:
      - action: light.toggle
        metadata: {}
        target:
          entity_id: light.tense
        data: {}
    double_click_action_ch1:
      - action: switch.toggle
        metadata: {}
        target:
          entity_id: switch.adaptive_lighting_sleep_mode_living_room
        data: {}
    dim_step_pct: 20
    scroll_wheel_target_ch2:
      - light.tense
    dim_min_pct: 1
    volume_use_up_down_for_instant: false
111

These scripts are referenced in the blueprint itself. So either add them (see description) or ignore the Spook warning.

112

Update: 2026-03-22

  • support transition duration for lights (can be changed under Global light settings) which makes the dimming and color effects more satisfying (:exclamation: update the two helper scripts as well)
113

Brilliant work on this, thank you!

I am however finding that multiple click actions are very inconsistent, often triggering the single click event.

Is there something that you perhaps could do about this? Even perhaps to read multiple single click events Vs 'true’reported double-clicks which seems a bit erratic.

Being able to change the time between each click would be super handy. Unfortunately, I have tremors, so spacing them out a bit would help immensely.

1 Like
114

First thanks for a great blueprint. I have a strange issue that you maybe able to point me to a fix. Dimming with the wheel works great with my Hue Color Ambience E27 bulbs but when I try to use it with a group of Hue white ambience GU10 spots, only anti-clockwise is working. I can reduce the brightness but then clockwise does not increase. Anticlockwise can also be used to increase (should it not be decrease??) colour temp, but then clockwise does not reduce it. All the bulbs are connected via Zigbee2MQTT. I have no idea why the different types of bulb behave differently, but the behaviour is consistent across 4 x GU10 spots while working with 2 x E27 bulbs. I am only using “instant” mode. Is there maybe a global setting that I need to tweak?

115

Just in case you hit the same issue as in #62, see my answer there. Try using the exact channel which is working with the “non-working” bulbs to double-check.

(for color temp the logic is that anti-clock wise makes the light warmer, compared to dimming which makes it darker, more cosy)

116

Thanks for the feedback @home2b. I played around with handling multiple single-clicks as double-click, but experience is worse than default behavior. Actually the default double-click doesn’t have to be super fast for my remote.

117

Unfortunately not working here. Click Button works, but scrolling not. Either for KNX Light Dimming or Sonos Volume, no reaction. In Event section of the matter device overview page of the scroll switch, i can see the events for scrolling in both directions. Whats also interestin is, that on the left under automations, there is nothing mentioned, altough i have 2 automations running with this device.

118

Did you enable the hidden sensor entities and check the following?

  • if automation doesn’t trigger at all, try steps in #19 and #63
119

Thank you so much, this is awesome, thought I’d just try the Bilresa remote without big expectations and though it won’t work too well… With your blueprint it actually works like a charm. I love the idea with the on hold colour change and scrolling temp and brightness change by scrolling through with double click. Never had such an awesome remote for 5€ :smiley:

When I was searching for blueprints I actually saw another nice addition from @mcinnes01 (IKEA E2490 BILRESA Scroll Wheel).
In addition to scrolling through the scrolling options by double click he made a auto reset function, that after a set duration the scroll behaviour returns to default. Just an idea, I added it myself and love it, since I only sometimes change temp/color but usually want to return to brightness always.
Again thanks for this awesome blueprint!

1 Like
120

I made an updated version that allows it to be used with covers, allowing me to use it to open and close my blinds if anyone is interesting

I have it so it starts it opening and closing (by setting the step percentage change to 100) and clicking it stops it for convenient control

121

I enabled the hidden entities under Diagnosis and it worked. THank you. Great little device.

1 Like
122

@Harry-George that’s the idea which I used in my user-defined example for cover as well. For me the experience is not very satisfying though. (If you use 100% step size and a stop button you might better go with simple start/stop button concept anyway). But here …

Another idea for covers is the following:

Let the cover go down/up as long as you scroll in the corresponding direction. To do so you need two additional helpers and one additional automation:

Steps:

  • define two timer helpers:
    Left scroll cover1 with duration of 2 seconds
    Right scroll cover1 with duration of 2 seconds
    (unfortunately 2 seconds is the smallest value working here, meaning that you have a latency of 2 seconds before the cover stops)

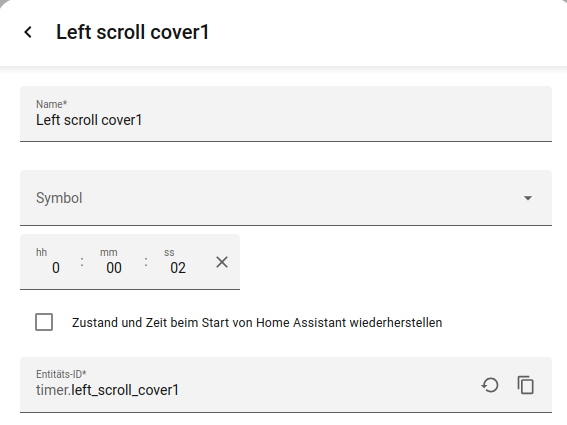

    grafik
    grafik567×425 16.3 KB

  • define automation Scroll control cover1 (with a 5 % safety margin at both ends):

alias: Scroll control cover1
description: ""
triggers:
  - trigger: state
    entity_id:
      - timer.left_scroll_cover1
    to:
      - active
    id: left
  - trigger: state
    entity_id:
      - timer.right_scroll_cover1
    to:
      - active
    id: right
  - trigger: state
    entity_id:
      - timer.left_scroll_cover1
      - timer.right_scroll_cover1
    to:
      - idle
    id: stop
conditions: []
actions:
  - choose:
      - conditions:
          - condition: trigger
            id:
              - left
          - condition: numeric_state
            entity_id: cover.rollladen_sz
            attribute: current_position
            below: 95
        sequence:
          - action: cover.open_cover
            metadata: {}
            target:
              entity_id: cover.rollladen_sz
            data: {}
      - conditions:
          - condition: trigger
            id:
              - right
          - condition: numeric_state
            entity_id: cover.rollladen_sz
            attribute: current_position
            above: 5
        sequence:
          - action: cover.close_cover
            metadata: {}
            target:
              entity_id: cover.rollladen_sz
            data: {}
      - conditions:
          - condition: trigger
            id:
              - stop
        sequence:
          - action: cover.stop_cover
            metadata: {}
            target:
              entity_id: cover.rollladen_sz
            data: {}
mode: single
  • define a user-defined scroll wheel action:
if:
  - condition: template
    value_template: "{{ scroll_direction == 'left' }}"
then:
  - action: timer.start
    metadata: {}
    target:
      entity_id: timer.left_scroll_cover1
    data: {}
else:
  - action: timer.start
    metadata: {}
    data: {}
    target:
      entity_id: timer.right_scroll_cover1
