#1 - good choice
we have a #1 and a #3
Anyone here had luck with the S3 version (marked ESP32-S3-WROOM)? Iāve tried the config below, and the backlight is working, but are otherwise probably not using correct GPIOs (?):
esphome:
name: minitv
friendly_name: MiniTV
esp32:
board: esp32-s3-devkitc-1
framework:
type: arduino
# ...
font:
- file: "gfonts://Roboto"
id: roboto_20
size: 20
spi:
clk_pin: GPIO12
mosi_pin: GPIO11
output:
- platform: ledc
pin: GPIO14
inverted: true
id: backlightdim
light:
- platform: monochromatic
output: backlightdim
name: "Backlight"
restore_mode: RESTORE_DEFAULT_ON
time:
- platform: homeassistant
id: home_time
timezone: Europe/Amsterdam
#display:
# - platform: st7789v
# model: Custom
# width: 128
# height: 128
# offset_width: 1
# offset_height: 2
# dc_pin: GPIO2
# reset_pin: GPIO4
# id: disp
# rotation: 180
# lambda: |-
# it.strftime(0, 0, id(roboto_20), TextAlign::TOP_LEFT, "%H:%M", id(home_time).now());
# it.line(0, 50, 127, 50);
display:
- platform: ili9xxx
model: st7789v
dc_pin: GPIO2 # 7?
reset_pin: GPIO4 # 6?
invert_colors: false
show_test_card: true
dimensions:
height: 240
width: 240
lambda: |-
it.strftime(0, 0, id(roboto_20), TextAlign::TOP_LEFT, "%H:%M", id(home_time).now());
it.line(0, 50, 127, 50);
Make sure that your ādisplay:ā settings are correct.
SvenRhein, your lvgl: section is missing a widget with an id of āboot_screenā. If you donāt have that section, you can safely remove that āon_bootā section from your esphome: section.
1 Like
My Geekmagic s3 is in. Been reading for a hour now, no idea on how to put EspHome on it.
There is no binary on GitHub - GeekMagicClock/GeekMagic-S3: GeekMagic S3 project for fun. for the s3 version, and no explianation on how to build it.
Please help! I can flash it with Web - ESPHome but I cannot find the bin file for itā¦
Hi guys.
I got my GeekMagic SmallTV PRO
Thanks to this post I was able to start my implementation, but at the moment Iām having issues with the component āonline_imageā.
The idea is to load a screenshot of my doorbell and show it on the SmallTv.
Iām facing problems with the heap fragmentation, online_image canāt get a big enough memory chunk to load the image.
Does anyone knows if the PRO version has PSRAM and how to enable it?
Would the S3 version be better for this?
I will leave here my current implementation that might be a good starting point for someone
esphome:
name: esphome-web-8af3ac
friendly_name: SmallTV Pro
min_version: 2024.11.0
name_add_mac_suffix: false
platformio_options:
build_flags: "-DBOARD_HAS_PSRAM"
# board_build.arduino.memory_type: qio_opi
on_boot:
- delay: 5s
- lvgl.widget.hide: boot_screen
psram:
esp32:
board: esp32dev
framework:
type: arduino
# Enable logging
logger:
level: debug
# enable web server
web_server:
version: 3
# Enable Home Assistant API
api:
encryption:
key: "8/lX1IaTM5wyJf1dcot5gXjO2dZAcEhtWfRiZMohHhU="
ota:
- platform: esphome
wifi:
ssid: !secret wifi_ssid
password: !secret wifi_password
on_connect:
- component.update: my_online_image
# Define a PWM output on the ESP32
output:
- platform: ledc
pin: GPIO25
inverted: True
id: backlight_pwm
# Define a monochromatic, dimmable light for the backlight
light:
- platform: monochromatic
output: backlight_pwm
name: "Display Backlight"
id: back_light
restore_mode: ALWAYS_ON
esp32_touch:
# setup_mode: true
image:
- file: https://esphome.io/_static/favicon-512x512.png
id: boot_logo
resize: 200x200
type: RGB565
transparency: alpha_channel
- file: http://192.168.1.112:8123/local/doorbell/snapshot_small.jpg
type: rgb565
id: doorbel_snapshot
resize: 240x240
http_request:
id: httpRequest
verify_ssl: false
online_image:
- id: my_online_image
url: "http://192.168.1.112:8123/local/doorbell/snapshot.jpg"
format: JPEG
type: BINARY
#resize: 200x200
on_download_finished:
- logger.log: "------IMAGE DOWNLOADED----"
- lvgl.image.update:
id: doorbell_img
src: my_online_image
# Button for testing the image loading
button:
- platform: template
name: "TEST BUTTON"
id: my_button1
icon: "mdi:emoticon-outline"
on_press:
- logger.log: "TEST Button pressed"
- component.update: my_online_image
font:
- file: "fonts/Roboto.ttf"
id: roboto_24
size: 24
- file: "fonts/materialdesignicons-webfont.ttf"
id: icons_40
size: 40
bpp: 4
glyphs: [
"\U000F10C3", #Termometer
"\U000F058E", #water-percent
"\U000F059D"#Wind
]
binary_sensor:
- platform: status
name: Status sensor
- platform: esp32_touch
name: "Touch Button"
pin: GPIO32
threshold: 1250
id: touch_button
filters:
- delayed_on: 50ms
on_multi_click:
- timing:
- ON for at most 0.5s
- OFF for at most 0.5s
- ON for at most 0.5s
then:
# Double tap - go to previous page
- logger.log: "Double tap detected - going to previous page"
- lvgl.page.previous:
- timing:
- ON for at most 0.5s
then:
- if:
condition: lvgl.is_paused
then:
- logger.log: "LVGL resuming"
- lvgl.resume:
- lvgl.widget.redraw:
- light.turn_on: back_light
# Single tap - go to next page
- logger.log: "Single tap detected - going to next page"
- lvgl.page.next:
spi:
clk_pin: GPIO18
mosi_pin: GPIO23
interface: hardware
id: spihwd
display:
- platform: ili9xxx
id: lcd_display
model: st7789v
spi_id: spihwd
data_rate: 40MHz
dc_pin: GPIO02
reset_pin: GPIO04
spi_mode: MODE3
dimensions:
width: 240
height: 240
offset_height: 0
offset_width: 0
invert_colors: true
auto_clear_enabled: false
update_interval: never
number:
- platform: template
name: LVGL Screen timeout
optimistic: true
id: display_timeout
unit_of_measurement: "s"
initial_value: 45
restore_value: true
min_value: 10
max_value: 180
step: 5
mode: box
lvgl:
buffer_size: 25%
on_idle:
timeout: !lambda "return (id(display_timeout).state * 1000);"
then:
- logger.log: "LVGL is idle"
- light.turn_off: back_light
- lvgl.pause:
theme:
label:
text_font: roboto_24 # set all your labels to use your custom defined font
button:
bg_color: 0x2F8CD8
bg_grad_color: 0x005782
bg_grad_dir: VER
bg_opa: COVER
border_color: 0x0077b3
border_width: 1
text_color: 0xFFFFFF
pressed: # set some button colors to be different in pressed state
bg_color: 0x006699
bg_grad_color: 0x00334d
checked: # set some button colors to be different in checked state
bg_color: 0x1d5f96
bg_grad_color: 0x03324A
text_color: 0xfff300
buttonmatrix:
bg_opa: TRANSP
border_color: 0x0077b3
border_width: 0
text_color: 0xFFFFFF
pad_all: 0
items: # set all your buttonmatrix buttons to use your custom defined styles and font
bg_color: 0x2F8CD8
bg_grad_color: 0x005782
bg_grad_dir: VER
bg_opa: COVER
border_color: 0x0077b3
border_width: 1
text_color: 0xFFFFFF
text_font: roboto_24
pressed:
bg_color: 0x006699
bg_grad_color: 0x00334d
checked:
bg_color: 0x1d5f96
bg_grad_color: 0x03324A
text_color: 0x005580
switch:
bg_color: 0xC0C0C0
bg_grad_color: 0xb0b0b0
bg_grad_dir: VER
bg_opa: COVER
checked:
bg_color: 0x1d5f96
bg_grad_color: 0x03324A
bg_grad_dir: VER
bg_opa: COVER
knob:
bg_color: 0xFFFFFF
bg_grad_color: 0xC0C0C0
bg_grad_dir: VER
bg_opa: COVER
slider:
border_width: 1
border_opa: 15%
bg_color: 0xcccaca
bg_opa: 15%
indicator:
bg_color: 0x1d5f96
bg_grad_color: 0x03324A
bg_grad_dir: VER
bg_opa: COVER
knob:
bg_color: 0x2F8CD8
bg_grad_color: 0x005782
bg_grad_dir: VER
bg_opa: COVER
border_color: 0x0077b3
border_width: 1
text_color: 0xFFFFFF
style_definitions:
- id: header_footer
bg_color: 0x2F8CD8
bg_grad_color: 0x005782
bg_grad_dir: VER
bg_opa: COVER
border_opa: TRANSP
radius: 0
pad_all: 0
pad_row: 0
pad_column: 0
border_color: 0x0077b3
text_color: 0xFFFFFF
width: 100%
height: 30
top_layer:
widgets:
- obj:
id: boot_screen
x: 0
y: 0
width: 100%
height: 100%
bg_color: 0xffffff
bg_opa: COVER
radius: 0
pad_all: 0
border_width: 0
widgets:
- image:
align: CENTER
src: boot_logo
y: -40
- spinner:
align: CENTER
y: 75
height: 50
width: 50
spin_time: 1s
arc_length: 60deg
arc_width: 8
indicator:
arc_color: 0x18bcf2
arc_width: 8
on_press:
- lvgl.widget.hide: boot_screen
pages:
# Page 1: Solar and Home Battery
- id: solar_page
widgets:
- obj:
align: TOP_MID
styles: header_footer
widgets:
- label:
text: "Solar"
align: CENTER
text_align: CENTER
text_color: 0xFFFFFF
#solar power
- obj:
height: 180
width: 180
align: CENTER
bg_color: 0xFFFFFF
border_width: 0
pad_all: 4
widgets:
- meter:
height: 100%
width: 100%
border_width: 0
bg_opa: TRANSP
align: CENTER
scales:
- range_from: 0
range_to: 3200
angle_range: 180 # sets the total angle to 180 = starts mid left and ends mid right
ticks:
count: 0
indicators:
- line:
id: val_needle_solar
width: 4
r_mod: 12 # sets line length by this much difference from the scale default radius
value: -2
- arc: # first half of the scale background
color: 0xF5F542
opa: 50%
r_mod: 10 # radius difference from the scale default radius
width: 20
start_value: 0
end_value: 3200
- obj: # to cover the middle part of meter indicator line
height: 120
width: 120
radius: 60
align: CENTER
border_width: 0
bg_color: 0xFFFFFF
pad_all: 0
- label: # gauge numeric indicator
id: val_text_solar
text_font: montserrat_30
align: CENTER
y: -5
text: "0"
- label: # lower range indicator
text_font: montserrat_18
align: CENTER
y: 8
x: -90
text: "-10"
- label: # higher range indicator
text_font: montserrat_18
align: CENTER
y: 8
x: 90
text: "3.2k"
# Home Battery
- label:
id: battery_label
text: "0%"
x: 20
y: 160
width: 200
text_align: CENTER
- bar:
id: battery_bar
x: 20
y: 190
width: 200
height: 20
min_value: 0
max_value: 100
value: 0
# Page 2: weather_page
- id: weather_page
widgets:
- obj:
align: TOP_MID
styles: header_footer
widgets:
- label:
text: "Weather"
align: CENTER
text_align: CENTER
text_color: 0xFFFFFF
# Temperature
- obj:
x: 0
y: 60
width: 240 # Full screen width
height: 50
border_width: 0
bg_opa: 0 # Transparent background
widgets:
- label:
id: temp_outside_icon
text_font: icons_40
text: "\U000F10C3"
align: left_mid
x: 10 # Left margin
- label:
id: temp_outside_label
text: "0.0Ā°C"
text_font: montserrat_40
align: left_mid
x: 60 # Position to the right of the icon
# Humidity row
- obj:
x: 0
y: 120 # Below temperature row
width: 240 # Full screen width
height: 50
border_width: 0
bg_opa: 0 # Transparent background
widgets:
- label:
id: humidity_icon
text_font: icons_40
text: "\U000F058E" # Water percent icon
align: left_mid
x: 10 # Left margin
- label:
id: humidity_outside_label
text: "0%"
text_font: montserrat_40
align: left_mid
x: 60 # Position to the right of the icon
# Page 3: Doorbel
- id: doorbel_page
widgets:
- obj:
align: TOP_MID
styles: header_footer
widgets:
- label:
text: "Doorbel"
align: CENTER
text_align: CENTER
text_color: 0xFFFFFF
# Temperature
- obj:
x: 0
y: 0
width: 240 # Full screen width
height: 240
border_width: 0
bg_opa: 0 # Transparent background
widgets:
- image:
id: doorbell_img
align: CENTER
src: my_online_image
#src: doorbel_snapshot
sensor:
# DC Power
- platform: homeassistant
id: total_dc_power
unit_of_measurement: "Watt"
entity_id: sensor.pv1_power
on_value:
- lvgl.indicator.update:
id: val_needle_solar
value: !lambda return x;
- lvgl.label.update:
id: val_text_solar
text:
format: "%.0f"
args: [ 'x' ]
# Home Battery
- platform: homeassistant
id: evcc_battery_soc
entity_id: sensor.battery_state_of_charge
unit_of_measurement: "%"
on_value:
- lvgl.label.update:
id: battery_label
text: !lambda |-
return ("Battery: " + to_string(static_cast<int>(x)) + "%").c_str();
- lvgl.bar.update:
id: battery_bar
value: !lambda |-
return x;
# Temp Outside
- platform: homeassistant
id: temp_outside
entity_id: sensor.gw1100a_outdoor_temperature
unit_of_measurement: "C"
on_value:
- lvgl.label.update:
id: temp_outside_label
text: !lambda |-
char buffer[16];
sprintf(buffer, "%.1fĀ°C", x); // One decimal place
return buffer;
# Hum Outside
- platform: homeassistant
id: hum_outside
entity_id: sensor.gw1100a_humidity
unit_of_measurement: "%"
on_value:
- lvgl.label.update:
id: humidity_outside_label
text: !lambda |-
char buffer[16];
sprintf(buffer, "%.1fĀ°", x); // One decimal place
return buffer;
1 Like
Wow. Iām really happy with what I achieved through your help here and using ChatGPT. I created something that improves my quality of life.
Since my daily commute by train is rather unreliable, I need to check the departure times every morning. But I donāt want to use my phone for that while Iām already in a hurry.

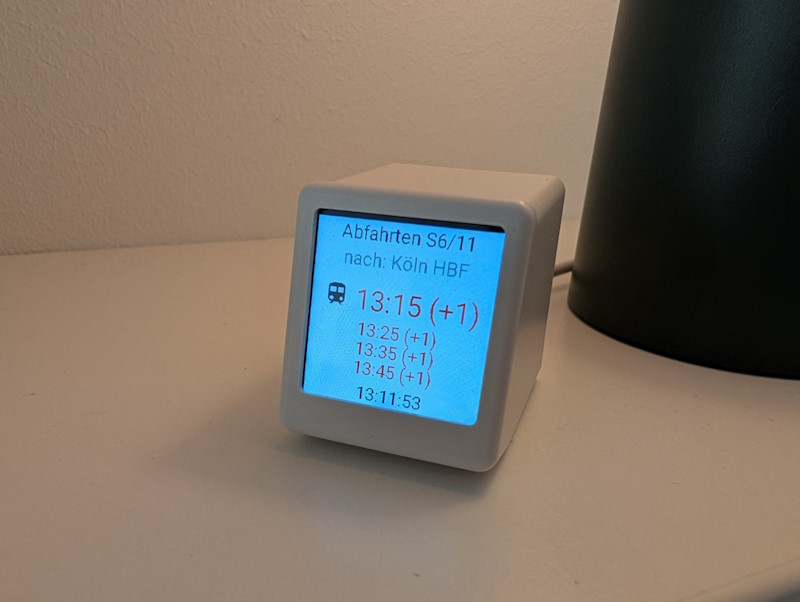

So I set up the SmallTV Pro to display the next four trains, their estimated time of departure and their delay. For convenience I also made a second page showing the trains in the other direction.
It works like charm:
Feel free to ask if you want to know any details.
3 Likes
Just want to say thanks to everyone! With your shared stuff I mixed up my first output on a geekmagic pro! Its a very basic output and it just shows 3 sensors.
- Current available solarpower (unused)
- Current power from landline
- Home Battery in %
Also you can tap on the touch area and the backlight will cycle through different brightness states.
I had some struggle to get esp home running in the first place, because web esphome was not able to connect, although it showed the device online. Finally I was able to flash a base image (legacy bin file) through the web interface of the stock firmware, which I quickly generated in homeassistant esphome. Now I can update wireless through homeassistant.
In case someone want to reuse my current progress, here is the code. I will now try to make it look nicer and make more use of the touch interface.
esphome:
name: geektv
friendly_name: GeekTV
min_version: 2024.11.0
name_add_mac_suffix: false
on_boot:
then:
- light.turn_on:
id: back_light
brightness: 1.0
# - delay: 5s
esp32:
board: esp32dev
framework:
type: arduino
# Enable logging
logger:
baud_rate: 0
# enable web server
web_server:
version: 3
# Enable Home Assistant API
api:
encryption:
key: ""
ota:
- platform: esphome
password: ""
wifi:
ssid: !secret wifi_ssid
password: !secret wifi_password
# Enable fallback hotspot (captive portal) in case wifi connection fails
ap:
ssid: "Geektv Fallback Hotspot"
password: ""
captive_portal:
debug:
update_interval: 5s
text_sensor:
- platform: debug
device:
name: "Device Info"
reset_reason:
name: "Reset Reason"
# Define a PWM output on the ESP32
output:
- platform: ledc
pin: GPIO25
inverted: True
id: backlight_pwm
# Define a monochromatic, dimmable light for the backlight
light:
- platform: monochromatic
output: backlight_pwm
name: "Display Backlight"
id: back_light
restore_mode: ALWAYS_ON
on_turn_on:
- light.turn_on:
id: back_light
brightness: 1.0 # Set initial brightness to 100% on power up
esp32_touch:
# setup_mode: true
binary_sensor:
- platform: esp32_touch
name: "Touch Button"
pin: GPIO32
threshold: 1250
id: gp32
filters:
# Small filter, to debounce the spurious events.
- delayed_on: 10ms
- delayed_off: 10ms
on_click:
- min_length: 10ms
max_length: 500ms
# Short touch to cycle through brightnesses
then:
- lambda: |-
int current_brightness = id(back_light).current_values.get_brightness() * 100;
current_brightness += 18;
if (current_brightness > 100) {
current_brightness = 5;
}
// Store the brightness value for later use
id(current_brightness_variable).publish_state(current_brightness);
- light.turn_on:
id: back_light
brightness: !lambda 'return id(current_brightness_variable).state / 100.0;'
- logger.log:
level: info
format: "Touch ON"
- min_length: 500ms
max_length: 2000ms
then:
- logger.log: "Long Touch"
spi:
clk_pin: GPIO18
mosi_pin: GPIO23
interface: hardware
id: spihwd
display:
- platform: ili9xxx
id: lcd_display
model: st7789v
spi_id: spihwd
data_rate: 40MHz
dc_pin: GPIO02
reset_pin: GPIO04
spi_mode: MODE3
dimensions:
width: 240
height: 240
offset_height: 0
offset_width: 0
invert_colors: true
auto_clear_enabled: false
update_interval: never
lvgl:
log_level: INFO
color_depth: 16
bg_color: 0
border_width: 0
outline_width: 0
#shadow_width: 0
#text_font: unscii_16
#align: center
style_definitions:
- id: font_style
text_color: 0xFFFFFF
bg_color: 0
bg_opa: TRANSP
- id: details_style
text_font: MONTSERRAT_16
text_color: 0xFFFFFF
bg_color: 0
bg_opa: TRANSP
buffer_size: 25%
widgets:
- label:
id: powerverschenkt_label
text: "?"
x: 35
y: 20
#width: 100
#text_align: CENTER
styles: font_style
text_font: MONTSERRAT_30 # override font size
text_color: 0x00ff00
- label:
id: netzstrom_label
text: "?"
x: 35
y: 60
#width: 100
#text_align: CENTER
styles: font_style
text_font: MONTSERRAT_30 # override font size
text_color: 0xff0000
- label:
id: battery_label
text: "?"
x: 35
y: 100
#width: 100
text_color: 0xffffff
#text_align: CENTER
styles: font_style
text_font: MONTSERRAT_30 # override font size
- bar:
id: battery_bar
x: 120
y: 120
width: 90
height: 6
min_value: 0
max_value: 100
value: 0
- image:
src: icon_lightning
#align: center
image_recolor: 0x00ff00
image_recolor_opa: 100%
y: 20
x: 0
- image:
src: icon_transmission_tower
#align: center
image_recolor: 0xff0000
image_recolor_opa: 100% #opacity defaults to 0% = must set this for recolor to take effect
y: 60
x: 0
- image:
src: battery_icon
#align: center
image_recolor: 0xffffff
image_recolor_opa: 100% #opacity defaults to 0% = must set this for recolor to take effect
y: 100
x: 0
- image:
src: icon_home_assistant
align: bottom_mid
image_recolor: 0x838383
image_recolor_opa: 100% #opacity defaults to 0% = must set this for recolor to take effect
y: -10
#x: 0
image:
- file: mdi:battery-minus-variant
id: battery_icon_minus
resize: 35x35
type: binary
- file: mdi:battery
id: battery_icon
resize: 35x35
type: binary
- file: mdi:battery-plus-variant
id: battery_icon_plus
resize: 35x35
type: binary
- file: mdi:sun-wireless-outline
id: icon_solar
resize: 35x35
type: binary
- file: mdi:transmission-tower
id: icon_transmission_tower
resize: 35x35
type: binary
- file: mdi:lightning-bolt-circle
id: icon_lightning
resize: 35x35
type: binary
- file: mdi:home-assistant
id: icon_home_assistant
resize: 35x35
type: binary
sensor:
# DC Power
- platform: homeassistant # or your actual sensor platform
id: total_powerverschenkt
unit_of_measurement: "Watt"
entity_id: sensor.zuruck_zum_netz_watt
on_value:
- lvgl.label.update:
id: powerverschenkt_label
text: !lambda |-
return ("" + to_string(static_cast<int>(x)) + "W").c_str();
# Forecast
- platform: homeassistant # or your actual sensor platform
id: total_netzstrom
unit_of_measurement: "Watt"
entity_id: sensor.strom_vom_netz_watt
on_value:
- lvgl.label.update:
id: netzstrom_label
text: !lambda |-
return ("" + to_string(static_cast<int>(x)) + "W").c_str();
# Home Battery
- platform: homeassistant
id: battery_kepworth
entity_id: sensor.kepworth_lifepo4_battery_soc
unit_of_measurement: "%"
on_value:
- lvgl.label.update:
id: battery_label
text: !lambda |-
return ("" + to_string(static_cast<int>(x)) + "%").c_str();
- lvgl.bar.update:
id: battery_bar
value: !lambda |-
return x;
#- platform: uptime
# name: Uptime Sensor
# id: time_since_boot
# update_interval: 3s
# internal: True
- platform: template
id: current_brightness_variable
name: "Current Brightness"
unit_of_measurement: "%"
accuracy_decimals: 0
state_class: "measurement"
Update: Now cycle through brightness with touch button.
4 Likes
I like it - looks like a popular use case, showing PV data for the home.
I ordered 2 more now for 2 other rooms.
Ideas for improving mine is - showing also wether/which car is charging, time based brightness adjustment (night mode) + use the touch button for a 2nd weather page
with your help and your good examples I have one geekmagic clock up and running - I created a second one with a different api keyā¦ the clock is working but it does not update its dataā¦ anybody an idea? I copied the code from my working one - added this code to the second clock with a changed new api keyā¦
a got itā¦ I had forgotten to add the device in home assistant as an esphome device
now both of them works like a charm
3 Likes
Soā¦ the Geekmagik-S3 LCD works with this yaml:
substitutions:
name: "geekmagic-s3"
friendly_name: "geekmagic s3 tv"
comment: "Geekmagic S3 Crypto Miner Thingy"
esphome:
name: $name
comment: $comment
platformio_options:
board_build.arduino.memory_type: qio_opi
board_build.flash_mode: dio
board_upload.maximum_ram_size: 524288
esp32:
board: esp32-s3-devkitc-1
variant: esp32s3
flash_size: 16MB
partitions: 16MB.csv
framework:
type: esp-idf
psram:
mode: octal
speed: 80MHz
packages:
wifi_ota_api: !include common/wifi_ota_api.yaml
captive_portal:
debug:
update_interval: 5s
text_sensor:
- platform: debug
device:
name: "Device Info"
reset_reason:
name: "Reset Reason"
esp32_touch:
#setup_mode: True
measurement_duration: 0.25ms
binary_sensor:
- platform: esp32_touch
name: "Touch Sensor"
id: touch_pad
pin: GPIO9
threshold: 120000
## filters:
## # Small filter, to debounce the spurious events.
## - delayed_on: 10ms
## - delayed_off: 10ms
on_click:
- min_length: 10ms
max_length: 500ms
# Short touch to cycle through brightnesses
then:
- lambda: |-
int current_brightness = id(back_light).current_values.get_brightness() * 100;
current_brightness += 18;
if (current_brightness > 100) {
current_brightness = 5;
}
// Store the brightness value for later use
id(current_brightness_variable).publish_state(current_brightness);
- light.turn_on:
id: back_light
brightness: !lambda 'return id(current_brightness_variable).state / 100.0;'
- logger.log:
level: info
format: "Touch ON"
- min_length: 500ms
max_length: 2000ms
then:
- logger.log: "Long Touch"
spi:
- id: spihw
clk_pin: GPIO12
mosi_pin: GPIO11
output:
- platform: ledc
pin: GPIO14
inverted: true
id: backlight_output
light:
- platform: monochromatic
output: backlight_output
name: LCD Backlight
id: back_light
restore_mode: ALWAYS_ON
#default_transition_length: 0s
display:
- platform: ili9xxx
id: lcd_display
model: st7789v #gc9a01a
spi_id: spihw
#data_rate: 80MHz
#cs_pin: GPIO1
dc_pin: GPIO7
reset_pin: GPIO6
spi_mode: MODE3
invert_colors: true
dimensions:
width: 240
height: 240
update_interval: never
auto_clear_enabled: false
lvgl:
log_level: INFO
color_depth: 16
bg_color: 0
border_width: 0
outline_width: 0
#shadow_width: 0
#text_font: unscii_16
#align: center
style_definitions:
- id: font_style
text_color: 0xFFFFFF
bg_color: 0
bg_opa: TRANSP
- id: details_style
text_font: MONTSERRAT_16
text_color: 0xFFFFFF
bg_color: 0
bg_opa: TRANSP
buffer_size: 25%
widgets:
- label:
id: powerverschenkt_label
text: "?"
x: 35
y: 20
#width: 100
#text_align: CENTER
styles: font_style
text_font: MONTSERRAT_30 # override font size
text_color: 0x00ff00
- label:
id: netzstrom_label
text: "?"
x: 35
y: 60
#width: 100
#text_align: CENTER
styles: font_style
text_font: MONTSERRAT_30 # override font size
text_color: 0xff0000
- label:
id: battery_label
text: "?"
x: 35
y: 100
#width: 100
text_color: 0xffffff
#text_align: CENTER
styles: font_style
text_font: MONTSERRAT_30 # override font size
- bar:
id: battery_bar
x: 120
y: 120
width: 90
height: 6
min_value: 0
max_value: 100
value: 0
- image:
src: icon_lightning
#align: center
image_recolor: 0x00ff00
image_recolor_opa: 100%
y: 20
x: 0
- image:
src: icon_transmission_tower
#align: center
image_recolor: 0xff0000
image_recolor_opa: 100% #opacity defaults to 0% = must set this for recolor to take effect
y: 60
x: 0
- image:
src: battery_icon
#align: center
image_recolor: 0xffffff
image_recolor_opa: 100% #opacity defaults to 0% = must set this for recolor to take effect
y: 100
x: 0
- image:
src: icon_home_assistant
align: bottom_mid
image_recolor: 0x838383
image_recolor_opa: 100% #opacity defaults to 0% = must set this for recolor to take effect
y: -10
#x: 0
image:
- file: mdi:battery-minus-variant
id: battery_icon_minus
resize: 35x35
type: binary
- file: mdi:battery
id: battery_icon
resize: 35x35
type: binary
- file: mdi:battery-plus-variant
id: battery_icon_plus
resize: 35x35
type: binary
- file: mdi:sun-wireless-outline
id: icon_solar
resize: 35x35
type: binary
- file: mdi:transmission-tower
id: icon_transmission_tower
resize: 35x35
type: binary
- file: mdi:lightning-bolt-circle
id: icon_lightning
resize: 35x35
type: binary
- file: mdi:home-assistant
id: icon_home_assistant
resize: 35x35
type: binary
sensor:
# get raw value from esp32_touch
## - platform: template
## name: "Raw touch value"
## lambda: |-
## return id(touch_pad).get_value();
## update_interval: 3s
# DC Power
- platform: homeassistant # or your actual sensor platform
id: total_powerverschenkt
unit_of_measurement: "Watt"
entity_id: sensor.power_export
on_value:
- lvgl.label.update:
id: powerverschenkt_label
text: !lambda |-
return ("" + to_string(static_cast<int>(x)) + "W").c_str();
# Forecast
- platform: homeassistant # or your actual sensor platform
id: total_netzstrom
unit_of_measurement: "Watt"
entity_id: sensor.power_import
on_value:
- lvgl.label.update:
id: netzstrom_label
text: !lambda |-
return ("" + to_string(static_cast<int>(x)) + "W").c_str();
# Home Battery
- platform: homeassistant
id: battery_kepworth
entity_id: sensor.batteries_state_of_capacity
unit_of_measurement: "%"
on_value:
- lvgl.label.update:
id: battery_label
text: !lambda |-
return ("" + to_string(static_cast<int>(x)) + "%").c_str();
- lvgl.bar.update:
id: battery_bar
value: !lambda |-
return x;
- platform: template
id: current_brightness_variable
name: "Current Brightness"
unit_of_measurement: "%"
accuracy_decimals: 0
state_class: "measurement"
But Iām having a absolut horrible time and very little knowledge on how to get the touch sensor to work! I know its the right pin but Iām getting absolutely nothing from it! and it worked with the original codeā¦
Can anyone share some insight on how to troubleshoot this??
edit: partitions: 16MB.csv is from original code and probably defaultā¦
edit2: got it!-) āmeasurement_duration: 0.25msā did the trick
1 Like
Hello, I have a smalltv ultra (esp8266) and wanted to use it to show data from a photovoltaic inverter (sofar inverter connected via modbus over tcp). On the homeassistant panel everything is displaying live nicely, but the smalltv i canāt get it to do that, i donāt know yaml/esp well, i was using gpt chat. what can be fixed here?
Blockquote
display:
platform: st7789v
model: āCustomā
spi_id: spihwd
height: 240
width: 240
offset_height: 0
offset_width: 0
dc_pin: GPIO00
reset_pin: GPIO02
eightbitcolor: True
update_interval: 20s
id: disp
spi_mode: mode3
lambda: |-
it.fill(Color::BLACK);// Wiersz 1: MOC
it.printf(10, 10, id(font_large), Color::WHITE, āMOC:ā);
it.printf(110, 10, id(font_large), Color(255, 0, 0), ā%.2f kWā, id(moc_chwilowa).state);// Wiersz 2: DZIÅ
it.printf(10, 55, id(font_large), Color::WHITE, āDzis:ā);
it.printf(100, 55, id(font_large), Color(0, 255, 0), ā%.2f kWhā, id(prod_dzienna).state);// Wiersz 3: OGĆLNIE
it.printf(60, 105, id(font_large), Color::WHITE, āOgolnie:ā);
it.printf(60, 145, id(font_large), Color(0, 255, 255), ā%.0f kWhā, id(produkcja_total).state);// Wiersz 4: TEMPERATURA
it.printf(15, 190, id(font_large), Color::WHITE, āTemp:ā);
it.printf(125, 190, id(font_large), Color(255, 255, 0), ā%.0fĀ°Cā, id(temperatura_falownika).state);sensor:
platform: homeassistant
id: moc_chwilowa
entity_id: sensor.falownik_moc_chwilowaplatform: homeassistant
id: prod_dzienna
entity_id: sensor.falownik_produkcjaplatform: homeassistant
id: produkcja_total
entity_id: sensor.produkcja_calkowitaplatform: homeassistant
id: temperatura_falownika
entity_id: sensor.temperatura_falownikafont:
file: āgfonts://Robotoā
id: font_large
size: 36file: āgfonts://Robotoā
id: font_small
size: 16
Did you also add the esphome node to home assistant via integrations? Because if you miss that step it canāt retrieve values from the sensors and would give the same result youāre seeing.
What do the esphome logs say? Do they properly show the returned values from home assistant? If so, then your lamda is wrong. If not, you are either not properly importing the sensors from HA, OR you may not be handling the data type properly (usually that results in compiling errors)
its working now
