JC4880P443 - unable to setup

ESPHome
1

I followed instructions from here: [mipi_dsi] add guition JC4880P443 display by 23900 · Pull Request #12068 · esphome/esphome · GitHub

This is my config:

esphome:
  name: "lvgl2xl"
  friendly_name: LVGL2XL

esp32:
  board: esp32-p4-evboard
  cpu_frequency: 400MHz
  flash_size: 16MB
  framework:
    type: esp-idf
    advanced:
      enable_idf_experimental_features: yes

display:
  - platform: mipi_dsi
    id: device_display
    model: JC4880P443
    byte_order: little_endian

When I try to install via USB from ESPHome I get this:

Configuration does not match the platform of the connected device. Expected an UNKNOWN device.

I get the option to Retry or Close, Retry gives me the same pop-up. On the USB side I’m able to select the correct port without issues.

Anything I’m missing?

2

Was it already merged to main?
Can you test it with this workaround: [mipi_dsi] add guition JC4880P443 display by 23900 · Pull Request #12068 · esphome/esphome · GitHub

3

Yes this device is mentioned in the 2025.12 ESPHome release notes.

4

And does it compile of you leave the display section out (commented)?

5

Try
variant: esp32p4

Instead of board.
(And clean build files)

6

Turns out that I needed more configuration items than what was provided in the documentation I linked and also the backlight does not turn on by default so I needed to fix that. Without backlight nothing shows up! I will post an updated yaml for reference so anyone stumbling on to this thread will have something to work with.

7

Ok perfect and if something is missing from the esphome docs, consider updating them.

8

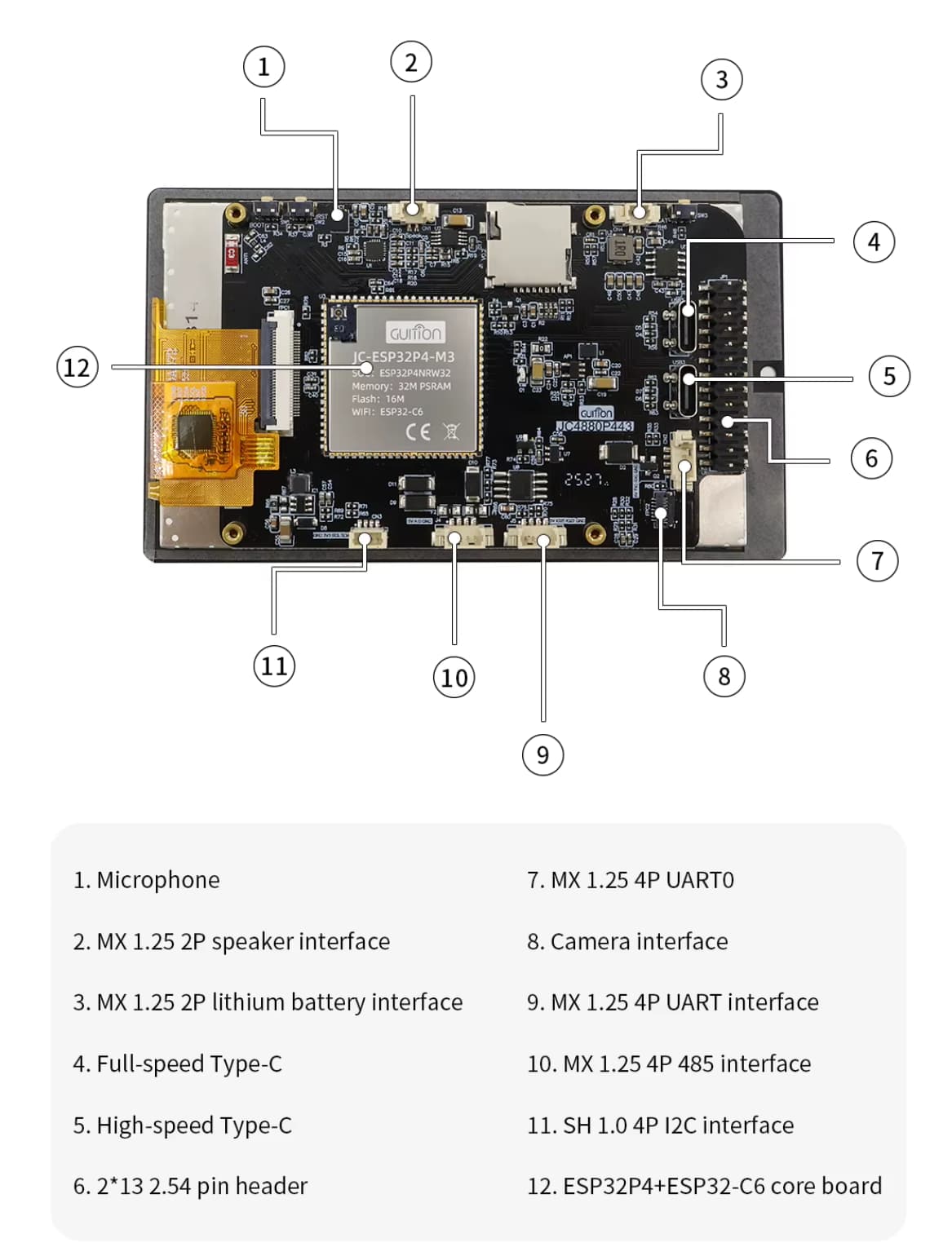

Here’s a working configuration as promised:

esphome:
  name: "JC4880P443"
  friendly_name: JC4880P443
logger:
  level: DEBUG

wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password

web_server:
  port: 80

ota:
  - platform: esphome

api:
  on_client_connected:
    - globals.set:
        id: homeassistant_ip
        value: !lambda return client_address;
font:
  - file: "gfonts://Montserrat"
    id: montserrat_28
    size: 28

output:
  - id: gpio_backlight_pwm
    platform: ledc
    pin: 23

light:
  - id: backlight
    name: Backlight
    platform: monochromatic
    output: gpio_backlight_pwm
    restore_mode: ALWAYS_ON


switch:
  - platform: restart
    name: Restart

binary_sensor:
  - platform: status
    name: Status

number:
  - platform: template
    name: Screen timeout
    optimistic: true
    id: display_timeout
    unit_of_measurement: "m"
    initial_value: 5 #minutes
    restore_value: true
    min_value: 0 #0 is no timeout
    max_value: 99
    step: 1
    mode: box


sensor:
  - id: wifi_signal_db
    name: WiFi Signal
    platform: wifi_signal
    update_interval: 60s
    entity_category: diagnostic

  - id: wifi_signal_strength
    name: WiFi Strength
    platform: copy
    source_id: wifi_signal_db
    filters:
      - lambda: return min(max(2 * (x + 100.0), 0.0), 100.0);
    unit_of_measurement: "%"
    entity_category: diagnostic

text_sensor:
  - platform: wifi_info
    ip_address:
      name: IP Address
      entity_category: diagnostic
    ssid:
      name: Connected SSID
      entity_category: diagnostic
    mac_address:
      name: Mac Address
      entity_category: diagnostic

globals:
  - id: homeassistant_ip
    type: std::string
  - id: backlight_brightness_level
    type: float
    restore_value: yes
    initial_value: '0.5'  # 50% default brightness

esp32:
  board: esp32-p4-evboard
  cpu_frequency: 400MHz
  flash_size: 16MB
  framework:
    type: esp-idf
    advanced:
      enable_idf_experimental_features: yes

display:
  - platform: mipi_dsi
    id: device_display
    model: JC4880P443
    byte_order: little_endian
    rotation: 90
    lambda: |-
      it.fill(Color::BLACK);
      it.print(340, 100, id(montserrat_28), Color(0,255,0), TextAlign::LEFT, "Hello World1");
      it.print(340, 200, id(montserrat_28), Color::WHITE, TextAlign::LEFT, "Hello World2");
      it.print(340, 300, id(montserrat_28), Color(255,0,0), TextAlign::LEFT, "Hello World3");
touchscreen:
  platform: gt911
  i2c_id: i2c_bus
  id: device_touchscreen
  reset_pin: GPIO3
  update_interval: 100ms
  transform: #This is for 90 degree display rotation
    swap_xy: true
    mirror_x: false
    mirror_y: true
  on_update:
    then:
      - lambda: |-
          if (touches.size() > 0) {
            auto touch = touches[0];
            ESP_LOGI("TOUCH", "X=%d Y=%d", touch.x, touch.y);
          }
esp_ldo:
  - channel: 3
    voltage: 2.5V

psram:
  mode: hex
  speed: 200MHz

preferences:
  flash_write_interval: 5min

esp32_hosted:
  variant: ESP32C6
  reset_pin: GPIO54
  cmd_pin: GPIO19
  clk_pin: GPIO18
  d0_pin: GPIO14
  d1_pin: GPIO15
  d2_pin: GPIO16
  d3_pin: GPIO17
  active_high: true

i2c:
  id: i2c_bus
  sda: 7
  scl: 8
  scan: false
  frequency: 400kHz

# Audio section
audio_dac:
  - platform: es8311
    id: esp7311_dac
    address: 0x18
    i2c_id: i2c_bus

i2s_audio:
  - id: i2s_bus
    i2s_lrclk_pin: GPIO10 # WS / LRCK
    i2s_bclk_pin: GPIO12  # BCLK
    i2s_mclk_pin: GPIO13  # ES8311 usually requires a Master Clock

microphone:
  - platform: i2s_audio
    id: es8311_mic
    i2s_audio_id: i2s_bus
    i2s_din_pin: GPIO48  # Data In from the Codec
    adc_type: external
    pdm: false           # ES8311 uses standard I2S, not PDM
    channel: left

speaker:
  - platform: i2s_audio
    id: es8311_hardware_out
    i2s_audio_id: i2s_bus
    i2s_dout_pin: GPIO9
    dac_type: external
    audio_dac: esp7311_dac
  - platform: mixer
    id: audio_mixer
    output_speaker: es8311_hardware_out
    source_speakers:
      - id: spk_announcement
      - id: spk_media

media_player:
  - platform: speaker
    name: "XL Speaker"
    id: xl_media_player
    # This section is now mandatory for the 'speaker' platform
    announcement_pipeline:
      speaker: spk_announcement
    media_pipeline:
      speaker: spk_media
2 Likes
9

Here’s a sliding case for the board at thingiverse.
