Hey there!
Please let me introduce my Power-Nexus-Card for Home Assistant!
Why another one? Because I tried different power-flow cards, but none of them gave me the whole possibilites I want. Mostly the graphical details didn't match my ideas. The GUI-Editor should work in english and german.
So here's my one:
Description

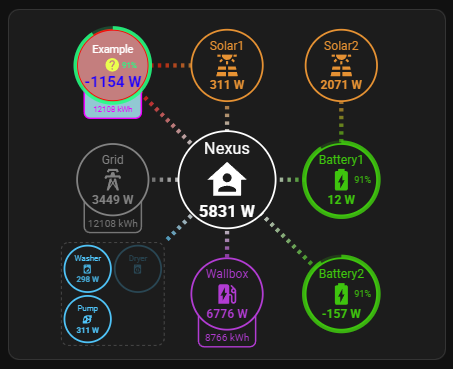

Power Nexus Card is a custom Lovelace card for Home Assistant that visualizes energy flows. At its center is a freely definable energy system with a central house node (Nexus), around which any number of energy sources and consumers can be arranged.
- Entire card content individually zoomable
- Freely configurable nodes (PV, battery, grid, appliances …)
- Three size levels (S / M / L) for the nodes
- Node position and spacing freely adjustable
- Nodes can be grouped together

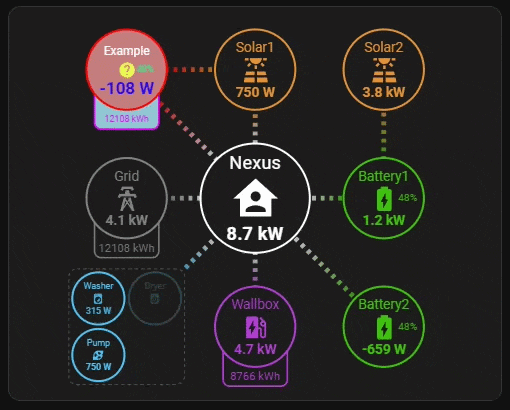

- Freely adjustable flow lines (size, direction)
- Dynamic visibility (threshold-based) for nodes and flow lines
- Responsive grid layout for section dashboards
- Additional "button mode" (visual variety) selectable
- State of charge displayable as graphic
- Choice between one combined entity or two separate entities for input and output

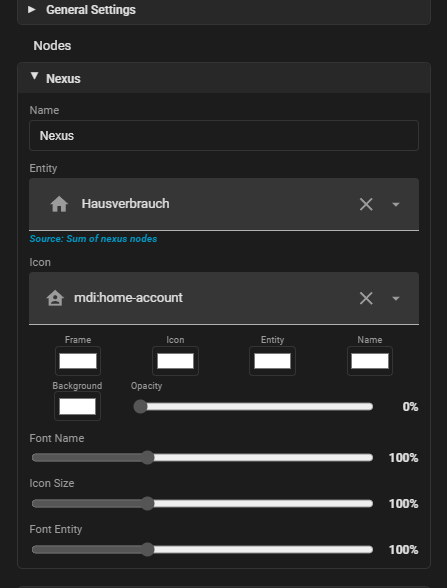

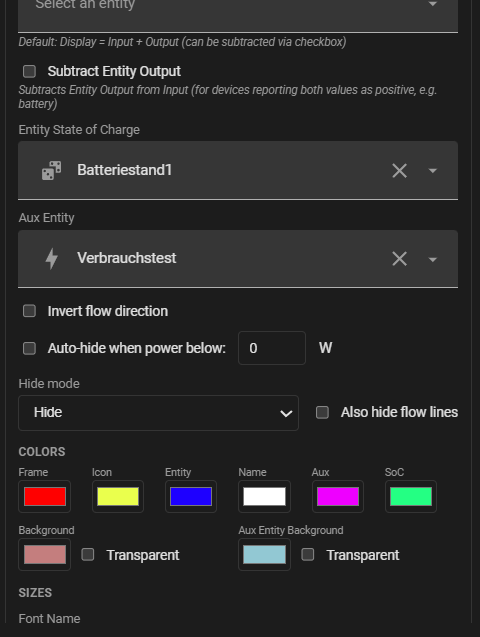

- GUI editor for configuration
- Current language support: DE & EN
Installation
HACS
- HACS → ⋮ Menu → Custom repositories
- URL:
https://github.com/MankiesWorkshop/power-nexus-card - Type: Lovelace → Add
- Find the card in HACS and install
Manual
- Copy
power-nexus-card.jsinto yourconfig/www/directory - Add to your Lovelace resource list:
url: /local/power-nexus-card.js
type: module

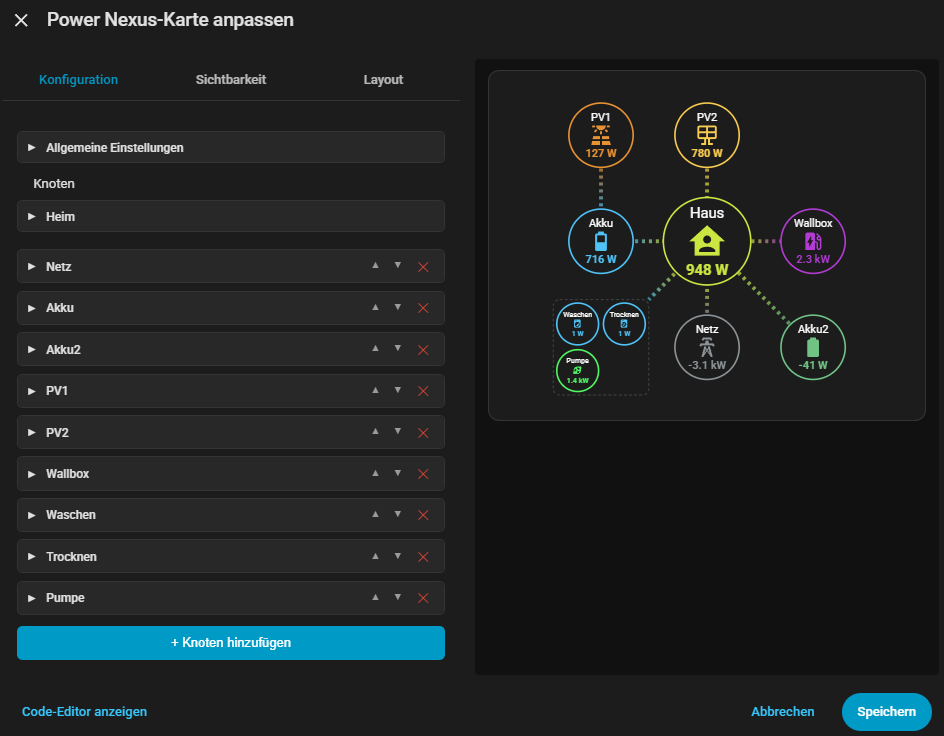

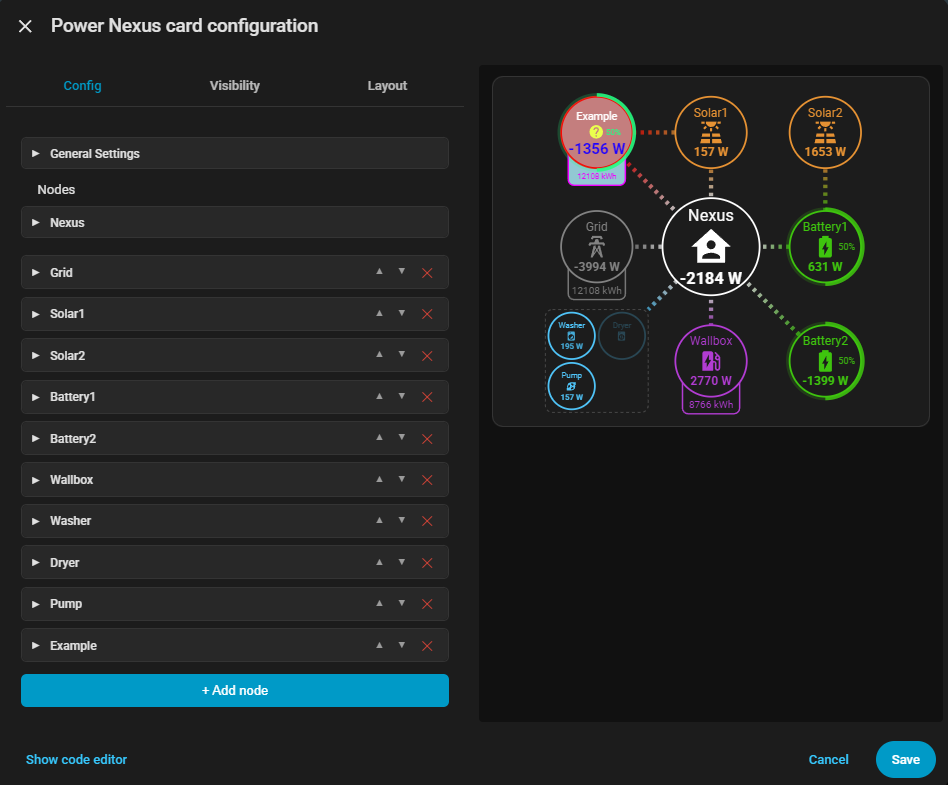

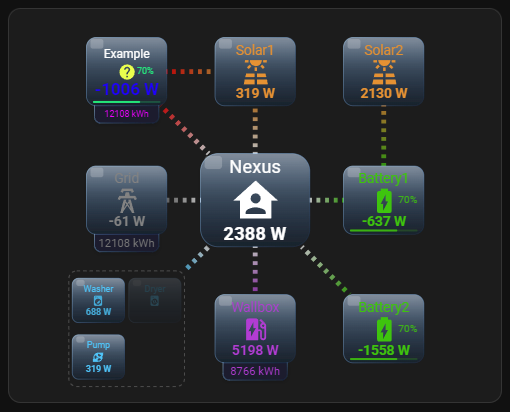

Screenshots (Sorry, but as a new user I'm allowed to post only one screenshot)
