LVGL with Waveshare 3.5B Weird Screen Behavior

ESPHome
,
1

I have a waveshare 3.5B touchscreen

Ive uploaded the following code:

external_components:

  • source: github://pr#17513
    components: [mipi_spi]
    refresh: 1h

esp32:
variant: esp32s3
flash_size: 16MB # board is ESP32-S3R8, 16MB flash
framework:
type: esp-idf

psram:
mode: octal # ESP32-S3R8 = 8MB octal PSRAM
speed: 80MHz

QSPI bus for the display

spi:

  • id: qspi_bus
    type: quad
    clk_pin: 5
    data_pins: [1, 2, 3, 4] # D0..D3

Touch controller (AXS15231B) shares the board I2C bus

i2c:

  • id: i2c_bus
    sda: 8
    scl: 7

display:

  • platform: mipi_spi
    id: lcd
    model: WAVESHARE-ESP32-S3-TOUCH-LCD-3.5B
    dimensions: 320 x 480

touchscreen:

  • platform: axs15231
    id: touch
    i2c_id: i2c_bus
    display: lcd
    on_touch:
    • lambda: |-
      ESP_LOGI(“touch”, “x=%d, y=%d, x_raw=%d, y_raw=%d”, touch.x, touch.y, touch.x_raw, touch.y_raw);

output:

  • platform: ledc
    id: backlight_output
    pin: 6
    light:
  • platform: monochromatic
    id: backlight
    name: “Backlight”
    output: backlight_output
    restore_mode: ALWAYS_ON

font:

  • file:
    type: gfonts
    family: Montserrat
    weight: 700
    id: montserrat_20b
    size: 20
    bpp: 4
    glyphsets: [GF_Latin_Core]
  • file:
    type: gfonts
    family: Poppins
    weight: 700
    id: poppins_14b
    size: 14
    bpp: 4
    glyphsets: [GF_Latin_Core]

image:

lvgl:
rotation: 90
top_layer:
scrollbar_mode: “OFF”
widgets:
- arc:
id: lv_arc_5
x: -95
y: 0
width: 170
height: 155
align: CENTER
value: 18
min_value: 10
max_value: 28
adjustable: true
start_angle: 135
end_angle: 45
indicator:
arc_color: 0xF63C3C
arc_width: 10
knob:
pad_all: 5
pad_all: 25
on_click:
- homeassistant.action:
action: light.toggle
data:
entity_id: light.dinning_room_light

pages:
- id: canvas_1
  bg_color: 0x111827
  pad_all: 0
  scrollbar_mode: "OFF"
  widgets:
  - image:
      id: lv_image_3
      x: 0
      y: 0
      width: 480
      height: 320
      src: img_mountains_862870_1280
  - label:
      id: lv_label_7
      x: 115
      y: 25
      width: 290
      height: 45
      text: "Test Area"
      text_color: 0xFFFFFF
      text_align: CENTER
      long_mode: DOT
      text_font: montserrat_20b

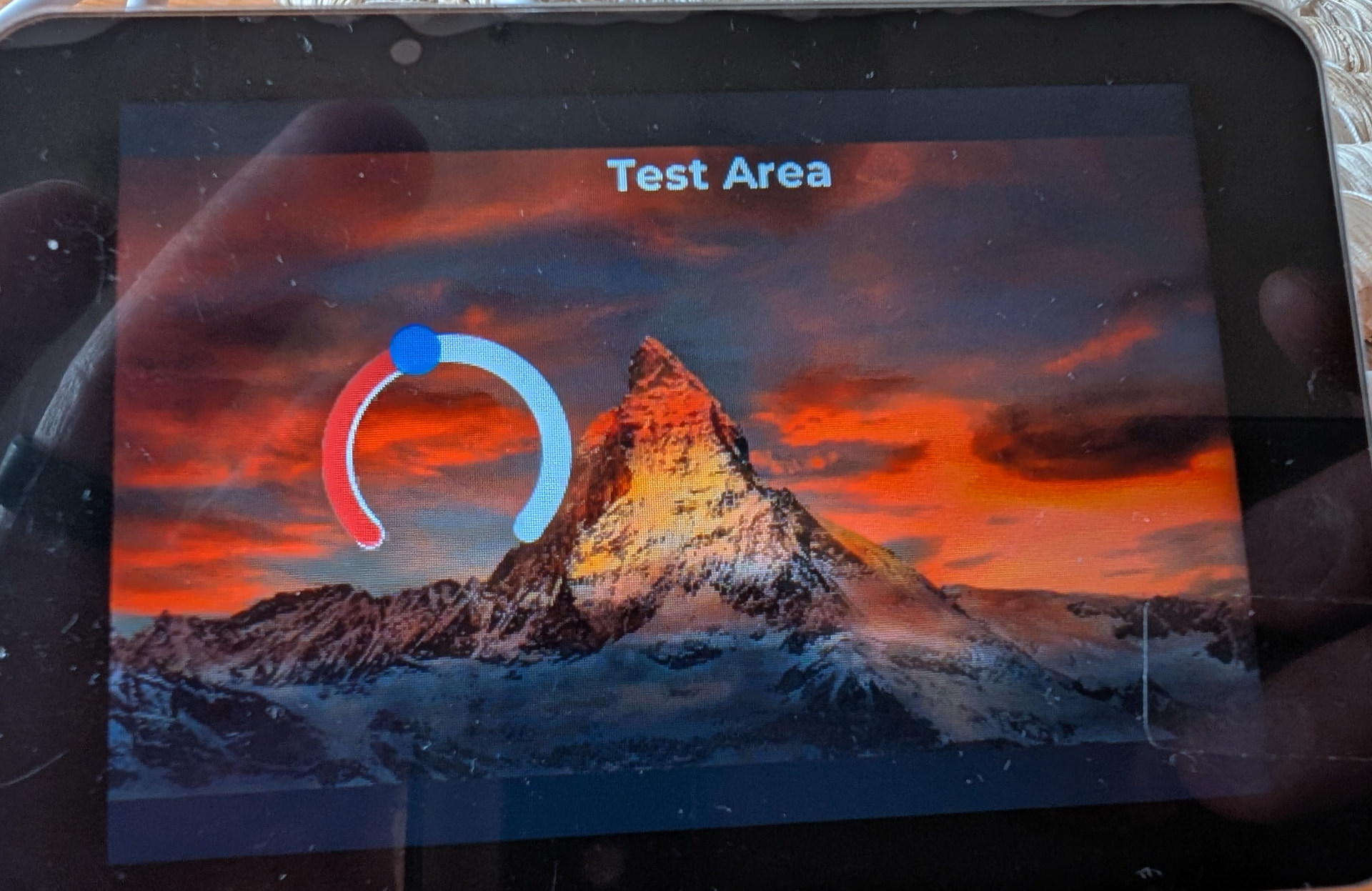

Screen turns-on I get this

PXL_20260914_194835946~2
PXL_20260914_194835946~21920×1247 421 KB

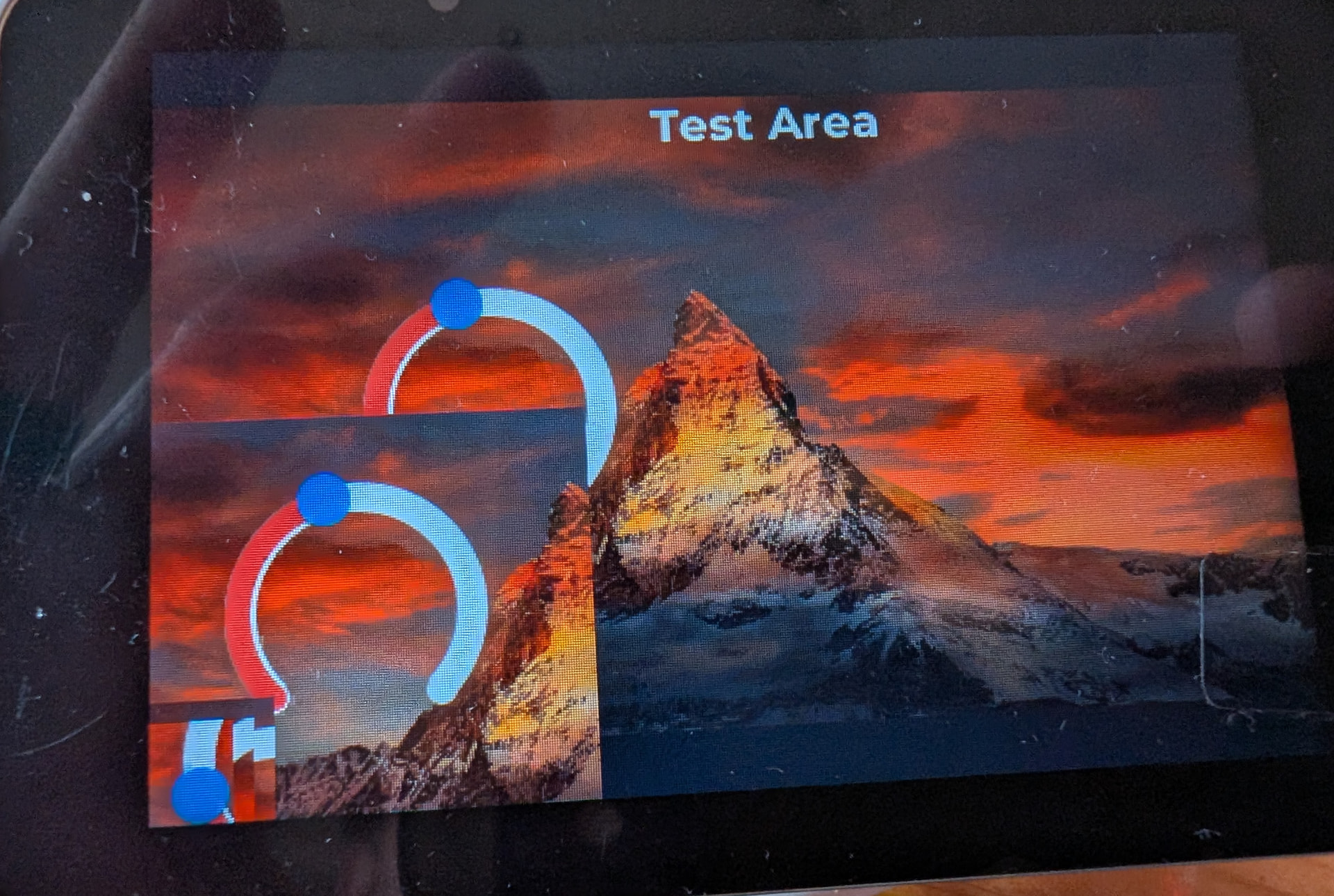

When I press on the widget, it opens a smaller widgets in the corner of the screen.
I’m not sure why it’s opening a smaller widget in the corner, anyone have any idea as to why?

PXL_20260914_194842810~2
PXL_20260914_194842810~21920×1290 591 KB

Thanks

2

Firstly, enclose your yaml in triple-back ticks ```above and below to get correct code formatting. Whatever you did in your post makes the yaml hard to read.

Secondly, remove the external components block from your config - the driver has been merged into the ESPHome release since 2026.8.0.

Then, try this for the display config:

platform: mipi_spi
  id: lcd
  model: WAVESHARE-ESP32-S3-TOUCH-LCD-3.5B
  init_sequence:
    - [0xBB, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x5A, 0xA5]
    - [0xC1, 0x33]
    - [0xBB, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00]

and see if it fixes the problem.

3

Thanks Clyde,

I do apologize for my half-hazardly posting of my yaml code; I’ve been fighting with it for hours and as a last resort posted it while in a “fit-of-rage”.

I have since changed the code as you suggested but have the same result. I even

removed the touchscreen component which still gave me the same result.

I’m considering abandoning this 3.5B Waveshare and buying one that has more examples and support.

4

You can still modify your first post and make your code readable, like suggested above..

5

You can add full_refresh: true to the lvgl config, which will work-around the issue at the cost of slower updates (should still be acceptable.)

6

Clyde!!!

Thanks a million!!! “full_refresh: true” into the Lvgl code has solved my issues.
