Hi. I created my first fully customizable card to show animated energy flows.
The card looks similar to the one you can use in homey.

GitHub - RothMick/HA-energy-flow-card: Custom Home Assistant Lovelace card that displays animated energy flows. · GitHub.

There will be a couple of SVG backgrounds soon!

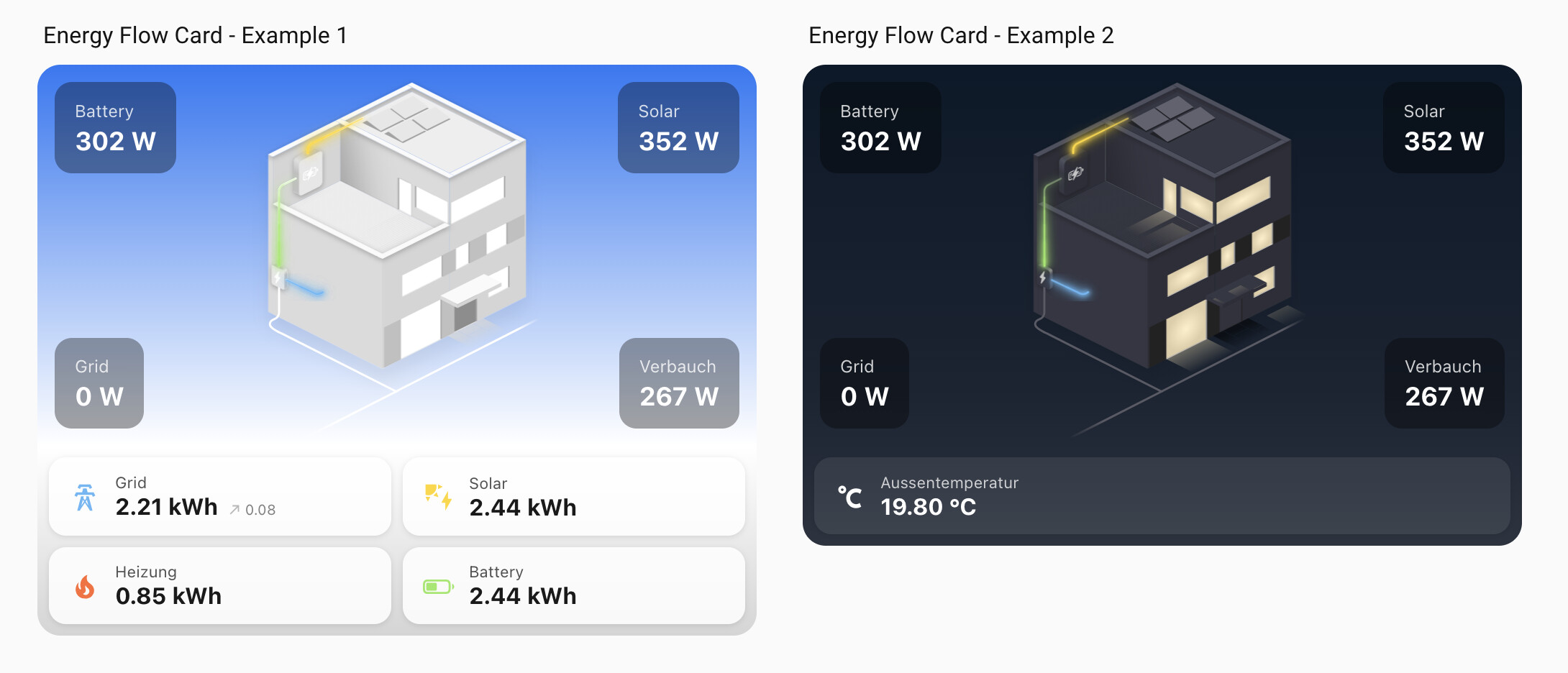

preview
preview2180×936 180 KB

–

Features

  • Animated SVG flow lines per energy source (positive & negative direction)
  • Up to 8 configurable energy value pills in a 3×3 grid
  • Only SVG flow also possible
  • Up to 10 daily entity values with optional secondary entity
  • Per-entity column width: half width (1-col) or full tile width (2-col)
  • Configurable grid breakpoint that controls the 2-column → 1-column layout switch
  • Day/night SVG backgrounds with auto-switching via sun entity
  • Fully configurable via the visual editor (no YAML required)
  • Touch-compatible drag & drop sorting in the editor
  • YAML editor fallback per entry

–

Configuration

Add the card to your dashboard via the visual editor, or paste the YAML manually.

Minimal example

type: custom:energy-flow-card
svg_day: /local/energyflow/isometric.svg
svg_night: /local/energyflow/isometric_night.svg
mode: day
energy_values: []
daily_entities: []

Full example

type: custom:energy-flow-card
svg_day: /local/energyflow/isometric.svg
svg_night: /local/energyflow/isometric_night.svg
minmax_min_width: 175px
entity_grid: sensor.house_power_curr
entity_solar: sensor.curent_solar_production
entity_battery: sensor.curent_battery_production
entity_house: sensor.energy_consumption
mode: day
entity_sun: sun.sun
energy_values:
  - entity: sensor.shellyplus1pm_a8032ab748e0_power
    position: top-left
    label: Batterie
    color_positive: "#97EA63"
    path_positive: >-
      M163.503 1071.5L163.503 646.494C163.503 646.494 162 631.489 170.499
      618.991C178.999 606.493 189.503 603.494 189.503 603.494L259.064 569
    color_negative: ""
    path_negative: ""
  - entity: sensor.combined_solar_current_production
    position: top-right
    label: Solar
    color_positive: "#FFD724"
    path_positive: >-
      M328.409 425.054L328.425 411.899C328.425 411.899 326.887 396.319 335.692
      383.331C344.497 370.342 355.365 367.217 355.365 367.217L643.064 224.783
    color_negative: ""
    path_negative: ""
    delay_positive: "-0.8s"
  - entity: sensor.stromzaehler02_haus_power_curr
    position: bottom-left
    label: Grid
    color_positive: "#64B7F6"
    path_positive: >-
      M163.822 1193.5V1331.13C163.822 1331.13 165.088 1346.15 156.392
      1358.52C147.695 1370.88 136.564 1374 136.564 1374C105.564 1385.5 112.064
      1407 112.064 1407C112.064 1407 110.564 1413 126.564 1426.5C142.564 1440
      177.441 1455.53 177.441 1455.53L834.576 1788.22L318.041 2051.41
    color_negative: "#D650DC"
    path_negative: >-
      M318.041 2051.41L834.576 1788.22L177.441 1455.53C177.441 1455.53 142.564
      1440 126.564 1426.5C110.564 1413 112.064 1407 112.064 1407C112.064 1407
      105.564 1385.5 136.564 1374C136.564 1374 147.695 1370.88 156.392
      1358.52C165.088 1346.15 163.822 1331.13 163.822 1331.13V1193.5
    delay_positive: "0"
    delay_negative: 1.7s
  - entity: sensor.energy_consumption_new
    position: bottom-right
    label: Verbrauch
    color_positive: "#64B7F6"
    path_positive: >-
      M413.96 1219.65C413.96 1219.65 402.284 1230.08 386.602 1230.62C370.92
      1231.17 361.987 1224.24 361.987 1224.24L206.065 1149.5
    color_negative: ""
    path_negative: ""
    delay_positive: 0.4s
daily_entities:
  - entity: sensor.daily_grid_consumption
    label: Grid
    icon: mdi:transmission-tower
    color: "#64B7F6"
    secondary_entity: sensor.daily_grid_feed
    secondary_icon: mdi:arrow-top-right
    secondary_no_unit: true
  - entity: sensor.daily_solar_production
    label: Solar
    icon: mdi:solar-power
    color: "#FFD724"
  - entity: sensor.daily_heat_consumption
    label: Heizung
    icon: mdi:fire
    color: "#FF6B35"
  - entity: sensor.daily_battery_consumption
    label: Battery
    icon: ios:battery-50percent
    color: "#97EA63"
    secondary_entity: sensor.awtrix_5686f0_battery
    col_span: 2-col

Configuration options

Top level

Option Type Default Description
svg_day string Path to the SVG background for daytime
svg_night string Path to the SVG background for nighttime
mode auto / day / night day Display mode. auto switches based on entity_sun
entity_sun entity Any entity whose state is below_horizon for night detection
energy_values list [] Up to 8 energy pills including energy flow animations (see below)
daily_entities list [] Daily total values shown below the SVG (see below)
general settings additional hidden settings [] Basic settings (see below)

energy_values entry

Option Type Description
entity entity Sensor entity to read the value from
position string Pill position: top-left, top-center, top-right, middle-left, middle-right, bottom-left, bottom-center, bottom-right You can select each postion only once. So choose wisely.
label string Label shown above the value in the pill
hide_value boolean false
color_positive string Hex color for positive flow animation (e.g. #64B7F6)
path_positive string SVG path d attribute for positive flow direction
delay_positive string CSS animation delay for positive flow (e.g. 0s, -0.8s)
color_negative string Hex color for negative flow (leave empty to reuse positive color)
path_negative string SVG path d attribute for negative flow direction
delay_negative string CSS animation delay for negative flow

daily_entities entry

Option Type Description
entity entity Sensor entity for the daily value
label string Display label (leave empty to use friendly name)
icon string Icon (e.g. mdi:solar-power). If omitted, the entity’s own icon is used automatically
color string Icon color (hex)
secondary_entity entity Optional second value shown small beside the main value
secondary_icon string Icon for the secondary value
secondary_no_unit boolean Hide the unit of the secondary value
col_span 1-col / 2-col 1-col

general settings

Option Type Default Description
minmax_min_width string 175px Minimum tile width before the grid collapses from 2 columns to 1 (e.g. 175px, 200px, 50%)
flow_height string 265px Height of the SVG flow area, this changes also the height of the card (e.g. 265px, 300px)
svg_height string Fixed height for the SVG, background image and energy flows. When set, both are centered vertically within the flow area. Leave empty to fill the full flow height (e.g. 220px)
gradient_day string linear-gradient(to bottom,#2A75F6 0%,#FFFFFF 67%,#D5D5D5 100%) CSS background gradient for day mode
gradient_night string linear-gradient(to bottom,#0A1929 0%,#1A2332 67%,#2C3440 100%) CSS background gradient for night mode
viewbox_width string 1676 SVG viewBox width — change when using a custom SVG with different dimensions.
viewbox_height string 2058 SVG viewBox height — change when using a custom SVG with different dimensions

SVG paths

The flow animation follows SVG path elements. To get the correct paths for your own SVG:

  1. Draw your isomisometric SVT (e.g. affinity studio, Figma)
  2. Trace the desired flow line as a path
  3. Copy the d attribute value
  4. Paste it into path_positive / path_negative in the card config (a negative path is the positive version but from last to first point)

The default SVG viewBox is 0 0 1676 2058. If your SVG has different dimensions, set viewbox_width and viewbox_height in General Settings accordingly.

4 Likes
3

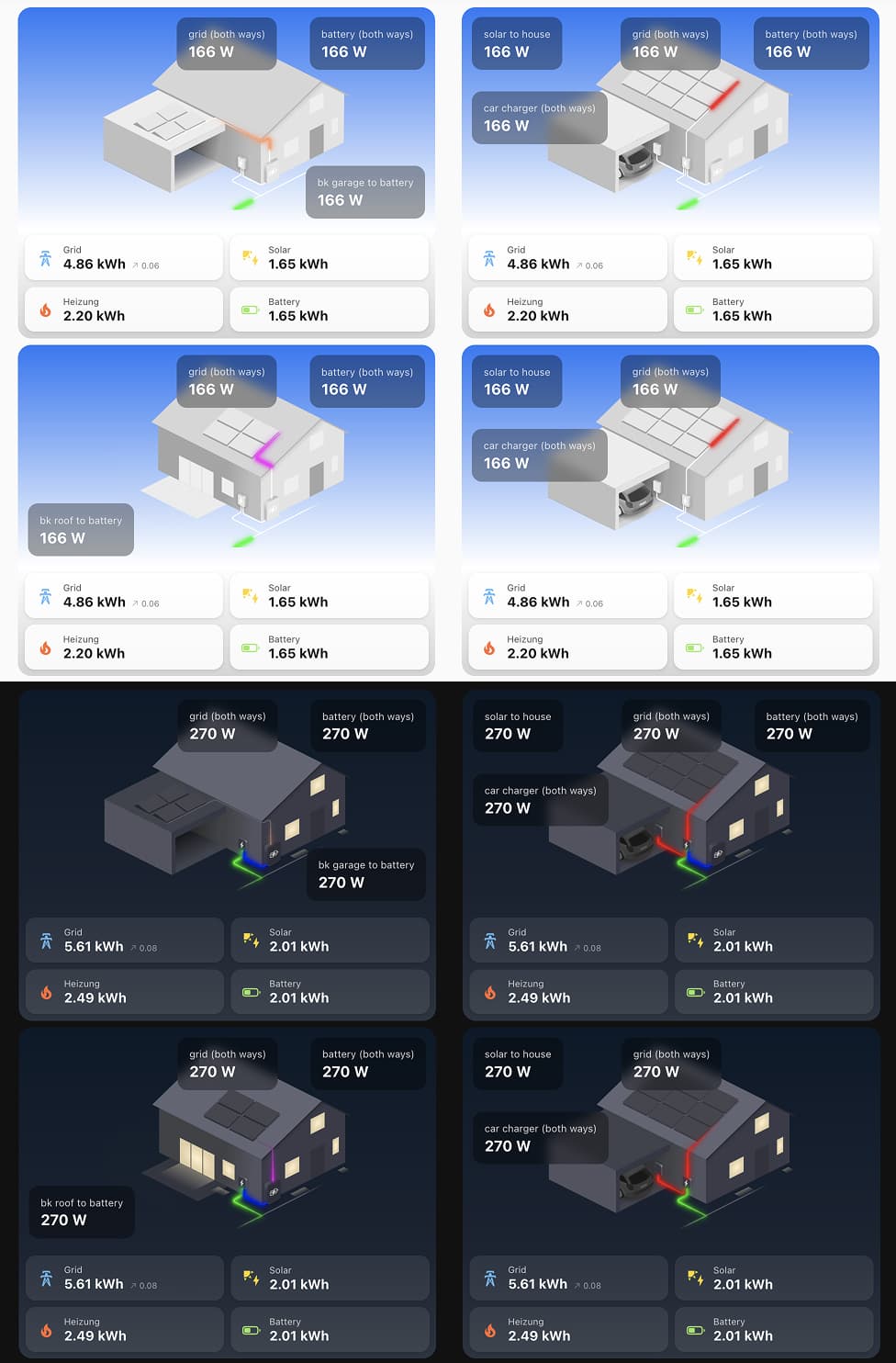

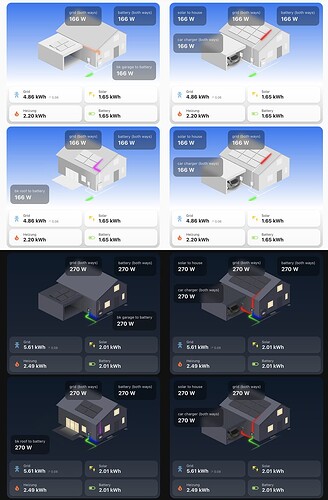

First set of generic houses added

Group 1 (1)
Group 1 (1)976×1484 115 KB
