My Mitsubish AC/Heatpump does not seem to work with my MOES IR UFO-R11

nikno · March 5, 2025, 10:56am

I have MOES IR Blaster UFO-R11 which I have setup using Z2M.

It seems to be correctly working as I have learned IR codes from my SONY receiver and succesfully been able to control volume/muting on the receiver using the UFO-R11 blaster.

Then I am trying to control my Mitsubishi AC/Heatpump (an older one having the remove control called KM09A). It seems my IR Blaster can learn IR codes from the remote control - but when I then try to send them to the AC nothing happens.

Any idea or support would be great - TIA!

Here is an example of a learned IR action I have created to turn of the AC.

alias: IR - Heater - Turn off
description: ""
triggers: []
conditions: []
actions:
  - device_id: 0b0a346f9cd92cba1af50a71b7b24fbf
    domain: text
    entity_id: fb5cb644b49daf5ca7d3c31ae7204cb2
    type: set_value
    metadata:
      secondary: false
    value: >-
      B3ENtwbfAS4FgAMCnQHfYAFABwguBZ0BnQHfAZ0gAQIuBd8gAwOdAZ0BQAcB3wFAB0ADQAtAA+ADC0ABAJ0gAUAXAt8BnSABCd8BLgWdAZ0B3wGAA0ABQAsBnQFABUADQAFAB0ADQAHABwGdAcAJgAdABQDfIAFABQCdIAHgBwVAD+ABawGdAUAPQAFAB0AD4AEbQA0BnQGABQGdAUAHQANAAUAHQCcBLgVACQGdAUAFAS4FgANAAcALgBdABQGdAYAFAZ0BQAfgBwNAAcATAZ0BQAkBnQGABQGdAUAH4BUDAt8BnSABQAVAA0ABQAdAA0ABQAdAA0ABQAcA3yABAJ0gAUAF4AkDAt8BnSABQAUA3yABAJ0gAUAFQANAAUAHQANAAUAHQANAAUAHwAMBLgVAAwFaAUAPAy4FnQGABwPfAZlDQkcBnQFACwUuBZ0B3wHgAQPgAw9AC0ADQB/AB8ALAS4F4AFXAy4FnQFAF0AD4AkLAt8BnSABQAVAA0ABQAcJ3wFaASICWgHfAUALQANAC4ADgBcDWgHfAcAXQAdAA8AT4AcLAZ0B4AN3QA8B3wFAK0ADAZ0B4AEbQA9AAwOdAd8BQAdAA+ABCwEuBYADAd8BQAMDnQEuBUADQAsBWgFAB0ADQJtAB0ATA98BnQHgBQNAE0ADQBdAB0ADgAtAN8ALAd8BwAOAG8AHQCNAAwHfAYAD4B8LgCeAS+ADCwHfAYADgBMBWgFAA0ALQAMB3wGALwHfAeABA4AXAVoBQANAC0ADQAtA70ADD98BnQEuBVoB3wFaAS4FWgE=
mode: single

pasthev · March 14, 2025, 1:31am

Hi nikno,

looking at your signal, the analysis shows the following interesting result:

c4d3 6480 + 0000 1000 + 0000 0000 + 0000 0000 + 0000 + c4d3 6480 + 0000 1000 + 0000 0000 + 0000 0000 + 0000 (no short identified)

There are multiple IR / RF protocols, so, I wouldn’t pretend to be able to interpret them all, but at least, I see the same sequence repeated twice in your signal, and the c4d3 6480 hex being sent, followed by long alternate high/low values…

I can’t explain why these high/lows are there, but if c4d3 6480 is the real sequence to be sent, it should be followed by a long silence. Try this - it would make my day if it works :

Tuya B64:

B3UNrQauASMFgAPgAwHgAw/gAx/gExfgBzPgCwvgCwEB/JQ=

or

B3UNrQauASMFgAPgAwHgAw/gAx/gExfgBxvgCwvgCwEB/JQ=

Raw:

3445,1709,430,1315,430,1315,430,430,430,430,430,430,430,1315,430,430,430,430,430,1315,430,1315,430,430,430,1315,430,430,430,430,430,1315,430,1315,430,430,430,1315,430,1315,430,430,430,430,430,1315,430,430,430,430,430,1315,430,430,430,430,430,430,430,430,430,430,430,430,430,430,430,38140

Let me know if this works!
Pascal

Settings I used in Sensus IR & RF Code Converter :

nikno · March 14, 2025, 8:30am

Hi Pascal,

Thank you for your efforts!

“Luckily” I was today at our second home where I have my IR blaster installed so I could try out your suggestions.

Unfortunately I did not have the same luck with the trials. Again I don’t not get any reaction at all from my AC when I send any of the two “Tuya B64” suggestions. They are just ignored.

pasthev · March 14, 2025, 4:23pm

Aw, shame… but looking at the KM09A remote, I realize it looks like a RF (radiofrequency) 433Mhz remote, not an infrared one… while your IR Blaster UFO-R11 seems to be Infrared-only, as the name implies.

I didn’t notice this in the first place, as I am myself using Broadlink, which does both IR and RF, and so does Sensus.

While most IR signals can be easily reproduced, RF devices often rely on a secured Key Exchange (challenge/response), which, to my knowledge, can not be easily reproduced (goal being to prevent your neighbor from remotely playing with your AC or garage door).

How have you acquired the signal for your Mitsubishi AC/Heatpump, was it with your UFO-R11?

Pascal

nikno · March 14, 2025, 5:08pm

Hmm - interesting.

Yes, when I Google on the remote now it seems to be refered to use 433Mhz, which I assume is then RF.

But it seems like the remote also supports IR as I have read the codes by pointing the remote towards the UFO-R11.

So potentially it can be that this remote supports both IR and RF (to be universal) - but then my AC unit (MUZ-GE25VAH-E1) only supports RF.

I checked the user guide and service manual, but could not find any reference to neither RF nor IR…

(I have left the house where I have this one…so cannot at the moment make a hands on test to see if it works without the normal IR pointing…)

nikno · April 3, 2025, 6:19am

Last weekend I did a trial with putting my hand on top of the remote (“covering the IR eye”) and see if it I could still operate the AC, but I could not.

So - kind of leaves me with the feeling that it uses IR rather than RF…

Unfortunately I did not have time to play more with getting it to work…

HAssister · January 20, 2026, 4:42am

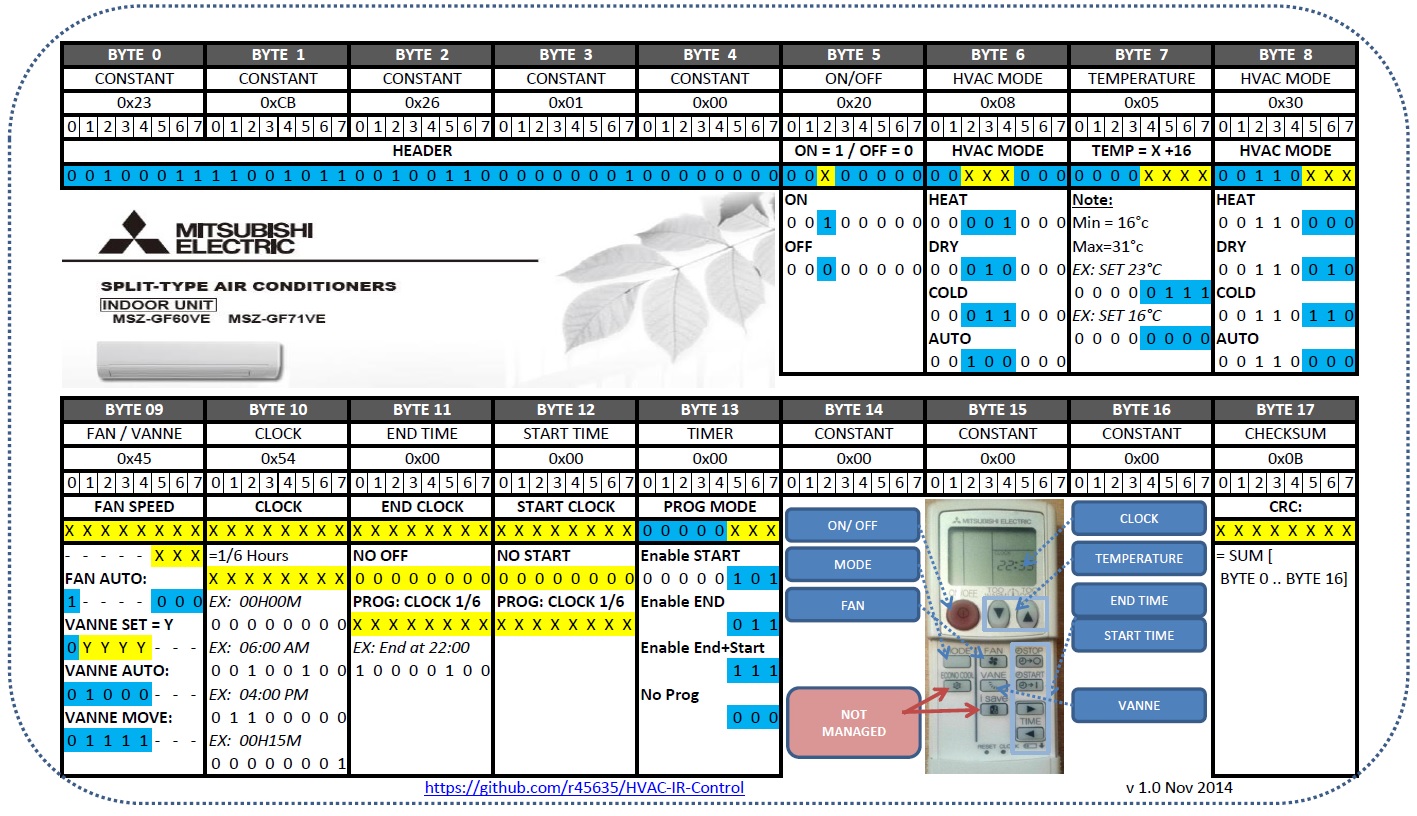

Thank you @pasthev! Your Sensus tool is amazing. I have a similar setup and have been trying to figure out the IR signaling of my remote (model KM09E). I am using a Tuya ZS06 (similar to UFO-R11 but corded, vs battery-powered). I have a Mitsubishi MSZ-GE15 and I came across this website, detailing the signal protocol of the AC.
I am trying to use your tool to convert the Tuya-recorded strings so I can cross reference it to the protocol.

I noticed that every received string varies (when pushing the same button on the remote). Is this normal?

Here are a few sample strings I am trying to decode:

16 deg C, Heat:
CMMNSAbMATIFiWADAMwgAQCJIAEAzCABAzIFzAFACUADQAsBMgVACQXMATIFzAFACUADQAtAA+ADCwHMAUANAYkBwBdAAeADCwGJAeALAwOJASUCQBcCiQHMYAGABwCJIAEAzCABQAXgBQMBiQHgC1NAAcAXAYkB4AMDAokBzCABAIkgAQDMoAFACeAPAwIyBYlgAwDMIAFABUADAzIFzAFAB0ADQAHADwIyBUIgAwCJYAMAzCABCDIFzAHMAUIBzCABQAtAFeAJAwKJAcwgAYAFAcwBQAdAA4ABAYkBQQsDzAGJAUAD4AELAswBiSABA8wBQgFAE0AJAcwBQAVAA0AB4AMHwAtAAcALwAdAP0ALQAMBzAHgAQXACQKJAcwgAUAFAIkgAQDMIAFABQUyBYkBiQFAB4ADAIkgAUALBYkBzAGYQkJHAYkBQA8FMgWJAcwBQANAAQGJAeABD4ALwA/AB+ALF+AHG0AjQAPgAxdAD+AJAwFCAUDbQAOAC4APAcwB4AED4AUTAUIBQFPgAxMHJQKJAcwBiQGAFwGJAUALQANACwIlAkIgAwGJAYAP4BkLQENAA4ArgC8BMgWAB0BDQAOADwBCYAdAC0ADwA9AB0ADwBNACwIlAokgA0AHQAPgDwtAG+AnAwANoFfgAwfgDwtAW0AbQAPgDQsDcQINAcAbQAsMcQLaAHECDQEyBQ0BJaAHAUgGgBMHSAbaAHEC2gA=

same as above, 2nd try:
B54N4waPAUYFQAMC4AGPoAFACQRGBY8B4GABA1ABRgVAAwLgAY8gAUAHBOABjwHgIAECRgWPIAMI4AGPAeABRgWPIAMC4AGPIAEHKwKPAUYFjwFADQHgAUA7A1AB4AFAC+ADAwHgAeABDQKPAeAgAUAFgAMCjwHgIAFABQGPAcA7QAHgAQsFRgWPAeABQAMC4AGPIAGABQGPAUAXQAEA4GABAI9gAUAHAOAgAUAFgAMCjwHgIAEBjwHATwOPAeABQAsC4AGPIAFAQwFGBUAL4AEDgA8CjwHgYAEDUAFGBUALQAcE4AFGBY9gAwXgAY8BRgVABQJQAeAgAQNGBY8BQAEB4AGAAwGPAUAJBY8B4AErAkAhAI8gAUAFAOAgAcAFQAFADcAhBeABUAErAoAH4AMLwBMEKwLgAY8gAUAFAOAgAQCPIAEB4AFAF+ABB0ABAeABQAMC4AGPIAGABQFQAUAHgAMB4AFACQLgAY9gAQHgAUAbAeABQAmAAwGPAcDLQAcBRgVAFwGPAYAHA+ABlkJCRwTgAUYFjyADA+ABjwFAAwGPAUAFBUYFjwHgAUBPAY8BQAtAAwPgAVABgAdACwGPAUALQAPgBwvAD0AHQAMDRgVQAUAH4AkD4AMX4BMLQBsHUAErAlAB4AFARwNQAUYFgAdAC0ADwBsBRgVACwGPAUATgAOACwMrAlABwAvAB+AFEwNQAeABgCsCRgWPYAMD4AFQAcAjCUYFUAHgAY8B4AFABwFQAcAPQAfAA+ABF8ALAY8BQAtAQ0AD4CcLQDPgNQMAEeAOP0AX4AsD4ANvwB9AEwURAUYFEQHABwFGBeACEwICEQE=

17 deg C, Heat:
CJoNyAbVASsFi2ADAdUB4AEDBysF1QHVAYsBQANACwcrBYsB1QGLAcAHANUgAQErBUADQAsBiwFAB0ADQAtAA+APC0Ab4CkDQAHgAzcH1QErBdUB1QHgAxOACwMrBYsBQAtAAUAHQAMDKwXVAUABAIsgAUAF4BcDQC8FKwWLAdUB4AEDBysF1QHVAYsBwAMBKwWAA+ADD0ALQBdAB0ADBysF1QHVAYsB4AUDQAHgBxPADwLVAYsgAUAF4BEDQAHgKx9AAeAjN0AB4AEvAysFiwFAD0AHQANAC8ADAeRCQkcBiwFAF0ADwBdAB+ADD0ALQAPgFxcIKwXVAdUBiwHVIAHgAQsFiwErBYsBQAcA1eAAAcALQAfgLQPgAVMBiwHgAwPgCxfgCxPgAzPgBwtAL0AD4AEXAUkBQA8CEgJJIAMBiwHAD0ATAdUBQAMFSQErBUkBQBvAB4ALQAdAF0ADAYsBQCeAB0ALQAPgAw/AC0AHQAPgAR+ACwGLAUADARICQBsBSQGACwCLIAeACwbVAYsBEgJJoAMDiwHVAeADCwOLARICQA8DiwHVAUAH4A8DAYsBgAPgCR8DKwVJAUAXQAdAAwsSAkkBEgJJARICiwE=

same as above, 2nd try:
CLMNrwblASIFoCADAuUBoOACAQUiBaABoAFAEwRYASIF5WADAKAgAUALAKCgAQEiBYADQBHAC0ABgA9ABQGgAUAFCSIFoAHlAVgB5QFAB0ADwAsC5QGg4AYBAOUgAQCgYAFAB0ADQAFAB0ADQAFAOwZYASIF5QGgIAGABeABAQUiBaABoAGAFYAFAaABQBMA5SABAKDgAAFAC+ADAwKgAeUgAQCgIAFABUAvASIFQAkGoAHlAVgB5SABwA+AAYAPCCIFoAGgAeUBoCABASIFwAcBoAGAAQHlAYALAuUBoOAAAYALAOUgAQCgIAFABQDlIAFABQCgYAHAB0ABwAuAB4AFQAHgAQngAQFAE0ADQAGAB4AFQLsAoCABQAXAA0ABwBdAAUAXwAGACwDlIAFABQCgIAEA5SABQAUEIgXlAaAgAUAHBSIFoAHlAUADQEcD5QGbQkJHBFgBIgXlIAMIoAGgAVgB5QGgYAFAD4ALA+UBIgVAA0AJA6ABIgVABYABASIFQAOAD0AHQAMAoKABwAtAEQMiBaABgAFADQGgAYAFAaABQAdAA8ABwAvAB0AB4AcLQA9AA0BTQAdAA0ABQAdAA8AXQAFADwPlAVgBwBMB5QHgFQNAAUAjQC9AA0ALB+UBWAHlAaAB4AEPB6AB5QFYASIFQAOAC8AP4AEHgBfgAx8B5QHAA4AbBSsCWAHlAYAD4AMLgBOAIwHlAUAD4AMLQA/AA+ADF+ADC8Af4AMH4AMf4AsLQBNAAwFYAYCL4AMLAVgBQAMDIgVYAUAbQAdAAwsrAlgBKwJYAeUBWAE=

18 deg C, Heat:
CMcNtAbbASQFlSADAtsBlWABgAcEJAWVAdtgAQRPASQF22ADAJUgAQMkBZUBQAkA2yABASQFQANACwGVAUAHQANAAcAPQAdAA4AXQAkBlQFABQDbIAHABUABANsgAYAFAtsBlSAB4AEFANsgAQCVIAFABcADApUB2yABBCQF2wGVYAGAB4AFBZUBJAWVAUABANsgAYAFAdsBQAcDJAXbAUAHwAMC2wGVIAFABQDbIAEAlSABQAUA2yABAZUBQCsGJAWVAdsBlSABQAUG2wEkBdsBlSABwAVADwMkBZUBQAEA2yABAyQF2wFACQEkBUAFAk8B2yABAyQF2wFADQCVYAFABwDbIAGAGwCVIAFABQDbIAEAlSABBdsBTwEwAkAHwAMD2wGVAcATBU8B2wGVAYADAtsBlSABQAXgAQPAH0ABwAvgAx9ACwHbAUAFQANAAUAH4AEDQAGADwLbAZVgAUAHQANAAUDHByQFlQHbAZUBQAdAA0ALwAMBzUJCRwGVAUAXQAPAF0AH4AMPQAtAA+ARFwFPAUAfQAMB2wGAA+APC4AfAU8BgANAD+AjCwtPATACTwHbAZUBJAWABwHbAUAHQAOAC0AXwCMD2wFPAYADAZUBQBdABwHbAcAHwAvgBw8HlQEkBTACJAXAF0AHAk8BhiAPBTAClQHbAUADBE8BJAWVYANAC0ADQB8D2wGVAUAXB9sBTwEwAk8BgBMBTwFAC0AD4BcL4AMf4BMvQBvgGQMAF+ACI4AL4AFfQA/AAwNPATACwAtAB0APwAOAD0DHQAMGMAJPAYYFF2ADCzACTwEwAhcBMAIXAQ==

same as above, 2nd try:
B5wN4AauAS8FgAPgAwFAEwcCAq4BrgECAkALQAMDrgFqAcAHAwICrgFACwkvBQICrgGuAS8FgANAAQMCAq4BQA8EAgIuAa4gAUALQAEDAgKuAeARAQMCAq4B4AEBAwICrgHAAQoCAq4BrgECAmoBrqABAQICwFPgAQEBAgJAH+AHFwMCAq4BQAHgBxfgEwFAK0AD4AMB4AsPQBMDAgKuAUABQAsDrgECAoAHBa4BAgKuAcALC64BAgKuAa4BAgKuAeAFAQJqAQIgAAJqAa6gAQECAuABC8ABBWoBAgKuAYABgAsCAgIuIAMBrgFAAQMCAq4B4BkBgDfgBwEEAgIuAVMgAwCu4AoBAAIgAMAZQMdAA0ABQAdAA+ADAQHvQuIFRwUCAq4BrgFAcwFqAUArBQICrgGuAUALBwICLwWuAa4BQAsLrgGuAWoBAgJqAS8FgAMGAgJqAS8FriADA2oBAgKAA+APCwECAuAbAwCuICcALiADwCvgAwuAE4BfQCcDagECAsADBy4BLwWuAa4BwA/ABwMCAi8FwAsDLgECAkALB64BUwKvAAICQAvgBQNAK0ADAQICQAMHrgGuAWoBLwWANwJTAvBgMwEvBYADAQICgBdADwUCAmoBLwWADwMCAi4B4AELgA8BAgJAB0AD4A8LgBsAU6AHAQICwA9ACwEuAYAHQBNAAwMuAQICgAOAFwUuAQICLgHAC0AHQAMDAgIuAeADB0ALQAMBAgKAA8ALQAdAAwACIAAJagEuAVMC8ABTAkAHAS4BQMdAA+AHCwdTAvAAUwLwAA==

ON button:
B6gN0gaOATUFgAMB1wFAA0ABCY4BNQXXAdcBjgFAAwE1BYADwAtAB0ADgBcD1wHXAUALB9cBNQWOAdcBgAPgDwvAH+A3B+ADX+ADS+AVF0ABAY4B4BUDA9cBNQVAA4AnQAED1wGOAYAPQAEBjgFAA0APQAPAC0AHANdgAQGOAUAXAjUF1yADBI4B1wGOYAFAB+CBA0AB4CWPBzUF1wHXAY4B4AMDAzUFjgFADwEHQ0JHAdcBQA9AAwHXAeABA+ABDwHXAUALQAMD1wGOAcAHwAvAD0AHQANAF0AD4AELAdcB4AELAY4BQAMDKgJFAUAH4AkDwBcBRQFAIwEqAkAjwAdAC0ADgA+AU4ALAdcBQANACwVFATUFRQFABwHXAYATgAcJjgE1BY4B1wFFAeABG0APwAOAF0AbQANAK0ADA9cBjgFAD0ADAzUFRQFAB4ADAY4BQA9AAwMqAkUBwAcD1wFFAcAPQBNAA0AP4AkDAY4BwCvgBQtAD+AnAwALIEPgBzPgCxNAI8AXQAdAA0ATQAPAC8AHQBNAA+ABDwE1BcALQAcNCwGFAgsBNQULASoCCwE=

OFF button:
CLINvAbcATcFjWADAdwB4AEDBzcF3AHcAY0BQANACwc3BY0B3AGNAcAHgAsD3AE3BcALAI0gCwXcAdwBjQFAAwM3BY0BQAdAAwc3BdwB3AGNAeAxAwLcAY0gAUAF4BcD4A9rBDcFjQHcIAEAjSABQAXgEQMD3AE3BUAD4AUj4AsPwBPABwDcIAEAjSABQA+AAwHcAUABAI0gAUAF4CEDQAHgDy9AAeAPG+BRF4DLAY0BwAMDNwWNAcALAQBDQkcBjQFAE0ADwBdAB+ADDwI3BUkgAwGNAeAJFwGNAUADwBfAC8APCdwBSQHcAY0BNwWAB0ALgAPAD0AHQANAF0AHQAPAC4AHAzYCSQGAC4AP4AEH4AELQCMBNgKAH+APawU3BY0B3AFAAwFJAYADQAvgDQNAKwE3BUAnCY0B3AFJATYCSQFAD0AHAdwBgBMCNwWNIAMBSQFAD0AHQBvAA0APAjcFFCADAUkBQBMD3AFJAUAH4AUDA40B3AFAA4AXwAcDNgJJAeADC0APAjYCFCADQAfgDwPAH8AHwCfgAw/AC0AH4BcDQD9AI+ABB8DLwBMLNwUUATYCFAE2AhQB
