I’ve sent you PM
Ok, I had my Navien setup with this previously:
################################################################################
#### REVISION HISTORY ####
################################################################################
#
# 5/28/2024 revision to gas m3, ccf, and therms per discussion on community forum
#
substitutions:
comment: "(Navien Hot Water Heater) -- Device host: redacted"
friendly_name: Navien Water Heater
logger_level: WARN
binary_sensor:
- platform: status
name: Status
internal: True
esphome:
name: navien
friendly_name: Navien Water Heater
esp32:
board: esp32-s3-devkitc-1
framework:
type: arduino
# Enable logging
logger:
# Enable Home Assistant API
api:
# Allow Over-The-Air updates
ota:
- platform: esphome
# Allow provisioning Wi-Fi via serial
improv_serial:
wifi:
ssid: !secret wifi_ssid
password: !secret wifi_password
manual_ip:
# Set this to the IP of the ESP
static_ip: x.x.x.x
# Set this to the IP address of the router. Often ends with .1
gateway: x.x.x.x
# The subnet of the network. 255.255.255.0 works for most home networks.
subnet: x.x.x.x
globals:
- id: init_set_temp
type: int
restore_value: yes
initial_value: '120'
#################################
#### UART SETUP/DECODE BYTES ####
#################################
uart:
id: uart_bus
tx_pin: 6
rx_pin: 5
baud_rate: 19200
data_bits: 8
stop_bits: 1
parity: NONE
debug:
direction: BOTH
dummy_receiver: True
after:
delimiter: "\n"
sequence:
- lambda: |-
//
// SPECIAL THANKS TO @suva on the HomeAssistant forum for Decoding these.
// https://community.home-assistant.io/t/navien-hot-water-heater-navilink/330044/92
//
UARTDebug::log_hex(direction, bytes, ',');
UARTDebug::log_int(direction, bytes, ',');
if (bytes[0] == 247 && bytes[1] == 5 && bytes[2] == 80 && bytes[3] == 80 && bytes[4] == 144 && bytes[5] == 34) {
// Water information
id(uart_water_byte0).publish_state(bytes[0]); //Common To all Packets
id(uart_water_byte1).publish_state(bytes[1]); //Common To all Packets
id(uart_water_byte2).publish_state(bytes[2]); //Packet id Byte 0
id(uart_water_byte3).publish_state(bytes[3]); //Packet id Byte 1
id(uart_water_byte4).publish_state(bytes[4]); //Packet id Byte 2
id(uart_water_byte5).publish_state(bytes[5]); //Data Length
id(uart_water_byte6).publish_state(bytes[6]); // Always 66?
id(uart_water_byte7).publish_state(bytes[7]); // Always 0
id(uart_water_byte8).publish_state(bytes[8]); // 0, 8, 32 related to recirc running
id(uart_water_byte9).publish_state(bytes[9]); // System Power: high nibble: Unknown (values 0 and 0x20 observed); low nibble = 0=off 0x5=on
id(uart_water_byte10).publish_state(bytes[10]);
id(uart_water_byte11).publish_state((bytes[11]/2.0)); //Set temp - measured in 0.5 degrees C.
id(uart_water_byte12).publish_state((bytes[12]/2.0)); //Outlet temp - measured in 0.5 degrees C.
id(uart_water_byte13).publish_state((bytes[13]/2.0)); //Inlet temp - measured in 0.5 degrees C.
id(uart_water_byte14).publish_state(bytes[14]); // Always 0
id(uart_water_byte15).publish_state(bytes[15]); // Always 0
id(uart_water_byte16).publish_state(bytes[16]); // Always 0
id(uart_water_byte17).publish_state(bytes[17] / 10.0 / 2.0); // Sort of looks like GPM
id(uart_water_byte18).publish_state(bytes[18] / 10.0); //Flow rate - measured in 0.1 liters per minute (divide by 10 to get LPM)
id(water_flow_gpm).publish_state(bytes[18] / 10.0 * 0.2642);
id(uart_water_byte19).publish_state(bytes[19]);
id(uart_water_byte20).publish_state(bytes[20]);
id(uart_water_byte21).publish_state(bytes[21]); // 190, 173, 186
id(uart_water_byte22).publish_state(bytes[22]); // 0, 186, 201, 202
id(uart_water_byte23).publish_state(bytes[23]); // 32, 63, 186
id(uart_water_byte24).publish_state(bytes[24]); //System status. Probably a bitwise field. Partially decoded: display units: 0x08 position: 1=metric 0=imperial. 0x02 position: 1=weekly 0=hotbutton
id(uart_water_byte25).publish_state(bytes[25]); // 0, 117
id(uart_water_byte26).publish_state(bytes[26]);
id(uart_water_byte27).publish_state(bytes[27]);
id(uart_water_byte28).publish_state(bytes[28]); // 106, 52, 76 // could be runtime? 106
id(uart_water_byte29).publish_state(bytes[29]); // 0, 18, 232
id(uart_water_byte30).publish_state(bytes[30]); // slowly increases, some outlier values 175-186
id(uart_water_byte31).publish_state(bytes[31]);
id(uart_water_byte32).publish_state(bytes[32]);
id(uart_water_byte33).publish_state(bytes[33]); // If recirculation is on/off 2 or 0
id(uart_water_byte34).publish_state(bytes[34]);
id(uart_water_byte35).publish_state(bytes[35]);
id(uart_water_byte36).publish_state(bytes[36]);
id(uart_water_byte37).publish_state(bytes[37]);
id(uart_water_byte38).publish_state(bytes[38]);
id(uart_water_byte39).publish_state(bytes[39]);
id(uart_water_byte40).publish_state(bytes[40]); // checksum?
}
else if (bytes[0] == 247 && bytes[1] == 5 && bytes[2] == 80 && bytes[3] == 15 && bytes[4] == 144 && bytes[5] == 42) {
// Gas information
id(uart_gas_byte0).publish_state(bytes[0]); //Common to All Packets
id(uart_gas_byte1).publish_state(bytes[1]); //Common to All Packets
id(uart_gas_byte2).publish_state(bytes[2]); //Packet id Byte 0
id(uart_gas_byte3).publish_state(bytes[3]); //Packet id Byte 1
id(uart_gas_byte4).publish_state(bytes[4]); //Packet id Byte 2
id(uart_gas_byte5).publish_state(bytes[5]); //Data Length
id(uart_gas_byte6).publish_state(bytes[6]); // Always 69?
id(uart_gas_byte7).publish_state(bytes[7]); // Always 0
id(uart_gas_byte8).publish_state(bytes[8]); // Always 11
id(uart_gas_byte9).publish_state(bytes[9]); // Always 1
id(uart_gas_byte10).publish_state(bytes[10]); // Always 12
id(uart_gas_byte11).publish_state(bytes[11]); // Always 0
id(uart_gas_byte12).publish_state(bytes[12]); // Always 19
id(uart_gas_byte13).publish_state(bytes[13]); // Always 0
id(uart_gas_byte14).publish_state(bytes[14] / 2.0); // Set Temp - measured in 0.5 degrees C.
id(uart_gas_byte15).publish_state(bytes[15] / 2.0); //Outlet temp - measured in 0.5 degrees C.
id(uart_gas_byte16).publish_state(bytes[16] / 2.0); //Inlet temp - measured in 0.5 degrees C.
id(uart_gas_byte17).publish_state(bytes[17]); // Always 0
id(uart_gas_byte18).publish_state(bytes[18]); // Always 0
id(uart_gas_byte19).publish_state(bytes[19]); // Always 0
id(uart_gas_byte20).publish_state(bytes[20]); // almost identical to high_byte_kcal
id(uart_gas_byte21).publish_state(bytes[21]); // Always 1
id(uart_gas_byte22).publish_state(bytes[22]); //Low byte current gas usage in kcal
id(uart_gas_byte23).publish_state(bytes[23]); //High byte current gas usage in kcal
id(total_kcal).publish_state((bytes[23] * 256.0) + (bytes[22]));
id(instant_btus).publish_state(((bytes[23] * 256.0) + bytes[22]) * 3.965667);
id(uart_gas_byte24).publish_state(bytes[24] / 10.0); //Total gas usage in 0.1m^3 (divide by 10 to get m^3)
id(total_gas_use_ccf).publish_state(bytes[24] / 10.0 / 2.832);
id(total_gas_use_therms).publish_state(bytes[24] / 10.0 / 2.832 * 1.02845);
id(uart_gas_byte25).publish_state(bytes[25]); // mostly 53, then 173
id(uart_gas_byte26).publish_state(bytes[26]); // Always 0
id(uart_gas_byte27).publish_state(bytes[27]); // Always 0
id(uart_gas_byte28).publish_state(bytes[28]); // Always 0
id(uart_gas_byte29).publish_state(bytes[29]); // Always 2
id(uart_gas_byte30).publish_state(bytes[30]); // slowly increasing? 10 - 15
id(uart_gas_byte31).publish_state(bytes[31]); // Always 6
id(uart_gas_byte32).publish_state(bytes[32]); // Always 86
id(uart_gas_byte33).publish_state(bytes[33]); // Always 173
id(uart_gas_byte34).publish_state(bytes[34]); // Always 186
id(uart_gas_byte35).publish_state(bytes[35]);
id(uart_gas_byte36).publish_state(bytes[36]); // could be runtime? 106
id(uart_gas_byte37).publish_state(bytes[37]);
id(uart_gas_byte38).publish_state(bytes[38]);
id(uart_gas_byte39).publish_state(bytes[39]);
id(uart_gas_byte40).publish_state(bytes[40]);
id(uart_gas_byte41).publish_state(bytes[41]);
id(uart_gas_byte42).publish_state(bytes[42]);
id(uart_gas_byte43).publish_state(bytes[43]);
id(uart_gas_byte44).publish_state(bytes[44]);
id(uart_gas_byte45).publish_state(bytes[45]);
id(uart_gas_byte46).publish_state(bytes[46]);
id(uart_gas_byte47).publish_state(bytes[47]);
id(uart_gas_byte48).publish_state(bytes[48]); // checksum?
} else {
// Handle other cases
}
###############################
#### ENABLE/DISABLE HEATER ####
###############################
switch:
- platform: template
name: "HW Heater On/Off"
id: navien_switch
restore_mode: ALWAYS_ON
icon: mdi:water-boiler
lambda: |-
if ((id(uart_water_byte9).state) == 5 || (id(uart_water_byte9).state) == 37) {
return true;
id(navien_switch).publish_state(true);
} else {
return false;
id(navien_switch).publish_state(false);
}
turn_on_action:
- uart.write: !lambda
return {0xf7, 0x05, 0x0f, 0x50, 0x10, 0x0c, 0x4f, 0x00, 0x0a, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xce};
id(navien_switch).publish_state(true);
turn_off_action:
- uart.write: !lambda
return {0xf7, 0x05, 0x0f, 0x50, 0x10, 0x0c, 0x4f, 0x00, 0x0b, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xa};
id(navien_switch).publish_state(false);
# - platform: template
# name: "Fake Thermostat Switch"
# id: fake_switch
# restore_mode: ALWAYS_ON
# optimistic: True
# internal: True
####################################################################
#### SETPOINT ENTRY TEMPLATE - STILL WORKING ON THIS 4/29/2024 ####
####################################################################
# climate:
# - platform: thermostat
# name: "Climate Controller"
# visual:
# min_temperature: 120 °F
# max_temperature: 140 °F
# temperature_step: 1.0 °F
# sensor: outlet_temp
# min_heating_off_time: 300s
# min_heating_run_time: 300s
# min_idle_time: 30s
# heat_action:
# - switch.turn_on: fake_switch
# idle_action:
# - switch.turn_off: fake_switch
################################
#### WATER TEMPLATE SENSORS ####
################################
sensor:
- platform: template
name: "WByte_0"
id: uart_water_byte0
internal: True
- platform: template
name: "WByte_01"
id: uart_water_byte1
internal: True
- platform: template
name: "WByte_02"
id: uart_water_byte2
internal: True
- platform: template
name: "WByte_03"
id: uart_water_byte3
internal: True
- platform: template
name: "WByte_04"
id: uart_water_byte4
internal: True
- platform: template
name: "WByte_05"
id: uart_water_byte5
internal: True
- platform: template
name: "WByte_06"
id: uart_water_byte6
# internal: True
- platform: template
name: "WByte_07"
id: uart_water_byte7
internal: True
- platform: template
name: "WByte_08"
id: uart_water_byte8
# internal: True
unit_of_measurement: points
- platform: template
name: "WByte_09 - Power State"
id: uart_water_byte9
internal: true
- platform: template
name: "WByte_10"
id: uart_water_byte10
unit_of_measurement: points
# internal: True
- platform: template
name: "WByte_10 - Set Temp"
id: uart_water_byte11
icon: mdi:thermometer-water
unit_of_measurement: °C
accuracy_decimals: 1
device_class: "temperature"
state_class: "measurement"
- platform: template
name: "Heat Exchange Outlet Temp"
id: uart_water_byte12
icon: mdi:thermometer-water
unit_of_measurement: °C
accuracy_decimals: 1
device_class: "temperature"
state_class: "measurement"
- platform: template
name: "Heat Exchange Inlet Temp"
id: uart_water_byte13
icon: mdi:thermometer-water
unit_of_measurement: °C
accuracy_decimals: 1
device_class: "temperature"
state_class: "measurement"
- platform: template
name: "WByte_14"
id: uart_water_byte14
internal: True
- platform: template
name: "WByte_15"
id: uart_water_byte15
internal: True
- platform: template
name: "WByte_16"
id: uart_water_byte16
internal: True
- platform: template
name: "WByte_17 - GPM"
id: uart_water_byte17
icon: mdi:water-percent
unit_of_measurement: GPM
# internal: True
- platform: template
name: "Water Flow LPM"
id: uart_water_byte18 # multiply by 0.2642 to get GPM
icon: mdi:water-percent
unit_of_measurement: l/min
- platform: template
name: "Water Flow GPM"
id: water_flow_gpm # this is derived from the Water Flow LPM entity
icon: mdi:water-percent
unit_of_measurement: GPM
- platform: template
name: "WByte_19 Unknown Flow"
id: uart_water_byte19
# internal: True
- platform: template
name: "WByte_20"
id: uart_water_byte20
unit_of_measurement: points
# internal: True
- platform: template
name: "WByte_21"
id: uart_water_byte21
unit_of_measurement: points
# internal: True
- platform: template
name: "WByte_22"
id: uart_water_byte22
unit_of_measurement: points
# internal: True
- platform: template
name: "WByte_23"
id: uart_water_byte23
unit_of_measurement: points
# internal: True
- platform: template
name: "WByte_24 Sys Status"
id: uart_water_byte24
unit_of_measurement: points
# internal: True
- platform: template
name: "WByte_25"
id: uart_water_byte25
unit_of_measurement: points
# internal: True
- platform: template
name: "WByte_26"
id: uart_water_byte26
unit_of_measurement: points
# internal: True
- platform: template
name: "WByte_27"
id: uart_water_byte27
unit_of_measurement: points
# internal: True
- platform: template
name: "WByte_28"
id: uart_water_byte28
unit_of_measurement: points
# internal: True
- platform: template
name: "WByte_29"
id: uart_water_byte29
unit_of_measurement: points
# internal: True
- platform: template
name: "WByte_30"
id: uart_water_byte30
unit_of_measurement: points
# internal: True
- platform: template
name: "WByte_31"
id: uart_water_byte31
unit_of_measurement: points
# internal: True
- platform: template
name: "WByte_32"
id: uart_water_byte32
unit_of_measurement: points
# internal: True
- platform: template
name: "WByte_33"
id: uart_water_byte33
unit_of_measurement: points
# internal: True
- platform: template
name: "WByte_34"
id: uart_water_byte34
unit_of_measurement: points
# internal: True
- platform: template
name: "WByte_35"
id: uart_water_byte35
unit_of_measurement: points
# internal: True
- platform: template
name: "WByte_36"
id: uart_water_byte36
unit_of_measurement: points
# internal: True
- platform: template
name: "WByte_37"
id: uart_water_byte37
unit_of_measurement: points
# internal: True
- platform: template
name: "WByte_38"
id: uart_water_byte38
unit_of_measurement: points
# internal: True
- platform: template
name: "WByte_39"
id: uart_water_byte39
unit_of_measurement: points
# internal: True
- platform: template
name: "WByte_40"
id: uart_water_byte40
internal: True
##############################
#### GAS TEMPLATE SENSORS ####
##############################
- platform: template
name: "GByte_0"
id: uart_gas_byte0
internal: True
- platform: template
name: "GByte_01"
id: uart_gas_byte1
internal: True
- platform: template
name: "GByte_02"
id: uart_gas_byte2
internal: True
- platform: template
name: "GByte_03"
id: uart_gas_byte3
internal: True
- platform: template
name: "GByte_04"
id: uart_gas_byte4
internal: True
- platform: template
name: "GByte_05"
id: uart_gas_byte5
internal: True
- platform: template
name: "GByte_06"
id: uart_gas_byte6
unit_of_measurement: points
# internal: True
- platform: template
name: "GByte_07"
id: uart_gas_byte7
unit_of_measurement: points
# internal: True
- platform: template
name: "GByte_08"
id: uart_gas_byte8
unit_of_measurement: points
# internal: True
- platform: template
name: "GByte_09"
id: uart_gas_byte9
unit_of_measurement: points
# internal: true
- platform: template
name: "GByte_10"
id: uart_gas_byte10
unit_of_measurement: points
# internal: True
- platform: template
name: "GByte_11"
id: uart_gas_byte11
unit_of_measurement: points
# internal: True
- platform: template
name: "GByte_12"
id: uart_gas_byte12
unit_of_measurement: points
# internal: True
- platform: template
name: "GByte_13"
id: uart_gas_byte13
unit_of_measurement: points
# internal: True
- platform: template
name: "GByte_14 - Set Temp"
id: uart_gas_byte14
icon: mdi:thermometer-water
unit_of_measurement: °C
accuracy_decimals: 1
device_class: "temperature"
state_class: "measurement"
- platform: template
name: "GByte_15 - Outlet Temp"
id: uart_gas_byte15
icon: mdi:thermometer-water
unit_of_measurement: °C
accuracy_decimals: 1
device_class: "temperature"
state_class: "measurement"
- platform: template
name: "GByte_16 - Inlet Temp"
id: uart_gas_byte16
icon: mdi:thermometer-water
unit_of_measurement: °C
accuracy_decimals: 1
device_class: "temperature"
state_class: "measurement"
- platform: template
name: "GByte_17"
id: uart_gas_byte17
unit_of_measurement: points
# internal: True
- platform: template
name: "GByte_18"
id: uart_gas_byte18
unit_of_measurement: points
# internal: True
- platform: template
name: "GByte_19"
id: uart_gas_byte19
unit_of_measurement: points
# internal: True
- platform: template
name: "GByte_20"
id: uart_gas_byte20
unit_of_measurement: points
# internal: True
- platform: template
name: "GByte_21"
id: uart_gas_byte21
unit_of_measurement: points
# internal: True
- platform: template
name: "kCal Low Byte"
id: uart_gas_byte22
icon: mdi:gas-burner
unit_of_measurement: kCal
- platform: template
name: "kCal High Byte"
id: uart_gas_byte23
icon: mdi:gas-burner
unit_of_measurement: kCal
- platform: template
name: "Total Gas Use Cubic Meters"
id: uart_gas_byte24 # divide by 2.832 to get CCF
icon: mdi:gas-cylinder
unit_of_measurement: m³
accuracy_decimals: 1
- platform: template
name: "GByte_25"
id: uart_gas_byte25
unit_of_measurement: points
# internal: True
- platform: template
name: "GByte_26"
id: uart_gas_byte26
unit_of_measurement: points
# internal: True
- platform: template
name: "GByte_27"
id: uart_gas_byte27
unit_of_measurement: points
# internal: True
- platform: template
name: "GByte_28"
id: uart_gas_byte28
unit_of_measurement: points
# internal: True
- platform: template
name: "GByte_29"
id: uart_gas_byte29
unit_of_measurement: points
# internal: True
- platform: template
name: "GByte_30"
id: uart_gas_byte30
unit_of_measurement: points
# internal: True
- platform: template
name: "GByte_31"
id: uart_gas_byte31
unit_of_measurement: points
# internal: True
- platform: template
name: "GByte_32"
id: uart_gas_byte32
unit_of_measurement: points
# internal: True
- platform: template
name: "GByte_33"
id: uart_gas_byte33
unit_of_measurement: points
# internal: True
- platform: template
name: "GByte_34"
id: uart_gas_byte34
unit_of_measurement: points
# internal: True
- platform: template
name: "GByte_35"
id: uart_gas_byte35
unit_of_measurement: points
# internal: True
- platform: template
name: "GByte_36"
id: uart_gas_byte36
unit_of_measurement: points
# internal: True
- platform: template
name: "GByte_37"
id: uart_gas_byte37
unit_of_measurement: points
# internal: True
- platform: template
name: "GByte_38"
id: uart_gas_byte38
unit_of_measurement: points
# internal: True
- platform: template
name: "GByte_39"
id: uart_gas_byte39
unit_of_measurement: points
# internal: True
- platform: template
name: "GByte_40"
id: uart_gas_byte40
unit_of_measurement: points
# internal: True
- platform: template
name: "GByte_41"
id: uart_gas_byte41
unit_of_measurement: points
# internal: True
- platform: template
name: "GByte_42"
id: uart_gas_byte42
unit_of_measurement: points
# internal: True
- platform: template
name: "GByte_43"
id: uart_gas_byte43
unit_of_measurement: points
# internal: True
- platform: template
name: "GByte_44"
id: uart_gas_byte44
unit_of_measurement: points
# internal: True
- platform: template
name: "GByte_45"
id: uart_gas_byte45
unit_of_measurement: points
# internal: True
- platform: template
name: "GByte_46"
id: uart_gas_byte46
unit_of_measurement: points
# internal: True
- platform: template
name: "GByte_47"
id: uart_gas_byte47
unit_of_measurement: points
# internal: True
- platform: template
name: "GByte_48"
id: uart_gas_byte48
internal: True
# calculated as shown here https://www.plctalk.net/threads/low-byte-high-byte.78315/
- platform: template
name: "Total kCal"
id: total_kcal
icon: mdi:gas-burner
unit_of_measurement: kcal
accuracy_decimals: 2
state_class: "measurement"
device_class: "energy"
- platform: template
name: "Instant BTUs"
id: instant_btus
icon: mdi:gas-burner
unit_of_measurement: "btu/hr"
accuracy_decimals: 1
state_class: "measurement"
- platform: template
name: "Total Gas Use CCF"
id: total_gas_use_ccf # this is derived from the entity Total Gas Use Cubic Meters and converts to CCF for comparison to US energy bills.
icon: mdi:gas-cylinder
unit_of_measurement: CCF
accuracy_decimals: 1
state_class: "measurement"
- platform: template
name: "Total Gas Use Therms"
id: total_gas_use_therms # this is derived from the entity Total Gas Use CCF and one of the typical measurements for the utility company to bill against in the US.
icon: mdi:gas-cylinder # this multiplier 1.02845 was obtained from my energy bill - it is known as "Therm Factor" on my bill
unit_of_measurement: therms
accuracy_decimals: 1
Can I convert to the:
Project repo: GitHub - htumanyan/navien: Navien water heater wire protocol for communication with NaviLink and other attached devices
I try, but the new yaml I try to create and use is not working…any help would be appreciated!
I’d be glad to help if you could share more on what have you tried? in simplest form, if you are compiling from the command line, you can take one of the prebuilt yaml files - navien/esphome/navien-d1-mini.yml at 928d3609a9ce06afcff02706d1a8fcff81a1ba86 · htumanyan/navien · GitHub or navien/esphome/navien-esphome-atom-lite-esp32.yml at 928d3609a9ce06afcff02706d1a8fcff81a1ba86 · htumanyan/navien · GitHub and run esphome run not forgetting to copy secrets.yaml into the esphome folder so that it has your wifi credentials.
Feel free to reach out in PM if needed…
I think I got it in ESPHOME in homeassistant
yaml contents:
esphome:
name: navien
friendly_name: Navien Water Heater
esp32:
board: esp32-s3-devkitc-1
variant: esp32s3
framework:
type: arduino
logger:
level: WARN
api:
ota:
- platform: esphome
wifi:
ssid: !secret wifi_ssid
password: !secret wifi_password
manual_ip:
static_ip: x.x.x.x
gateway: x.x.x.x
subnet: x.x.x.x
external_components:
- source: github://htumanyan/navien
components: [navien]
refresh: 0s
uart:
id: uart_bus
tx_pin: 6
rx_pin: 5
baud_rate: 19200
data_bits: 8
stop_bits: 1
parity: NONE
I guess now I wonder about all the sensors I had before?
You are almost there. Here are a few hints and suggestions:
a. Look at navien/esphome/navien.example.yml at 928d3609a9ce06afcff02706d1a8fcff81a1ba86 · htumanyan/navien · GitHub for an example of how to configure the espbuilder - can copy it from there to your espbuilder and customize.
b. Sensor definitions are moved to separate yaml file (navien-sensors.yml) that are included from platform-specific ones. For example, the navien-esphome-atom-lite-esp32.yml includes it (as well as others).
The sensors.yml is an exhaustive collection of all known and supported sensors.
Does this make sense? Happy to help if not or if anything does not work.
Ahhh…I think I am on the right track…
I’m trying to do the same. It’s been a bit since I’ve been deep in the esphome config world so I’m a bit rusty. However, it looks like the problem is that if we try and include anything that includes navien_base.yml it will complain as that file is referring to local components.
I.e. if I include the contents you referenced for the atom-lite board, when ESPHome Builder compiles it gives this error:
Failed config
external_components: [source /data/packages/4e65cc63/esphome/navien-base.yml:25]
- source:
type: local
Could not find directory '/config/esphome/components'. Please make sure it exists (full path: /config/esphome/components).
path: components
components:
- navien
- source: github://htumanyan/navien
refresh: 0s

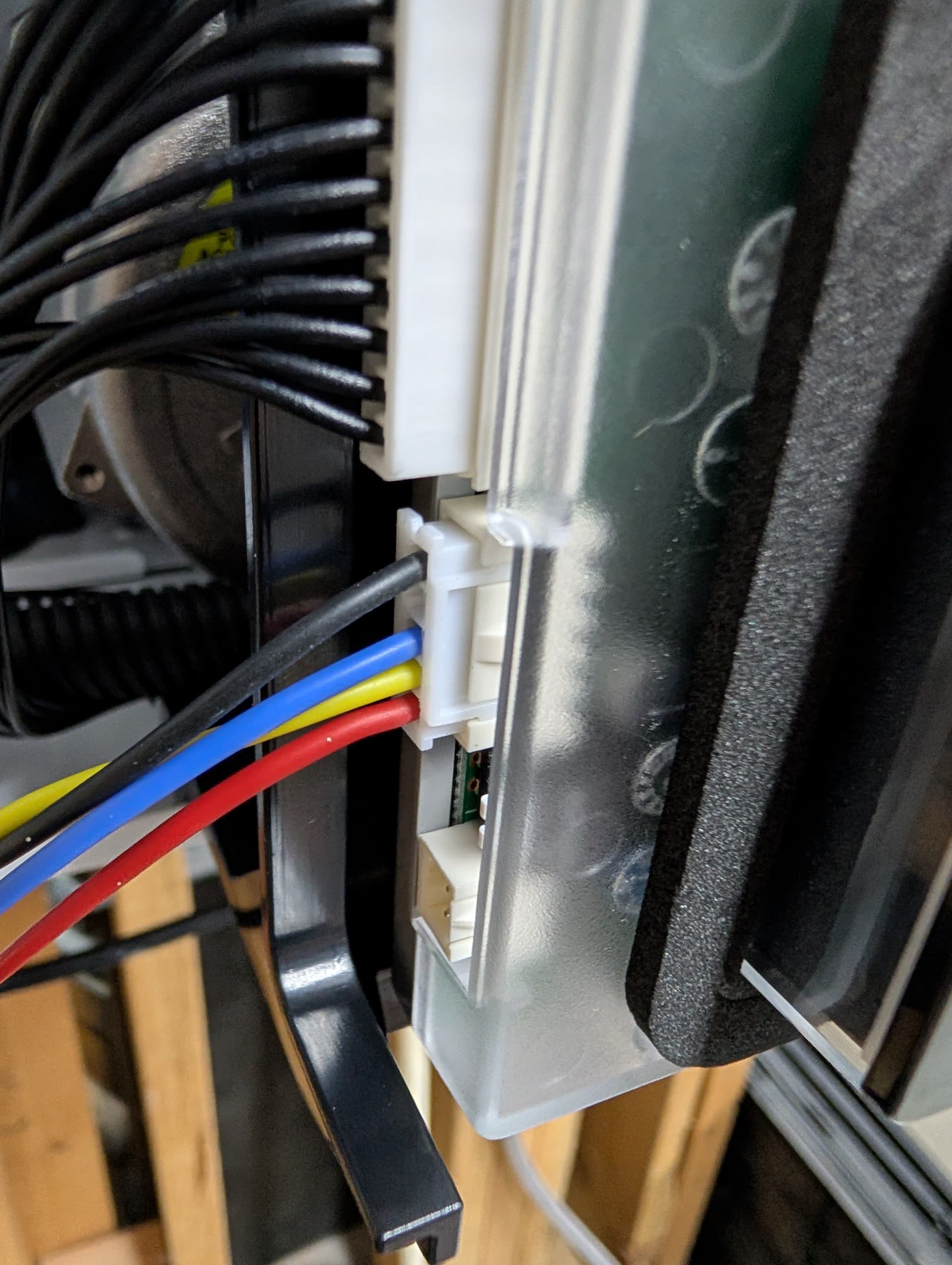

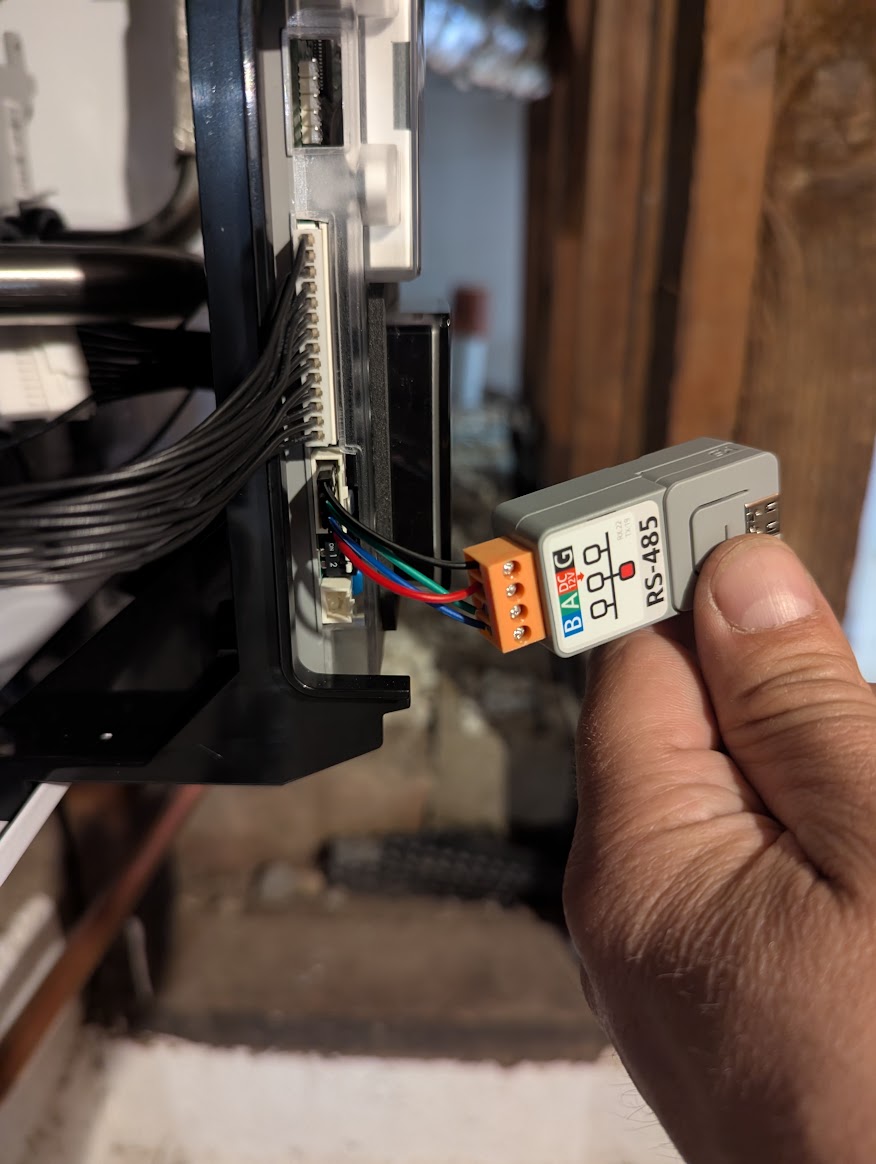

On the docs on the repo, it indicates that the top pin is 14V, but your description shows pin 1 as GND. Are the docs wrong?
I ask as I have my 240A2 hooked up according to the docs but I’m not getting any signal, despite having enabled NaviLink.
My apologies - apparently I’ve missed a contribution that broke remote build. I just put in a fix in the repository that leads to successful compilation in my environment using navien.example.yml - can you try copying that into your esphome builder and running? It expects you to have local secrets.yml
Also in the files section right now it is pointing to d1-mini build. Swap that with atom-lite line if you run atom-lite.
One important step with setting it up is to enable NaviLink in the system menu on Navien device - it won’t produce any activity on the port if not enabled. Have you enabled it?
Here is the link to the cabling details for 240A/240A2 - navien/doc/240.md at 83231cc07c1bf41171e7a732407e6a53d8c77b5d · htumanyan/navien · GitHub
Ya, I did note that I have NaviLink enabled. I setup mine using the link you provided, but looking at back at previous post/pics I think the doc have the pins reversed. I.e. the docs show that pin 5 (GND) is at the bottom, but it seems the rest of the posts and pics on this thread are using the top pin as GND. Some references:
@htumanyan just following up. I swapped the order of my connector to the reverse and that fixed it. So you may want to update the docs to reflect that. It may be helpful to include a pic for others…I know I found those to be super helpful.
The hot-button doesn’t seem to work atm so I’ll need to figure that out. I have an A2 so it should just work and I checked the dip-switches on the board as well. I “press” it (in Home Assistant) and nothing happens
The hot-button doesn’t seem to work atm so I’ll need to figure that out. I have an A2 so it should just work and I checked the dip-switches on the board as well. I “press” it (in Home Assistant) and nothing happens
For the soft hot button to work, the re-circulation mode needs to be set to “Manual Hot Button” (ie not “always on”, “intelligent” or “weekly”).
I find I don’t need the hot button with this automation blueprint:
The approach temporarily enables recirculation for a button press and otherwise just follows a schedule.
I was just about to reply saying I figured that out as well (needing to set it to that). I also just read about the blueprint and thinking that it’s exactly what I need. Now I just need som time to sit down and play with it.
@htumanyan have a question around this. I setup the blueprint up with the various entities. If I press the “NavienHotButton” I can see that it toggles off/on the “Allow Recirculation” toggle as expected, but it doesn’t seem to kick off a recirculation cycle as I’d expect.
I currently have it set to “Intelligent” for the recirculation mode, and the manual button did work when I set it to manual mode. I’m wondering if there’s something I’m missing.
I’ll try and get to this in the next couple of days. I worked around it for the time being, though I am using the branch you set up for the newer ESPHome versions (so I can confirm that branch solves the issue where the entities weren’t updating).
Was able to setup the device from @htumanyan without any issues, thanks!
I noticed the hot button wasn’t working with an A2, when the water heater was setup correctly as well. I realized the enable/disable recirculation functionality it offers provided better behavior for what I was looking for so it ended up working out.
I’m trying to get this working on my Navien NPE-240A2 using an M5Stack Atom S3 Lite (ESP32-S3) and the Atomic RS485 Base, but I am unable to get any communication going.
I am a factory NaviLink module with this ESPHome node. I have verified that NaviLink is enabled in the service menu, and the factory module was working perfectly on this exact port immediately before I swapped it for the ESP32.
I am using the latest version of the component from GitHub, which is supposed to include the fixes for ESPHome 2026.1 compatibility.
Hardware & Wiring
- MCU: M5Stack Atom S3 Lite (ESP32-S3)
- Adapter: M5Stack Atomic RS485 Base
- Power: Powered directly from the Navien 12v port.
I verified the pins with a multimeter (confirmed Ground and +12V). The connector cable I made skips the same pin (pin 2) as the stock cable from Navien.
My Pinout (Top to Bottom on the Navien board):
- Pin 1 (Top): → Adapter G (Ground)
- Pin 2: [Empty / Skipped]
- Pin 3: → Adapter A (Data+)
- Pin 4: → B (Data-)
- Pin 5 (Bottom): → Adapter DC 12V
I see zero incoming data in the logs. I have added a UARTDebug lambda to the config to try and catch anything on the wire, but it returns nothing.
Troubleshooting So Far
- Pin Swapping: Tried Standard (
TX=G6,RX=G5) and Swapped (TX=G5,RX=G6) in YAML. - Physical Wiring: Swapped the Data lines on the screw terminal. (I tried swapping Pin 3 and Pin 4 physically, but neither orientation produced data).
- Baud Rates: Tested 9600, 19200, and 38400.
- Frameworks: Tested both
arduinoandesp-idf.
YAML config:
substitutions:
sensor_suffix: ''
name: navien
friendly_name: Navien
project_version: 1.0.0
rx_pin: GPIO5
tx_pin: GPIO6
esphome:
name: navien
friendly_name: navien
min_version: 2026.1.4
build_path: build/navien
platformio_options: {}
esp32:
board: esp32-s3-devkitc-1
variant: ESP32S3
framework:
type: esp-idf
version: 5.5.2
flash_size: 4MB
cpu_frequency: 160MHZ
logger:
level: VERBOSE
baud_rate: 115200
hardware_uart: USB_SERIAL_JTAG
api:
reboot_timeout: 15min
ota:
- platform: esphome
mqtt:
broker: ''
username: <REDACTED>
password: <REDACTED>
topic_prefix: esphome/navien
enable_on_boot: true
text_sensor:
- platform: wifi_info
ip_address:
name: IP
ssid:
name: SSID
- platform: navien
navien: navien_main
name: Navien Heating Mode
id: heating_mode
heating_mode: true
- platform: navien
navien: navien_main
name: Navien Device Type
id: device_type
device_type: true
- platform: navien
navien: navien_main
name: Navien Operating State
id: operating_state
operating_state: true
sensor:
- platform: wifi_signal
name: Signal dB
id: wifi_signal_db
- platform: navien
id: navien_main
src: 0
name: Navien Metrics
uart_id: main_hw_uart
target_temperature:
name: Navien Target Temp
filters:
- lambda: !lambda |-
return x * (9.0/5.0) + 32.0;
unit_of_measurement: °F
inlet_temperature:
name: Navien Inlet Temp
filters:
- lambda: !lambda |-
return x * (9.0/5.0) + 32.0;
unit_of_measurement: °F
outlet_temperature:
name: Navien Outlet Temp
filters:
- lambda: !lambda |-
return x * (9.0/5.0) + 32.0;
unit_of_measurement: °F
water_flow:
name: Navien Water Flow
filters:
- lambda: !lambda |-
return x / 3.785;
unit_of_measurement: GPM
gas_current:
name: Navien Current Gas Usage
filters:
- lambda: !lambda |-
return x * 3.9680;
unit_of_measurement: BTU
wifi:
domain: <REDACTED>
manual_ip:
static_ip: <REDACTED>
gateway: <REDACTED>
subnet: 255.255.255.0
networks:
- ssid: <REDACTED>
password: <REDACTED>
external_components:
- source:
url: https://github.com/htumanyan/navien
path: esphome/components
type: git
components:
- navien
uart:
- tx_pin:
number: 6
mode:
output: true
rx_pin:
number: 5
mode:
input: true
baud_rate: 19200
stop_bits: 1
parity: NONE
rx_buffer_size: 8192
id: main_hw_uart
debug:
direction: BOTH
dummy_receiver: false
sequence:
- then:
- lambda: !lambda |-
UARTDebug::log_hex(direction, bytes, ' ');
after:
bytes: 150
timeout: 100ms
Has anyone successfully used the Atom S3 Lite + Atomic RS485 Base combination?
Any ideas would be appreciated!
I am interested in buying. How much are you selling it for?
