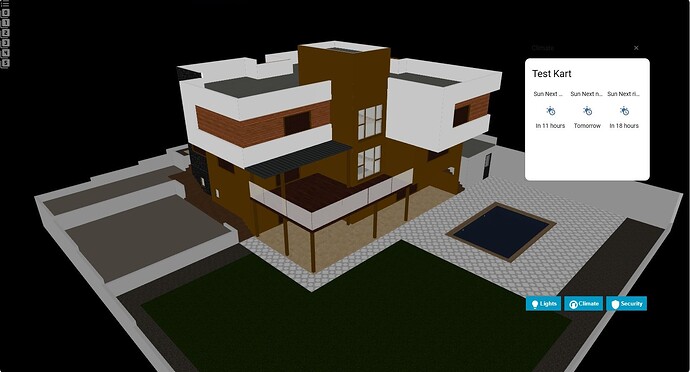

Overlay Pro Card — Engine Powering Overlay Popup UI Layers
Overlay Pro Card (source & documentation):
Overlay Pro Card is an evolution of the Picture Elements concept:
- Instead of placing icons or images on top of a dashboard…
- It places real Lovelace cards as floating popup overlays
- Using a portal-mode UI layer system (menu + embedded popups)
This card is designed as the overlay engine for future Dashboard3D ecosystem.
What is Overlay Pro Card?
Overlay Pro Card provides:
- A floating popup card system
- A portal-mode overlay layer (does not break clicks behind it)
- A built-in menu button launcher
- Manual embed targeting with simple IDs (
001–999) - Multi-popup dashboards with full positioning control
Features
Embed any Lovelace card dynamically- Embed cards from any dashboard to any dashboard
- Works across dashboards/views
- Floating popup overlays with fixed positioning
- Built-in menu button launcher
- Manual ID targeting system (001–999)
- Scroll support for long cards
- Hidden overlays do not block clicks behind them
- Floor3D / Dashboard3D ready
Project Vision
Overlay Pro Card is part of a future 3-module ecosystem:
- Floor3D Pro Card → 3D Scene Engine
- Overlay Pro Card → UI Overlay Engine
- Scene3D → Full Interactive 3D Dashboard Platform
Installation
Method 1: HACS (Recommended)
- Open HACS in Home Assistant.
- Search for: Overlay Pro Card.
- Select the repository and click Download.
- Restart Home Assistant.
After installation, HACS will automatically register the card as a Lovelace resource.
Manual Install
-
Download:
overlaypro-card.js -
Copy into:
/config/www/community/overlaypro-card/ -
Add as Lovelace resource:
resources:
- url: /local/community/overlaypro-card/overlaypro-card.js
type: module
Notes
- No custom repository setup is required anymore, since Overlay Pro is now included in the official HACS Default Repository Store.
- Manual installation is only recommended for advanced or offline setups.
Core Concept
Overlay Pro Card becomes fully functional as soon as it is installed through HACS, because the card already includes a working demo configuration inside its YAML editor.
Users only need to adjust the REQUIRED fields correctly, and the popups will work immediately.
To successfully open a popup, four YAML fields must match:
icon: EMBED#001in the source cardtarget: "001"in the menu buttonembed_id: "001"in the embedder entrydashboard: lovelacein the embedder entry — must match the exact view URL path
When all four values are correct, Overlay Pro can locate the source card and display it as a popup.
Overlay Pro operates in two simple steps:
Step 1 — Define a SOURCE Card
Any Lovelace card can become an embeddable “source card” by adding:
icon: EMBED#001
Universal SOURCE Card Template (Global)
This can be any Lovelace card type:
type: <Your_Card_Type>
title: <Your_Card_Name>
icon: EMBED#001 # REQUIRED: Add this line *IMPORTANT* Embed source ID (001–999)
The only required rule is:
icon: EMBED#001
This marks the card as a SOURCE that Overlay Pro can locate and open as a popup.
Step 2 — Open it as an Overlay Popup
Overlay Pro Card automatically searches the dashboard for the matching SOURCE card and displays it as a floating popup.
To open a popup, the following values must match:
icon: EMBED#001in the source cardtarget: "001"in the menu buttonembed_id: "001"in the embedder entrydashboard: lovelacein the embedder entry — use the exact view URL path (this is what appears in the browser address bar)
All four must align for the popup to function.
A) Add a target to a menu button
buttons:
- label: <Your_Buton_Label>
icon: mdi:<Your_Buton_Icon>
target: "001" # REQUIRED: Must match embed_id below *IMPORTANT*
B) Add the matching embedder settings
embedders:
- embed_id: "001" # REQUIRED: 3-digit ID (001-999) *IMPORTANT*
dashboard: lovelace # REQUIRED: Dashboard name/path — must match the view’s URL path exactly (case‑sensitive) *IMPORTANT*
If these three values match (EMBED#001 → target: "001" → embed_id: "001") and the dashboard value correctly matches the view’s URL path, the popup opens instantly — no extra setup required.
NEW STANDARD — Single Card Engine
Instead of creating multiple embedder cards,
you now define everything inside one Overlay Pro Card card:
Menu buttons
Popup definitions (embedders["])
Positioning per popup
Full YAML Configuration (Menu + Popups)
type: custom:overlaypro-card
portal_mode: global / local # OPTIONAL: global MODE Mounts UI layers into document.body. // local MODE Mounts overlay layers inside the card itself
multi_mode: true / false # OPTIONAL: Enables multi-popup mode (multiple embedders can be open at the same time). When true, URL hash is disabled.
# NOTE: After a browser refresh / page reload, all open popups will be closed (open state is not persisted).
overlay_log: true / false
# ----------------------------
# MENU SETTINGS (OPTIONAL)
# ----------------------------
menu:
enabled: true # OPTIONAL: Enable menu buttons (default: false)
position: # OPTIONAL: Menu CSS style
mode: fixed # OPTIONAL: fixed | absolute (default: fixed)
bottom: 15% # OPTIONAL: Vertical position (use either top OR bottom). Accepts CSS values: %, px, vh, rem...
right: 10% # OPTIONAL: Horizontal position (use either left OR right). Accepts CSS values: %, px, vw, rem...
z_index: 1100 # OPTIONAL: Menu layer priority (default: 1100)
button_style: | # OPTIONAL: Static button CSS style
background: black;
color: white;
buttons:
- label: Lights # OPTIONAL: Button label
icon: mdi:lightbulb # OPTIONAL: Button icon
target: "001" # REQUIRED: Must match embed_id below *IMPORTANT*
- label: Climate
icon: mdi:thermostat
target: "002"
# ----------------------------
# EMBEDDER POPUPS (REQUIRED)
# ----------------------------
embedders:
- embed_id: "001" # REQUIRED: 3-digit ID (001-999) *IMPORTANT*
dashboard: lovelace # REQUIRED: Source dashboard name/path *IMPORTANT*
show_title: false # OPTIONAL: Hide source card title (default: true)
enable_scroll: true # OPTIONAL: Enable scrolling for long content (default: true)
card_size: 2 # OPTIONAL: Card height scale 1-10 (default: 1)
show_close: true # OPTIONAL: Show close (X) button in header (default: false)
embedder_title: "" # OPTIONAL: Custom popup title string (default: empty)
default_visible: false # OPTIONAL: Initial visibility on load (default: false)
content:
position: # OPTIONAL: Popup CSS style
mode: fixed # OPTIONAL: fixed | absolute (default: fixed)
top: 15% # OPTIONAL: Vertical position (use either top OR bottom). Accepts CSS values: %, px, vh, rem...
right: 5% # OPTIONAL: Horizontal position (use either left OR right). Accepts CSS values: %, px, vw, rem...
width: 380px # OPTIONAL: Popup width
height: 300px # OPTIONAL: Popup height
z_index: 1000 # OPTIONAL: Popup layer priority (default: 1000)
- embed_id: "002"
dashboard: lovelace
show_title: true
enable_scroll: true
show_close: true
embedder_title: "Climate"
default_visible: false
content:
position:
mode: fixed
top: 15%
right: 45%
width: 380px
height: 300px
z_index: 1000
Portal Mode Support (Global vs Local)
Overlay Pro supports two mounting behaviors:
portal_mode: global (Default)
For most dashboards:
Mounts UI layers into document.body.
- Best for true fullscreen overlays
- Works like a system-wide popup engine
portal_mode: global
portal_mode: local (Closed System Mode)
For embedded environments (Scene dashboards):
Mounts overlay layers inside the card itself.
- Prevents cross-view overlay persistence
- Useful for Scene3D integration or container dashboards
portal_mode: local
Multi Mode Support (Single vs Multi Popup)
Overlay Pro supports two popup behaviors:
multi_mode: false (Default)
Single-popup mode:
Only one embedder can be open at a time.
- Uses URL hash state (
#embed_001) for deterministic open/close - Works like a classic single-overlay system
multi_mode: false
multi_mode: true (Multi Popup Engine)
Multi-popup mode:
Multiple embedders can be open at the same time.
- URL hash is disabled (state is managed internally)
- Each
embed_idgets its own isolated popup root - After a browser refresh / page reload, all open popups will be closed (open state is not persisted)
multi_mode: true
Improved Cleanup on View Change
When leaving a dashboard view, Overlay Pro now properly tears down:
- Hash listeners
- Menu layer roots
- Popup content layers
This prevents:
- Ghost menus staying visible
- Home Assistant sidebar becoming unclickable
- UI leftovers after navigation
Visual Editor Notes
Overlay Pro Card uses icon: EMBED#001 as the embed marker
because other custom fields often break the Visual Editor.
CSS Position Units
Position accepts any valid CSS unit:
- %, e.g., top: 15%
- px, e.g., right: 120px
- vh/vw, rem, em, etc.
Use *either* top OR bottom and *either* left OR right to avoid conflicts.
Z-Index Guide
## Z-Index Notes
You can override menu and popup z_index to control stacking.
Menu default: 1100
Popup default: 1000
Overlay Trigger API
window.dispatchEvent(new CustomEvent('overlaypro-card-open', {
detail: { target: '001' }
}));
## JS API (Optional)
Overlay Pro Card listens for:
- overlaypro-card-open { target: "001" }
- overlaypro-card-close { target: "001" }
Manual Matching Rule
Buttons always open the popup with the same ID:
target: "001"
embed_id: "001"
Overlay Pro Card does not auto-match.
Manual control is intentional for stability.
It only shows status + logs if missing.
Important Notes
-
Source cards MUST include:
icon: EMBED#001 -
Dashboard names are case-sensitive
-
Maximum supported IDs:
001 → 999 -
Hidden overlays use:
display: none
So they do not block clicks behind them.
Support
Found a bug?
Open an issue on GitHub:
https://github.com/levonisyas/overlaypro-card
ERROR CONDITIONS:
No embed_id: “Overlay Pro Card requires both embed_id AND dashboard parameters”
Dashboard not found: “Dashboard ‘dashboard_name’ not found or inaccessible”
Card not found: “Card with embed ID #XXX not found in dashboard ‘dashboard_name’”
Invalid embed_id format: “embed_id must be a 3-digit number (001-999)”
SUCCESS MESSAGE (console):
“Overlay Pro Card successfully embedded card #XXX”
“Dashboard: dashboard_name”
“Scroll enabled: true/false”
TROUBLESHOOTING:
Add icon to source card: icon: ‘EMBED#001’
Correctly write dashboard name
Make embed_id unique (001-999)
Ctrl+F5 + Home Assistant restart
- “Card not found” → check dashboard name (case sensitive)
- “Overlay behind sidebar” → increase z_index
- “Position not applying” → ensure only one of top/bottom and one of left/right are defined
“Card not found” error
- Verify source card has
icon: EMBED#001(exact format) - Check dashboard name spelling (case-sensitive)
- Ensure embed ID is unique (001-999)
“Dashboard not found” error
- Verify dashboard exists and is accessible
- Check URL path if using custom dashboard names
- Try with
dashboard: lovelacefor main dashboard
Visual Editor shows “Unsupported”
This is normal! Overlay Pro Card uses standard icon: property which Visual Editor fully supports. You can still edit the source card normally.
Stack Compatibility
Works with vertical-stack, horizontal-stack, and grid layouts. Embed ID can be placed in any card within a stack.
Limitations & Notes
- Maximum 999 unique embed IDs per installation (001-999)
- Source card must be in same Home Assistant instance
- Dashboard names are case-sensitive
- Works with all standard and most custom cards
- Not compatible with cards that dynamically change their
icon:property
Enjoy Support
I build these projects for my own needs and share them so others can benefit.
I don’t use donation links — so please don’t buy me coffee
If you enjoy this project, simply
Your feedback and contributions matter more than coffee.
Development Notes
This project was developed with a focus on:
- Visual Editor compatibility
- Simple, intuitive configuration
- Maximum compatibility with existing setups
“From blueprints to code - building better solutions for smart homes.”
