Hi everyone,
I’ve been working on a custom Lovelace card called PulseLine Card.
It’s meant for dashboards where you want a compact metric card, but still want a little more context than a basic entity card provides. PulseLine combines a primary value with optional supporting information like Kudos labels, deltas, sparklines, progress bars, and dual value display.
GitHub:
PulseLine is currently installable through HACS as a custom repository while it waits for default HACS inclusion.
What it does
PulseLine is designed for compact sensor cards where the current value matters, but so does a small amount of context.
It supports:
- compact single value cards
- optional Kudos labels based on value ranges
- optional Kudos icons and colors
- optional accent override based on the active Kudos range
- delta rows for recent change
- recent values sparklines
- recent days sparklines
- progress bars for score style cards
- dual mode for paired values
- graceful unavailable and unknown handling
- a visual preview in the Home Assistant card picker

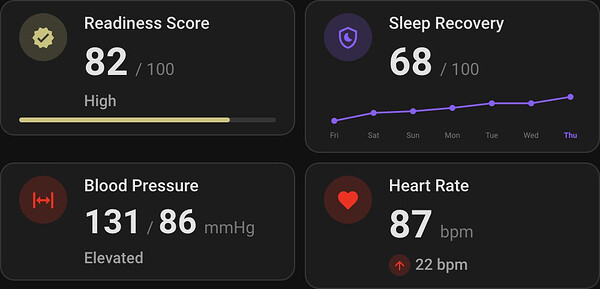

Some examples of where it can be useful:
- sleep scores
- steps
- air quality
- battery levels
- weight
- temperature or humidity
- blood pressure
- any numeric sensor where a compact trend or status label is helpful
Installation
Until it is available directly in the default HACS store, install it as a HACS custom repository.
Repository:
https://github.com/mtwhitley/pulseline-card
Category:
Dashboard
Then search for PulseLine Card in HACS and download it.
Minimal example
type: custom:pulseline-card
entity: sensor.sleep_score
name: Sleep Score
Example with Kudos and sparkline
type: custom:pulseline-card
entity: sensor.pm25
name: PM 2.5
icon: mdi:dots-grid
accent_color: "#00ff00"
supporting_row:
type: kudos
kudos_rules:
- min: 0
max: 50
label: Good
- min: 51
max: 100
label: Fair
color: "#ffff00"
icon: mdi:arrow-top-right-thick
accent_override: true
- min: 101
label: Poor
color: "#ff0000"
icon: mdi:arrow-up-bold
accent_override: true
footer_row:
type: sparkline_values
x_values: 7
Example with Recent Days sparkline
type: custom:pulseline-card
entity: sensor.sleep_score
name: Sleep Score
icon: mdi:power-sleep
accent_color: "#8b5cf6"
display_style: score
score_max: 100
footer_row:
type: sparkline_days
Dual mode with Kudos example
type: custom:pulseline-card
card_mode: dual
entity: sensor.systolic
entity_2: sensor.diastolic
icon: mdi:arrow-expand-horizontal
accent_color: "#ff0000"
value_precision: 0
supporting_row:
type: kudos
kudos_rules:
- min: 0
max: 120
label: Normal
- min: 121
max: 139
label: Elevated
- min: 140
label: High
The full README has more examples and configuration details:
