Has anyone tried building esp32 receiver for this switch https://www.aliexpress.com/item/1005006297456850.html
using RF receiver like https://www.aliexpress.com/item/1005008341679708.html
OP needs a transmitter to be able to action the switch.
Having a transmitter hooked up through, e.g., ESPHome is the easy part.
The difficult one is to know what software protocol that device is using above 433MHz, which is just the infrastructure part…
OP was asking receiver, so I expect he/she want’s to detect the transmitter switches with Esphome.
Yes, I’m talking about receiver
The manufacturer of the switch requires it to be receiver-switch pairs where receiver is meant to physically connect to lightbulbs
I don’t want to physically connect lightbulbs through their receivers as that would require rebuilding my electricity grid
What I imagine is buying just switches and controlling lightbulbs other ways, maybe with something like this https://www.aliexpress.com/item/1005006512623289.html
The switch itself is not powered by battery, it self generates power by moving magnet near coils
I don’t think it can generate enough power for some complex interactions/protocols with receiver
I’d expected something like transmitting ID of the switch
Not sure what you’re trying to achieve, actually.
So just buy Tuya wifi bulbs, then. They are actually cheaper than that smart socket…
Never had any luck with no-battery 433Mhz switches, not with Sonoff Rfbridge, not with RFlink, not with DIY Tasmota/OpenMQTTGateway/ESPHome, not with a RTL-SDR dongle. YMMV.
But the link in the first post of this topic shows switches powered by CR2023 ?
Then you have to post link to that switch.
The one you linked is battery powered:
Coding way: EV1527 learning code
Modulation: ASK
Which supposed to be ok for common 433 remote receiver like RXB6.
Ah, you want physical control and replace the receivers with something else? Misunderstood that.
If it’s actually simple EV1527 coding, then superheterodyne is the way to go, as Karosm suggested.
For decoding, I’m using RTL433 component over ESPHome (GitHub - juanboro/esphome-rtl_433-decoder: RTL_433 Decoder Component for ESPHome), which uses GitHub - juanboro/rtl_433_Decoder_ESP: RTL_433 Decoder for ESP32
For my actual decoding, I added a specific EV1527 RTL433 decoder, YMMV
Might be over-engineered, and easier solution might be available, though
tl;dr, my esphome YAML
substitutions:
device_name: "esp32-rx500-receiver"
###########################################
esphome:
name: "${device_name}"
friendly_name: ESP32 RX500 receiver
esp32:
board: esp32doit-devkit-v1
framework:
# type: arduino
type: esp-idf
packages:
base: !include common/base_nomq.yaml
external_components:
- source: github://koying/esphome-rtl_433-decoder
components: [ rtl_433 ]
refresh: always
logger:
# level: VERBOSE
mqtt:
broker: mqtt.lan
username: !secret mqtt_user
password: !secret mqtt_pwd
substitutions:
device_name: "esp32-rx500-receiver"
###########################################
esphome:
name: "${device_name}"
friendly_name: ESP32 RX500 receiver
esp32:
board: esp32doit-devkit-v1
framework:
# type: arduino
type: esp-idf
packages:
base: !include common/base_nomq.yaml
external_components:
- source: github://koying/esphome-rtl_433-decoder
components: [ rtl_433 ]
refresh: always
logger:
# level: VERBOSE
mqtt:
broker: mqtt.lan
username: !secret mqtt_user
password: !secret mqtt_pwd
discovery: false
time:
- platform: sntp
id: rtc_time
timezone: Europe/Brussels
sensor:
- platform: template
id: esp_memory
icon: mdi:memory
name: Free Memory
lambda: return heap_caps_get_free_size(MALLOC_CAP_INTERNAL) / 1024;
unit_of_measurement: 'kB'
state_class: measurement
entity_category: "diagnostic"
state_topic:
- platform: uptime
name: Uptime
id: sys_uptime
state_topic:
- platform: wifi_signal
name: RSSI
id: wifi_signal_db
entity_category: "diagnostic"
state_topic:
binary_sensor:
- platform: status
name: Status
state_topic:
light:
- platform: status_led
name: "led"
pin: GPIO2
state_topic:
command_topic:
button:
- platform: restart
name: "Restart"
state_topic:
command_topic:
text_sensor:
- platform: wifi_info
ip_address:
name: "IP Address"
icon: mdi:wifi
state_topic:
ssid:
name: "Connected SSID"
icon: mdi:wifi-strength-2
state_topic:
# ESPHome version
- platform: version
hide_timestamp: true
name: "ESPHome Version"
state_topic:
- platform: template
name: REMOTE_WHITE_ABCD_01 sensor
id: REMOTE_WHITE_ABCD_01_sensor
icon: "mdi:remote"
- platform: template
name: REMOTE_BLACK_ABCD_02 sensor
id: REMOTE_BLACK_ABCD_02_sensor
icon: "mdi:remote"
- platform: template
name: REMOTE_TINY_ABCD_03 sensor
id: REMOTE_TINY_ABCD_03_sensor
icon: "mdi:remote"
- platform: template
name: DOORBELL sensor
id: DOORBELL_sensor
icon: "mdi:remote"
- platform: template
name: BUTTON_01 sensor
id: BUTTON_01_sensor
icon: "mdi:remote"
- platform: template
name: SIMPLE_DOOR_CONTACT_01 sensor
id: SIMPLE_DOOR_CONTACT_01_sensor
icon: "mdi:remote"
- platform: template
name: SIMPLE_DOOR_CONTACT_02 sensor
id: SIMPLE_DOOR_CONTACT_02_sensor
icon: "mdi:remote"
- platform: template
name: DOOR_CONTACT_01 sensor
id: DOOR_CONTACT_01_sensor
icon: "mdi:fence-electric"
- platform: template
name: DOOR_CONTACT_04 sensor
id: DOOR_CONTACT_04_sensor
icon: "mdi:fence-electric"
interval:
- interval: 1min
then:
- lambda: |-
id(DOORBELL_sensor).publish_state("unknown");
id(REMOTE_WHITE_ABCD_01_sensor).publish_state("unknown");
id(REMOTE_BLACK_ABCD_02_sensor).publish_state("unknown");
id(REMOTE_TINY_ABCD_03_sensor).publish_state("unknown");
id(REMOTE_TINY_ABCD_03_sensor).publish_state("unknown");
id(DOORBELL_sensor).publish_state("unknown");
id(DOOR_CONTACT_04_sensor).publish_state("unknown");
id(DOOR_CONTACT_01_sensor).publish_state("unknown");
remote_receiver:
- id: rf_receiver
pin:
number: GPIO13
tolerance: 60%
filter: 4us
idle: 4ms
buffer_size: 2048 # This value is pretty large... default 10k is way too large
on_drayton :
then:
- lambda: |-
uint32_t device = x.address;
uint32_t button = x.channel;
ESP_LOGD("drayton", "Received code: %d / %d", device, button);
std::string sButton;
switch(device) {
case [retracted]:
switch(button) {
case 0x018:
sButton = "GATE";
break;
case 0x01f:
sButton = "DOOR";
break;
}
id(DOORBELL).trigger(sButton);
id(DOORBELL_sensor).publish_state(sButton);
break;
}
###############################################
## rtl_433 decoder example
###############################################
# How to use:
# 1. Configure the rtl_433 component to receive ESPhome remote data (receiver_id)
# 2. Use the on_json_message trigger from the rtl_433 component to receive the json messages and process
# this example processes pulses from the remote receiver component and then sends decoded
# data via MQTT similar to how rtl_433 would. It also generates home-assistant event bus messages
# via the API (if HA is connected and listening)
rtl_433:
id: my_rtl433_id
receiver_id: rf_receiver
on_json_message:
then:
- lambda: |-
if (x["model"] == "Generic EV1527") {
auto now = id(rtc_time).now();
char dateStr[25] = {0};
// check valid time
if (now.is_valid()) {
sprintf(dateStr, "%s", now.strftime("%Y-%m-%d %H:%M:%S").c_str());
}
uint32_t device = x["id"].as<int>();
uint32_t button = x["data"].as<int>();
ESP_LOGD("rtl_433", "Received event: %s", x);
std::string sButton;
switch(device) {
case [retracted]:
switch(button) {
case 1:
sButton = "A";
break;
case 2:
sButton = "B";
break;
case 4:
sButton = "C";
break;
case 8:
sButton = "D";
break;
}
id(REMOTE_WHITE_ABCD_01).trigger(sButton);
id(REMOTE_WHITE_ABCD_01_sensor).publish_state(sButton);
break;
case [retracted]:
case [retracted]:
switch(button) {
case 8:
sButton = "A";
break;
case 4:
sButton = "B";
break;
case 1:
sButton = "C";
break;
case 2:
sButton = "D";
break;
}
id(REMOTE_BLACK_ABCD_02).trigger(sButton);
id(REMOTE_BLACK_ABCD_02_sensor).publish_state(sButton);
break;
case [retracted]:
switch(button) {
case 2:
sButton = "B";
break;
case 1:
sButton = "C";
break;
}
id(REMOTE_TINY_ABCD_03).trigger(sButton);
id(REMOTE_TINY_ABCD_03_sensor).publish_state(sButton);
break;
case [retracted]:
switch(button) {
case 1:
sButton = "A";
break;
case 2:
sButton = "C";
break;
case 8:
sButton = "D";
break;
}
id(REMOTE_TINY_ABCD_03).trigger(sButton);
id(REMOTE_TINY_ABCD_03_sensor).publish_state(sButton);
break;
case [retracted]:
switch(button) {
case 40202:
sButton = "GATE";
break;
case 40193:
sButton = "DOOR";
break;
}
id(DOORBELL).trigger(sButton);
id(DOORBELL_sensor).publish_state(sButton);
break;
case [retracted]:
sButton = "SINGLE";
id(BUTTON_01).trigger(sButton);
if (strlen(dateStr))
id(BUTTON_01_sensor).publish_state(dateStr);
break;
case [retracted]: // Mail door
sButton = "SINGLE";
id(SIMPLE_DOOR_CONTACT_01).trigger(sButton);
if (strlen(dateStr))
id(SIMPLE_DOOR_CONTACT_01_sensor).publish_state(dateStr);
break;
case [retracted]: // Flap
sButton = "SINGLE";
id(SIMPLE_DOOR_CONTACT_02).trigger(sButton);
if (strlen(dateStr))
id(SIMPLE_DOOR_CONTACT_02_sensor).publish_state(dateStr);
break;
case [retracted]: // Grille
switch(button) {
case 10:
sButton = "OPEN";
break;
case 14:
sButton = "CLOSE";
break;
}
id(DOOR_CONTACT_04).trigger(sButton);
id(DOOR_CONTACT_04_sensor).publish_state(sButton);
break;
case [retracted]: // Portail
switch(button) {
case 10:
sButton = "OPEN";
break;
case 14:
sButton = "CLOSE";
break;
}
id(DOOR_CONTACT_01).trigger(sButton);
id(DOOR_CONTACT_01_sensor).publish_state(sButton);
break;
}
}
# MQTT publish similar to how rtl_433 would...
# todo: add in the timestamp to the json message
- mqtt.publish_json:
topic: !lambda |-
ESP_LOGD("rtl_433", "MQTT publish: %s", x);
std::string topic=str_sprintf("rtl_433/%s/events",App.get_name().c_str());
if (x["model"]) {
if (x["id"])
topic+=str_sprintf("/%s/%d",x["model"].as<const char*>(),x["id"].as<int>());
else
topic+=str_sprintf("/%s",x["model"].as<const char*>());
}
return(topic);
payload:
root.set(x);
# Also generate a home assistant event (you can then do all kinds of things with this data in home-assistant)
# Note that HA will also receive all the event data above - so really only one of these is necessary...
# HA event API is better, but MQTT is more universal. The choice is yours.
# - homeassistant.event:
# event: esphome.rtl_433
# data:
# hostname: !lambda |-
# return App.get_name();
# message: !lambda |-
# return json::build_json([x](JsonObject root) {
# root.set(x);
# });
# frequency: !lambda |-
# return id(mycc1101)._freq;
# rssi: !lambda |-
# return id(mycc1101).last_rx_rssi;
remote_transmitter:
- id: rf_transmitter
pin:
number: GPIO12
carrier_duty_percent: 100%
event:
- platform: template
name: REMOTE_WHITE_ABCD_01
id: REMOTE_WHITE_ABCD_01
icon: "mdi:remote"
device_class: "button"
event_types:
- "A"
- "B"
- "C"
- "D"
- platform: template
name: REMOTE_BLACK_ABCD_02
id: REMOTE_BLACK_ABCD_02
icon: "mdi:remote"
device_class: "button"
event_types:
- "A"
- "B"
- "C"
- "D"
- platform: template
name: REMOTE_TINY_ABCD_03
id: REMOTE_TINY_ABCD_03
icon: "mdi:remote"
device_class: "button"
event_types:
- "A"
- "B"
- "C"
- "D"
- platform: template
name: DOORBELL
id: DOORBELL
icon: "mdi:remote"
device_class: "doorbell"
event_types:
- "DOOR"
- "GATE"
- platform: template
name: BUTTON_01
id: BUTTON_01
icon: "mdi:remote"
device_class: "button"
event_types:
- "SINGLE"
- platform: template
name: SIMPLE_DOOR_CONTACT_01
id: SIMPLE_DOOR_CONTACT_01
icon: "mdi:remote"
device_class: "button"
event_types:
- "SINGLE"
- platform: template
name: SIMPLE_DOOR_CONTACT_02
id: SIMPLE_DOOR_CONTACT_02
icon: "mdi:remote"
device_class: "button"
event_types:
- "SINGLE"
- platform: template
name: DOOR_CONTACT_01
id: DOOR_CONTACT_01
icon: "mdi:fence-electric"
device_class: "button"
event_types:
- "OPEN"
- "CLOSE"
- platform: template
name: DOOR_CONTACT_04
id: DOOR_CONTACT_04
icon: "mdi:fence-electric"
device_class: "button"
event_types:
- "OPEN"
- "CLOSE"
Hhmmm… This is a very interesting repo that I’ve never seen. Could you summarize whats different between this and the native Esphome rf_reciever?

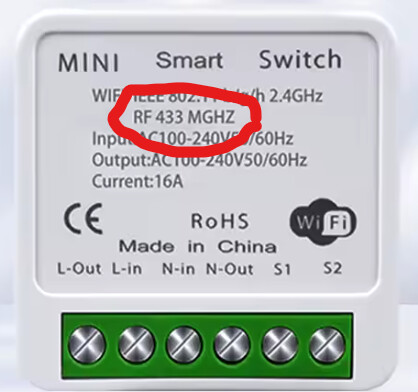

Sorry my bad, the link I posted is what I first thought to buy but I actually ordered this one https://www.aliexpress.com/item/1005006309609881.html where the switch is powered by Faraday law, no battery required
Exactly, I have multiple things to control so I need multiple switches but I’d like to not buy multiple receivers if I can have one receiver that takes signals from all switches
It seems to require esp32 with multiple cores
Will try it a bit later when I get one
Thanks
Let us know if you get somewhere with those switches.
I see quite pointless to try to decode the signal as a first step.
Just connect your receiver module to esp and give remote_receiver a go with dump: raw.
Your AE description says it’s ASK modulation, but doesn’t specify what kind of.
I would expect the signal being pretty short for obvious reasons.
Tried the component you suggested
Unfortunately it didn’t work
I was able to catch some random signals from nearby apartments but not from the switch
The remote_receiver itself catches switching every single time, I can see array of random numbers using dump: all, but is not able to decode anything
post the array of “random numbers” for few switch presses.
Don’t understand how to upload logs here, shared on dropbox instead https://www.dropbox.com/scl/fi/140an69slx0kwabtqo2n3/logs_esphome-web-5a4240_logs.txt?rlkey=e6sack13jets2jcokhmod3st8&st=r0toznpa&dl=0
I’ve noticed when I press the switch button I usually get something like this
[remote.beo4:086]: Beo4: n_sym=94 with a different number each time followed by [remote.pronto:229]: Received Pronto: data= with long list of numbers around 100 of then for one switch and around 300 for the other switch
You can upload logs the same way as you post code.
I’d like to see dump: raw to understand what your transmitter really sends.
