I’m having a bit of a UART problem…
I have a project that uses an ESP32 board with ESPHome to interact with my Mitsubishi heatpump.
I had it somewhat working with an ESP8266 (Wemos D1 mini) but it kept crashing.
I tried to move it to two different ESP32 (still Wemos D1 mini style), but UART would not work on either of them!
I moved it to an Olimex ESP32-POE, and everything works just fine.
However, the ESP32-POE form factor is not ideal for my use, so I wanted to move it to an Olimex ESP32-Gateway-EA; but again, no way to make UART work at all…
I’ve even been in touch with Olimex support and we ensured UART was working properly on the selected pins (GPIO16 & 32) using Arduino IDE.
Do you have any idea what could cause this code to work on some boards but not others?
(BTW, I did make sure to use the proper board, at least for esp32-poe and esp32-gateway, for the D1 mini I can’t remember)
Post your wiring, your code and your logs, so someone can have a look…
I have no reason to think plain Esp32 (D1 mini) has any UART problems with esphome.
Bad soldering?
Sure!
[ Edit: bad solder joints was the first thing I suspected; so on each board that didn’t work I tried re-flowing the joints, and even replacing the pins ]
substitutions:
name: heat-pump
friendlyName: Heat Pump
esphome:
name: ${name}
friendly_name: ${friendlyName}
devices:
- id: zone1_device
name: "1st floor"
area_id: zone1_area
- id: zone2_device
name: "2nd floor"
area_id: zone2_area
areas:
- id: zone1_area
name: "1st floor"
- id: zone2_area
name: "2nd floor"
- id: utility_area
name: "Utility room"
esp32:
board: esp32-gateway
# board: esp32dev
framework:
type: esp-idf
# Enable logging
logger:
# Enable Home Assistant API
api:
encryption:
key: "***"
ota:
- platform: esphome
password: "***"
external_components:
- source: github://Ulrar/esphome-ecodan-heatpump@develop
refresh: 0s
components: [ ecodan ]
mdns:
disabled: true
wifi:
ssid: !secret wifi_ssid
password: !secret wifi_password
# Enable fallback hotspot (captive portal) in case wifi connection fails
ap:
ssid: "${friendlyName} Fallback Hotspot"
password: "***"
manual_ip:
static_ip: 10.0.0.195
gateway: 10.0.0.1
subnet: 255.255.255.0
use_address: 10.0.0.195
captive_portal:
# Enable Web server.
web_server:
port: 80
# Sync time with Home Assistant.
time:
- platform: homeassistant
id: homeassistant_time
uart:
id: ecodan_uart
baud_rate: 2400
tx_pin: GPIO16
rx_pin: GPIO32
rx_buffer_size: 1024
parity: EVEN
# debug:
# direction: BOTH
# dummy_receiver: false
# after:
# delimiter: "\n"
# sequence:
# - lambda: UARTDebug::log_string(direction, bytes);
ecodan:
id: ecodan_instance
uart_id: ecodan_uart
text_sensor:
# Heat pump general status sensors
- platform: ecodan
date_time:
name: Current date/time
defrost:
name: Defrost
heating_stage:
name: Heating stage
operating_mode:
name: Operating mode
heat_cool:
name: Heating/cooling
date_energy_cons:
name: Date energy consumption
date_energy_prod:
name: Date energy production
holiday_mode:
name: Holiday mode
sensor:
- platform: uptime
name: Uptime
- platform: wifi_signal
name: WiFi Signal
update_interval: 60s
- platform: homeassistant
name: 2nd Floor temperature
entity_id: sensor.2nd_floor_temperature
internal: false
disabled_by_default: true
device_class: temperature
state_class: measurement
unit_of_measurement: "°C"
filters:
- clamp: # Limits values to range accepted by Mitsubishi units
min_value: 1
max_value: 40
ignore_out_of_range: true
- throttle: 30s
on_value:
then:
- lambda: 'id(ecodan_instance).setRemoteTemperature(x, 2);'
# # Heat pump general sensors
- platform: ecodan
error_code:
name: Error code
frequency:
name: Frequency
output_power:
name: Output power
gas_return_temp_signed:
name: Gas return temperature
outside_temperature:
name: Outside temperature
water_feed_temp_signed:
name: Water feed temperature
water_return_temp_signed:
name: Water return temperature
runtime:
name: Runtime
water_flow:
name: Water flow
energy_cons_yesterday:
name: Heating energy consumption (yesterday)
id: energy_cons_yesterday
energy_prod_yesterday:
name: Heating energy production (yesterday)
id: energy_prod_yesterday
energy_consumed_increasing:
name: Total energy consumed
- platform: template
name: "CoP (yesterday)"
id: cop_yesterday
lambda: |-
float prod = id(energy_prod_yesterday).state;
float cons = id(energy_cons_yesterday).state;
if (!std::isfinite(prod) || !std::isfinite(cons) || cons <= 0.0) {
return NAN;
}
return prod / cons;
state_class: measurement
accuracy_decimals: 2
switch:
# Heat pump general switches
- platform: ecodan
power_state:
name: Power state
holiday_mode:
name: Holiday Mode
select:
# Heat pump general selects
- platform: ecodan
mode_select_zone1:
name: Mode
device_id: zone1_device
mode_select_zone2:
name: Mode
device_id: zone2_device
number:
- platform: ecodan
zone1_flow_temp_setpoint:
name: Flow temperature setpoint
device_id: zone1_device
zone2_flow_temp_setpoint:
name: Flow temperature setpoint
device_id: zone2_device
# Climate entities for zone temperature control (alternative to number entities above)
climate:
- platform: ecodan
zone1:
name: Thermostat
device_id: zone1_device
zone2:
name: Thermostat
device_id: zone2_device
Look, I was hoping to debug this with “Esp32 d1 mini”. That Olimex gateway complicates things and there are many revisions to read.

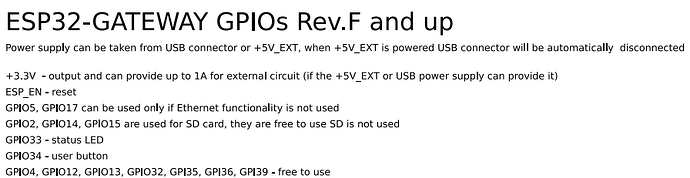

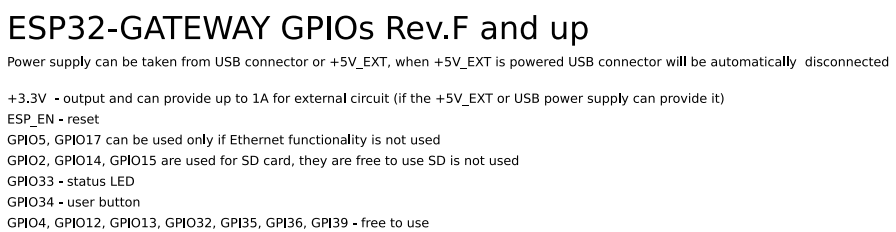

Just a quick look at pinout gives:
Yeah, I know, it’s a weird one
The end goal of the project was to use the Olimex board, so that’s why I’m focusing on it.
The board I have is a revision I, so that’s the pinout you provided!
The GPIO16 & 32 were a suggestion from Olimex support (because I went to them first with this problem), but I had also tried with 4, 12 and 13 with the same results.
Olimex support also provided an Arduino sketch to confirm that both GPIO16 & 32 are able to transmit and receive serial data by connecting them both together and transmitting on one an reading on the other.
The UART debug was on, those are the lines with uart_debug.
All I see is UART data going out, but nothing coming in. But I can’t even be sure the TX is actually sending the data at this point.
And ultimately, I won’t be using the D1 minis, so I won’t spend time trying with them.
My problem is that I have a config that I know is working (on an ESP32-POE), and a board that I know is working (with serial data from an Arduino sketch), but when mixing the two together, UART does not work at all.
Inconsistent , your yaml didn’t have uart debugging on…
I understand, but your problem is very hard to debug.
Send yaml (with valid uart pins) and corresponding logs.
Obviously I expect your Ecodan parameters are from working setup.
Huh? I’m telling you I literally use the same config in both cases (only switching GPIOs), even to the point that I forgot to change the board type when switching back to the ESP32-POE, so yes, this IS the config that produced the debug logs you see.
Do you want me to reproduce the problem with the ESP32-Gateway to send the same logs?
Or do you want a working example of logs?
