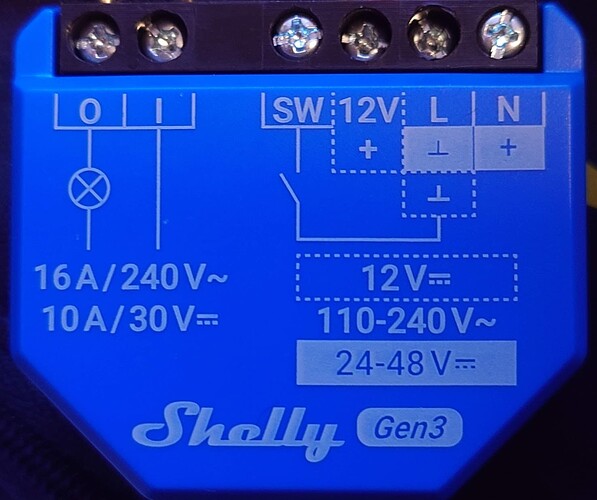

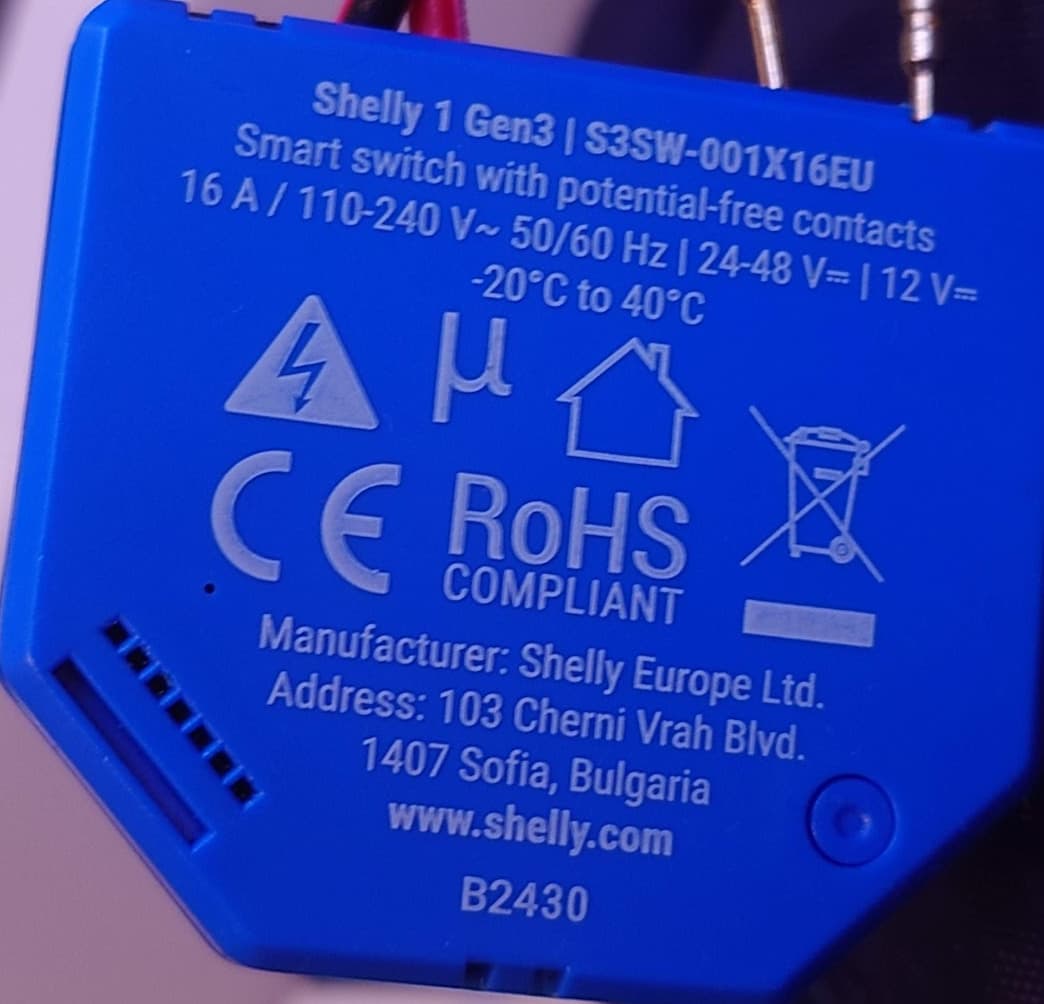

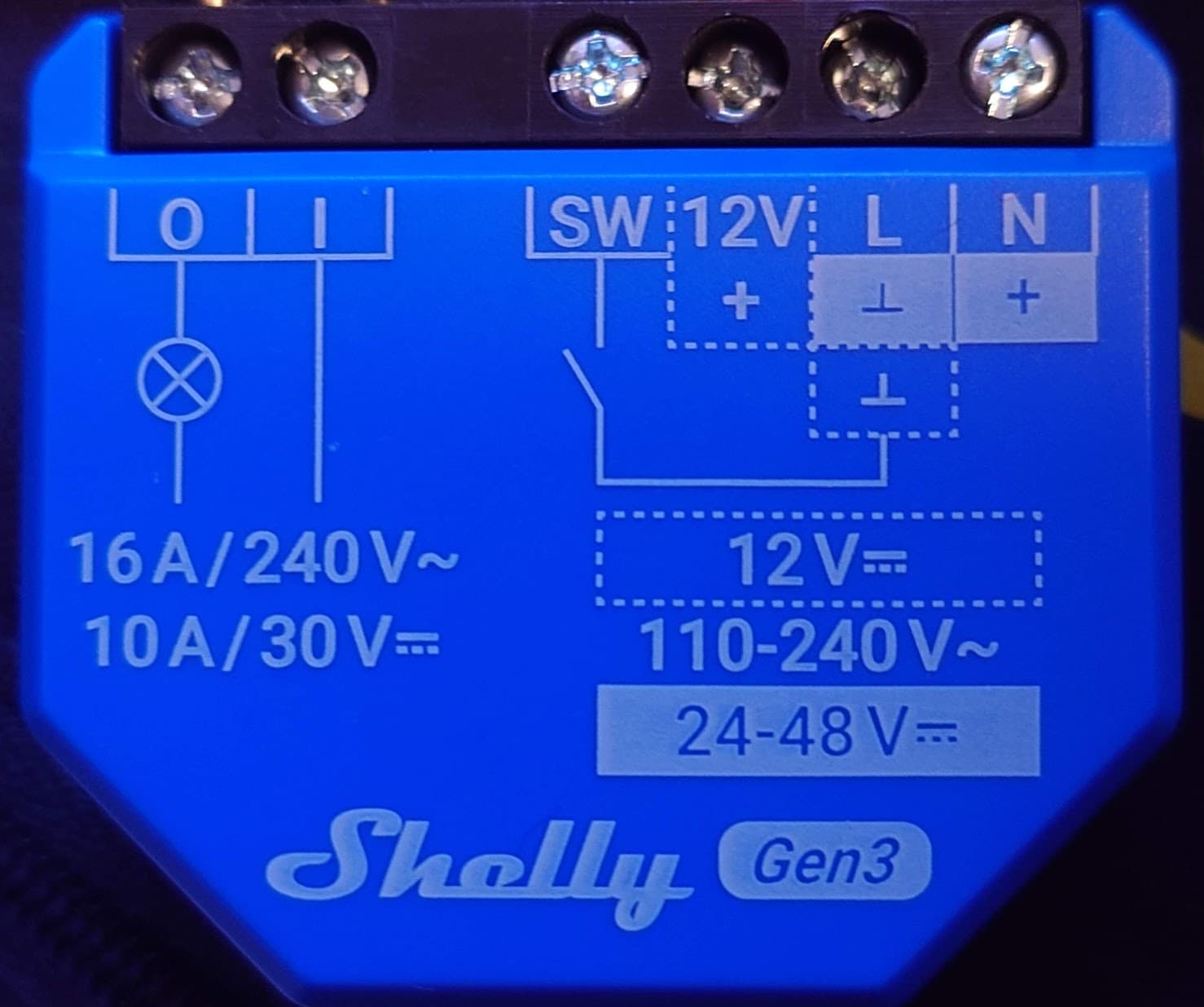

I’ve flashed a Shelly 1 Gen3 to Esphome but was assuming it was a 1PM which I ordered. Only noticed afterwards it’s in fact just the Shelly 1 gen3 (Shelly 1 Gen3) and not a PM.
Does anyone have a pinout for this? Seems like it’s loaded the esp32c3 firmware and I have temp monitoring but nothing else is showing up.

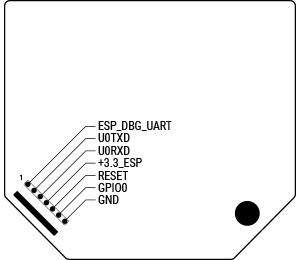

What you mean with pinout? The add-on header?
Gpio 5 is relay and 10 is switch if I remember well.
You didn’t post your code…
I have found that relay is GPIO5 on this model, but the switch is NOT GPIO10 and the button is NOT GPIO1.
I also do NOT have a bl0942 on GPIO6/7. So much of this looks outwardly like the Shelly 1PM Gen3 but is wired totally different.
Here is the code, I have assumed that like the 1PM Gen3 there is a current and voltage sensor, but I’m not sure. I am also experimenting with an override to prevent the switch turning off the output.
substitutions:
device_name: "Shelly Plus 1"
wifi:
ssid: !secret wifi_ssid
password: !secret wifi_password
logger:
api:
encryption:
key: !secret api_encryption_key
ota:
- platform: esphome
password: !secret esphome_ota_password
esphome:
name: shelly-1-plus
platformio_options:
board_build.mcu: esp32c3
board_build.variant: esp32c3
board_build.f_cpu: 160000000L
board_build.f_flash: 80000000L
board_build.flash_mode: dio
board_build.flash_size: 8MB
esp32:
variant: esp32c3
uart:
id: bl0942_uart
tx_pin: GPIO6
rx_pin:
number: GPIO7
mode:
pullup: true
input: true
baud_rate: 9600
stop_bits: 1
output:
- id: shelly_1pm_gen3_relay
platform: gpio
pin: GPIO5
switch:
# Use a template switch to allow for checking fault conditions before switching on the relay output.
- platform: template
id: shelly_1pm_gen3_output
name: Relay
device_class: outlet
restore_mode: ALWAYS_ON
turn_on_action:
if:
any:
- sensor.in_range:
id: temperature
below: 75.0
# Temperature sensor is unknown for several seconds on boot. Allow the relay to switch on anyway.
- and:
- lambda: "return isnan(id(temperature).state);"
- binary_sensor.is_off: error_overtemp
then:
- output.turn_on: shelly_1pm_gen3_relay
- binary_sensor.template.publish:
id: error_overtemp
state: OFF
- binary_sensor.template.publish:
id: error_overpower
state: OFF
- switch.template.publish:
id: shelly_1pm_gen3_output
state: ON
else:
- switch.template.publish:
id: shelly_1pm_gen3_output
state: OFF
turn_off_action:
then:
- output.turn_off: shelly_1pm_gen3_relay
- switch.template.publish:
id: shelly_1pm_gen3_output
state: OFF
binary_sensor:
- id: shelly_1pm_gen3_override_on
platform: homeassistant
entity_id: input_boolean.shelly_1pm_gen3_override_on
name: Override output to ON
- id: shelly_1pm_gen3_switch
name: Switch
platform: gpio
pin: GPIO10
filters:
- delayed_off: 50ms
on_press:
then:
- switch.turn_on: shelly_1pm_gen3_output
on_release:
if:
condition:
binary_sensor.is_off: shelly_1pm_gen3_override_on
then:
- switch.turn_off: shelly_1pm_gen3_output
- id: shelly_1pm_gen3_button
name: Button
platform: gpio
pin: GPIO1
filters:
- delayed_off: 50ms
- id: error_overtemp
name: Overheating
device_class: problem
entity_category: diagnostic
platform: template
condition:
any:
- binary_sensor.is_on: error_overtemp # Latch ON
- sensor.in_range:
id: temperature
above: 75.0
on_press:
then:
- switch.turn_off: shelly_1pm_gen3_output
- id: error_overpower
name: Overpowering
device_class: problem
entity_category: diagnostic
platform: template
condition:
any:
- binary_sensor.is_on: error_overpower # Latch ON
- for:
time: 1s
condition:
sensor.in_range:
id: sensor_current
above: 16 # This is model specific!
on_press:
then:
- switch.turn_off: shelly_1pm_gen3_output
sensor:
- id: temperature
name: Temperature
platform: ntc
sensor: temperature_sensor_resistance
icon: mdi:thermometer
entity_category: diagnostic
unit_of_measurement: °C
accuracy_decimals: 1
calibration:
b_constant: 3350
reference_resistance: 10kOhm
reference_temperature: 25°C
- id: temperature_sensor_resistance
platform: resistance
sensor: temperature_sensor_voltage
configuration: DOWNSTREAM
resistor: 10kOhm
- id: temperature_sensor_voltage
platform: adc
pin: GPIO3
attenuation: 11db
- platform: bl0942
uart_id: bl0942_uart
line_frequency: 50Hz
voltage:
name: Voltage
id: sensor_voltage
entity_category: diagnostic
current:
id: sensor_current
power:
name: Power
id: sensor_power
frequency:
name: Frequency
id: sensor_frequency
accuracy_decimals: 2
entity_category: diagnostic
energy:
name: Energy
id: sensor_energy
entity_category: diagnostic
device_class: energy
state_class: total_increasing
accuracy_decimals: 3
You assumed wrong, what would make the difference then??
Try gpio4 for the button.
ok, removed the power monitor code. Any idea which GPIO is used for the switch terminal input?
Was gpio4 correct for button?
Sorry, GPIO4 is correct for the button (inverted) and the switch is correct but I was assuming it would detect AC live or DC + whereas in DC mode it needs to be pulled to ground. All working now, thanks for your help. Should I submit a page for the wiki?
You are welcome.
Up to you.
Important that we know the pins have not been swapped over time.
Led 0
Button 4
Relay 5
Switch 10
Temp sensor 3
All present except the LED, this model doesn’t seem to have an LED visible on the chassis and I can’t see anything shining through the plastic case when creating the light on GPIO0.
Simple gpio switch on 0, doesn’t give any sign of life?
I don’t remember the location, but for Shelly Plus 1 it’s near add-on header, so you see it through the “holes”.
And it’s inverted if I remember well.
I added the LED like I saw for the other Shelly devices but after enabling the entity and toggling the LED in HA I see no visible light on the device.
Only had a brief look, but based on what you wrote it seems to be the same config as the 1L Shelly 1L | ESPHome Devices
I don’t know what you saw for other…
No signs of life, unless the LED is really well hidden. I tried to open the case but can get the clips undone without breaking something.
Similar but appears to be ESP32 Vs ESP8266 and without the 2nd switch.
