Hey everyone
Here is the updated version of my custom integration for HDAnywhere MHUB systems, bringing full local IP control directly into Home Assistant.
HDAnywhere MHUB (Local Control)
Control your MHUB matrix directly from Home Assistant with fast, local communication — no cloud required.
Features
Power Control
Turn the MHUB ON/OFF using a dedicated switch.
Video Routing Control
Quickly route inputs to outputs directly from Home Assistant.
Automatic Device Detection
- Detects MHUB model
- Detects firmware version
- Detects API version
- Automatically detects input/output configuration
Improved Compatibility
Supports both new and legacy MHUB firmware platforms, including:
- MHUB 4×4
- MHUB 6×6
- MHUB 8×8
- MHUB S series
- MHUB 100A series
100% Local Control
All communication happens locally via the MHUB API — no internet required.
Installation
Option 1 — Install via HACS (Recommended)
Add the repository to HACS:
Category: Integration
Then:
- Install the integration through HACS
- Restart Home Assistant
- Go to Settings → Devices & Services → Add Integration
- Select HDAnywhere MHUB
Setup
Enter your MHUB connection details.
IP Address
Example:
192.168.88.150
API Port
Default:
80
(Only change if modified in MHUB settings)
Click Submit to complete setup.
Tip:
You can find the MHUB IP address in:
- Your router’s DHCP client list
- The MHUB app → System Info → Network

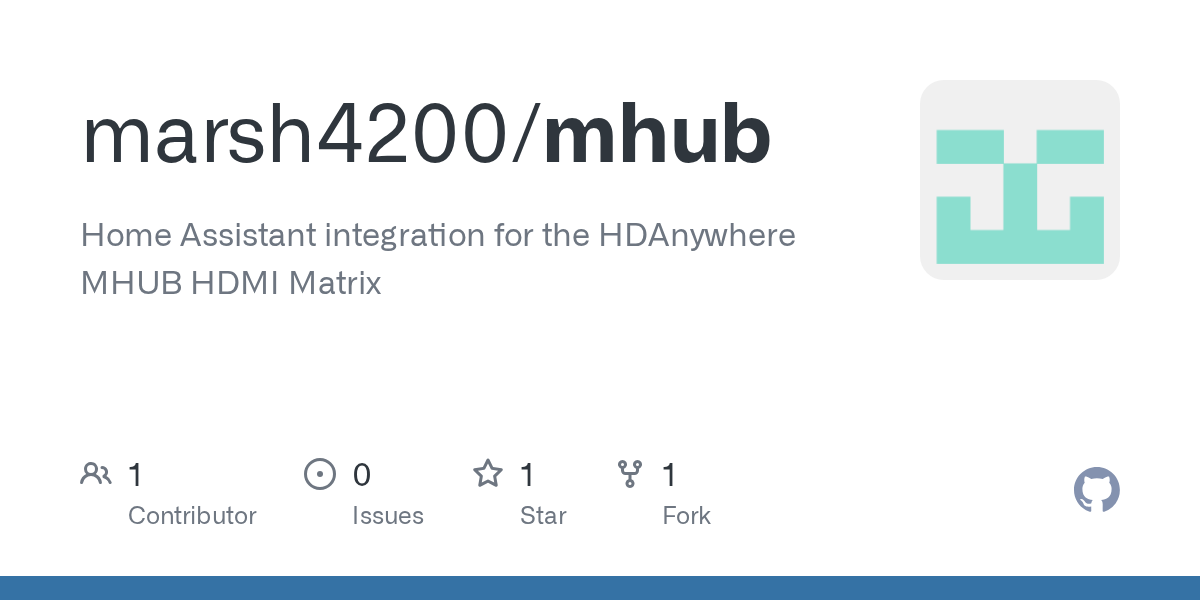

Repository
Credits
Author: Michael Marsh (@marsh4200)
In collaboration with: SMARTHOME21
Version
v0.0.3
Improvements include:
- Improved MHUB model detection
- Added API version support
- Improved firmware detection
- Improved input/output detection
- Improved compatibility with older MHUB systems
