Using Battery State Card To Show Zigbee Signal Strength

Configuration Frontend
1

Hi All,

I have been using the battery state card for a while now to keep an eye on all my battery powered devices. I recently discovered it can show more than just battery info, such as the image below

image500×480 20.8 KB

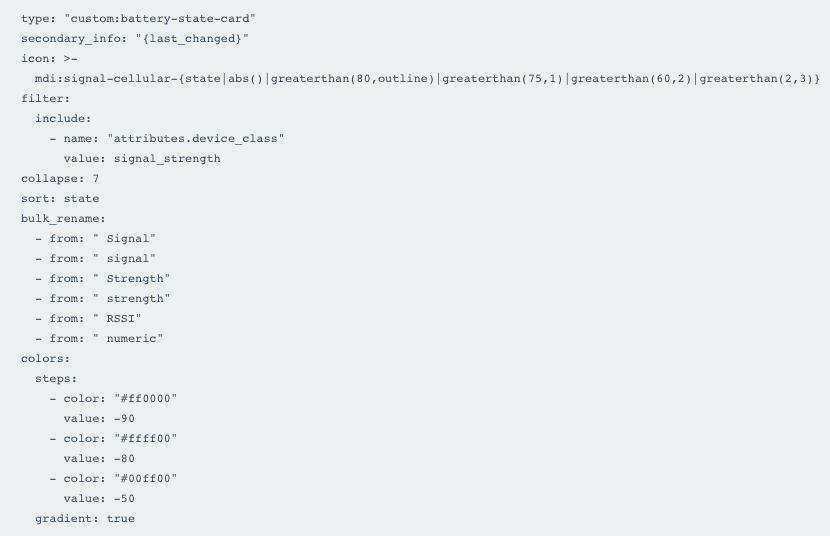

Does anyone know how to customize the code to do this? I am running Z2MQTT. I tried adding the info in the instructions but it just gives me a blank card. I am not sure where to begin on getting this working.

image830×536 13.9 KB

Thanks in advance for any help

2

It is shown how on the card’s Github page and it attach to the signal_strength attribute of your entities, so you need to have that one.
