It’s you cable. Flashing an ESP32 is trivial. Google it and follow the instructions.
its not my damn cable. I’m using one from an xbox controller that’s good for data. Tried 3 others also for good measure. I imagine its a driver issue - which driver if any did you need to install, and what OS are you installing from? Which browser? As i said, i’ve flashed m5atoms and a bunch of sonoff 8266 fan controllers without problems.
This is an EZsalt 3.0 if that makes a difference.
edit: Tried about 20 more cables. Its not the cable. Can anyone with a EZSalt 3.0 (not 2.0) please confirm that this worked for them, and whether or not you had to hold down the button to put it in flash mode? Also bonus points if you installed any particular driver (i believe you shouldn’t need one if it has a USB controller but i could be wrong)
I also tried from my laptop but it doesn’t appear to have a COM port at all. Bit confused about Windows and COM ports. Tried connecting right to the HA box also but it only ever shows my skyconnect as a valid USB device.
Michael, are you saying its impossible to flash with the 3.0 over USB, regardless of cable? So we’d have to crack open the case to do it?
Post a picture of the ESP32
Trying to get the Ezsalt 3 working here also. Jeremy, the way you get this into boot mode is connecting the gpio0 to gnd and then plug in the usb to power. after a second remove the gio0 to gnd jumper and it should be in boot mode.
I can not get the chip to see the sensor though. not sure if its different from the OP’s or not. I have a feeling he may have an older version.
What tof sensor are you using in the ezsalt 3? Is it a VL53L5x? also what pins are they connected to? Trying to get this working.

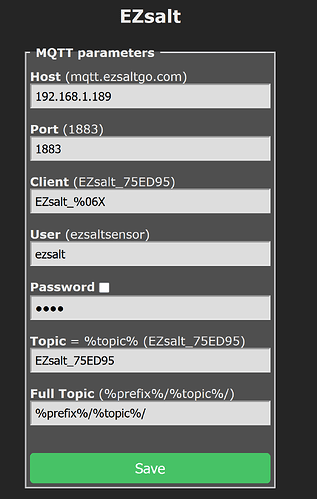

I gave up trying to re-flash the EZSalt and simply changed it’s MQTT reference to point to the MQTT instance in HA. It will show up as a Tasmota integration when HA discovers it. Then install the “Template” integration and I coded the formula below to report the tank salt level as a percentage. (NOTE: the 110 is an offset from 100% from the top of the salt to the top of the sensor. The 39 is the tank depth). I’m on my way out the door so if you have any questions, I’ll be glad to get back to you later.
template:
- sensor:
- name: "EzSalt Tank Percentage"
unique_id: ezsalt_tank_percentage
unit_of_measurement: "%"
state: "{% set raw_value = states('sensor.ezsalt_vl53l0x_distance') %}
{% set inches = raw_value | float(0) %}
{% if inches > 0 %}
{% set percentage = 110 - ((inches / 10) / 39) * 100 %}
{{ percentage | round(0) }}
{% else %}
0
{% endif %}"
Host=IP of your HA install
User/Password=a user set up in your HA install
I am not sure how to get the original firmware back onto it. So at this point i am all in. I reached out to them via their website to see if we can get some info on the sensor and gpio pins used.
I’m sorry about that. If they don’t/can’t give you a way to do it yourself, perhaps they will re-flash it for you. One of the main reasons I stuck with the OEM firmware is that I read they will be opening up their API and making it public this year. Someone should be able to build a proper HA integration when that happens.
For those of you trying to get this working with a V3 sensor, it is a VL53L0x sensor with SDA on GPIO5 and SCL on GPIO4 and an address of 0x29.
I had to pop the cap off the sensor to trace out the board to figure it out, then trial and error the SDA and SCL pins using an I2C scanner sketch to figure out which was which, but I figured it out and confirmed it works.
Additionally, the xshut pin on the VL53L0x is wired to GPIO12, and if I traced it out properly, AVDDVCSEL is wired through a transistor connected to GPIO2. Driving both of those low I believe would essentially put the TOF sensor into deep sleep mode.
The LED is a two color hanging off of GPIO13 and GPIO14, and the switch is hanging off of GPIO15.
Unfortunately, they did not include a UART to USB chip for the USB port, so the ONLY way to program it is with an external UART to USB. They did a nice job of breaking out all the necessary pins, including 3.3v, GPIO0 and RST to a pin header, so it’s not a huge deal once you get the case open.
1 Like
To restore back to “factory” You should be able to download tasmota.bin.gz from here: Tasmota ESP8266 Binaries
And then add the template using configure other: Templates - Tasmota
Template: {“NAME”:“EZsalt Sensor v3”,“GPIO”:[0,0,0,0,608,640,0,0,256,257,544,96,0,0],“FLAG”:0,“BASE”:18}
If you want the MQTT info for EZSalt I can send to you privately.
Since this is based off of Tasmota you can do an OTA or local upgrade.
I am going to try this this weekend: Migrating from Tasmota — ESPHome
Based on their template I don’t see anything on GPIO2 but it could be for later use if you traced it there, thanks for all the sleuthing!
This is my project with VL53l0x and ESP32-S3 + AM2302 + Ble Tracker, works like a charm.
sensor:
- platform: vl53l0x
id: salt_level_distance_2
name: "medicion-2"
address: 0x29
update_interval: 5s
long_range: false
internal: True
unit_of_measurement: "m"
accuracy_decimals: 3
- platform: template
unit_of_measurement: cm
icon: mdi:arrow-expand-down
name: "Distancia"
id: distance
update_interval: 5s
lambda: |-
return id(salt_level_distance_2).state * 100;
- platform: wifi_signal
name: "WiFi"
update_interval: 60s
- platform: dht
model: AM2302
pin: GPIO12
temperature:
name: "Temp Exterior"
humidity:
name: "Humedad Exterior"
update_interval: 15s
- platform: template
name: "Nivel de Sal"
icon: mdi:arrow-expand-vertical
#empty_cm, CM before bottom of the tank.
#full_cm, CM from the sensor to salt.
lambda: |-
float empty_cm = 62.0;
float full_cm = 15.0;
float current_cm = id(distance).state;
return ((empty_cm - current_cm) / (empty_cm - full_cm)) * 100.0;
unit_of_measurement: "%"
accuracy_decimals: 1
switch:
- platform: restart
name: "Reboot"
esp32_ble_tracker:
scan_parameters:
window: 400ms
interval: 600ms
bluetooth_proxy:
active: True
Converting EZ Salt 3.0 from Tasmota to ESPHome
If you have an EZ Salt 3.0 device currently running Tasmota and want to convert it to ESPHome for better Home Assistant integration, this guide will walk you through the complete process.
What is the EZ Salt 3.0?
The EZ Salt 3.0 is an ESP8266-based sensor device designed for monitoring salt levels in water softener systems. It features:
- VL53L0x Time-of-Flight sensor for distance measurement
- Two-color LED for status indication
- Physical button for manual control
- WiFi connectivity for remote monitoring
Hardware Details
Based on reverse engineering the device, here’s the complete pinout:
- VL53L0x Sensor: SDA on GPIO5, SCL on GPIO4, Address 0x29
- Power Management: XSHUT on GPIO12, AVDDVCSEL control via transistor on GPIO2
- Status LED: Two colors on GPIO13 and GPIO14
- Physical Switch: GPIO15 with internal pull-up
- I2C Bus: 400kHz frequency
Prerequisites
Before starting, you’ll need:
- ESPHome installed (via Home Assistant Add-on or standalone)
- WiFi access to connect to the device
- USB cable or OTA capability for flashing
- The device currently running Tasmota firmware
Step-by-Step Conversion Process
Step 1: Connect to the Tasmota Device
Since your EZ Salt 3.0 is currently running Tasmota:
- Find the device’s IP address in your router’s admin panel or use network scanning
- Open a web browser and navigate to the device’s IP address
- Access the Tasmota web interface
Step 2: Prepare for ESPHome Flash
- Backup your current configuration (optional but recommended)
- Note your WiFi credentials - you’ll need them for the ESPHome config
- Prepare the ESPHome firmware using the configuration below
Step 3: Flash ESPHome Firmware
You have two options for flashing:
Option A: OTA Flash (Recommended)
- In the Tasmota web interface, go to Firmware Upgrade
- Upload the compiled ESPHome
.binfile - Wait for the device to reboot
Option B: USB Flash (you will need to modify the board for this)
- Connect the device via USB
- Use ESPHome’s flash command:
esphome run ezsalt-v3.yaml
Step 4: Configure WiFi
After flashing, the device will create a fallback hotspot:
- Connect to the WiFi network:
EZSalt_v3_Fallback_AP - Use password:
configureme - Navigate to:
http://192.168.4.1 - Enter your WiFi credentials
ESPHome Configuration
Save this configuration as ezsalt-v3.yaml and customize it for your setup:
esphome:
name: ezsalt-v3
friendly_name: "EZ Salt v3 Sensor"
esp8266:
board: nodemcuv2
wifi:
ssid: "YOUR_WIFI_SSID"
password: "YOUR_WIFI_PASSWORD"
# Optional: Enable fallback hotspot in case of WiFi connection failure
ap:
ssid: "EZSalt_v3_Fallback_AP"
password: "configureme"
# Enable logging
logger:
# Enable Home Assistant API
api:
ota:
platform: esphome
# Add web server for direct access
web_server:
port: 80
i2c:
sda: GPIO5
scl: GPIO4
scan: true
# Power management outputs for VL53L0x sensor
output:
# VL53L0x AVDDVCSEL control via transistor
- platform: gpio
id: vl53l0x_avdd_pin
pin: GPIO2
# LED outputs for the two-color LED
- platform: esp8266_pwm
id: led_color_1_pin_output
pin: GPIO13
- platform: esp8266_pwm
id: led_color_2_pin_output
pin: GPIO14
# Add restart button for convenience
button:
- platform: restart
name: "Restart"
# VL53L0x power management
switch:
- platform: output
name: "VL53L0x Power"
output: vl53l0x_avdd_pin
id: sensor_power
restore_mode: RESTORE_DEFAULT_ON
# System info sensors
text_sensor:
- platform: wifi_info
ip_address:
name: "IP Address"
id: ip_address
icon: mdi:ip-network
ssid:
name: "SSID"
id: ssid
icon: mdi:wifi
sensor:
# System monitoring
- platform: uptime
name: "Uptime"
- platform: wifi_signal
name: "WiFi Signal"
id: wifi_signal_strength
update_interval: 60s
icon: mdi:wifi-strength-1
# VL53L0x distance sensor
- platform: vl53l0x
name: "Salt Level Distance"
id: salt_level
address: 0x29
update_interval: 10s
unit_of_measurement: "cm"
accuracy_decimals: 1
filters:
- multiply: 100 # Convert from meters to centimeters
# Two-color status LED
light:
- platform: binary
name: "Status LED Green"
output: led_color_1_pin_output
id: led_color_1
- platform: binary
name: "Status LED Red"
output: led_color_2_pin_output
id: led_color_2
# Physical switch
binary_sensor:
- platform: gpio
pin:
number: GPIO15
mode: INPUT_PULLUP
inverted: true
name: "Device Physical Switch"
filters:
- delayed_on: 10ms
- delayed_off: 10ms
Configuration Customization
Required Changes
- WiFi Credentials: Replace
YOUR_WIFI_SSIDandYOUR_WIFI_PASSWORDwith your actual network details - Device Name: Change
ezsalt-v3if you want a different hostname - Friendly Name: Modify the friendly name to match your preference
Optional Customizations
- Update Intervals: Adjust sensor update frequencies based on your needs
- LED Colors: Rename the LED entities to match your device’s actual colors
- Encryption: Add an API encryption key for enhanced security
- OTA Password: Add a password for over-the-air updates
Adding Encryption (Recommended)
For enhanced security, add these to your configuration:
api:
encryption:
key: "YOUR_32_CHAR_ENCRYPTION_KEY_HERE"
ota:
platform: esphome
password: "your_ota_password"
Calibration and Usage
Distance Sensor Calibration
The sensor reports distance in centimeters. To convert this to actual salt level:
- Measure your salt tank height when empty
- Note the distance reading when the tank is full vs. empty
- Add a template sensor to calculate percentage or actual level
Example template sensor for salt level percentage:
sensor:
- platform: template
name: "Salt Level Percentage"
unit_of_measurement: "%"
accuracy_decimals: 0
lambda: |-
float empty_distance = 80.0; // Distance when tank is empty (cm)
float full_distance = 20.0; // Distance when tank is full (cm)
float current_distance = id(salt_level).state;
if (current_distance > 0) {
float percentage = ((empty_distance - current_distance) / (empty_distance - full_distance)) * 100;
return max(0.0f, min(100.0f, percentage));
}
return 0.0;
Home Assistant Integration
Once configured, the device will automatically appear in Home Assistant if you have the ESPHome integration installed. You’ll get:
- Salt level distance sensor
- System monitoring (uptime, WiFi signal, IP address)
- LED controls for status indication
- Physical switch state
- Power management switch for the sensor
- Restart button for remote reboots
Troubleshooting
Common Issues
- Sensor shows “unknown”: Check I2C connections and power management switch
- WiFi connection fails: Verify credentials and signal strength
- Compilation errors: Ensure ESPHome version compatibility
- Sensor readings incorrect: Verify the distance unit conversion
Debug Mode
For troubleshooting, enable debug logging:
logger:
level: DEBUG
logs:
i2c: DEBUG
vl53l0x: DEBUG
I2C Scanner
The configuration includes I2C scanning. Check logs for:
Found i2c device at address 0x29
Remember to customize the configuration for your specific setup and test all functions after flashing. The power management features allow you to control the sensor remotely, and the built-in web server provides easy access for debugging and monitoring.
Happy monitoring!
Thank you very much for this great set of instructions obiwantoby.
Just a tip for others: When I try to upload my new ezsalt-v3.bin file I get the message " Upload Failed Not enough space" from the Tasmota web interface I realized that it needed to be gzip’ed first. It worked perfectly then!
