Analogue style rotary dimmer switch - Sonoff + ESPEasy + MQTT

Where did your button and hat be bought? Are there any key words?

Thank you. I like the ESP firmware and the rotary encoder.

I want to connect to rotary encoder on 8266, and then correspond to:

Gpio12= switch

Gpio0=DT

Gpio2=CLK

Gpio12=MOS field effect 1 (dimming)

Gpio4= MOS field effect 2 (dimming)

I am the condition.

I think how to write rules in ESP (Rules).

Let the rotary encoder gpio12 turn on the relay 1 at 1 times, hold one second to open the relay 2, rotate the relay 1 when rotating, and control the relay 2 when the rotation is held.

Can ESP firmware meet such requirements?

Thank you. I like the ESP firmware and the rotary encoder.

I want to connect to rotary encoder on 8266, and then correspond to:

Gpio12= switch

Gpio0=DT

Gpio2=CLK

Gpio12=MOS field effect 1 (dimming)

Gpio4= MOS field effect 2 (dimming)

I am the condition.

I think how to write rules in ESP (Rules).

Let the rotary encoder gpio12 turn on the relay 1 at 1 times, hold one second to open the relay 2, rotate the relay 1 when rotating, and control the relay 2 when the rotation is held.

Can ESP firmware meet such requirements?

I think you are confused. A relay is different to a dimmer. Nor can you rotate a relay.

Describing the error, I’m talking about using the field effect,STP16NF06,MOS can adjust current and use relays

Hi, I’m having some issues controlling a (hue) light group this way.

There is 6 lights in my group, but when I control it using this method, it’s really not working very smoothly. It’s extremely laggy and unreliable.

- id: woonkamer_2_dimmer_1
  alias: "woonkamer 2 dimmer 1"
  trigger:
    platform: mqtt

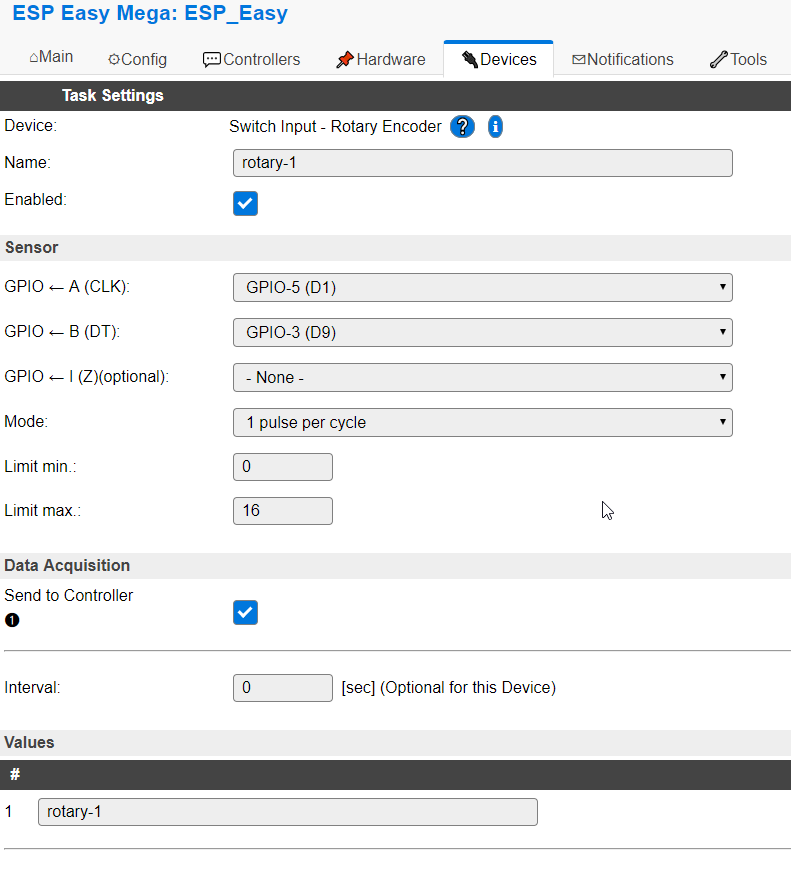

    topic: /ESP_Easy/rotary-1/rotary-1
  action:
    service: light.turn_on
    entity_id: light.woonkamer_groep
    data_template:
      brightness: "{{states.sensor.woonkamer_2_rotary_1_normalised.state}}"

- platform: template
  sensors:
    woonkamer_2_rotary_1_normalised:
      friendly_name: "woonkamer 2 Rotary 1 - normalised"
      value_template: "{{ states.sensor.woonkamer_2_rotary_1.state | int **2 }}"

I had the same problem. The I switched to ESPHomelib and the dimming became much smoother.

this is my config:

esphomeyaml:
  name: bedroom_dimmer
  platform: ESP8266
  board: nodemcuv2

wifi:
  ssid: <SSID>
  password: <password>
  domain: '.local'
  manual_ip:
    static_ip: <IP>
    gateway: <Gateway IP>
    subnet: 255.255.255.0


api:



# Enable logging
debug:

logger:
  level: VERBOSE


ota:
  password: <password>

sensor:
  - platform: rotary_encoder
    name: "Rotary Encoder"
    pin_a: D1
    pin_b: D2
    filters:
      - or:
        - debounce: 0.1s
        - delta: 10

of the device and the automation on the home-assistant side:

- alias: dimmer changed
  id: z3
  initial_state: 'on'
  trigger:
    platform: state
    entity_id: sensor.rotary_encoder_2
  action:
    service: light.turn_on
    entity_id: light.nightstand
    data_template:
      brightness: '{{states.light.nightstand.attributes.brightness | int + (trigger.to_state.state|
        int - trigger.from_state.state | int)*5 }}'
1 Like

Thanks, tried this but I see no improvement at all. I was a bit skeptic in the first place since the rotary encoder state from espeasy is perfectly smooth from 1 to 100. I think things go south where home assistant tries passing the fast changing state of the encoder entity to the 8 lights of my light group.

For me there is a little lag, but it is definitely tolerable.

Very nice. thanks for sharing.
This has been on my to-do list for a very long time - actually I requested the author of esphomeyaml to add support for rotary encoders but I’m embarrassed to say that I never properly followed up to make use of it.
I will give this a go!

BTW did you do an OTA update from ESPEasy to esphomeyaml?
Or did you flash via serial?

I found the important part was the delta and debounce. Those two lines make esphomeyaml only put out a message when there has been significant turns.

sensor:
  - platform: rotary_encoder
    name: "Rotary Encoder"
    pin_a: D1
    pin_b: D2
    filters:
      - or:
        - debounce: 0.1s
        - delta: 10

maybe the delta could be less. But if you turn 15 steps and have an automation for every single step of course it gets slow.

Better to just do one automation…

I actually used a Wemos for the dimmer. I flashed via USB from esphoemyaml.

I did flash a sonoff basic via sonota and then flashed esphomeyaml via upload.

Finally done it - ESPEasy was buggy and whilst doing an OTA upgrade it borked the sonoff, so I re-implemented in ESPHome.
Works great with the hassio ESPhome addon, and the device was autodiscovered by HA via the API. Wonderful!

Here is my yaml:

esphome:
  name: dimmer
  platform: ESP8266
  board: esp01_1m

wifi:
  ssid: "SSID"
  password: "password"

# Enable logging
logger:

# Enable Home Assistant API
api:
  password: 'password'

ota:
  password: 'password'

binary_sensor:
  - platform: gpio
    pin:
      number: GPIO0
      mode: INPUT_PULLUP
      inverted: True
    name: "Dimmer Internal Button"
    on_press:
      - switch.toggle: relay
  - platform: gpio
    pin:
      number: GPIO14
      mode: INPUT_PULLUP
      inverted: True
    name: "Dimmer Push Switch"

switch:
  - platform: gpio
    name: "Dimmer Relay"
    pin: GPIO12
    id: relay

status_led:
  pin:
    number: GPIO13
    inverted: yes

sensor:
  - platform: rotary_encoder
    name: "Dimmer Rotary Encoder"
    pin_a: GPIO1
    pin_b: GPIO3
    min_value: 0
    max_value: 100
    resolution: 4

Discovered in HA and shown in integrations page:


Now I need to investigate the possibilities of double click, long click etc

esphome:
  name: rotary01
  ## Woonkamer rotary controllers ingang
  platform: ESP8266
  board: d1_mini

wifi:
  ssid: !secret esphome_wifi_ssid
  password: !secret esphome_wifi_password

api:
  password: !secret esphome_api_password

ota:
  password: !secret esphome_ota_password

logger:

sensor:
### Rotary encoder 1
  - platform: rotary_encoder
    name: "Woonkamer 1 Rotary 1"
    id: woonkamer1rotary1
    pin_a: GPIO12
    pin_b: GPIO13
    filters:
      - or:
        - debounce: 0.1s
        - delta: 3
    resolution: 1
    min_value: 1
    max_value: 10
    on_value:
      then:
        - homeassistant.service:
            service: light.turn_on
            data_template:
              entity_id: light.woonkamer_groep
              brightness_pct: "{{ brightness_1 | int }}"
            variables:
              brightness_1: 'return id(woonkamer1rotary1).state * 10;'

binary_sensor:
### Switch 1
  - platform: gpio
    pin: GPIO14
    id: switch1
    name: "Woonkamer 1 switch 1"
    filters:
      - invert:
    on_multi_click:
    - timing:
        - ON for at most 0.4s
        - OFF for at most 0.4s
        - ON for at most 0.4s
        - OFF for at least 0.2s
      then:
        - logger.log: "Double Clicked"
        - homeassistant.service:
            service: input_select.select_next
            data:
              entity_id: input_select.hue_scenes
    - timing:
        - ON for 0.6s to 3s
        - OFF for at least 0.3s
      then:
        - logger.log: "Single Long Clicked"
        - homeassistant.service:
            service: input_boolean.toggle
            data:
              entity_id: input_boolean.radio_woonkamer
    - timing:
        - ON for at most 0.5s
        - OFF for at least 0.4s
      then:
        - logger.log: "Single short Click"
        - homeassistant.service:
            service: light.toggle
            data:
              entity_id: light.woonkamer_groep
3 Likes

:slight_smile: that was fast!
Thanks!
I’m planning to use node-red for routing events to actions, as opposed to calling HA API from ESPHome, since this is how I am working with other buttons (xiaomi/hue via zigbee2mqtt).

Just saw this usage for rotary encoder on a yeelight product that’s very similar to this project.

Nice ux for colour temp etc…

Could this be done with Tasmota instead of ESPEasy?

You know googling for tasmota rotary dimmer would find the answer.

I would recommend to use ESPHome now.
