well, its a bit of a guess on my behalf, but it could be a few things.
if the command expects a number, you should provide it. Currently youâre providing a string. try adding |float at that template?
could also be you are providing the full data pair, while you only need to provide the number?
I cant say, because can not test locally.
and about the brackets: this is a misconception, I use them in all of by payloads. the ones with only 1 data pair, and also the ones with more than that.
I have been using your code for some time now and everything is working fine. Today I miserably tried to apply an enhancement. I want to display an icon based on the entity id. If it is a light, display a lightbulb, if it is a fan, display a fan. What am I missing? This is my code:
type: custom:auto-entities
card:
type: grid
columns: 4
square: false
title: Lights On
card_param: cards
filter:
template: |-
{% for x in expand('group.Lights_House') | selectattr('state','eq','on') %}
{{-
{
'type': 'custom:mushroom-entity-card',
'entity': x.entity_id,
'primary_info': 'state',
'secondary_info': 'name',
'icon': >
{% if 'fan' in x.entity_id %}
mdi:fan
{% else %}
mdi:lightbulb
{% endif %}
'icon_color': 'amber',
'vertical': true,
'tap_action': {
'action': 'call-service',
'service': 'homeassistant.turn_off',
'target': { 'entity_id': x.entity_id }
}
}
-}},{%- endfor -%}
Sorry, most probably an easy case. But I spend a lot of time searching and can not figure out why this code wonât style? Neither icons nor borderâŚ
type: custom:auto-entities
card:
title: Batteries
type: glance
filter:
exclude:
- entity_id: '*_battery_state*'
- entity_id: '*_battery_temperature*'
include:
- entity_id: '*battery*'
sort:
method: state
numeric: true
unique: true
card_mod:
style: |
:host {
--paper-item-icon-color:
{% if states(config.entity) | int < 10 %}
red
{% elif states(config.entity) | int > 30 %}
hsl(120, 93%, 39%) !important
{% else %}
hsl(60, 100%, 50%)
{% endif %};
}
ha-card {
border-radius: 150px 15px 15px 15px;
--ha-card-background: hsla(60,15%,60%,0.4);
}
I solved this. Per definition templates are not possible for actions. [ Actions - Home Assistant ]
So I now pass the current entity (this.entity_id) as parameter to the rest_command and do the needed templating there.
Thanks @Mariusthvdb for your support.
hmm. I believe you are mixing several concepts and options for those concepts, as auto-entities is a completely different beast than the core card options for actions. Especially since you were using mushroomâŚ
and as I already suspected you needed the entity, not just the attribute, so using this.entity_id would seem a logical solution indeed.
what would help, is if youâd post some results. Youâve been scarce in the ask, but now show even less.
great youâve got it working now, please post your final solution, so others might benefit from it.
Team,
Is it possible to have and âoptions:â section in a template filter, in auto-entities ?
I am looking for something like below code - see âoptions:âŚâ
(The template does generate the correct entities.
The intent is to have the tap_action set to none for these filtered entities).
- type: conditional
conditions:
- entity: input_boolean.on_off_toggle_conditional_unavailable_devices_on
state: 'on'
- entity: sensor.unavailable_devices
state_not: '0'
card:
type: custom:auto-entities
show-empty: false
filter:
template: >
{{ state_attr('sensor.unavailable_devices', 'unavail_list_entity_id') }}
options:
icon_color: green
tap_action:
action: none
card:
type: glance
show_state: false
columns: 6
Thank you for your guidance.
The same problem was also in existence with a default button-card.
So overall this is my solution with providing the complete entity to the rest_command and do the templating there:
Input-Value â generated through a sep. Python script.
Auto-Entities Card to display all entities of this specific input_value entities calling a rest_command and passing over this.entity_id as parameter when tapped (tap_action).
type: custom:auto-entities
card:
square: false
columns: 1
type: grid
show_empty: false
card_param: cards
filter:
include:
- entity_id: input_text.xenia_script_*
options:
type: custom:mushroom-template-card
entity: this.entity_id
primary: |
{{ state_attr(entity, 'name')}} [{{state_attr(entity, 'index')}}]
tap_action:
action: call-service
service: rest_command.execute_xenia_script_entity
data:
entity_id: this.entity_id
rest_command that interprets the handed over entity just for one attribute value within a template using state_attr
rest_command:
execute_xenia_script_entity:
url: "http://xenia.local/execute_script?ID={{ state_attr(entity_id, 'index') }}"
using that filter requires you to put it all in that same config. have a look at this:
- type: custom:auto-entities
filter:
template: |-
{% for x in states.climate -%}
{{
{
'type': 'custom:mushroom-climate-card',
'show_temperature_control': true,
'layout': 'horizontal',
'entity': x.entity_id,
'name': state_attr(x.entity_id, 'friendly_name')|replace('Thermostat ', ''),
'tap_action': {'action':'more-info'}
}
}},
{%- endfor %}
I am showing a list of automation that matches the name with bedroom and livingroom.
action: fire-dom-event
browser_mod:
service: browser_mod.popup
data:
title: Automations
content:
type: custom:auto-entities
card:
type: entities
title: Automation
show_header_toggle: false
filter:
include:
# - entity_id: switch.nr_*
- domain: automation
name: "*Bedroom*"
- domain: automation
name: "*Livingroom*"
exclude: []
sort:
method: friendly_name
I want to make two columns for separate rooms. but change the friendly name (removing the [Bedroom] and [Livingroom] parts). How can I do that?
action: fire-dom-event
browser_mod:
service: browser_mod.popup
data:
title: Automations
content:
type: horizontal-stack
cards:
- type: custom:auto-entities
card:
type: entities
title: Bedroom
show_header_toggle: false
filter:
include:
- domain: automation
and:
- name: "*Bedroom*"
exclude: []
sort:
method: friendly_name
- type: custom:auto-entities
card:
type: entities
title: Livingroom
show_header_toggle: false
filter:
include:
- domain: automation
and:
- name: "*Livingroom*"
exclude: []
sort:
method: friendly_name
Can anyone help me with this?
Hi,
I have created a minimalist UI popup card using auto-entities and the button card integrations that shows all power and light switches in a specified area (the area name is passed as a variable) and turn them on/off. This works great so thank you for the awesome integration.
I would like to enhance this by grouping the entities by their respective device. A light or power outlet is represented as device in HA which contains an entity for each individual switch (between 1 and 4 per device).
I can create the a custom button card that uses auto-entities to populate a grid with a button card for each switch. I can then enhance it with information from sensors that are also part of the device, such as the amount of power being consumer.
However, to do this I need to populate a list of devices (not entities) in the specified area. I noticed that auto-entities can be nested by passing a list of entities. Is there any way to have auto-entities return a list of devices (instead of entities) and then pass it into another instance of auto-entities?
I am guessing that it canât (because then it would be called âauto-entities-or-devicesâ but thought I would ask.
hope, someone can help me with templating.
ive setup a rest sensor to retrieve current connected teamspeak clients:
sensor:
- platform: rest
scan_interval: 5
resource: http://ts3.example.url:10080/1/?clientlist
verify_ssl: false
headers:
x-api-key: "{{ states('input_text.api') }}"
name: "TS3 Online"
value_template: "{{ value_json.body | map(attribute='client_nickname') | join(', ') }}"
json_attributes:
- body
with these results as attributes:
then i have setup some template sensors for up to 5 online clients generated automatically:
template:
- sensor:
- name: "{{ state_attr('sensor.ts3_online', 'body')[0]['client_nickname'] }}"
unique_id: "ts3_0"
state: "{% if not state_attr('sensor.ts3_online', 'body')[0]['client_nickname'] or state_attr('sensor.ts3_online', 'body')[0]['client_nickname'] == 'serveradmin' %}OFF{% else %}ON{% endif %}"
attributes:
image: /local/images/ts3_{{ state_attr('sensor.ts3_online', 'body')[0]['client_nickname'] }}.jpg
- name: "{{ state_attr('sensor.ts3_online', 'body')[1]['client_nickname'] }}"
unique_id: "ts3_1"
state: "{% if not state_attr('sensor.ts3_online', 'body')[1]['client_nickname'] or state_attr('sensor.ts3_online', 'body')[1]['client_nickname'] == 'serveradmin' %}OFF{% else %}ON{% endif %}"
attributes:
image: /local/images/ts3_{{ state_attr('sensor.ts3_online', 'body')[1]['client_nickname'] }}.jpg
- name: "{{ state_attr('sensor.ts3_online', 'body')[2]['client_nickname'] }}"
unique_id: "ts3_2"
state: "{% if not state_attr('sensor.ts3_online', 'body')[2]['client_nickname'] or state_attr('sensor.ts3_online', 'body')[2]['client_nickname'] == 'serveradmin' %}OFF{% else %}ON{% endif %}"
attributes:
image: /local/images/ts3_{{ state_attr('sensor.ts3_online', 'body')[2]['client_nickname'] }}.jpg
- name: "{{ state_attr('sensor.ts3_online', 'body')[3]['client_nickname'] }}"
unique_id: "ts3_3"
state: "{% if not state_attr('sensor.ts3_online', 'body')[3]['client_nickname'] or state_attr('sensor.ts3_online', 'body')[3]['client_nickname'] == 'serveradmin' %}OFF{% else %}ON{% endif %}"
attributes:
image: /local/images/ts3_{{ state_attr('sensor.ts3_online', 'body')[3]['client_nickname'] }}.jpg
- name: "{{ state_attr('sensor.ts3_online', 'body')[4]['client_nickname'] }}"
unique_id: "ts3_4"
state: "{% if not state_attr('sensor.ts3_online', 'body')[4]['client_nickname'] or state_attr('sensor.ts3_online', 'body')[4]['client_nickname'] == 'serveradmin' %}OFF{% else %}ON{% endif %}"
attributes:
image: /local/images/ts3_{{ state_attr('sensor.ts3_online', 'body')[0]['client_nickname'] }}.jpg
so they got these attributes:
image: /local/images/ts3_rog.jpg
friendly_name: rog
i have tried to use auto-entities to filter out these clients, but im unable to pass the âimageâ attributes to use the image as badge image. Currently im trying entity-filter with badge-cards, but the image url does not workâŚonly if i type the url directly:
type: entity-filter
entities:
- entity: sensor.template_ts3_0
image: "{{ state_attr('sensor.template_ts3_0', 'image') }}"
state_filter:
- 'ON'
card:
type: custom:badge-card
card_mod:
style: |
div#badges {
display: flex;
justify-content: space-around;
font-size: 1.5em;
}
resulting in an empty badge.
hopefully anyone help me to pass the âimageâ attribute to a card, eventually with auto-entities?
thank you!
From my own use, and examples on here, it appears that this card âforcesâ a line break between each row.
Is there any way of removing that whitespace within the card configuration?

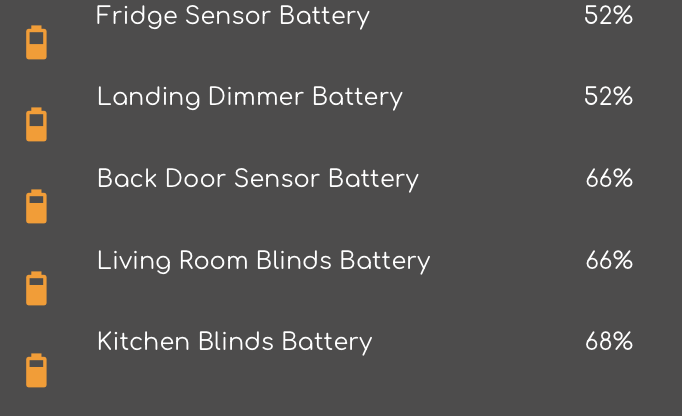

Auto-entities Card
Markdown card with whitespace removed
Further to my question in my last post above, about removing whitespace between rows, it appears that altering the font size only alters the spacing between the icons and not the font size or row spacing of the text (examples below).
So, to bump my original question, is it possible to remove whitespace/line breaks between rows and how can I solve this issue of custom font size only resizing space between icons and not text?
Font size = 12px
Font size = 8px
card-mod thread â 1st post â link at the bottom â how to manage space between rows
Do you mean this thread? card-mod
I canât find any link or post with that reference in the whole thread.
EDIT: Found the link credited to you. Thank you.
Iâve added the code suggested but itâs not having any effect on the card row spacing.
This is my card code:
type: custom:auto-entities
card:
card_mod:
style: |
hui-sensor-entity-row $:
hui-generic-entity-row {
height: 14px;
}
show_header_toggle: false
title: Average
type: entities
state_color: true
filter:
include:
- attributes:
device_class: battery
state: < 70
exclude:
- name: /[Ll]ow/
- name: /[Ss]tate/
- state: < 20
sort:
method: state
numeric: true
show_empty: false
Start testing new things with a SIMPLER case - just an Entities card (w/o auto-entities).
And check again your card-mod code, it was not copied /pasted correctly & has errors.
Iâve got a sensor (specifically a RESTful Sensor) thatâs pulling data on my CNC, but most of the time the laptop itâs pulling the data from is off and thus the sensor doesnât get created in HA whenever I happen to restart it.
Is there any way to filter it out when this is the case? Iâve used the following filters:
filter:
include: []
exclude:
- state: unavailable
- state: unknown
- state: none
But it still shows this on my card:
Thanks in advance!
Iâd like to sort based on the state of the entity or the attribute days_until. I wonât get it to work:
type: custom:auto-entities
card:
type: entities
title: AFVAL
entities:
- sensor.rmn_pmd
- sensor.rmn_papier
- sensor.rmn_gft
- sensor.rmn_restafval
show_empty: 'yes'
unique: 'yes'
sort:
method: attribute
attribute: days_until
numeric: false
reverse: false
Am I supposed to use the friendly name of the attribute or the one in the code : ATTR_DAYS_UNTIL ? I tried both.
The sorting by date/state seems the easiest way to go, but I canât find the correct code for that
