Is it possible you could share the exact connection and the esp home config?
Look here. At the bottom of the page
Just for every one here. This is how I got solved it with the help of @pepe59
ESPHome version 2023.8.2
-
mosi_pin
is connected toSDI(MOSI)
andT_DIN
-
miso_pin
is only connected toT_DO
only. -
clk_pin
is connected to SCK andT_CLK
Please make sure you connect the T_IRQ
to the interrupt_pin
. It is required for the touch to work.
Hi, the components are updated and your code is not accepted in ESPHome anymore. Did you update your code and would you be able to share the updated code ? Thanks!
See 2 posts above.
I put the working code including touch on github.
For calibration, proceed according to the documentation.
Thank you for pointing to the github. Unfortunately i still do not get it to work. Maybe you know what i am doing wrong ?
ESPHome Console error:
[23:53:16][W][component:204]: Component ili9xxx.display took a long time for an operation (0.13 s). [23:53:16][W][component:205]: Components should block for at most 20-30ms.
font:
- file: "gfonts://Roboto"
id: my_font
size: 20
color:
- id: my_red
red: 100%
spi:
clk_pin: 18 #display SCK/touch T_CLK
mosi_pin: 23 #display SDI(MOSI)/touch T_DIN
miso_pin: 19 #touch T_DO
touchscreen:
platform: xpt2046
id: my_touchscreen
cs_pin: 17 #touch T_CS
interrupt_pin: 16 #touch T_IRQ
update_interval: 50ms
report_interval: 1s
threshold: 400
calibration_x_min: 283
calibration_x_max: 3776
calibration_y_min: 3870
calibration_y_max: 392
swap_x_y: False
display:
- platform: ili9xxx
model: TFT 2.4
cs_pin: 13 #display CS
dc_pin: 27 #display DC
reset_pin: 33 #display RESET
rotation: 90
id: tft_ha_test
lambda: |-
it.fill(Color::BLACK);
it.print(0, 0, id(my_font), id(my_red), TextAlign::TOP_LEFT, "Hello World!");
# Define a PWM output on the ESP32
output:
- platform: ledc
pin: 32 #display LED
id: gpio_32_backlight_pwm
# Define a monochromatic, dimmable light for the backlight
light:
- platform: monochromatic
output: gpio_32_backlight_pwm
name: "Display HA test podsvícení"
id: back_light
restore_mode: ALWAYS_ON
ignore the wires on this picture, but it folows these pins
What display do you have?
I use ILI9341 2.8" and 2.4"
Then in the yaml code
display:
- platform: ili9xxx
model: ili9341
The error you describe is known.
Just add it to yaml
logger:
logs:
component: ERROR
Thanks for helping out!
I use a 2.4 TFT 14P screen
https://nl.aliexpress.com/item/1005005916960027.html?spm=a2g0o.order_list.order_list_main.59.27d779d25mrl54&gatewayAdapt=glo2nld

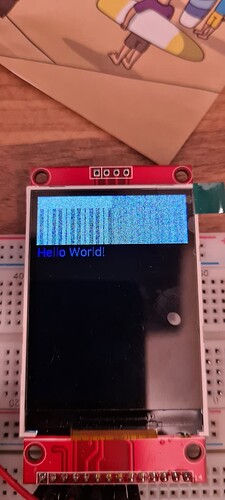

I got it to work i think. It looks like the model isn’t TFT 2.4 but TFT 2.4R. At least the strange noise on the screen is gone
Try TFT 2.4R
You were faster
Appreciate your quick reply’s! Really helped me out a lot! Now the fun stuf can start of programming the screen. Goal is to show what music is playing on spotify/sonos, and later add in some controles to skip tracks and so on.
Have a great day!
I’m working on something similar right now.
Touch control for squeezebox (LMS)
Unfortunately my screen appears to not have touchscreen (it does have the headers) so maybe i order it but first want to see if it works with buttons and i will use the display. Will share the code if i get it to work
Thinking on printing one of the following cases. the first gives me room for physical buttons
So I have this weird issue.
This is my config
esphome:
name: "lcd-with-touch-esp32"
friendly_name: LCD-With-Touch-ESP32
esp32:
board: esp32dev
framework:
type: arduino
# Enable logging
logger:
# Enable Home Assistant API
api:
encryption:
key: "0y8By35x9D8mqZSghntlGOja1GpZg6Fr8gFcNvjxXQg="
ota:
password: "4e3b4930a3ff2672415c158b17331a0d"
wifi:
ssid: !secret wifi_ssid
password: !secret wifi_password
manual_ip:
static_ip: 192.168.0.85
gateway: 192.168.0.1
subnet: 255.255.255.0
# Enable fallback hotspot (captive portal) in case wifi connection fails
ap:
ssid: "Lcd-Esp32 Fallback Hotspot"
password: "vxLa8dfwFIL1"
captive_portal:
web_server:
port: 80
spi:
clk_pin: 18
mosi_pin: 23
miso_pin: 14
touchscreen:
platform: xpt2046
id: my_touchscreen
cs_pin: 33
interrupt_pin: 19
update_interval: 20ms
calibration_x_max: 3691
calibration_x_min: 319
calibration_y_max: 453
calibration_y_min: 3873
on_touch:
- lambda: |-
ESP_LOGI("cal", "x=%d, y=%d, x_raw=%d, y_raw=%d",
id(my_touchscreen).x,
id(my_touchscreen).y,
id(my_touchscreen).x_raw,
id(my_touchscreen).y_raw
);
display:
- platform: ili9xxx
model: ILI9341
cs_pin: 27
dc_pin: 26
reset_pin: 5
rotation: 270
lambda: |-
auto red = Color(255, 0, 0);
auto green = Color(0, 255, 0);
auto blue = Color(0, 0, 255);
auto white = Color(255, 255, 255);
it.fill(green);
if (id(my_touchscreen).touched)
it.filled_circle(id(my_touchscreen).x, id(my_touchscreen).y, 10, red);
switch:
- platform: gpio
pin:
number: 4
restore_mode: ALWAYS_ON
name: "Living Room Dehumidifier"
Now if i start the esp32 with the display connected and try touching the screen. It does not work.
Then while the power is still connected and the ESP32 is on, If i disconnect the display and reconnect it, the touch starts to work( i can see in the logs the touch coordinates) , but the display doesn’t show any colors on the screen (Some blue color is displayed instead of Green).
Next, If i continues to install the same image over wireless option using OTA, the OTA finishes, it reboots the device and I can see both the display as well as the touch input.
If I follow these exact steps without turning off the ESP32, it works… As soon as I turn it off and turn it on again, the touch stops working.
Can someone let me know what am I doing wrong? Is it the pins I have chosen causing a problem?
What are you physically connected to
miso_pin: 14
?
miso_pin: 14
is connected to only T_DO
I further narrowed it down to one pin that is interrupt_pin. If i disconnect and connect it back while the ESP32 is powered on, it works fine.
What could be the issue then?
Look here at the bottom of the page.
I put a pin description yaml in there which works fine
Yes… I was exactly referring to the same config and I am still have this issue with the interrupt pin. If i disconnect and connect it back again then it works.
I really have no idea. Here it works fine on both 2.8" and 2.4" ILI9341.
Have you checked the strength of the wire connections and sufficient power supply?
I can’t think of anything else.
No problem. Thanks for all the help. @pepe59
It looks like the interrupt pin get stuck to some state on boot up and only after disconnecting and reconnecting it, it works fine.
I am using a 2.8 inch ILI9341 display. Should I try using 5v instead of 3.3v as input?
