Here is one that I use with my ESP32 C3 Mini 1 boards. It is based on the YAML from Screek for their 2A sensors.
1 Like
just got my ld2450 from Ali.
Honestly, it seems to throw totally random numbers
it came with version 2.04.23101915, but i also tried downgrading to 1.2.23051810 and it seems to behave the same
am i missing something?
1 Like
firmware 2 seems also to have enabled the reporting of serial data over BLE, so can we avoid ESP-Home or a dedicated device to read from it? However, i canāt figure out how to connect it to HAā¦ any hint?
I donāt believe there is currently a direct bluetooth integration available in HA for the LD2450. For those using the LD2450 in Home Assistant would be by conecting the TX/RX pins it to an ESP board.
1 Like
i see thereās a BLE integration for the 2410, maybe it is somehow similar, iāll try to give a lookā¦
the device publishes a service UUID where data is available in the same format it has on the serial interface, so it should be readableā¦
however, no idea how to change settings (for example, single target vs multi target)
1 Like
The LD2410 discloses the high-level protocol, while the BLE portion of the LD2450 is not currently disclosed and may have to be reversed over.
From a batch of LD2450ās we just DIYād, the numbers are off if the radar is mounted at the right height, but it doesnāt seem to be some sort of random number.
just to check if i got you right, LD2450 broadcasts on BT the same datagram it sends on serial, but this is not āofficialā so we are assuming it can change?
Oh well, it makes sense
i saw the LD2410 BLE code and it seems quite hard to adapt (datagram is totally different!) so probably you are right and it is not a good investment to create code until it is officialā¦
1 Like
I think their mechanisms may be the same (we have not evaluated their communication data, nor have we grabbed packets), and of course we would love to have HLK publish these protocol codes in the future. After that, it will still take open source enthusiasts to complete an integration plugin. That seems a bit far away.
At the moment I think the WIFI approach is satisfactory, we share more than 1300 2Aās around the world (exhausting to make, but quite fun) and most of them work well.
1 Like
After having great experience with LD2410 decide to try the LD2450.
Have an issue I need help with despite the rather smooth setup. āAny Presenceā shows detected but all of the zone presence show clear even when Iām in the zone.
Using the HLK android tool, zone I created there is not reflected in HA, so I manually created another set of zones in HA. Now it seems I have two different set of zones, one in HLK app and one in HA.
I believe Iām using the yaml shared by athua which is based on the screek 2A.
Kit
- 30pin esp32 cp2012
- LD2450
name: esphome-web-xxxxxx
friendly_name: ESP32-CP2012
espID: esphome_web_xxxxxx
esphome:
name: ${name}
friendly_name: ${friendly_name}
on_boot:
- priority: 100
then:
lambda: |-
id(cpu_speed) = ESP.getCpuFreqMHz();
- priority: -200
then:
lambda: |-
id(zone1_target_exsits).publish_state(false);
id(zone2_target_exsits).publish_state(false);
id(zone3_target_exsits).publish_state(false);
id(zone_ex1_target_exsits).publish_state(false);
esp32:
board: esp32dev
framework:
type: arduino
debug:
update_interval: 30s
# Enable logging
logger:
# Enable Home Assistant API
api:
encryption:
key: "xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx"
ota:
esp32_ble_tracker:
scan_parameters:
active: true
bluetooth_proxy:
active: true
wifi:
networks:
- ssid: !secret wifi2_ssid
password: !secret wifi2_password
priority: 2
- ssid: !secret wifi_ssid
password: !secret wifi_password
priority: 1
# Enable fallback hotspot (captive portal) in case wifi connection fails
ap:
ssid: ${name}
password: "xxxxxxxxx"
captive_portal:
preferences:
flash_write_interval: 5s
globals:
- id: cpu_speed
type: int
restore_value: no
initial_value: '0'
- id: last_update_ld2450
type: unsigned long
restore_value: no
initial_value: '0'
- id: init_zone_publish
type: bool
restore_value: no
initial_value: "false"
text_sensor:
- platform: debug
reset_reason:
name: "ESP Reset Reason"
icon: mdi:anchor
disabled_by_default: True
- platform: wifi_info
ip_address:
name: ESP IP Address
entity_category: "diagnostic"
disabled_by_default: True
icon: mdi:ip-network
mac_address:
name: ESP MAC
entity_category: "diagnostic"
icon: mdi:ip-network
disabled_by_default: True
- platform: template
name: "Zone1 Info"
id: tips_zone1_conf
icon: mdi:information-outline
entity_category: config
lambda: |-
return {"Configure below" };
update_interval: 1000s
- platform: template
name: "Zone2 Info"
id: tips_zone2_conf
icon: mdi:information-outline
entity_category: config
lambda: |-
return {"Configure below" };
update_interval: 1000s
- platform: template
name: "Zone3 Info"
id: tips_zone3_conf
icon: mdi:information-outline
entity_category: config
lambda: |-
return {"Configure below" };
update_interval: 1000s
- platform: template
name: "Zout1 Info"
id: tips_zone_ex1_conf
icon: mdi:information-outline
entity_category: config
lambda: |-
return {"Zone Exclusion 1" };
update_interval: 1000s
number:
- platform: template
name: "Any Presence Timeout"
id: any_presence_timeout
min_value: 0
max_value: 600
mode: box
device_class: duration
entity_category: config
unit_of_measurement: s
icon: mdi:timer-off
step: 1
optimistic: True
initial_value: 0
restore_value: True
- platform: template
name: "Zone1 Timeout"
id: zone1_x_timeout
min_value: 0
max_value: 600
mode: box
device_class: duration
entity_category: config
unit_of_measurement: s
icon: mdi:timer-off
step: 1
optimistic: True
initial_value: 0
restore_value: True
- platform: template
name: "Zone2 Timeout"
id: zone2_x_timeout
min_value: 0
max_value: 600
mode: box
device_class: duration
entity_category: config
unit_of_measurement: s
icon: mdi:timer-off
step: 1
optimistic: True
initial_value: 0
restore_value: True
- platform: template
name: "Zone3 Timeout"
id: zone3_x_timeout
min_value: 0
max_value: 600
mode: box
device_class: duration
entity_category: config
unit_of_measurement: s
icon: mdi:timer-off
step: 1
optimistic: True
initial_value: 0
restore_value: True
# Zone 1
- platform: template
name: Zone1 X-Begin
id: zone1_x_begin
min_value: -4000
max_value: 4000
mode: box
device_class: distance
entity_category: config
unit_of_measurement: mm
icon: mdi:arrow-left-bold
step: 10
optimistic: True
initial_value: 0
restore_value: True
on_value:
then:
- script.execute: check_zone1_vaild
- platform: template
name: Zone1 X-End
id: zone1_x_end
mode: box
min_value: -4000
max_value: 4000
device_class: distance
unit_of_measurement: mm
entity_category: config
icon: mdi:arrow-right-bold
step: 10
initial_value: 0
optimistic: True
restore_value: True
on_value:
then:
- script.execute: check_zone1_vaild
- platform: template
name: Zone1 Y-Begin
id: zone1_y_begin
mode: box
min_value: 0
max_value: 6000
device_class: distance
entity_category: config
icon: mdi:arrow-up-bold
unit_of_measurement: mm
step: 10
initial_value: 0
optimistic: True
restore_value: True
on_value:
then:
- script.execute: check_zone1_vaild
- platform: template
name: Zone1 Y-End
id: zone1_y_end
icon: mdi:arrow-down-bold
mode: box
min_value: 0
max_value: 6000
initial_value: 0
entity_category: config
device_class: distance
unit_of_measurement: mm
step: 10
optimistic: True
restore_value: True
on_value:
then:
- script.execute: check_zone1_vaild
# Zone 2
- platform: template
name: Zone2 X-Begin
id: zone2_x_begin
min_value: -4000
max_value: 4000
mode: box
device_class: distance
entity_category: config
unit_of_measurement: mm
icon: mdi:arrow-left-bold
step: 10
optimistic: True
initial_value: 0
restore_value: True
on_value:
then:
- script.execute: check_zone2_vaild
- platform: template
name: Zone2 X-End
id: zone2_x_end
mode: box
min_value: -4000
max_value: 4000
device_class: distance
unit_of_measurement: mm
entity_category: config
icon: mdi:arrow-right-bold
step: 10
initial_value: 0
optimistic: True
restore_value: True
on_value:
then:
- script.execute: check_zone2_vaild
- platform: template
name: Zone2 Y-Begin
id: zone2_y_begin
mode: box
min_value: 0
max_value: 6000
device_class: distance
entity_category: config
icon: mdi:arrow-up-bold
unit_of_measurement: mm
step: 10
initial_value: 0
optimistic: True
restore_value: True
on_value:
then:
- script.execute: check_zone2_vaild
- platform: template
name: Zone2 Y-End
id: zone2_y_end
icon: mdi:arrow-down-bold
mode: box
min_value: 0
max_value: 6000
initial_value: 0
entity_category: config
device_class: distance
unit_of_measurement: mm
step: 10
optimistic: True
restore_value: True
on_value:
then:
- script.execute: check_zone2_vaild
# Zone 3
- platform: template
name: Zone3 X-Begin
id: zone3_x_begin
min_value: -4000
max_value: 4000
mode: box
device_class: distance
entity_category: config
unit_of_measurement: mm
icon: mdi:arrow-left-bold
step: 10
optimistic: True
initial_value: 0
restore_value: True
on_value:
then:
- script.execute: check_zone3_vaild
- platform: template
name: Zone3 X-End
id: zone3_x_end
mode: box
min_value: -4000
max_value: 4000
device_class: distance
unit_of_measurement: mm
entity_category: config
icon: mdi:arrow-right-bold
step: 10
initial_value: 0
optimistic: True
restore_value: True
on_value:
then:
- script.execute: check_zone3_vaild
- platform: template
name: Zone3 Y-Begin
id: zone3_y_begin
mode: box
min_value: 0
max_value: 6000
device_class: distance
entity_category: config
icon: mdi:arrow-up-bold
unit_of_measurement: mm
step: 10
initial_value: 0
optimistic: True
restore_value: True
on_value:
then:
- script.execute: check_zone3_vaild
- platform: template
name: Zone3 Y-End
id: zone3_y_end
icon: mdi:arrow-down-bold
mode: box
min_value: 0
max_value: 6000
initial_value: 0
entity_category: config
device_class: distance
unit_of_measurement: mm
step: 10
optimistic: True
restore_value: True
on_value:
then:
- script.execute: check_zone3_vaild
# Zout1
- platform: template
name: Zout1 X-Begin
id: zone_ex1_x_begin
min_value: -4000
max_value: 4000
mode: box
device_class: distance
entity_category: config
unit_of_measurement: mm
icon: mdi:arrow-left-bold
step: 10
optimistic: True
initial_value: 0
restore_value: True
on_value:
then:
- script.execute: check_zout1_vaild
- platform: template
name: Zout1 X-End
id: zone_ex1_x_end
mode: box
min_value: -4000
max_value: 4000
device_class: distance
unit_of_measurement: mm
entity_category: config
icon: mdi:arrow-right-bold
step: 10
initial_value: 0
optimistic: True
restore_value: True
on_value:
then:
- script.execute: check_zout1_vaild
- platform: template
name: Zout1 Y-Begin
id: zone_ex1_y_begin
mode: box
min_value: 0
max_value: 6000
device_class: distance
entity_category: config
icon: mdi:arrow-up-bold
unit_of_measurement: mm
step: 10
initial_value: 0
optimistic: True
restore_value: True
on_value:
then:
- script.execute: check_zout1_vaild
- platform: template
name: Zout1 Y-End
id: zone_ex1_y_end
icon: mdi:arrow-down-bold
mode: box
min_value: 0
max_value: 6000
initial_value: 0
entity_category: config
device_class: distance
unit_of_measurement: mm
step: 10
optimistic: True
restore_value: True
on_value:
then:
- script.execute: check_zout1_vaild
binary_sensor:
- platform: status
name: Online
id: ink_ha_connected
- platform: template
name: "Any Presence"
id: any_target_exsits
device_class: occupancy
filters:
- delayed_off: !lambda |-
return id(any_presence_timeout).state * 1000.0;
- platform: template
name: "Zone1 Presence"
id: zone1_target_exsits
device_class: occupancy
filters:
- delayed_off: !lambda |-
return id(zone1_x_timeout).state * 1000.0;
- platform: template
name: "Zone2 Presence"
id: zone2_target_exsits
device_class: occupancy
filters:
- delayed_off: !lambda |-
return id(zone2_x_timeout).state * 1000.0;
- platform: template
name: "Zone3 Presence"
id: zone3_target_exsits
device_class: occupancy
filters:
- delayed_off: !lambda |-
return id(zone3_x_timeout).state * 1000.0;
- platform: template
name: "Zout1 Presence"
id: zone_ex1_target_exsits
icon: mdi:account-multiple-remove
device_class: occupancy
script:
- id: check_zone1_vaild
then:
- lambda: |-
if (id(zone1_x_begin).state > id(zone1_x_end).state){
id(tips_zone1_conf).publish_state("Err: X-Begin > X-End");
return;
}
if (id(zone1_y_begin).state > id(zone1_y_end).state){
id(tips_zone1_conf).publish_state("Err: Y-Begin > Y-End");
return;
}
if (id(zone1_x_begin).state == 0, id(zone1_x_end).state == 0, id(zone1_y_begin).state == 0, id(zone1_y_end).state == 0){
id(tips_zone1_conf).publish_state("Configure below");
return;
}
int x_size = id(zone1_x_end).state - id(zone1_x_begin).state;
int y_size = id(zone1_y_end).state - id(zone1_y_begin).state;
char combined[80];
sprintf(combined, "Curr Size: %d x %d", x_size, y_size);
id(tips_zone1_conf).publish_state(combined);
- id: check_zone2_vaild
then:
- lambda: |-
if (id(zone2_x_begin).state > id(zone2_x_end).state){
id(tips_zone2_conf).publish_state("Err: X-Begin > X-End");
return;
}
if (id(zone2_y_begin).state > id(zone2_y_end).state){
id(tips_zone2_conf).publish_state("Err: Y-Begin > Y-End");
return;
}
if (id(zone2_x_begin).state == 0, id(zone2_x_end).state == 0, id(zone2_y_begin).state == 0, id(zone2_y_end).state == 0){
id(tips_zone2_conf).publish_state("Configure below");
return;
}
int x_size = id(zone2_x_end).state - id(zone2_x_begin).state;
int y_size = id(zone2_y_end).state - id(zone2_y_begin).state;
char combined[80];
sprintf(combined, "Curr Size: %d x %d", x_size, y_size);
id(tips_zone2_conf).publish_state(combined);
- id: check_zone3_vaild
then:
- lambda: |-
if (id(zone3_x_begin).state > id(zone3_x_end).state){
id(tips_zone3_conf).publish_state("Err: X-Begin > X-End");
return;
}
if (id(zone3_y_begin).state > id(zone3_y_end).state){
id(tips_zone3_conf).publish_state("Err: Y-Begin > Y-End");
return;
}
if (id(zone3_x_begin).state == 0, id(zone3_x_end).state == 0, id(zone3_y_begin).state == 0, id(zone3_y_end).state == 0){
id(tips_zone3_conf).publish_state("Configure below");
return;
}
int x_size = id(zone3_x_end).state - id(zone3_x_begin).state;
int y_size = id(zone3_y_end).state - id(zone3_y_begin).state;
char combined[80];
sprintf(combined, "Curr Size: %d x %d", x_size, y_size);
id(tips_zone3_conf).publish_state(combined);
- id: check_zout1_vaild
then:
- lambda: |-
if (id(zone_ex1_x_begin).state > id(zone_ex1_x_end).state){
id(tips_zone_ex1_conf).publish_state("Err: X-Begin > X-End");
return;
}
if (id(zone_ex1_y_begin).state > id(zone_ex1_y_end).state){
id(tips_zone_ex1_conf).publish_state("Err: Y-Begin > Y-End");
return;
}
id(tips_zone_ex1_conf).publish_state("Zone Exclusion 1");
sensor:
- platform: template
name: "ESP CPU Speed"
accuracy_decimals: 0
icon: mdi:cpu-32-bit
unit_of_measurement: Mhz
disabled_by_default: True
lambda: |-
return (id(cpu_speed));
entity_category: "diagnostic"
update_interval: 600s
- platform: template
id: sys_esp_temperature
name: ESP Temperature
lambda: return temperatureRead();
unit_of_measurement: Ā°C
device_class: TEMPERATURE
update_interval: 45s
entity_category: "diagnostic"
- platform: uptime
name: ESP Uptime
id: sys_uptime
update_interval: 60s
- platform: wifi_signal
name: RSSI
id: wifi_signal_db
update_interval: 60s
entity_category: "diagnostic"
- platform: template
id: esp_memory
icon: mdi:memory
name: ESP Free Memory
lambda: return heap_caps_get_free_size(MALLOC_CAP_INTERNAL) / 1024;
unit_of_measurement: 'kB'
state_class: measurement
entity_category: "diagnostic"
update_interval: 60s
#-------------------------------------#
# é«ēŗ§é·č¾¾ę°ę®
- platform: template
name: "All Target Counts"
id: all_target_count
accuracy_decimals: 0
icon: "mdi:counter"
unit_of_measurement: "targets"
- platform: template
name: "Zone1 Target Counts"
id: zone1_target_count
accuracy_decimals: 0
icon: "mdi:counter"
unit_of_measurement: "targets"
- platform: template
name: "Zone2 Target Counts"
id: zone2_target_count
accuracy_decimals: 0
icon: "mdi:counter"
unit_of_measurement: "targets"
- platform: template
name: "Zone3 Target Counts"
id: zone3_target_count
accuracy_decimals: 0
icon: "mdi:counter"
unit_of_measurement: "targets"
- platform: template
name: "Zout1 Target Counts"
id: zone_ex1_target_count
accuracy_decimals: 0
icon: mdi:account-multiple-minus-outline
unit_of_measurement: "targets"
# Target 1
- platform: template
name: "Target1 X"
id: target1_x
accuracy_decimals: 0
unit_of_measurement: 'mm'
state_class: measurement
device_class: distance
- platform: template
name: "Target1 Y"
id: target1_y
accuracy_decimals: 0
unit_of_measurement: 'mm'
state_class: measurement
device_class: distance
- platform: template
name: "Target1 Speed"
id: target1_speed
accuracy_decimals: 2
unit_of_measurement: 'm/s'
state_class: measurement
device_class: speed
- platform: template
name: "Target1 Resolution"
id: target1_resolution
accuracy_decimals: 0
unit_of_measurement: 'mm'
state_class: measurement
device_class: distance
# Target 2
- platform: template
name: "Target2 X"
id: target2_x
accuracy_decimals: 0
unit_of_measurement: 'mm'
state_class: measurement
device_class: distance
- platform: template
name: "Target2 Y"
id: target2_y
accuracy_decimals: 0
unit_of_measurement: 'mm'
state_class: measurement
device_class: distance
- platform: template
name: "Target2 Speed"
id: target2_speed
accuracy_decimals: 0
unit_of_measurement: 'm/s'
state_class: measurement
device_class: speed
- platform: template
name: "Target2 Resolution"
id: target2_resolution
accuracy_decimals: 0
unit_of_measurement: 'mm'
state_class: measurement
device_class: distance
# Target 3
- platform: template
name: "Target3 X"
id: target3_x
accuracy_decimals: 0
unit_of_measurement: 'mm'
state_class: measurement
device_class: distance
- platform: template
name: "Target3 Y"
id: target3_y
accuracy_decimals: 0
unit_of_measurement: 'mm'
state_class: measurement
device_class: distance
- platform: template
name: "Target3 Speed"
id: target3_speed
accuracy_decimals: 0
unit_of_measurement: 'm/s'
state_class: measurement
device_class: speed
- platform: template
name: "Target3 Resolution"
id: target3_resolution
accuracy_decimals: 0
unit_of_measurement: 'mm'
state_class: measurement
device_class: distance
time:
- platform: sntp
id: time_now
switch:
- platform: factory_reset
name: Factory Reset
disabled_by_default: True
icon: mdi:heart-broken
- platform: template
name: Zout1 Enable
id: zone_ex1_enable
optimistic: True
icon: mdi:account-cancel
entity_category: config
restore_mode: RESTORE_DEFAULT_OFF
button:
- platform: restart
icon: mdi:power-cycle
name: "ESP Reboot"
entity_category: diagnostic
uart:
id: uart_bus
tx_pin:
number: GPIO17
mode:
input: true
pullup: true
rx_pin:
number: GPIO16
mode:
input: true
pullup: true
baud_rate: 256000
parity: NONE
stop_bits: 1
data_bits: 8
debug:
direction: BOTH
dummy_receiver: True
after:
delimiter: [0X55, 0XCC]
sequence:
- lambda: |-
if ((millis() - id(last_update_ld2450)) <= 500) {
return;
};
id(last_update_ld2450) = millis();
// p1
int16_t p1_x = (uint16_t((bytes[5] << 8) | bytes[4] ));
if ((bytes[5] & 0x80) >> 7){
p1_x -= pow(2, 15);
}else{
p1_x = 0 - p1_x;
}
int16_t p1_y = (uint16_t((bytes[7] << 8) | bytes[6] ));
if ((bytes[7] & 0x80) >> 7){
p1_y -= pow(2, 15);
}else{
p1_y = 0 - p1_y;
}
int p1_speed = (bytes[9] << 8 | bytes[8] );
if ((bytes[9] & 0x80) >> 7){
p1_speed -= pow(2, 15);
}else{
p1_speed = 0 - p1_speed;
}
int16_t p1_distance_resolution = (uint16_t((bytes[11] << 8) | bytes[10] ));
// p2
int16_t p2_x = (uint16_t((bytes[13] << 8) | bytes[12] ));
if ((bytes[13] & 0x80) >> 7){
p2_x -= pow(2, 15);
}else{
p2_x = 0 - p2_x;
}
int16_t p2_y = (uint16_t((bytes[15] << 8) | bytes[14] ));
if ((bytes[15] & 0x80) >> 7){
p2_y -= pow(2, 15);
}else{
p2_y = 0 - p2_y;
}
int p2_speed = (bytes[17] << 8 | bytes[16] );
if ((bytes[17] & 0x80) >> 7){
p2_speed -= pow(2, 15);
}else{
p2_speed = 0 - p2_speed;
}
int16_t p2_distance_resolution = (uint16_t((bytes[19] << 8) | bytes[18] ));
// p3
int16_t p3_x = (uint16_t((bytes[21] << 8) | bytes[20] ));
if ((bytes[21] & 0x80) >> 7){
p3_x -= pow(2, 15);
}else{
p3_x = 0 - p3_x;
}
int16_t p3_y = (uint16_t((bytes[23] << 8) | bytes[22] ));
if ((bytes[23] & 0x80) >> 7){
p3_y -= pow(2, 15);
}else{
p3_y = 0 - p3_y;
}
int p3_speed = (bytes[25] << 8 | bytes[24] );
if ((bytes[25] & 0x80) >> 7){
p3_speed -= pow(2, 15);
}else{
p3_speed = 0 - p3_speed;
}
int16_t p3_distance_resolution = (uint16_t((bytes[27] << 8) | bytes[26] ));
bool p1_vaild = (p1_x != 0 || p1_y > 0);
bool p2_vaild = (p2_x != 0 || p2_y > 0);
bool p3_vaild = (p3_x != 0 || p3_y > 0);
// zone exlude 1
int16_t target_count_in_zone_ex1 = 0;
int16_t zone_ex1_x_min = id(zone_ex1_x_begin).state;
int16_t zone_ex1_x_max = id(zone_ex1_x_end).state;
int16_t zone_ex1_y_min = id(zone_ex1_y_begin).state;
int16_t zone_ex1_y_max = id(zone_ex1_y_end).state;
bool p1_zone_ex_enter = false;
bool p2_zone_ex_enter = false;
bool p3_zone_ex_enter = false;
if (id(zone_ex1_enable).state){
if (p1_vaild){
if (p1_x >= zone_ex1_x_min && p1_x <= zone_ex1_x_max && p1_y >= zone_ex1_y_min && p1_y <= zone_ex1_y_max){
p1_zone_ex_enter = true;
target_count_in_zone_ex1 ++;
}
}
if (p2_vaild){
if (p2_x >= zone_ex1_x_min && p2_x <= zone_ex1_x_max && p2_y >= zone_ex1_y_min && p2_y <= zone_ex1_y_max){
p2_zone_ex_enter = true;
target_count_in_zone_ex1 ++;
}
}
if (p3_vaild){
if (p3_x >= zone_ex1_x_min && p3_x <= zone_ex1_x_max && p3_y >= zone_ex1_y_min && p3_y <= zone_ex1_y_max){
p3_zone_ex_enter = true;
target_count_in_zone_ex1 ++;
}
}
}
bool has_target_in_zone_ex1 = (target_count_in_zone_ex1 > 0);
int16_t all_target_counts = 0;
if (p1_vaild && !p1_zone_ex_enter){
all_target_counts ++;
}
if (p2_vaild && !p2_zone_ex_enter){
all_target_counts ++;
}
if (p3_vaild && !p3_zone_ex_enter){
all_target_counts ++;
}
bool has_target_in_zone_all = (all_target_counts > 0);
// zone 1 check
int16_t target_count_in_zone1 = 0;
int16_t zone1_x_min = id(zone1_x_begin).state;
int16_t zone1_x_max = id(zone1_x_end).state;
int16_t zone1_y_min = id(zone1_y_begin).state;
int16_t zone1_y_max = id(zone1_y_end).state;
if (p1_vaild && !p1_zone_ex_enter){
if (p1_x >= zone1_x_min && p1_x <= zone1_x_max && p1_y >= zone1_y_min && p1_y <= zone1_y_max){
target_count_in_zone1 ++;
}
}
if (p2_vaild && !p2_zone_ex_enter){
if (p2_x >= zone1_x_min && p2_x <= zone1_x_max && p2_y >= zone1_y_min && p2_y <= zone1_y_max){
target_count_in_zone1 ++;
}
}
if (p3_vaild && !p3_zone_ex_enter){
if (p3_x >= zone1_x_min && p3_x <= zone1_x_max && p3_y >= zone1_y_min && p3_y <= zone1_y_max){
target_count_in_zone1 ++;
}
}
bool has_target_in_zone1 = (target_count_in_zone1 > 0);
// zone 2 check
int16_t target_count_in_zone2 = 0;
int16_t zone2_x_min = id(zone2_x_begin).state;
int16_t zone2_x_max = id(zone2_x_end).state;
int16_t zone2_y_min = id(zone2_y_begin).state;
int16_t zone2_y_max = id(zone2_y_end).state;
if (p1_vaild && !p1_zone_ex_enter){
if (p1_x >= zone2_x_min && p1_x <= zone2_x_max && p1_y >= zone2_y_min && p1_y <= zone2_y_max){
target_count_in_zone2 ++;
}
}
if (p2_vaild && !p2_zone_ex_enter){
if (p2_x >= zone2_x_min && p2_x <= zone2_x_max && p2_y >= zone2_y_min && p2_y <= zone2_y_max){
target_count_in_zone2 ++;
}
}
if (p3_vaild && !p3_zone_ex_enter){
if (p3_x >= zone2_x_min && p3_x <= zone2_x_max && p3_y >= zone2_y_min && p3_y <= zone2_y_max){
target_count_in_zone2 ++;
}
}
bool has_target_in_zone2 = (target_count_in_zone2 > 0);
// zone 3 check
int16_t target_count_in_zone3 = 0;
int16_t zone3_x_min = id(zone3_x_begin).state;
int16_t zone3_x_max = id(zone3_x_end).state;
int16_t zone3_y_min = id(zone3_y_begin).state;
int16_t zone3_y_max = id(zone3_y_end).state;
if (p1_vaild && !p1_zone_ex_enter){
if (p1_x >= zone3_x_min && p1_x <= zone3_x_max && p1_y >= zone3_y_min && p1_y <= zone3_y_max){
target_count_in_zone3 ++;
}
}
if (p2_vaild && !p2_zone_ex_enter){
if (p2_x >= zone3_x_min && p2_x <= zone3_x_max && p2_y >= zone3_y_min && p2_y <= zone3_y_max){
target_count_in_zone3 ++;
}
}
if (p3_vaild && !p3_zone_ex_enter){
if (p3_x >= zone3_x_min && p3_x <= zone3_x_max && p3_y >= zone3_y_min && p3_y <= zone3_y_max){
target_count_in_zone3 ++;
}
}
bool has_target_in_zone3 = (target_count_in_zone3 > 0);
// public all info
if (id(target1_x).state != p1_x){
id(target1_x).publish_state(p1_x);
}
if (id(target1_y).state != p1_y){
id(target1_y).publish_state(p1_y);
}
float p1_m_speed = float(p1_speed) / 100.0;
if (id(target1_speed).state != p1_m_speed){
id(target1_speed).publish_state(p1_m_speed);
}
if (id(target1_resolution).state != p1_distance_resolution){
id(target1_resolution).publish_state(p1_distance_resolution);
}
if (id(target2_x).state != p2_x){
id(target2_x).publish_state(p2_x);
}
if (id(target2_y).state != p2_y){
id(target2_y).publish_state(p2_y);
}
if (id(target2_speed).state != p2_speed){
id(target2_speed).publish_state(p2_speed);
}
if (id(target2_resolution).state != p2_distance_resolution){
id(target2_resolution).publish_state(p2_distance_resolution);
}
if (id(target3_x).state != p3_x){
id(target3_x).publish_state(p3_x);
}
if (id(target3_y).state != p3_y){
id(target3_y).publish_state(p3_y);
}
if (id(target3_speed).state != p3_speed){
id(target3_speed).publish_state(p3_speed);
}
if (id(target3_resolution).state != p3_distance_resolution){
id(target3_resolution).publish_state(p3_distance_resolution);
}
// publish target info
if (id(all_target_count).state != all_target_counts){
id(all_target_count).publish_state(all_target_counts);
id(any_target_exsits).publish_state(has_target_in_zone_all);
}
if (id(zone1_target_count).state != target_count_in_zone1){
id(zone1_target_count).publish_state(target_count_in_zone1);
id(zone1_target_exsits).publish_state(has_target_in_zone1);
}
if (id(zone2_target_count).state != target_count_in_zone2){
id(zone2_target_count).publish_state(target_count_in_zone2);
id(zone2_target_exsits).publish_state(has_target_in_zone2);
}
if (id(zone3_target_count).state != target_count_in_zone3){
id(zone3_target_count).publish_state(target_count_in_zone3);
id(zone3_target_exsits).publish_state(has_target_in_zone3);
}
// zout
if (id(zone_ex1_target_count).state != target_count_in_zone_ex1){
id(zone_ex1_target_count).publish_state(target_count_in_zone_ex1);
id(zone_ex1_target_exsits).publish_state(has_target_in_zone_ex1);
}
if (!id(init_zone_publish)){
id(init_zone_publish) = true;
}
1 Like
Yes, the current hlkradartool app provides its own set of zone mechanisms, but this one has this behavior:
- Its include and exclude zones are independent, you canāt have both at the same time.
- Its zones affect the final coordinate output, which means that if include zones are turned on, then only the x and y coordinates will be output for include zones.Whereas for excluded zones, then the targets in the excluded zones act like black holes, resulting in no output for x and y.
Since there is no raw coordinate output, the zone mechanism in ha is independent (for screekās code), which has the advantage that wo m always have access to xy coordinates.This is pretty cool when paired with a map, at the cost, of course, of typing in those numbers is kind of a pain in the ass.
Maybe in the future some improvements could be made that could also show what happens to the regions in the app, I think it might be a good idea.
Currently uncly-yuruās library uses a different idea, exposing the appās settings and the region of judgment, if we understand it correctly.It may then lead to that black hole problem, where the target is only output when it is in the zone.
Weāll continue to feed back to hlk to always have raw coordinate output in the future.And the ability to include both regions + exclude regions everything combination available in the app.
Just wanted to say thanks, new to HA and people mentioning screek helped point me to many useful reading material.

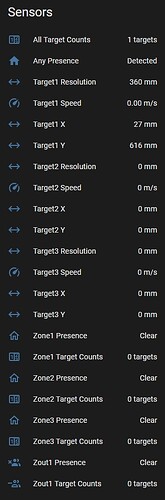

Back to the issue I have, noted on what you shared. However as mentioned I face the issue of the zones in HA reporting clear despite being in the zone. Pictures for your reference.
I think itās most likely a negative number problem, if everything looks fine but then it doesnāt go into the region, thereās a chance that someone got it wrong in a system where the x-coordinate contains a negative number, in fact -10 is less than -2, and one should write -2 in x-begin and -10 in x-end.
We hope that the next step will be to improve the firmware to automatically handle this kind of easily confused numerical errors, and reduce the numerical stress for everyone.
1 Like
thereās a chance that someone got it wrong
Yup that someone is me, thanks all fixed!
Still testing this in my current apartment before my new place is ready, intend to add a BH1750 to this. Hopefully not too difficult
The esphome is powerful and probably easier than you think, good luck.
Someone know where find a case for LD2450 stl to print ?
Thanks
1 Like
I have a case which is with custom ESP board, I think it is not suitable for you, If you tell me what ESP board youāre using, maybe I can make one for you, of course, it is free!
i have a esp32-c3 super miniā¦
1 Like
removed for off topic, this is ESPHome section
just opened a net topic instead
how can you check if the sensor is working in single-target or multi-target mode?
i mean, in the datasheet there is a serial command to set target mode, but no config data seems to be provided on serial (if not as ack on serial command), but when you open the app it is able to understand if the sensor is single or multi target.
What data is it using?
Thanks
1 Like
