You cannot display raw data, but can reduce interpolation:
aggregate_func: last
points_per_hour: equal to a real scan_interval
smoothing: false
And surely this is not for bar graph.

2198

Hello…

i have a question…


  1. I’d like to have just the max value on every day… Is this possible?

  2. I’d like to format the displayed extrema values. No need for time and date. Possible to remove this?

Thanks so far :slight_smile:

2199

Use search here for “card-mod” keyword.

2200

Use the aggregate and group by settings as in the docs.

  aggregate_func: max
  group_by: date
2201

Already in my code:

type: custom:mini-graph-card
entities:
  - entity: sensor.sma_device_daily_yield
hours_to_show: 168
aggregate_func: max
group_by: date
name: Produktion Solarstrom
show:
  graph: bar
  extrema: true
  labels: true
2202

50+ results… any keyword more for what to look?

2203

card-mod extrema
Search MY posts - you will find a huge post for styling the card.
Or go to card-mod thread → 1st post → link at the bottom → styles for mini-graph-card.

2204

Puh thats too much for me.

Can‘t get this even to change color. Display: none is also not working

Also to display the daily values inside the bars i have no idea. I think i need to study this :sweat_smile:

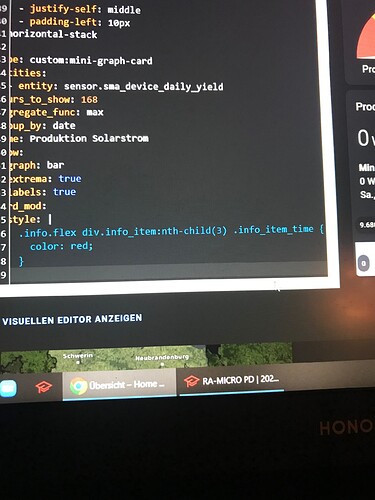

image1920×2560 349 KB

2205

Another way is to use the delta function if you have a summation delivered on your electricity meters, or you have a Riemann sum. You will get a daily usage breakdown then as it will minus today’s value with yesterday’s

2206

Hello,
So i was trying to make a graph that has both the humidity and the temperture on it and that has the color thresholds has well. Is it possible ? because when i put theme on the same graph the color fonction is not taken into consideration

Thaks for you help

2207

HI all,

I have three entities in my graph card, temp, humidity and battery, but there is only one thermometer icon and there is not really a visible difference between the other entities.
Is there a way to add extra icons with the other entities, at the places of the arrows in the image?

image983×582 75.4 KB

2208

Hi,

is there a hint to get the graph away from the card border? I want to have a little free area and not the lines till the border line?

Thanks, Steffen

2209

Imitating statistics card:


Code
type: custom:mini-graph-card
entities:
  - entity: sensor.xxx
    aggregate_func: max
    name: max
    color: lightblue
  - entity: sensor.xxx
    aggregate_func: median
    name: median
    color: blue
    show_fill: false
  - entity: sensor.xxx
    aggregate_func: min
    name: min
    color: lightblue
...
card_mod:
  style: |
    mask:nth-of-type(2) .fill {
      opacity: 1 !important;
      animation: none;
    }
    .fill--rect:nth-of-type(2) {
      fill: var(--card-background-color);
    }

Note: take into account this issue - [bug] min/max/avg values are wrong for the graph start (before first point).

3 Likes
2210

Hi all.

Maybe I’m doing something wrong but I can’t figure out what.
I have a graph with a temperature from a Netatmo Valvle


The current and desired temperatures work well.
I want to add the indication about on\off of the valve.

I have create a sensor for the state (idle and heat) and a binary_sensor to mapping idle\heat of sensor in on\off value.

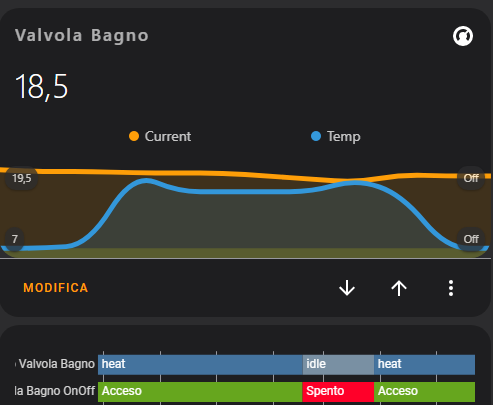

You can see the state on the history below the graph, but I don’t see the state of sensor on graph.
In the image, the yellow line in bottom indicate the sensor, but all with the same colors.

This is my code.

type: custom:mini-graph-card
entities:
  - entity: climate.bagno
    attribute: current_temperature
    name: Current
  - entity: climate.bagno
    attribute: temperature
    name: Temp
  - entity: binary_sensor.stato_valvola_bagno_onoff
    name: Valvola ON
    color: yellow
    unit: ''
    show_state: false
    show_indicator: false
    show_graph: true
    show_line: false
    show_fill: true
    show_points: false
    show_legend: false
    state_adaptive_color: false
    fixed_value: false
    aggregate_func: min
    y_axis: secondary
name: Valvola Bagno
smoothing: true
show:
  labels: true
  labels_secondary: true
state_map:
  - value: 'off'
    label: 'Off'
  - value: 'on'
    label: 'On'

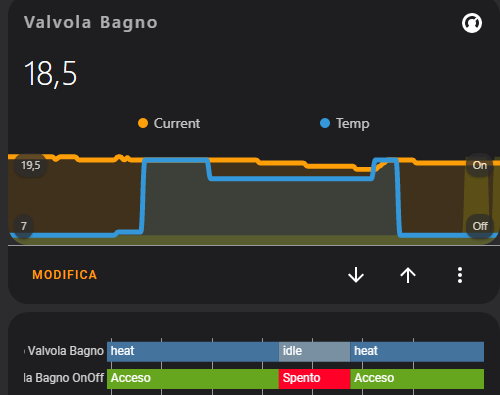

If I add the points_per_hour: 10 to code, I have this result.
I see the off\on state, but the graph is “squared”


Can you help me?

2211

Should be at least the same as the biggest update interval of displayed sensors.
I usually set it to at least 60 (every minute) to reduce an interpolation effect.

“Squared graph” - create a history-graph and compare.

2212

I have setting points_per_hour: 60 but the result is similar.

The historical and the mini-chart have an identical trend, but I don’t like the “Squared graph”, but the on\off state appears only on this graph type.
I’m probably doing something wrong

2213

I more or less understood how it works.
Unfortunately points_for_hour works on all lines the same way.
The problem is that binary_sensor only have 2 states and go from 0 to 1 immediately, the temperature, for example, no, the movement is gradual. Combining the two doesn’t seem possible.
You have either only “squared” and in this case the binary_sensor are correctly display


or only “curvilinear” graphics which are not good for on / off.


2214

Unclear what you call a “square graph”.
Check this and tell what is a more precise graph for a sensor updating every 30 sec:

image338×842 31 KB

type: vertical-stack
cards:
  - type: history-graph
    entities:
      - entity: sensor.xiaomi_cg_1_pm25
    hours_to_show: 1
  - type: custom:mini-graph-card
    entities:
      - entity: sensor.xiaomi_cg_1_pm25
    hours_to_show: 1
  - type: custom:mini-graph-card
    entities:
      - entity: sensor.xiaomi_cg_1_pm25
    hours_to_show: 1
    points_per_hour: 5
    line_width: 1
  - type: custom:mini-graph-card
    entities:
      - entity: sensor.xiaomi_cg_1_pm25
    hours_to_show: 1
    points_per_hour: 120
    line_width: 1
  - type: custom:mini-graph-card
    entities:
      - entity: sensor.xiaomi_cg_1_pm25
    hours_to_show: 1
    points_per_hour: 120
    line_width: 1
    aggregate_func: last
    smoothing: false

People are battling about “2022.11 shows statistical data in more-info - i.e. not precise data, instead of precise history-graph” - and even this “great improvement” has it’s adepts.

2215

It’s clear.

It is clear, but perhaps I have explained myself badly.
The classic graph is the broken line or “interpolate line”, but, for certain type of infomation (temperature for example), the “cubic interpolate” or “akima interpolate”, like this.


it’s just a matter of “visual fulfillment”

2216

I see your point.
Currently there are options like “smoothing”, “points_per_hour”, “aggregate_func” which are related to a presentation. Only the “aggregate_func” option may be defined per entity; others are global.
Probably at least the “smoothing” option could be changed to per entity too. Please create an issue (FR) for this on GitHub if you are interested.
As for “points_per_hour” - I do not see myself any scenarios where it may be different per entity. But anyway - you may create an issue for this option too and please describe cases where it may be useful.

Meanwhile - try to use these options:
smoothing: true (since you like smooth curves),
points_per_hour - define big value like 60 (or even 120) - then probably binary curve will be “square-ish” (as it should be), sensor curve will be “curved”.

BTW - since you have “state_map” for ONE graph, your browser’s log (in code inspector) is full of errors. Check Github for a related issues (this, this) - also see my workaround with using a sensor “0 / 1” instead of “off /on”.
