Magic Cards - Queue music, play movies, or trigger events with RFID cards

k1282 · September 10, 2018, 9:25pm

I have a script in home assistant which requires me to give the full path to a file on my NAS server in double quotes, e.g.:
file: "smb://192.168.1.5/Movies/movie.avi"

for that, I am using an automation that runs when a trigger event is detected, part of it is as follows:

item:
  file: "{{ trigger.event.data.card_uri }}"

the problem is, that I cannot get magic cards to deliver the double quotes as well - although I am adding the double quotes within the Card URI field within magic cards - which are necessary for the file path on the smb share in order to play the file. any suggestions how I could solve it?

maddox · September 10, 2018, 9:37pm

You don’t need the double quotes.

k1282 · September 10, 2018, 10:17pm

hmm, you are right. i dont need them in the hassio config. just tested it. but then might there be a problem with the “serialized data” which gets delivered from the Card URI field?

the script in hassio with the file smb://192.168.1.5/Movies/movie.avi works but when putting the same path into Card URI, and testing it, nothing happens.

any idea what might be going wrong? does serialized data ignore upper/lower cases or empty spaces in, e.g. file names?

maddox · September 10, 2018, 10:45pm

Nope, it just passes the string.

You can check the logs to see what data the event is getting in hass.

k1282 · September 10, 2018, 10:53pm

hassio logs say the following:

> 2018-09-11 00:21:41 INFO (MainThread) [homeassistant.components.http.view] Serving /api/events/magic_card_scanned to ------------ (auth: True)
> 2018-09-11 00:21:41 INFO (MainThread) [homeassistant.core] Bus:Handling <Event magic_card_scanned[R]: card_code=0800465ac1, card_type=movie, card_arturl=, card_title=frozen, card_subtitle=princess, card_uri=smb://192.168.1.11/Movies/movie.avi, magic_cards_room=Living Room>
> 2018-09-11 00:21:41 INFO (MainThread) [homeassistant.components.automation] Executing Play Magic Card Movie
> 2018-09-11 00:21:41 INFO (MainThread) [homeassistant.core] Bus:Handling <Event logbook_entry[L]: name=Play Magic Card Movie, message=has been triggered, domain=automation, entity_id=automation.play_magic_card_movie>
> 2018-09-11 00:21:41 INFO (MainThread) [homeassistant.helpers.script] Script Play Magic Card Movie: Running script
> 2018-09-11 00:21:41 INFO (MainThread) [homeassistant.helpers.script] Script Play Magic Card Movie: Executing step call service
> 2018-09-11 00:21:41 INFO (MainThread) [homeassistant.core] Bus:Handling <Event call_service[L]: domain=remote, service=turn_on, service_data=activity=31765771, entity_id=['remote.harmony_hub']>
> 2018-09-11 00:21:41 INFO (MainThread) [homeassistant.core] Bus:Handling <Event service_executed[L]>
> 2018-09-11 00:21:41 INFO (MainThread) [homeassistant.helpers.script] Script Play Magic Card Movie: Executing step call service
> 2018-09-11 00:21:41 INFO (MainThread) [homeassistant.core] Bus:Handling <Event call_service[L]: domain=media_player, service=kodi_call_method, service_data=entity_id=media_player.kodi, method=Player.Open, item=file={{ trigger.event.data.card_uri }}>
> 2018-09-11 00:21:41 ERROR (MainThread) [homeassistant.components.media_player.kodi] Run API method media_player.kodi.Player.Open({'item': OrderedDict([('file', '{{ trigger.event.data.card_uri }}')])}) error: {'code': -32602, 'message': 'Invalid params.'}
> 2018-09-11 00:21:41 INFO (MainThread) [homeassistant.core] Bus:Handling <Event kodi_call_method_result[L]: entity_id=media_player.kodi, result=code=-32602, message=Invalid params., result_ok=False, input=method=Player.Open, params=item=file={{ trigger.event.data.card_uri }}>
> 2018-09-11 00:21:41 INFO (MainThread) [homeassistant.core] Bus:Handling <Event service_executed[L]>

maddox · September 11, 2018, 12:32am

¯(°_o)/¯ it looks like the right data is going across just fine. You might want to check your script.

k1282 · September 11, 2018, 7:53am

the script does work and magic cards would also work if I just use the card_uri for running the script instead of running the file. But this would be more of a workaround, as this way, I would have to create an automation and script within HASS for every movie that I would like to map to a card.

when looking at the logs more closely, I now believe that there is a problem with the Kodi component itself, as it does not seem to understand this part:
{{ trigger.event.data.card_uri }}

The logs say (see the error line in the logs above) that the kodi component is trying to run the file “{{ trigger.event.data.card_uri }}” instead of the content of the card_uri. Do you agree or believe something else might be the issue?

thomas0782 · September 11, 2018, 9:33am

Would it be possible to use other rfid reader as input device, e.g. RC522 or PN532?

maddox · September 11, 2018, 1:46pm

If the device shows up to the computer as a simple keyboard, like this RFID scanner does, then yes.

Just be sure that the scanner returns the same unique ID under the computer you’re using to create cards, and the raspberry pi. The RFID card scanner, out of the box, was in a mode that didn’t work well for both macOS and Linux. After changing it’s mode, it did.

You just want to make sure the card id you’re adding to your cards in the UI is the same that will be read when scanned in your pi setup.

thomas0782 · September 12, 2018, 8:19am

This seems not to be possible except when abstracting the RC522 by a self made driver which exposes a keyboard interface.
What about interfacing with a mqtt broker? This would allow a lot more flexibility to distribute the components involved.

k1282 · September 20, 2018, 8:56pm

Hi @maddox ,

I would like to use the same card design as it can be seen on the magic cards website (picture above and title below).

is there a template you can share with us so that we can just swap the image and replace the title?

maddox · September 20, 2018, 9:10pm

The card template is discussed in the docs - https://github.com/maddox/magic-cards/blob/master/docs/cards.md#printing-cards

vegard · September 21, 2018, 11:08am

Hi.

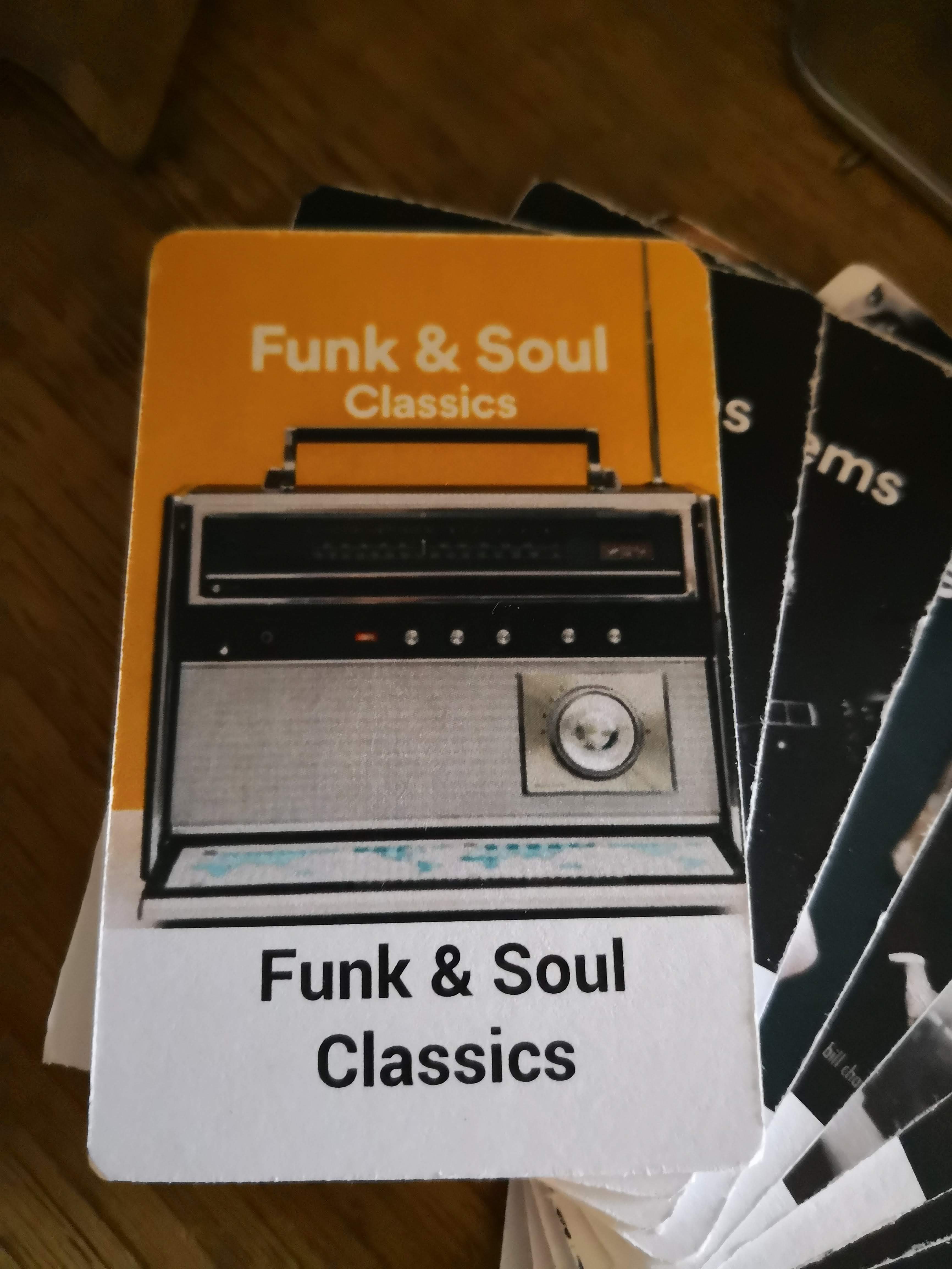

I didn’t have any printers that supported printing directly on the rfid cards, so instead of buying another printer just for this, I went a little “old school”. I bought A4 label sheets, the closest match I got in the local store, was the Avery 3427. Then I went to the Avery site and used their free Design&Print online solution. Set it up using your label sheet type as the template and go from there.

Tweaked this as good as I could, and then printed the sheets, taped these on the rfid card, and use a sharp(!) knife to cut around the edges. Not an optimal solution, but a lot cheaper than buying a printer

(The frame on the wall contains the rfid-card scanner. Need to get some paint on the cable tough

, but the WAF is fairly good on this )

Steffen_Pohl · September 24, 2018, 10:03am

Thank you for your awesome work. I got it all up and running yesterday and after connecting to HA, making a simple automation (read card—> toggle light) and creating a card it works. But only when i trigger it thrugh the Test Card button. When I scan the card it does nothing.
I programmed the reader via the tool on a windows machine and ading the ID Tag during the card creation also worked like a charm.
How do i troubleshoot this? Maybe the returned ID on the Pi isn‘t correctly formatted? Can i see somwhere what the read ID is? Cheers

maddox · September 24, 2018, 1:05pm

You could try plugging the pi into a tv/monitor and getting a shell. Then scanning the card and seeing the actual input that is used.

You could also check the logs for any errors.

Steffen_Pohl · September 24, 2018, 7:36pm

thank you for your quick reply. unfortunately i run it on Raspbian Stretch Light and don’t have a desktop (i should add that I’m not that experienced with linux yet). Do you know of some other was to check what the actual input is? Also, where do I find the logs?

Really sorry to bother you with such basic questions, but I feel like i’m really close to getting it to work and being stuck now is really frustrating

edit: ok, i (think) found the logs: it states

Sep 24 19:32:47 MagicCardsPi mtp-probe: checking bus 1, device 3: “/sys/devices/platform/soc/20980000.usb/usb1/1-1”
Sep 24 19:32:47 MagicCardsPi mtp-probe: bus: 1, device: 3 was not an MTP device
Sep 24 19:32:55 MagicCardsPi mtp-probe: checking bus 1, device 4: “/sys/devices/platform/soc/20980000.usb/usb1/1-1”
Sep 24 19:32:55 MagicCardsPi mtp-probe: bus: 1, device: 4 was not an MTP device

maddox · September 24, 2018, 7:48pm

It boots to a shell. So you’d just have the CLI stuff on your TV/monitor with a prompt to log in.

maddox · September 24, 2018, 7:50pm

Try running ls -al /dev/input and paste the output in here.

Steffen_Pohl · September 24, 2018, 8:01pm

Hi, wow you’re fast I actually just got it working. Found the log, turned out the ID it read was another that was added automatically in the Card Code field. Swapped those, scanned the card again and voila, light. I must’ve set up the 2nd cardreader wrong or something (duh!). Anyway, it works, i’m happy
I’m off to writing automations now and setting up the sonos stuff. Thank you again for your help!

Steffen_Pohl · September 24, 2018, 8:46pm

Aaand hit another wall. When trying to set up an automation in HA with media_player.select_source it doesn’t pass along the string in trigger.event.data.card_title but instead gets:

Invalid service data for media_player.select_source: Entity ID media_player.{{ trigger.event.data.card_title }} is an invalid entity id for dictionary value @ data[‘entity_id’]. Got ‘media_player.{{ trigger.event.data.card_title }}’

I took the syntax from the magic-cards github, is there something I’m missing?

edit: sorry for spamming today

btw my automation looks like this:

id: ‘1537819931547’
alias: Magic Cards Hardcore Playlist
trigger:

event_data:
card_type: album
event_type: magic_card_scanned
platform: event
condition:
action:

data:
entity_id: “media_player.{{ trigger.event.data.card_title }}”
source: “{{ trigger.event.data.card_subtitle }}”
service: media_player.select_source

Final Edit: wow, i’m an idiot. “data” is supposed to be “data_template”. that’s what you get for writin stuff yourself instead of just copy&paste i guess. but at least i learned something today
