@landonr do you (or other contributors) plan to make this part of esphome standard dist?
I picked up a few of these, and Iâm not able to display anything on them with:
Iâm seeing this in the logs:
[15:33:05][C][TDisplayS3:023]: T-Display S3 (ST7789)
[15:33:05][C][TDisplayS3:023]: Rotations: 270 °
[15:33:05][C][TDisplayS3:023]: Dimensions: 320px x 170px
[15:33:05][C][TDisplayS3:024]: Update Interval: 60.0s
When I think itâs supposed to be 160x80 and an ST7735 displayâŠ
Edit: I think itâs because Iâm using a different device
I got Tasmota on it but it was a bit of a struggle. Even got the display working by copying some Berry code, whatever that is!
1 Like
Iâve been trying for days to get this thing to work. The device is working great as a bluetooth proxy but for the life of me I canât get the display to work. I have the plain T-Display-S3, not the AMOLED version. There is some debate whether this device is SPI or parallel. I finally got PSRAM enabled. That was a battle.
Here is a basic config for the T-Display-S3 (TFT, not AMOLED); I would recommend that you flash this exactly as is to verify your hardware is ok before making any changes.
Support for the display driver is currently in PR - once this is merged (hopefully the next release) you will be able to remove the external_components config.
esphome:
name: t-display-s3
platformio_options:
board_build.flash_mode: dio
esp32:
board: esp32-s3-devkitc-1
framework:
type: esp-idf
logger:
output:
- platform: ledc
frequency: 9765Hz
pin: GPIO38
id: backlight_output
light:
- platform: monochromatic
output: backlight_output
name: LCD Backlight
id: led
restore_mode: ALWAYS_ON
default_transition_length: 0s
power_supply:
- id: lcd_pwr
enable_on_boot: true
pin: GPIO15
i80:
dc_pin: 7
wr_pin: 8
rd_pin: 9
data_pins:
- 39
- 40
- 41
- 42
-
ignore_strapping_warning: true
number: 45
-
ignore_strapping_warning: true
number: 46
- 47
- 48
psram:
speed: 80MHz
mode: octal
external_components:
- source: github://pr#8230
components: [ i80, io_bus, ili9xxx, spi ]
display:
- platform: ili9xxx
bus_type: i80
cs_pin: 6
reset_pin: 5
model: st7789v
data_rate: 2MHz
dimensions:
height: 170
width: 320
offset_width: 0
offset_height: 35
transform:
mirror_y: true
mirror_x: false
swap_xy: true
color_order: bgr
invert_colors: true
lvgl:
1 Like

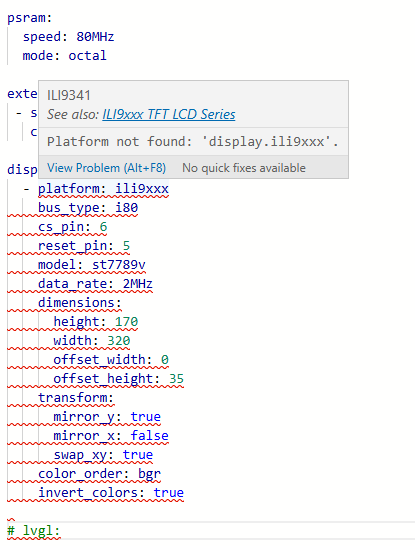

Hi @clydebarrow Iâm trying your code, but even if I paste it as is, esphome gives me an error âPlatform not found: âdisplay.ili9xxxââ. Iâm on esphome 2025.2.2 and using this device. Any ideas? Thanks
Show the full compile log.
Thatâs an editor screenshot, not a compile log. And important parts of the yaml are hidden, but I can see at least one change from what I provided above. Try the yaml exactly as provided before making any changes. And preferably donât insert screenshots, copy the actual text and paste it.
The compile log is what you get when you click Install. It will look like this which is where any important errors will appear:
INFO ESPHome 2025.3.0-dev
INFO Reading configuration ./t-display.yaml...
WARNING GPIO5 is a strapping PIN and should only be used for I/O with care.
Attaching external pullup/down resistors to strapping pins can cause unexpected failures.
See https://esphome.io/guides/faq.html#why-am-i-getting-a-warning-about-strapping-pins
INFO No pages or widgets configured, creating default hello_world page
INFO Generating C++ source...
INFO Core config, version or integrations changed, cleaning build files...
INFO Deleting /Users/clyde/dev/opensourceprojects/esp/device-configs/displays/.esphome/build/t-display/.pioenvs
INFO Deleting /Users/clyde/dev/opensourceprojects/esp/device-configs/displays/.esphome/build/t-display/.piolibdeps
INFO Compiling app...
Processing t-display (board: esp32dev; framework: arduino; platform: platformio/[email protected])
--------------------------------------------------------------------------------
Library Manager: Installing lvgl/lvgl @ 8.4.0
... etc
Sorry, I didnât understand. I thought that if the editor marked the code in red, the compilation would not work.
I didnât even try.
It works perfectly.
Now I would like to activate the touchscreen with this code:
i2c:
scl: 17
sda: 18
touchscreen:
platform: cst816
interrupt_pin: 16
id: my_touchscreen
transform:
mirror_x: true
mirror_y: false
swap_xy: true
on_touch:
- lambda: |-
ESP_LOGI("cal", "x=%d, y=%d, x_raw=%d, y_raw=%0d",
touch.x,
touch.y,
touch.x_raw,
touch.y_raw
);
but with get these errors:
[12:56:52][E][component:164]: Component touchscreen set Error flag: Failed to read chip id
[12:56:56][I][i2c.idf:098]: Results from i2c bus scan:
[12:56:56][I][i2c.idf:100]: Found no i2c devices!
[12:56:52][E][component:119]: Component touchscreen was marked as failed.
[12:56:56][E][component:082]: Component touchscreen is marked FAILED
My device has a
i2c_id: bus_b
setting in touchscreen:
maybe tryâŠ
Make sure your board actually has a touchscreen, not all variants of that board do.
Also the CST816 has a quirk that makes it inaccessible until itâs touched. Try adding skip_probe: true to the touchscreen config.
YESS!! Youâre right, it needs the skip_probe: true option.
So this is perfectly working now.
This is a complete code for the LilyGO T-Display-S3 NO AMOLED touch version.
I use it in landscape mode with the power connector on the right.
The button, the checkbox and the slider are perfectly working.
esphome:
name: t-display-s3
platformio_options:
board_build.flash_mode: dio
esp32:
board: esp32-s3-devkitc-1
framework:
type: esp-idf
logger:
output:
- platform: ledc
frequency: 9765Hz
pin: GPIO38
id: backlight_output
light:
- platform: monochromatic
output: backlight_output
name: LCD Backlight
id: led
restore_mode: ALWAYS_ON
default_transition_length: 0s
power_supply:
- id: lcd_pwr
enable_on_boot: true
pin: GPIO15
i80:
dc_pin: 7
wr_pin: 8
rd_pin: 9
data_pins:
- 39
- 40
- 41
- 42
-
ignore_strapping_warning: true
number: 45
-
ignore_strapping_warning: true
number: 46
- 47
- 48
psram:
speed: 80MHz
mode: octal
external_components:
- source: github://pr#8230
components: [ i80, io_bus, ili9xxx, spi ]
display:
- platform: ili9xxx
bus_type: i80
cs_pin: 6
reset_pin: 5
model: st7789v
data_rate: 2MHz
dimensions:
height: 170
width: 320
offset_width: 0
offset_height: 35
transform:
mirror_y: false
mirror_x: true
swap_xy: true
color_order: bgr
invert_colors: true
lvgl:
i2c:
scl: 17
sda: 18
touchscreen:
platform: cst816
interrupt_pin: 16
id: my_touchscreen
skip_probe: true
transform:
mirror_x: true
mirror_y: false
swap_xy: true
calibration:
x_min: 0
x_max: 170
y_min: 0
y_max: 320
on_touch:
- lambda: |-
ESP_LOGI("cal", "x=%d, y=%d, x_raw=%d, y_raw=%0d",
touch.x,
touch.y,
touch.x_raw,
touch.y_raw
);
thanks @clydebarrow ! I hope the PR is merged soon .
Hello everyone, I am facing an issue with my ESPHome project and a T-Display S3 (Lilygo) screen. I have successfully uploaded my configuration file to the ESP32, the Wi-Fi connection is working fine, and the ESP32 is properly connected to my network. However, even though the logs do not report any major errors and the code seems to upload correctly, nothing is displayed on the screen (the âCoucou!â message I am trying to display does not show up).
I would like to thank in advance anyone who can provide one or more suggestions to help solve this issue.
esphome:
name: lilygodispii
friendly_name: LilygoDispII
external_components:
- source: github://landonr/lilygo-tdisplays3-esphome@main
components: [tdisplays3]
esp32:
board: esp32-s3-devkitc-1
variant: esp32s3
framework:
type: arduino
captive_portal:
logger:
# Enable Home Assistant API
api:
encryption:
key: "dfvfdfvdfvdvdvdfvdv"
ota:
- platform: esphome
password: "dfvdvdvdvdvdvdvdvdvd"
wifi:
ssid: vdfvdvdvdvdvdvd
password: vdfvddvdfvdfvfv
# Heure via Home Assistant
time:
- platform: homeassistant
id: homeassistant_time
# Rétroéclairage - PWM via GPIO4
output:
- platform: ledc
pin: GPIO4
id: gpio4
frequency: 1000Hz
# Affichage Ă©cran T-Display S3
font:
# - file: "gfonts://Roboto"
- file: "Arial.ttf"
id: font1
size: 20
display:
- platform: tdisplays3
id: disp
update_interval: 10s
rotation: 270
lambda: |-
it.fill(Color(0, 0, 0)); // fond noir
it.print(10, 10, id(font1), Color(255, 255, 255), TextAlign::TOP_LEFT, "Coucou !");
---------------------------------------------------------------------------
LOGS :
INFO ESPHome 2025.3.3
INFO Reading configuration /config/esphome/lilygodispii.yaml...
INFO Detected timezone 'Europe/Brussels'
INFO Starting log output from 192.168.1.198 using esphome API
INFO Successfully connected to lilygodispii @ 192.168.1.198 in 0.044s
INFO Successful handshake with lilygodispii @ 192.168.1.198 in 0.078s
[17:45:04][I][app:100]: ESPHome version 2025.3.3 compiled on Apr 12 2025, 17:41:07
[17:45:04][C][wifi:600]: WiFi:
[17:45:04][C][wifi:428]: Local MAC: F0:F5:BD:42:8F:C4
[17:45:04][C][wifi:433]: SSID: [redacted]
[17:45:04][C][wifi:436]: IP Address: 192.168.1.198
[17:45:04][C][wifi:440]: BSSID: [redacted]
[17:45:04][C][wifi:441]: Hostname: 'lilygodispii'
[17:45:04][C][wifi:443]: Signal strength: -49 dB ââââ
[17:45:04][C][wifi:447]: Channel: 6
[17:45:04][C][wifi:448]: Subnet: 255.255.255.0
[17:45:04][C][wifi:449]: Gateway: 192.168.1.1
[17:45:04][C][wifi:450]: DNS1: 192.168.1.1
[17:45:04][C][wifi:451]: DNS2: 192.168.1.1
[17:45:04][C][logger:177]: Logger:
[17:45:04][C][logger:178]: Max Level: DEBUG
[17:45:04][C][logger:179]: Initial Level: DEBUG
[17:45:04][C][logger:181]: Log Baud Rate: 115200
[17:45:04][C][logger:182]: Hardware UART: USB_CDC
[17:45:04][C][ledc.output:180]: LEDC Output:
[17:45:04][C][ledc.output:181]: Pin GPIO4
[17:45:04][C][ledc.output:182]: LEDC Channel: 0
[17:45:04][C][ledc.output:183]: PWM Frequency: 1000.0 Hz
[17:45:04][C][ledc.output:184]: Phase angle: 0.0°
[17:45:04][C][ledc.output:185]: Bit depth: 14
[17:45:04][C][homeassistant.time:010]: Home Assistant Time:
[17:45:04][C][homeassistant.time:011]: Timezone: 'CET-1CEST,M3.5.0,M10.5.0/3'
[17:45:04][C][TDisplayS3:023]: T-Display S3 (ST7789)
[17:45:04][C][TDisplayS3:023]: Rotations: 270 °
[17:45:04][C][TDisplayS3:023]: Dimensions: 320px x 170px
[17:45:04][C][TDisplayS3:024]: Update Interval: 10.0s
[17:45:04][C][psram:020]: PSRAM:
[17:45:04][C][psram:021]: Available: NO
[17:45:04][C][captive_portal:089]: Captive Portal:
[17:45:04][C][mdns:116]: mDNS:
[17:45:04][C][mdns:117]: Hostname: lilygodispii
[17:45:04][C][esphome.ota:073]: Over-The-Air updates:
[17:45:04][C][esphome.ota:074]: Address: lilygodispii.local:3232
[17:45:04][C][esphome.ota:075]: Version: 2
[17:45:04][C][esphome.ota:078]: Password configured
[17:45:04][C][safe_mode:018]: Safe Mode:
[17:45:04][C][safe_mode:020]: Boot considered successful after 60 seconds
[17:45:04][C][safe_mode:021]: Invoke after 10 boot attempts
[17:45:04][C][safe_mode:023]: Remain in safe mode for 300 seconds
[17:45:04][C][api:140]: API Server:
[17:45:04][C][api:141]: Address: lilygodispii.local:6053
[17:45:04][C][api:143]: Using noise encryption: YES
Et voilà à à ⊠le code yaml ci-dessous fonctionne, je ne sais pas pourquoi mais je suis super content !!
esphome:
name: lilygodispii
friendly_name: LilygoDispII
external_components:
- source: github://landonr/lilygo-tdisplays3-esphome@main
components: [tdisplays3]
esp32:
board: esp32-s3-devkitc-1
variant: esp32s3
framework:
type: arduino
flash_size: 16MB
captive_portal:
logger:
# Enable Home Assistant API
api:
encryption:
key: "*****************************************************"
ota:
- platform: esphome
password: "**************************************************"
wifi:
ssid: ****
password: ********
# Heure via Home Assistant
time:
- platform: homeassistant
id: ha_time
output:
- platform: ledc
pin: GPIO38
id: gpio38
frequency: 2000
light:
- platform: monochromatic
output: gpio38
name: "Backlight"
restore_mode: RESTORE_DEFAULT_ON
# Affichage Ă©cran T-Display S3
font:
- file: "gfonts://Roboto"
# - file: "Arial.ttf"
id: font1
size: 30
display:
- platform: tdisplays3
id: disp
rotation: 90
update_interval: 1s
lambda: |-
it.fill(Color(46, 0, 108));
it.print(10, 10, id(font1), Color(0, 255, 255), TextAlign::TOP_LEFT, "Coucou !");
it.printf(10, 70, id(font1), Color(255, 0, 0), id(ha_time).now().strftime("%Y-%m-%d").c_str());
it.printf(10, 100, id(font1), Color(253, 233, 224), id(ha_time).now().strftime("%H:%M:%S").c_str());
