Or you can migrate everything from left section to map card itself
Config looks ok, does room cleaning work correctly from Xiaomi app?
Yeah cleaning from the xiaomi home app works just fine
Small update, it now either cleans the living room or the hallway. Never the carpet (which is a speedster room) or the kitchen. Will do some more testing
You give me the lesson!

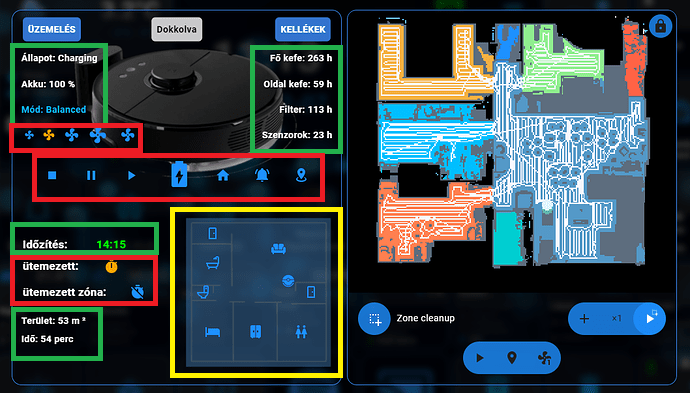

green selection → tiles
red selection → icons
yellow selection → map
Hello, love v2 with my new s7. I have the same issue, it shows seconds not hours. If I use the multiplier it works but to 10 decimal places. Any way to round to 2 places. I could make a whole new sensor but would rather just use the multiplier if possible? Cheers
Whoops, I forgot to mention it in example config. Updated version:
tiles:
- entity: sensor.winston_filter_left
label: Filter left
icon: mdi:air-filter
multiplier: 0.0002777777777777778 # 1/3600
unit: h
precision: 2
2 Likes
amazing, thank you
I have 2 vacuums (s5 and s5 max) my s5 is slow (1 - 30 min) to change status : cleaning, dock etc.
bug?
In HA or in my card?
Both. maybe a HA issue?
Hello, ich have a problem with Room cleaning. Allways when i start room cleaning, a error will be come (invalid calibration, please check your configuration). Can everyone help me? Another problem is that i dont find the room id. please help
Yup, seems like HA issue
What vacuum model do you have?
Can you check what happens with map when you start the vacuum?
Can you provide your config?
I have the Roborock S7. When I start the vaccuum, the map go away for a short time and the message invalid calibration, please check your config appears instead of the map.
When I start room cleaning in the xiaomi home app, there are no problems.
My Config:
type: custom:xiaomi-vacuum-map-card
map_source:
camera: camera.xiaomi_cloud_map_extractor
calibration_source:
camera: true
entity: vacuum.roborock_s7
vacuum_platform: send_command
map_modes:
- template: vacuum_clean_zone
- template: vacuum_clean_zone_predefined
predefined_selections:- zones:
-
- 22859
- 18313
- 25715
- 21034
label:
text: Küche
x: 24359
‘y’: 19715
offset_y: 25
icon:
name: mdi:pot-mix
x: 24359
‘y’: 19915
offset_y: 25
-
- zones:
-
- 22161
- 21083
- 26255
- 24542
label:
text: Essen
x: 24359
‘y’: 22715
offset_y: 25
icon:
name: mdi:table-chair
x: 24359
‘y’: 22915
offset_y: 25
-
- zones:
-
- 19989
- 24513
- 26084
- 29298
label:
text: Wohnen
x: 23359
‘y’: 26715
offset_y: 25
icon:
name: mdi:sofa-outline
x: 23359
‘y’: 26915
offset_y: 25
-
- zones:
-
- 18317
- 21893
- 21852
- 24581
label:
text: Flur
x: 19859
‘y’: 23515
offset_y: 25
icon:
name: mdi:wardrobe-outline
x: 19859
‘y’: 23715
offset_y: 25
-
- zones:
-
- 20000
- 19682
- 22081
- 22172
label:
text: Bad
x: 20859
‘y’: 21215
offset_y: 25
icon:
name: mdi:shower
x: 20859
‘y’: 21415
offset_y: 25
-
- zones:
-
- 16051
- 18870
- 19606
- 21803
label:
text: Nils
x: 17859
‘y’: 20215
offset_y: 25
icon:
name: mdi:toy-brick-outline
x: 17859
‘y’: 20415
offset_y: 25
-
- zones:
-
- 15772
- 24796
- 19728
- 29050
label:
text: Schlafen
x: 17859
‘y’: 27215
offset_y: 25
icon:
name: mdi:bed-king-outline
x: 17859
‘y’: 27415
offset_y: 25
-
- zones:
- template: vacuum_clean_segment
predefined_selections:- id: 18
outline:-
- 22939
- 20872
-
- 22939
- 18578
-
- 23824
- 18578
-
- 23824
- 18417
-
- 25193
- 18417
-
- 25193
- 18578
-
- 25635
- 18578
-
- 25635
- 21032
-
- 25152
- 21032
-
- 25152
- 20429
-
- 24066
- 20429
-
- 24066
- 20872
label:
text: Küche
x: 24359
‘y’: 19715
offset_y: 25
icon:
name: mdi:pot-mix
x: 24359
‘y’: 19915
offset_y: 25
-
- id: 16
outline:-
- 22215
- 24534
-
- 22215
- 21073
-
- 26159
- 21154
-
- 26159
- 24091
-
- 24428
- 24132
-
- 24428
- 24534
label:
text: Essen
x: 24359
‘y’: 22715
offset_y: 25
icon:
name: mdi:table-chair
x: 24359
‘y’: 22915
offset_y: 25
-
- id: 17
outline: null
label:
text: Wohnen
x: 23359
‘y’: 26715
offset_y: 25
icon:
name: mdi:sofa-outline
x: 23359
‘y’: 26915
offset_y: 25 - id: 21
label:
text: Flur
x: 19859
‘y’: 23515
offset_y: 25
icon:
name: mdi:wardrobe-outline
x: 19859
‘y’: 23715
offset_y: 25 - id: 20
outline: null
label:
text: Bad
x: 20859
‘y’: 21215
offset_y: 25
icon:
name: mdi:shower
x: 20859
‘y’: 21415
offset_y: 25 - id: 19
outline: null
label:
text: Nils
x: 17859
‘y’: 20215
offset_y: 25
icon:
name: mdi:toy-brick-outline
x: 17859
‘y’: 20415
offset_y: 25 - id: 22
outline: null
label:
text: Schlafen
x: 17859
‘y’: 27215
offset_y: 25
icon:
name: mdi:bed-king-outline
x: 17859
‘y’: 27415
offset_y: 25
- id: 18
- template: vacuum_goto
- template: vacuum_goto_predefined
- template: vacuum_follow_path
language: de
map_locked: true
two_finger_pan: true
@Lou_1987
Sorry for interference, but you should paste your code as a code.
your code
otherwise it is not easy to read it and not possible to use it (for testing, for example).
With pleasure
elements:
- entity: switch.timed_zone_cleaning
style:
left: 38%
top: 77%
tap_action:
action: call-service
service: switch.toggle
service_data:
entity_id: switch.timed_zone_cleaning
type: state-icon
- style:
font-size: 120%
font-weight: bold
left: 3%
pointer-events: none
top: 77%
transform: translate(0%,-50%)
text: 'ütemezett zóna:'
type: custom:text-element
- entity: switch.takaritas_utemezese
style:
left: 30%
top: 70%
tap_action:
action: call-service
service: switch.toggle
service_data:
entity_id: switch.takaritas_utemezese
type: state-icon
- style:
font-size: 120%
font-weight: bold
left: 3%
pointer-events: none
top: 70%
transform: translate(0%,-50%)
text: 'ütemezett:'
type: custom:text-element
- entity: switch.entrance_cleaning
style:
left: 91%
top: 77%
tap_action:
action: call-service
service: switch.toggle
service_data:
entity_id: switch.entrance_cleaning
type: state-icon
- entity: switch.bathroom_cleaning
style:
left: 61%
top: 69%
tap_action:
action: call-service
service: switch.toggle
service_data:
entity_id: switch.bathroom_cleaning
type: state-icon
- entity: switch.girls_room_cleaning
style:
left: 88%
top: 88%
tap_action:
action: call-service
service: switch.toggle
service_data:
entity_id: switch.girls_room_cleaning
type: state-icon
- entity: switch.zone_cleaning
style:
'--mdc-icon-size': 22px
left: 84%
top: 74%
tap_action:
action: call-service
service: switch.toggle
service_data:
entity_id: switch.zone_cleaning
type: state-icon
- entity: switch.middle_room_cleaning
style:
left: 74%
top: 88%
tap_action:
action: call-service
service: switch.toggle
service_data:
entity_id: switch.middle_room_cleaning
type: state-icon
- entity: switch.bedroom_cleaning
style:
left: 61%
top: 88%
tap_action:
action: call-service
service: switch.toggle
service_data:
entity_id: switch.bedroom_cleaning
type: state-icon
- entity: switch.living_room_cleaning
style:
left: 81%
top: 65%
tap_action:
action: call-service
service: switch.toggle
service_data:
entity_id: switch.living_room_cleaning
type: state-icon
- entity: switch.toilet_cleaning
style:
left: 58%
top: 77%
tap_action:
action: call-service
service: switch.toggle
service_data:
entity_id: switch.toilet_cleaning
type: state-icon
- entity: switch.storage_cleaning
style:
left: 61%
top: 61%
tap_action:
action: call-service
service: switch.toggle
service_data:
entity_id: switch.storage_cleaning
type: state-icon
- entity: switch.vacuum_set_silent
style:
'--mdc-icon-size': 16px
left: 5%
top: 34%
tap_action:
action: call-service
service: script.turn_on
service_data:
entity_id: script.vacuum_set_quiet
type: state-icon
- entity: switch.vacuum_set_balanced
style:
'--mdc-icon-size': 20px
left: 11%
top: 34%
tap_action:
action: call-service
service: script.turn_on
service_data:
entity_id: script.vacuum_set_balanced
type: state-icon
- entity: switch.vacuum_set_medium
style:
'--mdc-icon-size': 24px
left: 18%
top: 34%
tap_action:
action: call-service
service: script.turn_on
service_data:
entity_id: script.vacuum_set_max
type: state-icon
- entity: switch.vacuum_set_turbo
style:
'--mdc-icon-size': 30px
left: 26%
top: 34%
tap_action:
action: call-service
service: script.turn_on
service_data:
entity_id: script.vacuum_set_turbo
type: state-icon
- entity: switch.vacuum_set_gentle
style:
left: 35%
top: 34%
tap_action:
action: call-service
service: script.turn_on
service_data:
entity_id: script.vacuum_set_mop
type: state-icon
- icon: mdi:map-marker-radius
style:
color: '#1E90FF'
left: 88%
top: 45%
tap_action:
action: call-service
service: vacuum.clean_spot
service_data:
entity_id: vacuum.xiaomi_vacuum_cleaner
type: icon
- icon: mdi:bell-ring
style:
color: '#1E90FF'
left: 76%
top: 45%
tap_action:
action: call-service
service: vacuum.locate
service_data:
entity_id: vacuum.xiaomi_vacuum_cleaner
type: icon
- entity: switch.vacuum_return
style:
left: 64%
top: 45%
tap_action:
action: call-service
service: vacuum.return_to_base
service_data:
entity_id: vacuum.xiaomi_vacuum_cleaner
type: state-icon
- entity: switch.vacuum_cleaning
style:
left: 36%
top: 45%
tap_action:
action: call-service
service: switch.turn_on
service_data:
entity_id: switch.vacuum_cleaning
type: state-icon
- entity: switch.vacuum_pause
style:
left: 24%
top: 45%
tap_action:
action: call-service
service: vacuum.pause
service_data:
entity_id: vacuum.xiaomi_vacuum_cleaner
type: state-icon
- entity: switch.vacuum_stop
style:
left: 12%
top: 45%
tap_action:
action: call-service
service: vacuum.stop
service_data:
entity_id: vacuum.xiaomi_vacuum_cleaner
type: state-icon
- entity: sensor.vacuum_operation
style:
background-color: rgba(57,128,228,0.9)
border-color: rgb(34, 154, 210)
border-radius: 6px
color: rgb(255, 255, 255)
font-size: 100%
font-weight: bold
left: 3%
pointer-events: none
top: 5%
transform: translate(0%,-50%)
type: state-label
- entity: sensor.vacuum_accessories
style:
background-color: rgba(57,128,228,0.9)
border-color: rgb(34, 154, 210,)
border-radius: 6px
color: rgb(255, 255, 255)
font-size: 100%
font-weight: bold
pointer-events: none
right: 3%
top: 5%
transform: translate(0%,-50%)
type: state-label
- entity: vacuum.xiaomi_vacuum_cleaner
style:
background-color: rgb(250,250,250, .8)
border-color: rgb(34, 154, 210)
border-radius: 6px
color: rgb(0, 0, 0)
font-size: 100%
font-weight: bold
left: 50%
margin-right: '-50%'
padding: 70px 0;
top: 5%
transform: translate(-50%,-50%)
tap_action:
action: more-info
type: state-label
- entity: sensor.vacuum_main_brush
prefix: 'Fő kefe: '
style:
font-size: 100%
font-weight: bold
pointer-events: none
right: 1%
text-shadow: 1px 1px black
top: 13%
transform: translate(0%,-50%)
type: state-label
- entity: sensor.vacuum_side_brush
prefix: 'Oldal kefe: '
style:
font-size: 100%
font-weight: bold
pointer-events: none
right: 1%
text-shadow: 1px 1px black
top: 20%
transform: translate(0%,-50%)
type: state-label
- entity: sensor.vacuum_filter
prefix: 'Filter: '
style:
font-size: 100%
font-weight: bold
pointer-events: none
right: 1%
text-shadow: 1px 1px black
top: 27%
transform: translate(0%,-50%)
type: state-label
- entity: sensor.vacuum_sensor
prefix: 'Szenzorok: '
style:
font-size: 100%
font-weight: bold
pointer-events: none
right: 1%
text-shadow: 1px 1px black
top: 34%
transform: translate(0%,-50%)
type: state-label
- entity: sensor.vacuum_status
prefix: 'Állapot: '
style:
font-size: 100%
font-weight: bold
left: 1%
pointer-events: none
text-shadow: 1px 1px black
top: 13%
transform: translate(0%,-50%)
type: state-label
- entity: sensor.vacuum_battery
prefix: 'Akku: '
style:
font-size: 100%
font-weight: bold
left: 1%
pointer-events: none
text-shadow: 1px 1px black
top: 20%
transform: translate(0%,-50%)
type: state-label
- entity: sensor.fan_speed
prefix: 'Mód: '
style:
color: deepskyblue
font-size: 100%
font-weight: bold
left: 1%
pointer-events: none
text-shadow: 1px 1px black
top: 27%
transform: translate(0%,-50%)
type: state-label
- entity: sensor.vacuum_cleaned_area
prefix: 'Terület: '
style:
font-size: 100%
font-weight: bold
left: 1%
pointer-events: none
text-shadow: 1px 1px black
top: 85%
transform: translate(0%,-50%)
type: state-label
- entity: sensor.vacuum_cleaning_time
prefix: 'Idő: '
style:
font-size: 100%
font-weight: bold
left: 1%
pointer-events: none
top: 90%
transform: translate(0%,-50%)
suffix: ''
type: state-label
- style:
font-size: 120%
font-weight: bold
left: 3%
pointer-events: none
top: 64%
transform: translate(0%,-50%)
text: 'Időzítés:'
type: custom:text-element
- conditions:
- entity: switch.takaritas_utemezese
state: 'on'
elements:
- entity: sensor.vacuum_start_time
style:
color: orange
font-size: 120%
font-weight: bold
left: 30%
top: 64%
tap_action:
action: fire-dom-event
browser_mod:
command: popup
card:
entities:
- entity: input_datetime.vacuum_start_time
hide:
name: false
hour_mode: 24
hour_step: 1
layout:
align_controls: center
name: header
link_values: false
minute_step: 5
name: Takarítás indítása
style: |
ha-card {
--ha-card-background: none;
background-image: url("/local/pictures/cardback.png");
background-repeat: no-repeat;
background-size: 100% 100%;
background-attachment: cover;
background-position: center;
border: solid 1.5px rgba(57,128,228);
border-radius: 15px;
box-shadow: none;
}
type: custom:time-picker-card
type: entities
hide_header: false
title: ' '
type: state-label
type: conditional
- conditions:
- entity: switch.timed_zone_cleaning
state: 'on'
elements:
- entity: sensor.vacuum_start_time
style:
color: orange
font-size: 120%
font-weight: bold
left: 30%
top: 64%
tap_action:
action: more-info
type: state-label
type: conditional
- entity: sensor.vacuum_status
style:
'--mdc-icon-size': 48px
color: rgba(0,191,255,.8)
margin-left: 50%
top: 44%
transform: translate(-50%,-50%)
type: state-icon
image: /local/pictures/roberta4.png
style: |
ha-card {
--ha-card-background: 'rgba(250,0,20,0.8)';
background-image: url("/local/pictures/cardback.png");
background-repeat: no-repeat;
background-size: 100% 100%;
background-attachment: cover;
background-position: center;
border: solid 1.5px rgba(57,128,228);
border-radius: 15px;
box-shadow: none;
}
type: picture-elements
1 Like
Formatting your config as a code would be really useful.
Can you check what happens to camera.xiaomi_cloud_map_extractor entity? Does the image show any error? Is there anything in logs?
Why do you use send_command platform instead of default?
