Acces from internet to Home assistant web interface / API REST NGIXN

Configuration
1

Hi.

I have a mini-pc with Proxmox. I have a LXC with PiHole + unbound, another with some dockers (192.168.100.4), other with WireGuard and a VM with Home Assistant OS (192.168.100.6).

The LAN “mode” works without problems.

For a new project I need acces to Home assistant from internet without VPN.
I installed a docker of NGINX in the LXC with Docker, and I configured a entry with the follow configuration

imatge
imatge1323×432 23.1 KB

imatge
imatge568×608 15.5 KB

The home assistant configuration is this

imatge
imatge774×1126 42.3 KB

imatge
imatge1115×417 14.6 KB

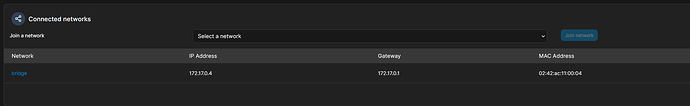

The Docker configuration is this:

imatge
imatge1651×315 21.5 KB

imatge
imatge1923×298 14.3 KB

Obviously I have the ports on the router forwarded to the IP of LXC with NGINX docker:

imatge
imatge2387×100 12.9 KB

When I try to acces from Internet, after login page apears a another Home Assistant web with the message “Unable to connect to Home assistant” and a countdown no another try.

For me, the point it’s send request to API Rest of my home assistant instalation but obvyously don’t work neither.

imatge
imatge2115×350 19.9 KB

Can resolve the domain but can acces to Home assitant.

I spent 2 days trying configurations but I’m lost.

Thanks

2

Check trusted_proxies and use_x_forwarded_for

Also with docker it is best to use hostname and not IP unless you set static docker network IP for containers

3

Hi.
Like you can saw, these parameters in configuration.yalm are set yet, but doesn´t work. The hostname in docler containers only work between containers in the same Docker network, but I have the HA in a VM (no docker container) but in my local network.

Thanks.
