Air quality (PM), AQI and radiation monitoring

This is my first DIY project for Home Assistant.
I wanted to make indoor air quality sensor with temperature, humidity and radiation monitoring.

Parts I have used:

Tools:

  • Soldering iron
  • glue gun

This is the prototype:

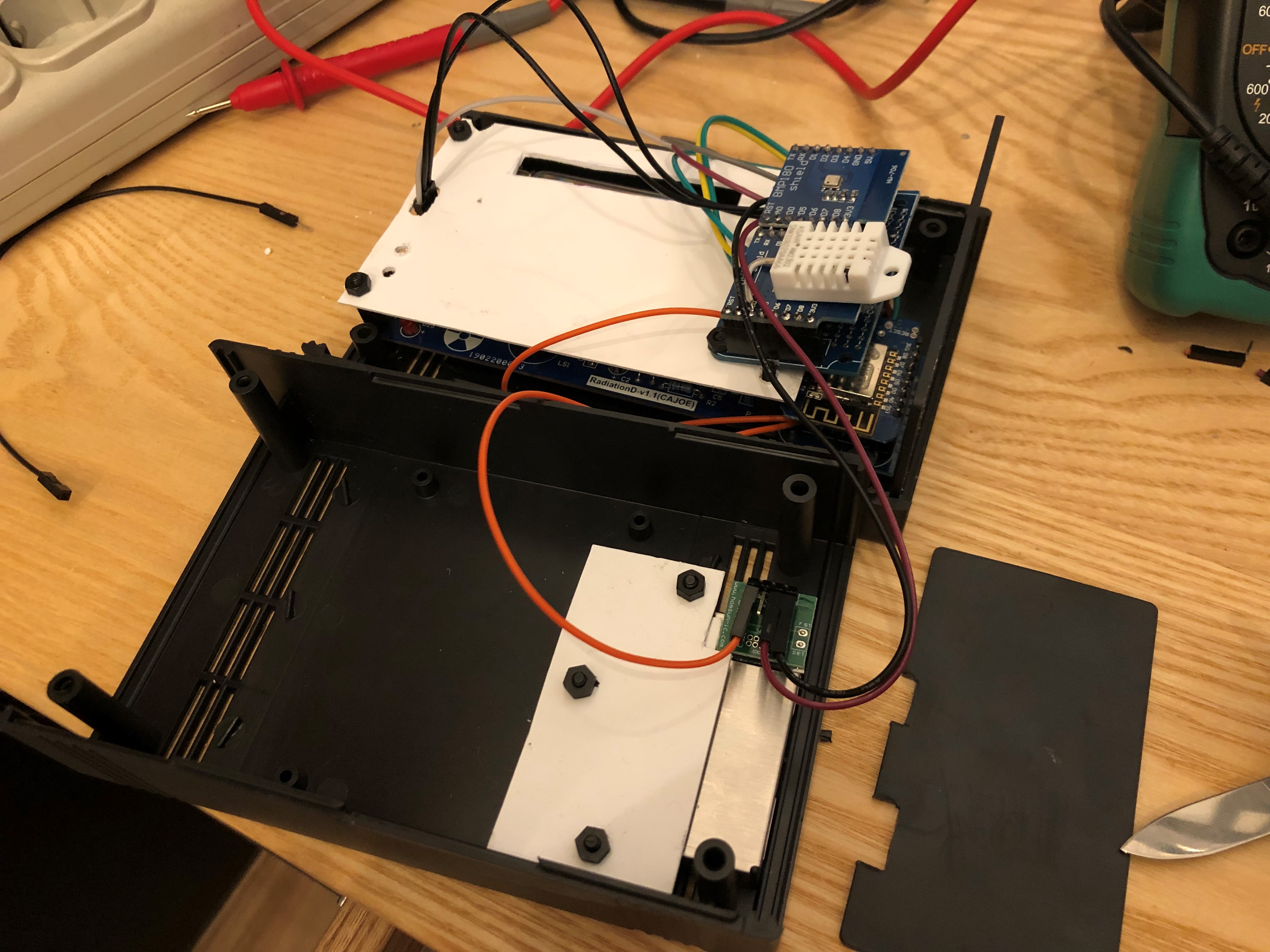

This is the construction process:

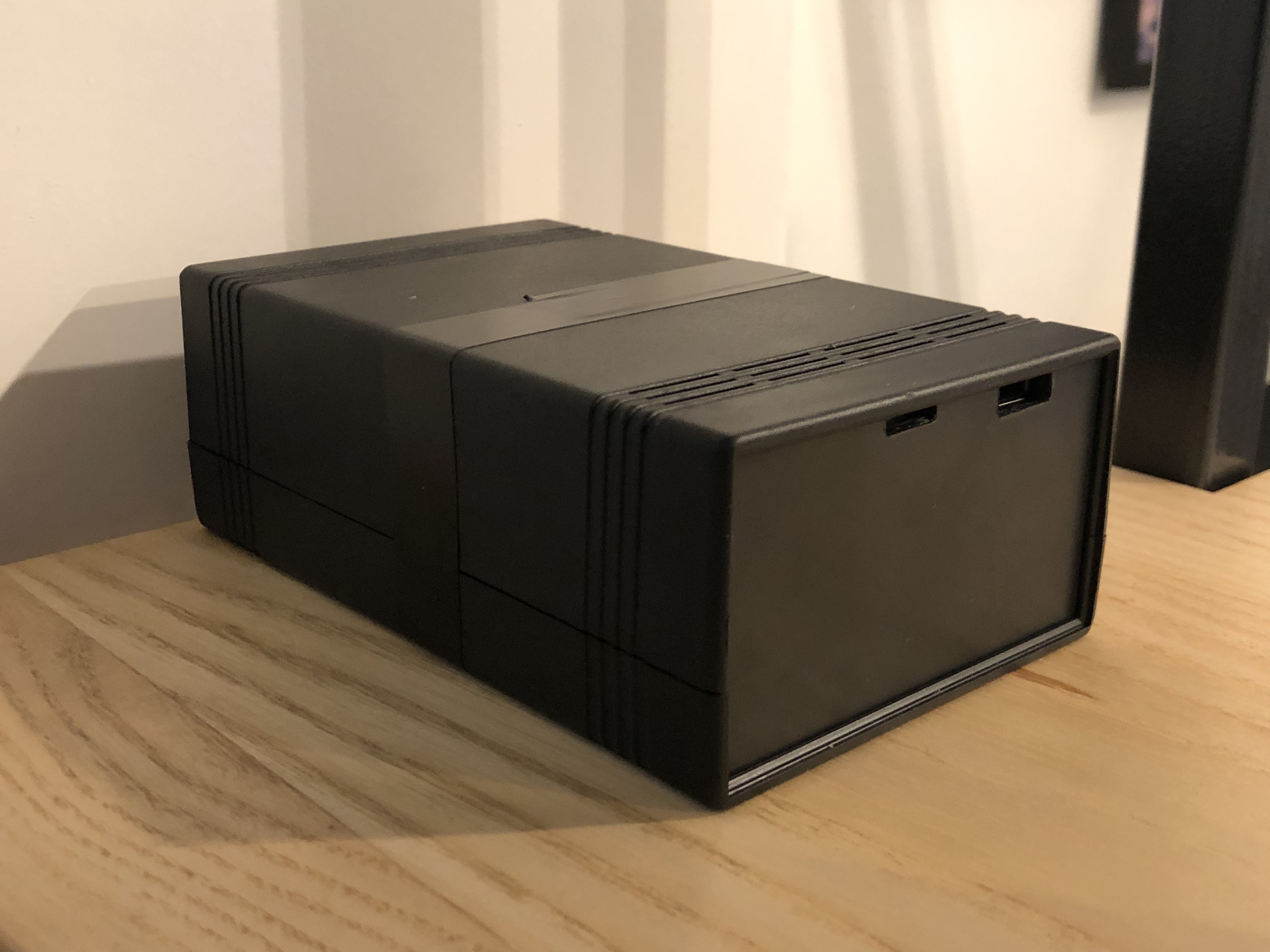

And the final product:

Here is ESPhome config:

esphome:
  name: indoor_air_sensor
  platform: ESP8266
  board: d1_mini

wifi:
  ssid: "Z-WiFi"
  password: "***"
  manual_ip:
    static_ip: ***
    gateway: ***
    subnet: ***

logger:
  level: WARN

api:
  password: "***"

ota:
  password: "***"

uart:
  rx_pin: GPIO3
  baud_rate: 9600

i2c:
  sda: D2
  scl: D1
  scan: True

sensor:
  - platform: dht
    pin: D0
    temperature:
      name: "Bedroom temp"
    humidity:
      name: "Bedroom humidity"
    model: DHT22
    update_interval: 60s
  - platform: pmsx003
    type: PMSX003
    pm_1_0:
      name: "Bedroom dust <1.0µm"
    pm_2_5:
      name: "Bedroom dust <2.5µm"
    pm_10_0:
      name: "Bedroom dust <10.0µm"
  - platform: bmp085
    temperature:
      name: "Bedroom temp (BMP180)"
    pressure:
      name: "Atmospheric pressure"
    update_interval: 60s
  - platform: pulse_counter
    pin: D5
    name: "Radiation level"
    unit_of_measurement: 'µSv/h'
    filters:
    - lambda: return x / 123.147092360319;

To convert Geiger counter pulse into µSv/h you need to get your Geiger tube characteristics.

And this is the Air Quality Intex (AQI) calculator. I use 24-hour formula it is easier, but I am planning to implement AQI NowCast formula because it is more dynamic.

  - platform: sql
    queries:
      - name: 'Pm 2.5 24 hour avg'
        query: >
                  SELECT ROUND(AVG(state),2) 'value'
                  FROM states
                  WHERE entity_id = 'sensor.bedroom_dust_2_5um'
                  AND state != 'unknown'
                  AND state != ''
                  AND created > datetime('now', '-24 hours')
                  GROUP BY DATE(entity_id);
        column: 'value'
  - platform: template
    sensors:
      aqi_category:
        friendly_name: '24 hour AQI'
        value_template: >
          {% set vv = states('sensor.pm_2_5_day_avg')|float %}
          {% if vv > 0 and vv <= 12 %}
            GOOD
          {% elif vv > 12 and vv <= 35.4 %}
            MODERATE
          {% elif vv > 35.5 and vv <= 55.4 %}
            NHEALTHY FOR SENSITIVE
          {% elif vv > 55.5 and vv <= 150.4 %}
            UNHEALTHY
          {% elif vv > 150.5 and vv <= 250.4 %}
            VERY UNHEALTHY
          {% elif vvt > 250.5 %}
            HAZARDOUS
          {% else %}
            UNKNOWN
          {% endif %}

It shows:

  • Air quality index
  • PM 1.0 particle concentration
  • PM 2.5 particle concentration
  • PM 10.0 particle concentration
  • Radiation level (in µSv/h)
  • Temperature
  • Humidity
  • Atmospheric pressure

UPDATE: had to switch to SQL sensor for average because of the performance problem.
