ApexCharts card - A highly customizable graph card

Thank you. That is what I was afraid of…

I added this as a question on the GitHub discussion but figured I’d check here too:

Fill Color Under Line Graph · RomRider/apexcharts-card · Discussion #782 (github.com)

I have a data set that has two parameters: status and inventory.

The inventory is a number representing an amount and I want displayed as a simple line graph.

The status has a few possible values (“online”, “offline”, “limited”, and “refresh”).

I’d like to use the status value to color the area under the line graph to add a visual representation of the status in addition to the inventory.

More or less - I want to steal the idea from the following chart and re-implement it in HA with this card.


Does this seem possible?

Hi there, just found this awesome card.

currently I have 16 fand gauges on a single display in my HA, but I have missed a dead fan for a few days now…

I discovered I can monitor 9 fans per gauge, perfect, two gauges will show my 16 fan server.

However now Im stuck with the calculations nessesary for the multible radialBar.

Anyone can help with an example?

I got 16 fan speeds from my HP ProLiant server I want to monitor visually. I get RPM values, how do I make it so they display in %?

And is it possible to color the rings depending on % like 0-25% red (failed fan moving due to the air pressure) 26-75% green and 76-95 = yellow (getting too hot) and 96-100 red (hot)

My current yaml

type: custom:apexcharts-card
header:
  show: true
  title: Fanspeeds ProLiant
  show_states: true
  colorize_states: true
chart_type: radialBar
series:
  - entity: sensor.30_fan_0_fan_speed
  - entity: sensor.30_fan_1_fan_speed
  - entity: sensor.30_fan_2_fan_speed
  - entity: sensor.30_fan_3_fan_speed
  - entity: sensor.30_fan_4_fan_speed
  - entity: sensor.30_fan_5_fan_speed
  - entity: sensor.30_fan_6_fan_speed
  - entity: sensor.30_fan_7_fan_speed
  - entity: sensor.30_fan_8_fan_speed

All type of hints are welcome, even the ones that dont help :smiley:

Cheers Manny

I have just updated the card and the `color_threshold’ has stopped working (it just gives grey bars).

Anyone spot why?

type: custom:apexcharts-card
experimental:
  color_threshold: true
apex_config:
  legend:
    show: false
header:
  show: true
  show_states: true
  colorize_states: false
stacked: false
graph_span: 12h
span:
  start: minute
now:
  show: false
  label: Now
  color: black
yaxis:
  - min: ~15
    max: ~35
    decimals: 0
series:
  - entity: sensor.octopus_energy_electricity_23j0215943_1800060553178_current_rate
    name: Now
    transform: return x * 100;
    unit: p/kWh
    float_precision: 1
    show:
      in_header: true
      in_chart: false
  - entity: sensor.octopus_energy_electricity_23j0215943_1800060553178_next_rate
    name: Next
    transform: return x * 100;
    unit: p/kWh
    float_precision: 1
    show:
      in_header: true
      in_chart: false
  - entity: sensor.octopus_min_price
    name: Minimum
    unit: p/kWh
    float_precision: 1
    show:
      in_header: true
      in_chart: false
  - entity: >-
      event.octopus_energy_electricity_23j0215943_1800060553178_current_day_rates
    type: column
    name: price
    opacity: 1
    unit: p/Kw
    show:
      in_header: false
      legend_value: false
      header_color_threshold: true
    stroke_width: 8
    color_threshold:
      - value: -100
        color: cyan
      - value: 0
        color: green
      - value: 20
        color: orange
      - value: 28
        color: red
      - value: 40
        color: purple
    data_generator: |
      return entity.attributes.rates.map((entry) => {
        return [new Date(entry.start), entry.value_inc_vat*100];
      });
  - entity: event.octopus_energy_electricity_23j0215943_1800060553178_next_day_rates
    type: column
    name: price
    opacity: 1
    unit: p/Kw
    show:
      in_header: false
      legend_value: false
      header_color_threshold: true
    stroke_width: 10
    color_threshold:
      - value: -100
        color: cyan
      - value: 0
        color: green
      - value: 20
        color: orange
      - value: 28
        color: red
      - value: 40
        color: purple
    data_generator: |
      return entity.attributes.rates.map((entry) => {
        return [new Date(entry.start), entry.value_inc_vat*100];
      });

Try adding this:

card_mod:
  style: |
    ha-card {
      direction: ltr;
    }

This will give you “english-like” look for the graph. The best workaround I can offer now.

Test card:

type: custom:apexcharts-card
apex_config:
  yaxis:
    title:
      text: yyy
graph_span: 3h
series:
  - entity: sensor.xiaomi_cg_1_temperature

LTR look:

RTL look:

RTL look with card_mod:

1 Like

So I figured out how to transform the data…

chart_type: radialBar
series:
  - entity: sensor.31_fan_0_fan_speed
  - entity: sensor.31_fan_1_fan_speed
  - entity: sensor.31_fan_2_fan_speed
  - entity: sensor.31_fan_3_fan_speed
    transform: return 100 / 8000 * x;

But how do I only transform the data for the chart and not the values up top where I do actually want to see the real values?

Is there a way to change font/(font-)size/(font-)thickness/line thickness of the red marked x- and y-axis values and lines!?

I’ve tried to search and figure out that how could I get my column graph so that the left side of the column would be at the start of an hour like I’ve seen in many pictures here.

The code for the chart looks like this but this makes the graph so that the x-axis hour is at the middle of the column and for exampl no when it is 17:52 the “Now” line is already on the next hours column

type: custom:apexcharts-card
graph_span: 24h
apex_config:
  chart:
    height: 300px
    width: 470px
  yaxis:
    tickAmount: 5
    forceNiceScale: true
show:
  last_updated: true
experimental:
  color_threshold: true
header:
  title: Päivän Nordpool 25.5%
  show: true
  show_states: true
  colorize_states: true
span:
  start: day
now:
  show: true
  label: Nyt
series:
  - entity: sensor.nordpool_kwh_fi_eur_3_10_0255
    show:
      extremas: false
      in_header: raw
      header_color_threshold: true
    type: column
    float_precision: 3
    data_generator: |
      return entity.attributes.raw_today.map((start, index) => {
        return [new Date(start["start"]).getTime(), entity.attributes.raw_today[index]["value"]];
      });
    color_threshold:
      - value: 0
        color: darkgreen
        opacity: 1
      - value: 8.82
        color: goldenrod
      - value: 12
        color: darkred

Found this beautiful card, thank you! However I seem have basic issue with setting up my first chart, can anyone help take a look?

sensor.water_meter is my water meter reader that get total current reading from meter (so the numbers is always incremental), and it get data every few minutes to an hour. I just started reading so only have a few data points:

  • 9/30 10:35PM: 89,950
  • 10/1 1:05AM: 89,960
  • 10/1 7:20AM: 89,970
  • 10/1 8:10AM: 89,980
  • 10/1 9:25AM: 89,990

Below is my code, but it does not show anything (If I change duration to 1d, I can see 40, which is the correct number: 89990-89950 = 40). I though in my hourly chart, it should show 7AM has 10, 8AM has 10, 9AM has 10?

type: custom:apexcharts-card
header:
show: true
title: Water Meter (Hourly)
graph_span: 24h
yaxis:

  • min: 0
    series:
  • entity: sensor.water_meter
    group_by:
    func: diff
    duration: 1h
    fill: zero
    start_with_last: false
    type: column
    color: grey
    span:
    start: hour
    offset: ‘-23h’

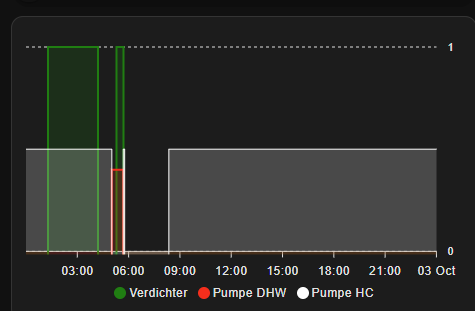

Hi, I want to create a daily chart (from 0-24hr).
Is there an option to display all “future” values with 0?
In this example the “Pumpe HC” is running since 08:30. I want to achieve, that the graph after the current time (08:50 atm) returns to zero.

  • entity: binary_sensor.thz504_pump_hc
    yaxis_id: second
    color: white
    transform: ‘return x === ‘‘on’’ ? 0.5 : -0.1;’
    type: area
    curve: stepline
    opacity: 0.2
    stroke_width: 1
    name: Pumpe HC
    show:
    legend_value: false


Edit: Got it!

extend_to: now


I would like to have a graph of the electricity cost for today and tomorrow. There are examples where this is shown, but tomorrow is offset by 24 hours and overlayed with today, making the graph hard to read. I managed with my very limited programming skills to have two graphs in the same 48 hour graph, but the data for today extends into next day.

Can I somehow either:

  1. Limit the data range of today’s data to not extend into next day?
  2. Generate one 48 hour long graph directly?

For 2, the concat command seems to be related here, but I never got it to display anything.

Code I used:

type: custom:apexcharts-card
header:
  show: true
  title: Nordpool SE3
  show_states: true
  colorize_states: true
all_series_config:
  float_precision: 1
now:
  show: true
  color: '#ff0000'
graph_span: 48h
span:
  start: day
series:
  - entity: sensor.nordpool_kwh_se3_sek_3_10_025
    attribute: current_price
    color: lightblue
    name: Current price
    group_by:
      duration: 1d
    show:
      in_chart: false
      legend_value: false
  - entity: sensor.nordpool_kwh_se3_sek_3_10_025
    name: Today
    show:
      in_header: false
      extremas: false
      legend_value: false
    stroke_width: 2
    data_generator: |
      return entity.attributes.raw_today.map((start, index) => {
        return [new Date(start["start"]).getTime(), entity.attributes.raw_today[index]["value"]];
      });
  - entity: sensor.nordpool_kwh_se3_sek_3_10_025
    attribute: max
    color: red
    name: Today max
    group_by:
      duration: 1d
    show:
      in_chart: false
      legend_value: false
  - entity: sensor.nordpool_kwh_se3_sek_3_10_025
    attribute: average
    color: orange
    name: Today avg
    group_by:
      duration: 1d
    show:
      in_chart: false
      legend_value: false
  - entity: sensor.nordpool_kwh_se3_sek_3_10_025
    attribute: min
    type: column
    color: green
    name: Today min
    group_by:
      duration: 1d
    show:
      in_chart: false
      legend_value: false
  - entity: sensor.nordpool_kwh_se3_sek_3_10_025
    name: Tomorrow
    show:
      in_header: false
      extremas: false
      legend_value: false
    stroke_width: 2
    data_generator: |
      return entity.attributes.raw_tomorrow.map((start, index) => {
        return [new Date(start["start"]).getTime(), entity.attributes.raw_tomorrow[index]["value"]];
      });
yaxis:
  - min: 0
    decimals: 1

Thanks in advance!

Hi @RomRider !

I’m a bit of new to your ApexCharts solution, which is really wonderful for my first feels, and therefore I have just found now this comment… but… are there any option to refer to the historic data of the ‘secondary’ entity, or the only possibility the usage of the last state (hass.states["sensor.temperature_bureau"].state like referring)?

Thanks for your effort in advance!

Hi, awesome Card, love it.

2 Problems I do not get solved so far:

Is it possible to change the Headline font size ?

and how can I bring the battery soc painting starting from 0 of the left y axis ?
(I mean left and right Y axis - 0 point is in a line)

And of course left Y axis show a 0 on the scale as reference line and not -1 :slight_smile:

Thanks for any help

For people to be able to help it would be good to add your yaml (properly formatted)
EDIT
For the title… try this

apex_config:
  title:
    text: HALLO
    align: center
    style:
      fontSize: 20px
      fontWeight: bold

All of a sudden my chart does not display future values. I want do display electricity prices. At 1pm prices for the coming 24hours are released, but I only see values up until “now”. Anyone have any ideas on what changed?
The sensor is the Nordpool integration and this is the configuration for the card:

type: custom:apexcharts-card
apex_config:
  chart:
    height: 200px
graph_span: 24h
experimental:
  color_threshold: true
header:
  title: Elpriser i dag
  show: true
span:
  start: day
now:
  show: true
  label: Nu
series:
  - entity: sensor.nordpool_kwh_se3_sek_2_10_025
    type: line

    color_threshold:
      - value: 0
        color: 79B92C
      - value: 0.2
        color: C4D81D
      - value: 0.6
        color: F3DC0C
      - value: 0.8
        color: F4C616
      - value: 1


Hi, I have a chart with one y-axis on the left side and another on the right side. Do anyone know if it is possible to have seperate annotations on the two axis? I know how to put an annotation on the first (left) y-axis but I can’t figure out how to add it to the right one (the red line in the code below)

type: custom:config-template-card
cache: true
variables:
  SETTEMPMIN: parseInt(states['input_number.floor_heating_set_temp'].state)-0.5
  SETTEMPMAX: parseInt(states['input_number.floor_heating_set_temp'].state)+0.5
entities:
  - input_number.floor_heating_set_temp
card:
  type: custom:apexcharts-card
  graph_span: 2d
  header:
    show: true
    title: Golvvärmen
  yaxis:
    - id: first
      decimals: 0
      min: 14
      max: 27
      show: true
      apex_config:
        tickAmount: 13
        title:
          text: °C
    - id: second
      show: false
      min: 0.1
      max: 10
      apex_config:
        tickAmount: 3
    - id: third
      show: false
      min: 14
      max: 27
      apex_config:
        tickAmount: 13
    - id: fourth
      opposite: true
      decimals: 0
      min: 0
      max: 100
      show: true
      apex_config:
        tickAmount: 10
        title:
          text: '%'
  all_series_config:
    stroke_width: 1
  series:
    - entity: input_number.floor_heating_set_temp
      yaxis_id: third
      color: '#f87c7c'
      curve: stepline
      name: Börtemp
    - entity: sensor.badrummet_temp
      yaxis_id: first
      curve: smooth
      type: line
      color: '#44739d'
      stroke_width: 2
      name: Temperatur
    - entity: sensor.badrummet_humidity
      yaxis_id: fourth
      curve: smooth
      type: line
      color: '#5d36ff'
      stroke_width: 2
      name: Luftfuktighet
    - entity: input_number.home_and_awake
      yaxis_id: second
      color: '#1b8585'
      curve: stepline
      name: Någon är hemma och är vaken
    - entity: input_number.floor_heating_status
      yaxis_id: second
      color: '#ee5b5b'
      curve: stepline
      name: Golvvärme
  apex_config:
    stroke:
      show: true
      dashArray:
        - 3
        - 0
        - 0
        - 0
    legend:
      position: top
    xaxis:
      show: true
      axisBorder:
        show: false
    grid:
      show: false
    annotations:
      yaxis:
        - 'y': ${SETTEMPMIN}
          y2: ${SETTEMPMAX}
          fillColor: '#f6f6b1'
          opacity: 0.25
        - 'y': 70 #I wnat to move this to the fourth y-axis with % as scale
          borderColor: red

Likely (never 100%) nothing with apexcharts, did you check your sensor data?

First: thanks for the idea :slight_smile:

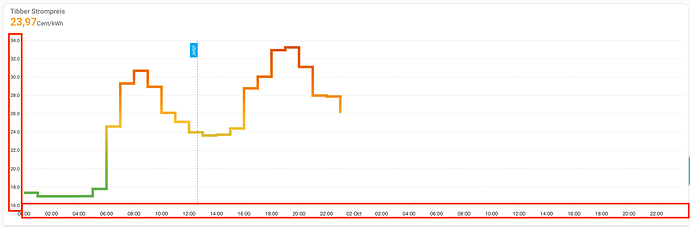

No clue how it works with more than 2 but …
In my chart I only have 2 axis defined

EDIT: the solutions came from browsing apexcharts.js

1 Like

There is a lot of pictures here that are for electricity price and they have the MIN, MAX and AVG in the header and I’ve added that too.

Now I’m wondering that how could I get so that the color of those would also change based on the value?

Below the code for Average as an example

  - entity: sensor.nordpool_kwh_fi_eur_3_10_0255
    attribute: average
    name: Average
    float_precision: 2
    group_by:
      duration: 1d
    show:
      in_chart: false
      legend_value: false

You can try to use the config-template-card (example a few posts back), that allows you to add ‘templates’ instead of fixed values. I however do remember that depending on the sensor (with/out data_generator) it may not work

1 Like
